How to make Trapezoidal Roof Sheets?
Below is a workflow video for you to watch：
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness（0.4-0.7mm） Width（customized）
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Ordinary decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
10-20 rows(As your requirement)
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive chain
|
1.2inch(As your requirement)
|
|||
|
Dimension(L*W*H)
|
10000*1600*1600（customize）
|
|||
|
Weight
|
4-6T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Power
|
7.5KW
|
||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized（famous brand）
|
||
|
Language
|
English（Support multiple languages）
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Product Description：
The trapezoidal sheet making machine is a mechanical equipment used for producing trapezoidal roof tiles, widely used in various industrial and civil construction fields, such as factories, warehouses, sports halls, exhibition halls, and cinemas. The equipment is mainly composed of several parts, including a feeding platform, a forming host, a forming shear device, a hydraulic station, and a computer control system.
Product advantages:
- Corrosion resistance:
Trapezoidal sheet have excellent corrosion resistance and can resist the corrosion of various chemicals such as acidic and alkaline salts for a long time. Experiments have shown that after soaking in various acidic and alkaline salts for 24 hours, trapezoidal roof tiles still remain unchanged and do not change color. - Fireproof performance:
Trapezoidal sheet belong to flame-retardant materials, and their fireproof performance has reached level 81 after testing by the national fire prevention department. - Waterproof performance:
The high weather resistant resin used for trapezoidal roof tiles is dense and non absorbent, and there is no problem of micro pore water leakage. The waterproof performance is more outstanding than traditional tiles. - Impact resistance and low temperature resistance:
Trapezoidal sheet have strong external impact resistance and can maintain color stability in environments with high temperatures of 120 ° C and low temperatures of -30 ° C. - Sound insulation effect:
Trapezoidal sheet has a good effect of absorbing noise and reducing noise penetration when exposed to external noise such as rainstorm and strong wind.

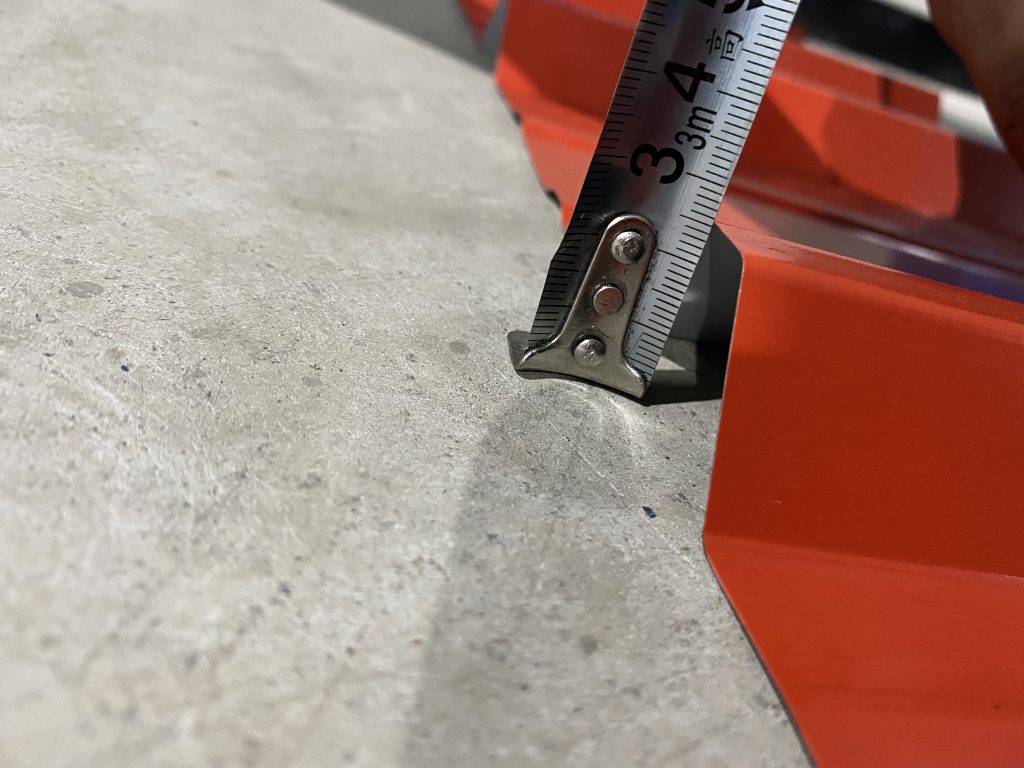

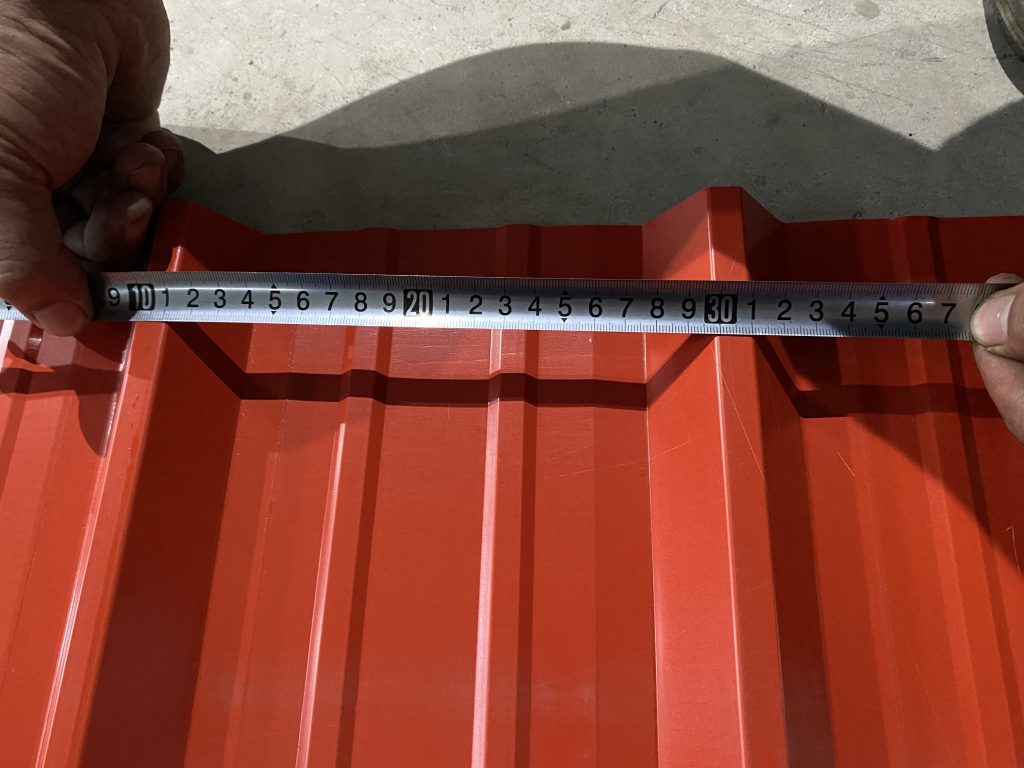

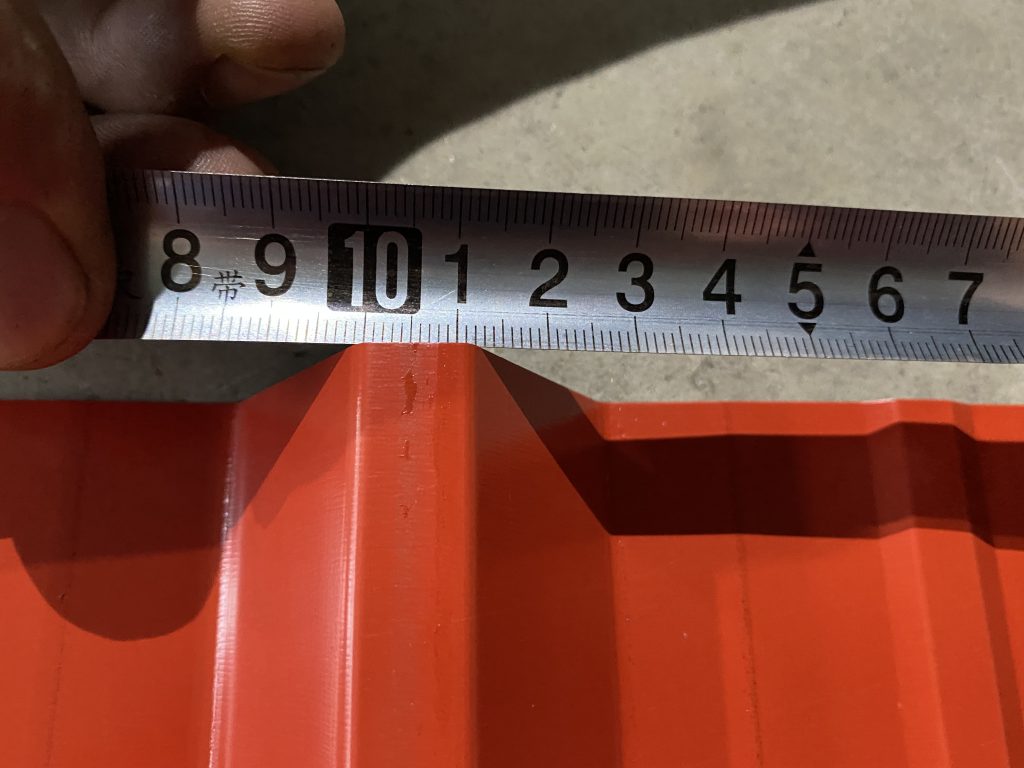

Product accuracy measurement:

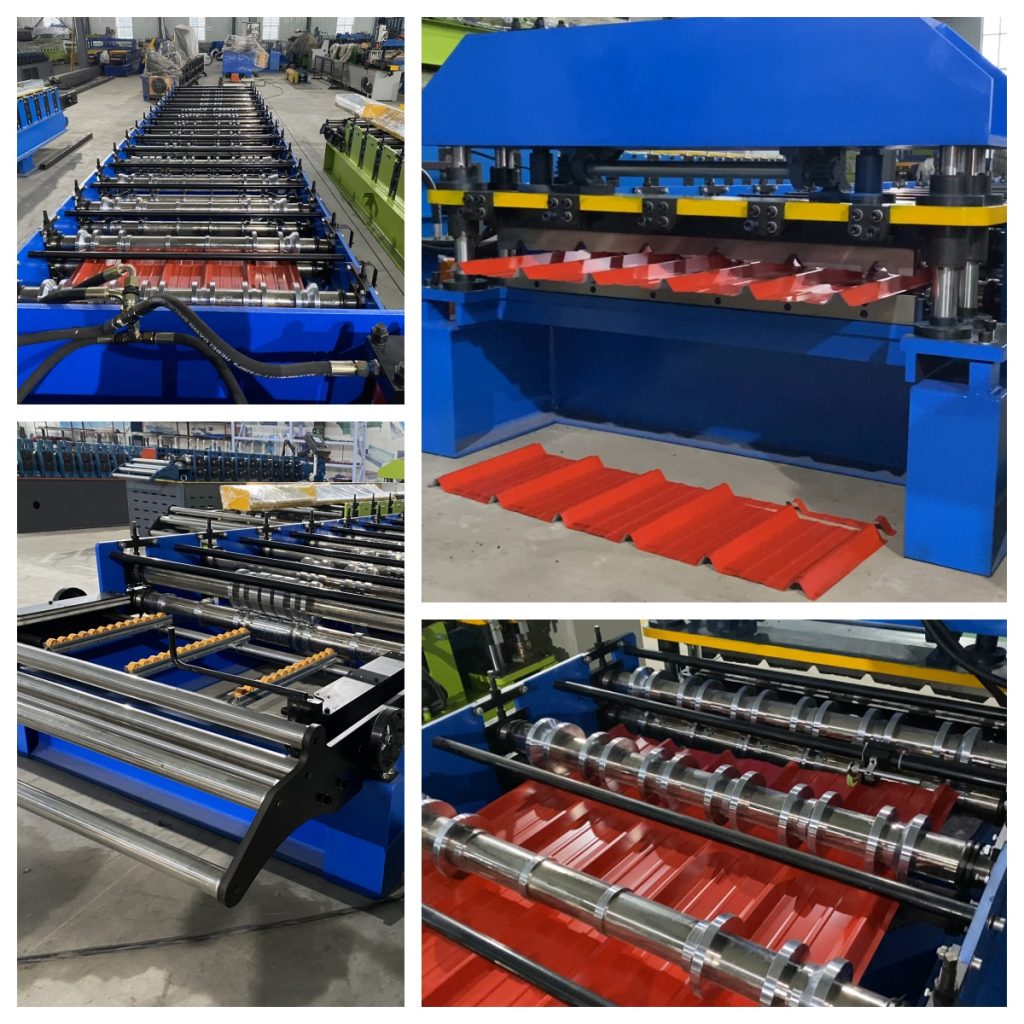

Products Display：
