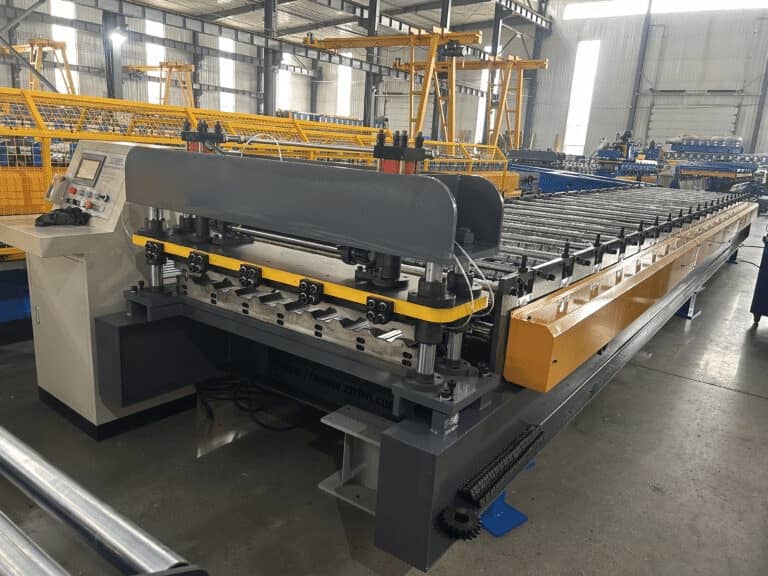

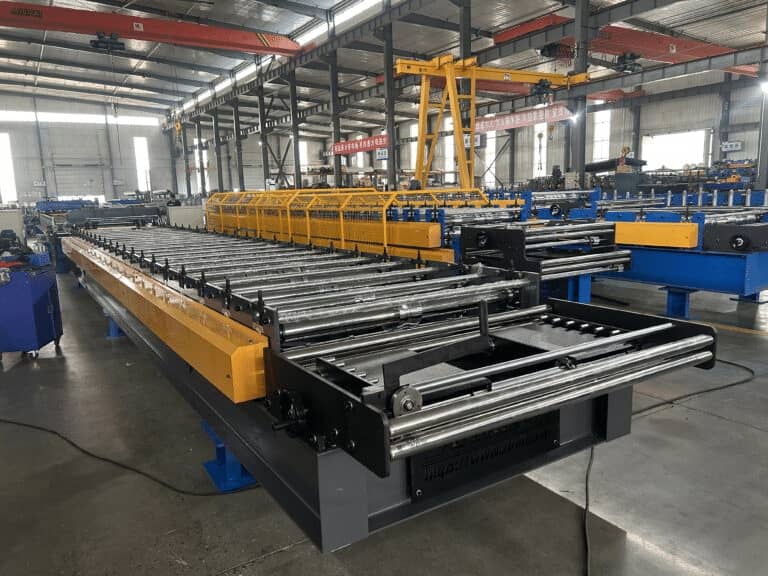

The Metal Roofing Machine Trapezoidal Colored Steel Roof Panel Roll Forming Machine is a fully automatic cold bending forming equipment, dedicated to precision processing galvanized steel strip, color coated steel strip, aluminum strip and other coil materials into trapezoidal section roof tiles and wall panels through continuous rolling. The entire production line consists of a feeding rack, a leveling device, a forming host, a hydraulic cutting system, and a PLC numerical control system. It undergoes cold processing throughout the entire process, without welding or deformation, and can complete fixed length, cutting, and discharging in one go. It is the core equipment for large-scale production of steel structure roof materials.

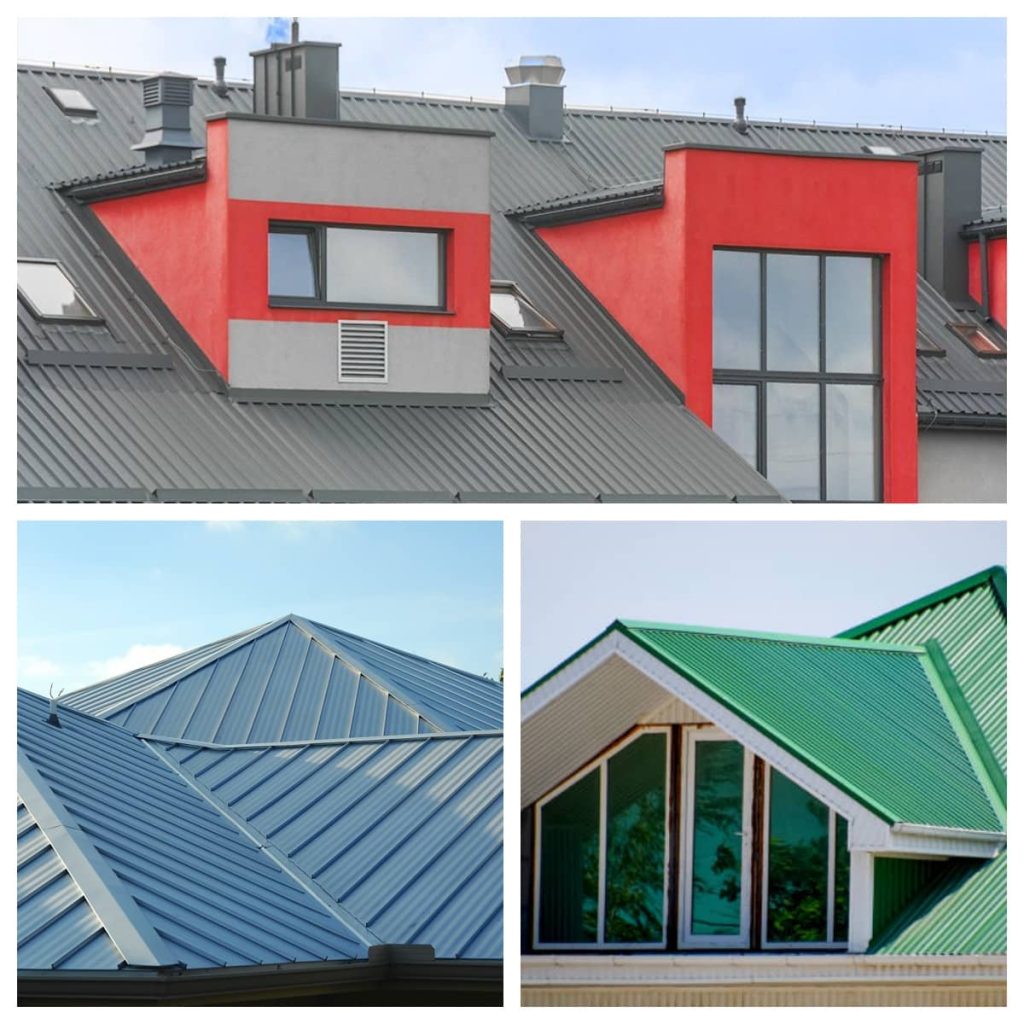

Widely applicable scenarios：
• Industrial building roofs: Waterproofing and enclosure for steel structure factories, warehouses, workshops, and logistics centers, suitable for large-span and high load scenarios.
• Commercial and public buildings: roofs and wall decorations for large venues such as shopping malls, sports centers, exhibition halls, and passenger stations.
• In the field of prefabricated construction, roof tiles for light steel villas and prefabricated houses have waterproof, thermal insulation, and decorative functions.
• Agriculture and Simple Facilities: Roofing materials for agricultural greenhouses, breeding sheds, agricultural machinery sheds, and simple houses are economical, practical, and easy to install.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|

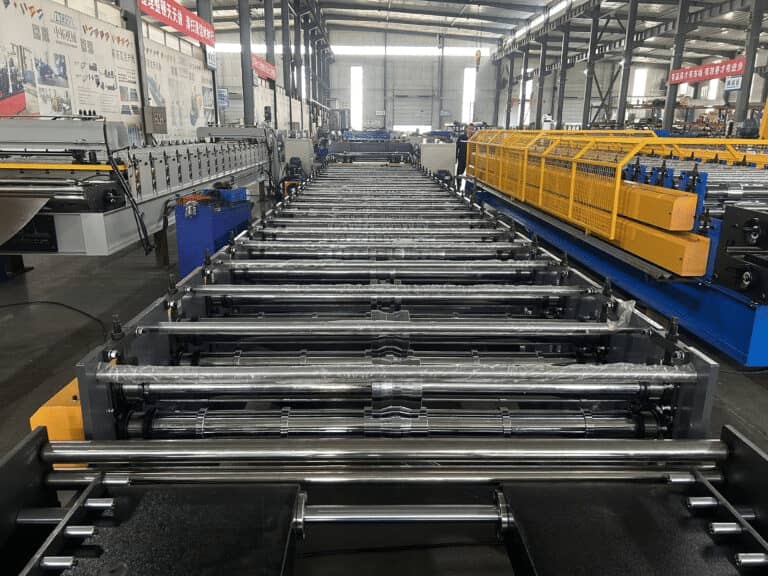

3.Main body
|

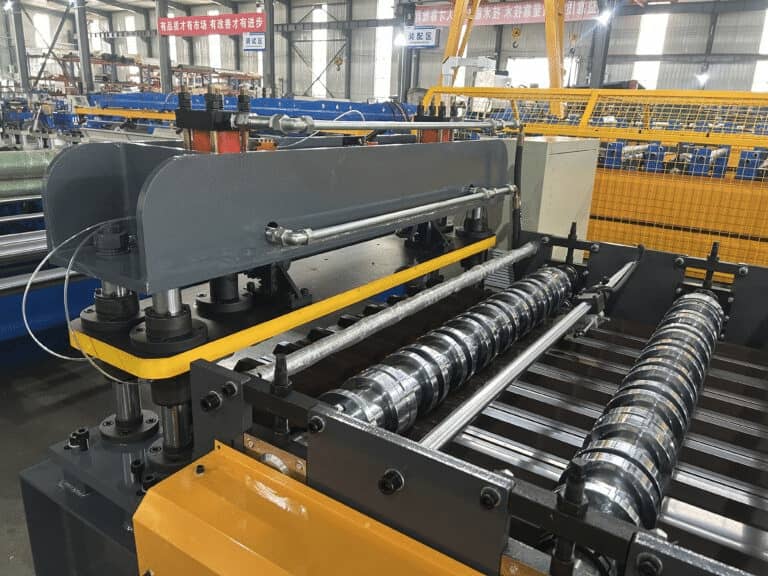

Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|

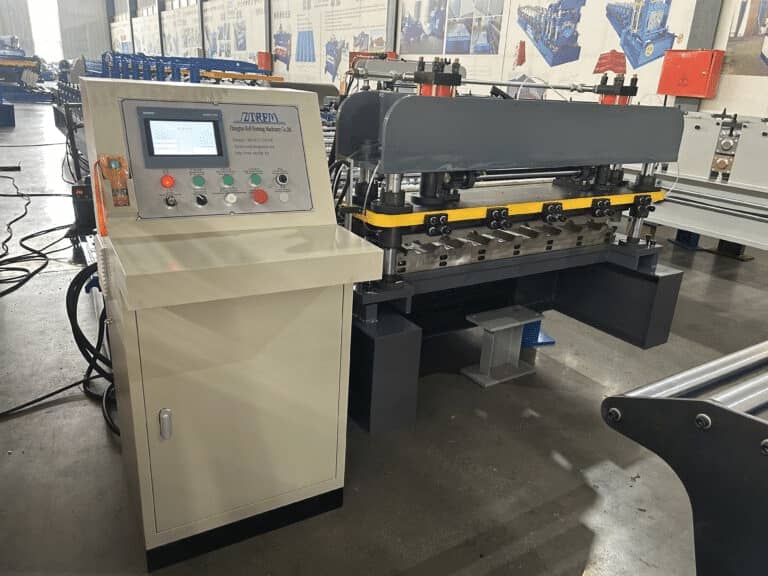

7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-30m/min
|
Provide customized
|
||

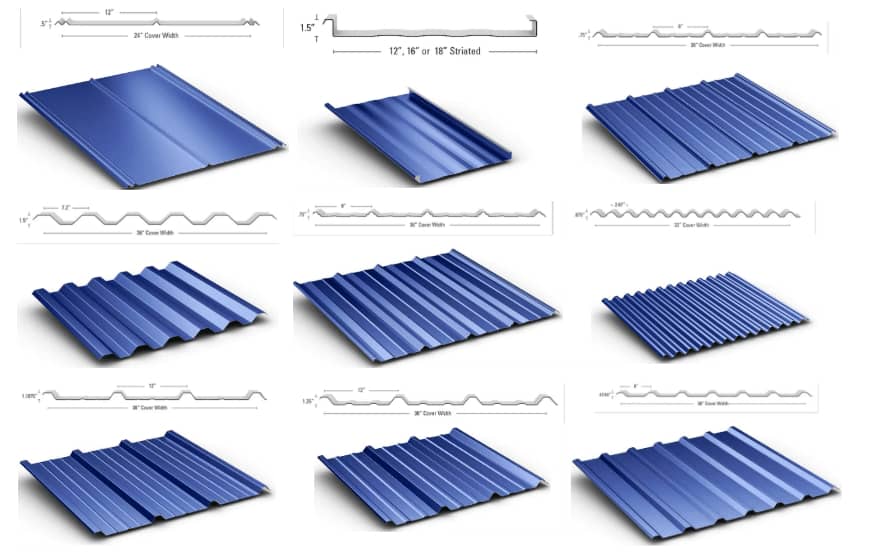

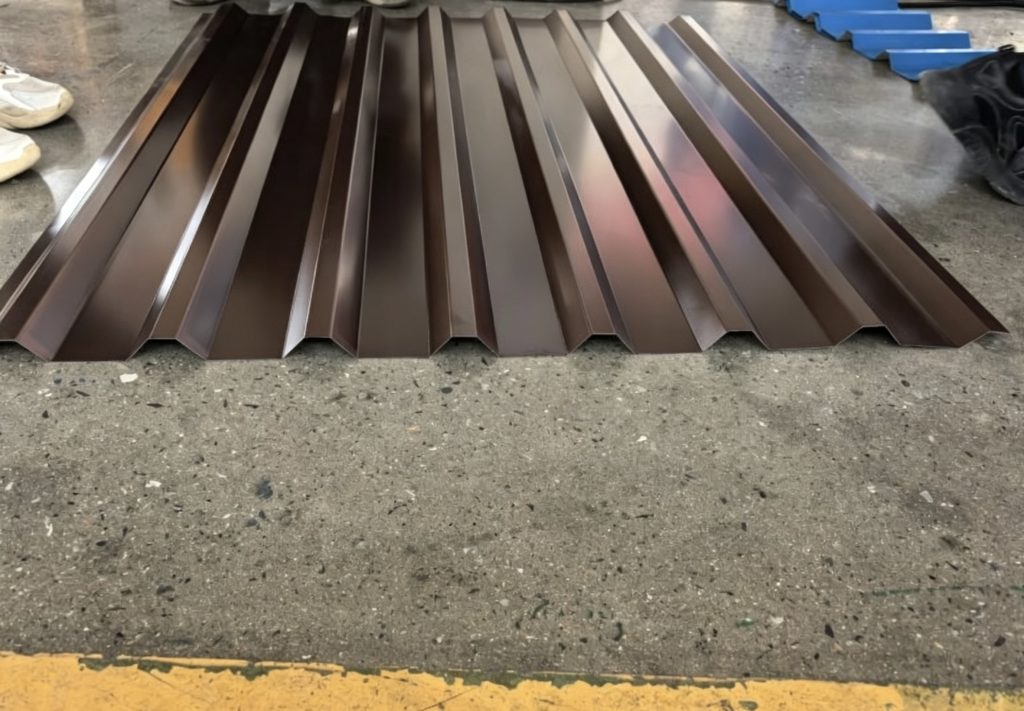

Pattern diagram:
Main features of the equipment:
1.Efficient fully automated production:
adopting PLC intelligent control system, the production speed can reach 15-30m/min, automatically completing feeding, forming, cutting, and counting without manual intervention, significantly improving production capacity and reducing labor costs.
2.High molding accuracy:
Multiple sets of precision roller CNC machining, chrome plated wear-resistant roller surface, size error controlled within ± 0.5mm, cutting accuracy ± 1mm, trapezoidal tile peak and wave distance uniform, good waterproof sealing.
3. One machine is versatile and flexible:
it can adapt to 0.3-0.8mm thick galvanized steel plates, color steel plates, aluminum plates, etc. It can quickly change molds to produce trapezoidal tiles with different wave heights and distances, taking into account both roof and wall panels.
4.Stable and durable structure:
Thick walled welded frame+heat-treated solid shaft, stable transmission, low vibration, low noise, long wear resistance of rollers, suitable for long-term continuous industrial production.
5. Energy saving, environmental protection and safety:
Cold bending process does not require heating, has low energy consumption, and no exhaust gas pollution; Equipped with safety nets and emergency shutdown devices, the operation is safe and reliable.
