Glazed Tile Roll Forming Machine Roof Tile Making Machine for Tile Making
Product Attributes :
Item | Name | Specifications |
1 | Raw material | colored steel plate, galvanized plate, or aluminum plate |
2 | Raw material thickness | 0.18—0.4mm |
3 | Decoiler | 5T |
4 | Felt device | Available |
5 | Roller station | 10stations |
6 | Roller material | 45# steel, surface hard chromium plating. |
7 | Shaft diameter | 70mm |
8 | Shaft material | 45# steel |
9 | Transmission | By double chains |
10 | Motor power | 4kw |
11 | Machine frame | 350H steel |
12 | Cutting type | Hydraulic cutting |
13 | Hydraulic power | 5.5kw |
14 | Cutting blade material | Cr12 quenched |
15 | Cutting tolerance | +/1mm |
16 | Control system | Delta/ Siemens PLC |
The advantage of Glazed Tile Roll Forming Machine Roof Tile Making Machine for Tile Making:
- Efficient production:
The glazed tile roll forming machine adopts advanced manufacturing technology and automated production lines, which can significantly improve production efficiency and reduce labor and time costs. This efficient production method makes the mass production of glazed tiles more feasible and efficient. - Diversified design:
The glazed tile roll forming machine can produce glazed tiles in various shapes and colors to meet the needs of different architectural designs and decorations. By adjusting the mold and glaze formula, it is easy to achieve diversified product output and increase market competitiveness. - Easy maintenance:
The glazed tiles produced by the glazed tile roll forming machine have excellent weather resistance and weathering resistance, long service life, and reduce maintenance costs in the later stage. At the same time, the precision of mechanical processing is high, reducing errors caused by manual operation and further reducing maintenance difficulty.
Product Description:
The glazed tile roll forming machine is a device used for building houses, which uses galvanized steel plates or colored steel plates or aluminum plates as raw materials. The products produced are used to build the exterior roof and wall panels, as well as interior decorative panels or ceilings of houses, to increase the beauty and durability of the roof or walls. The finished product produced by the glazed tile pressing machine production line has a smooth and even surface, without scratches, making it easy to install during construction.

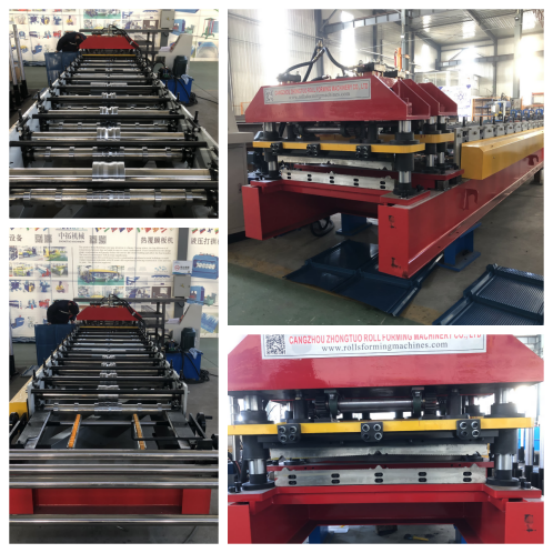

Products Display:
