Metal U Track Profile with Holes Slotted U Channel Rolling Forming Machine
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.4mm
|
||
|

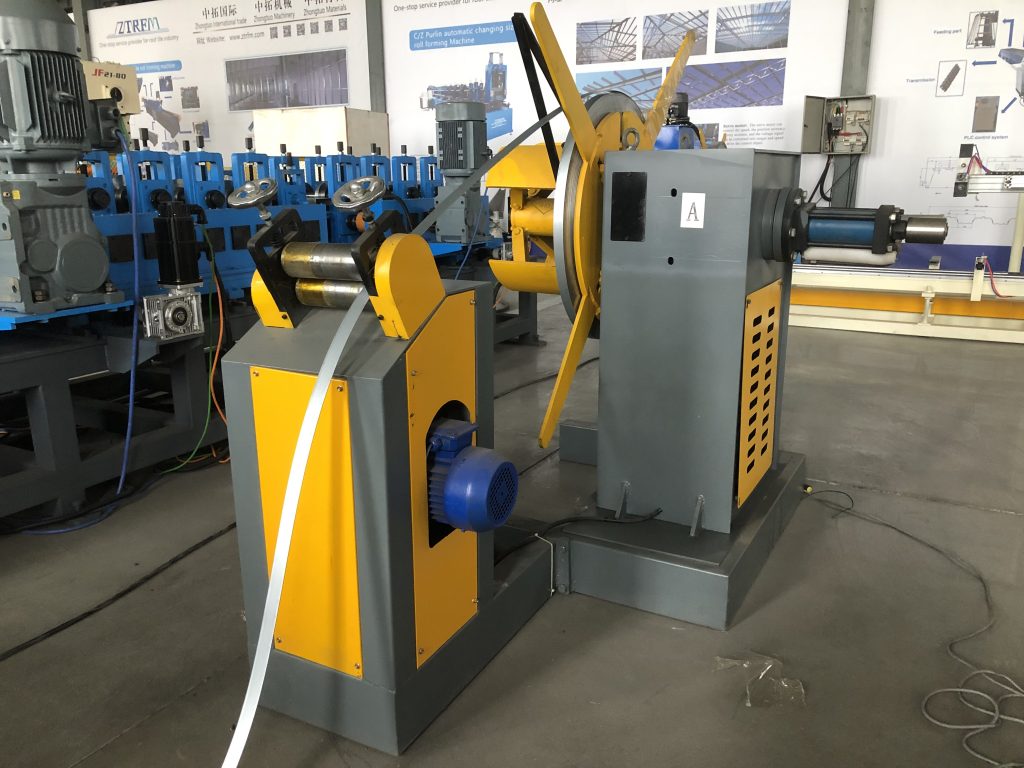

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

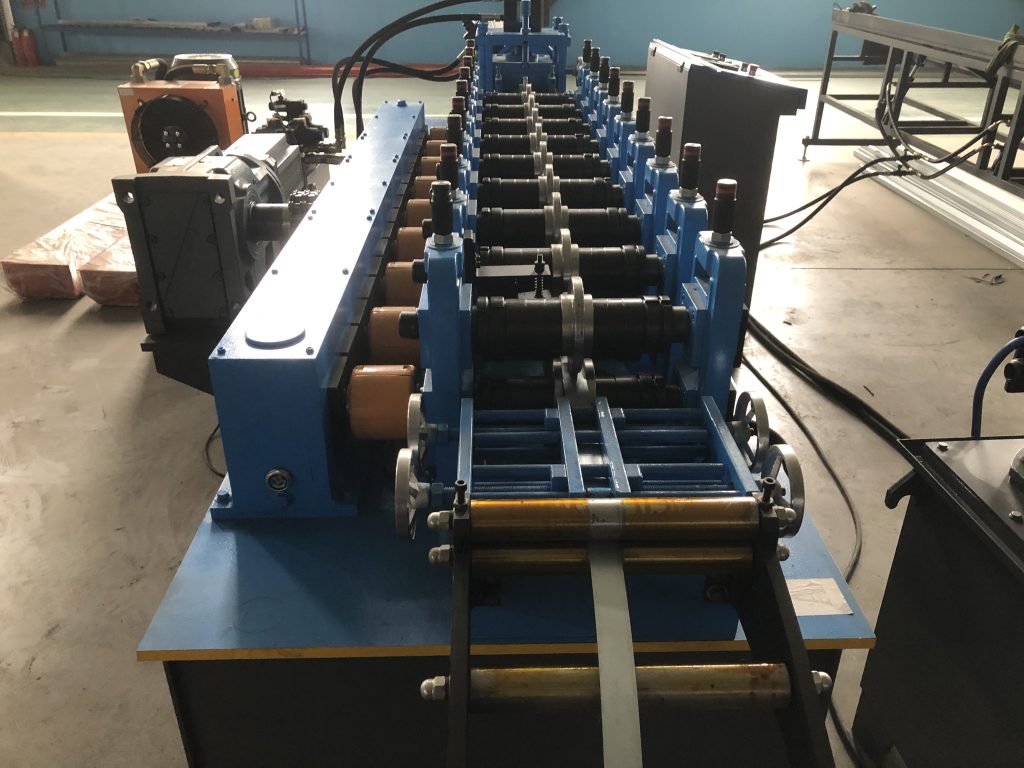

3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

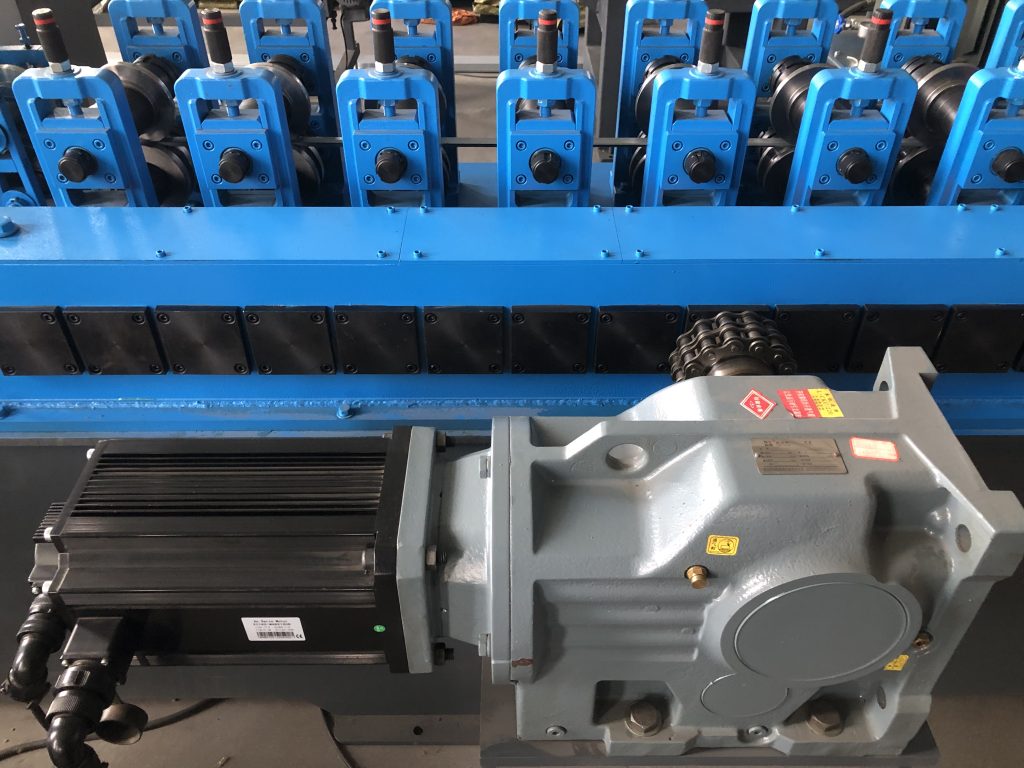

Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|

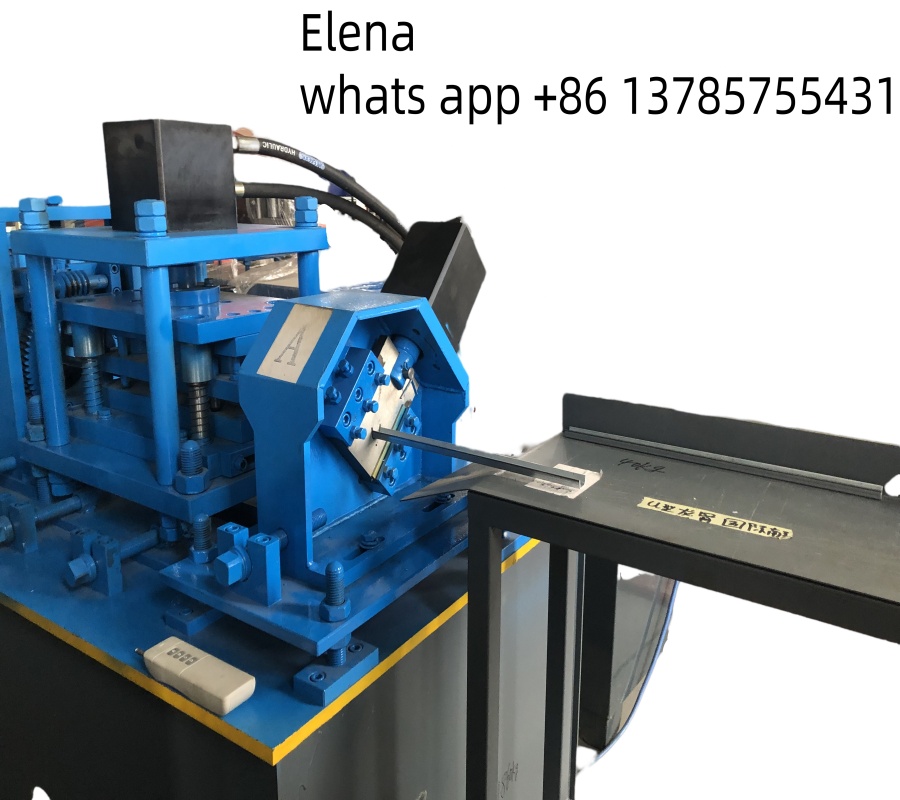

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-30m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

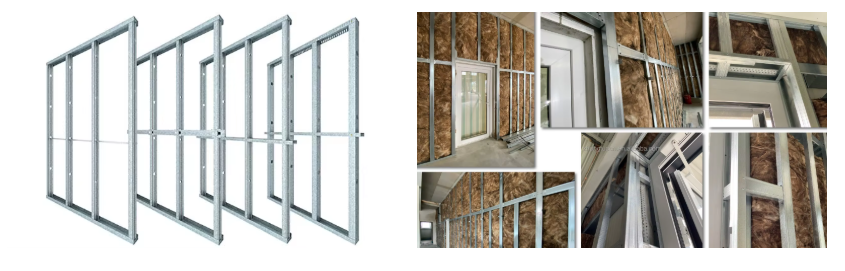

The advantage of Metal U Track Profile with Holes Slotted U Channel Rolling Forming Machine：
- The structure is simple and easy to install:
the shape of the U-shaped keel is “U” – shaped, with the two wings used to carry the ceiling material, and the middle groove used to connect and support other keel systems. This structure makes the installation process relatively simple and suitable for small area ceiling projects. - Lightweight, easy to transport and install:
Compared to T-shaped keels, U-shaped keels are lighter in weight, making them more convenient to transport and install. - High construction efficiency:
Due to the lightweight texture of the U-shaped keel, it can be quickly installed during construction, thereby improving construction efficiency. - Strong impact resistance:
U-shaped keel has good impact resistance, can bear large weights, and can still maintain good support in earthquake and other situations.
Product Description：
The u channel rolling forming machine is an indispensable equipment in the construction industry, dedicated to producing U-shaped light steel keels. It is an important material for modern ceiling, partition and other decoration projects. Zhongtuo u channel rolling forming machine supports customized processing to meet your personalized needs.
