ZTRFM Full Automatic Metal Trapezoidal IBR Roofing Sheets Making Machine

ZTRFM Full Automatic Metal Trapezoidal IBR Roofing Sheets Making Machine

Product Attributes :

1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.8mm  Width:1220mm/1450mm(customized as drawing)
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free)
3.Main body
Roller station
20 rows(As your requirement)
 Diameter of shaft
90mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
400 H steel
Drive
Chain transmission
Dimension(L*W*H)
12500*1800*1600(customize)
Weight
10.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
7.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
15-20m/min
The speed is adjustable

The advantage of ZTRFM Full Automatic Metal Trapezoidal IBR Roofing Sheets Making Machine:

  1. Improve production efficiency:
    The trapezoidal ibr roofing sheets making machine adopts an automated production line, which can greatly improve production speed, reduce labor costs, and achieve large-scale production. Efficient rolling technology and rapid mold replacement capability help reduce downtime and improve overall productivity.
  2. Design flexibility:
    The trapezoidal ibr roofing sheets making machine usually supports customization of multiple specifications and sizes, and can adjust production parameters according to project needs to meet the requirements of different building designs.
  3. Material adaptability:
    These devices can handle different types of metal materials, such as galvanized steel plates, color coated steel plates, etc., and are suitable for the anti-corrosion and decorative requirements of different construction projects. At the same time, the equipment can protect the surface coating of raw materials from damage and maintain product quality.
  4. Automated control:
    This equipment adopts an advanced computer control system to achieve automated operation of the production process. This system can be quickly adjusted to meet the production needs of different specifications.

Product Description:

The trapezoidal ibr roofing sheets making machine is a mechanical equipment specifically designed for producing trapezoidal roof panels. It can use different types of metal materials, such as galvanized steel plates, color coated steel plates, etc., to produce roof panels of different materials. It is suitable for the anti-corrosion and decoration requirements of different building projects and is widely used in industrial plants, warehouses, commercial buildings, public facilities, and other types of building projects. Its special structural design enables the roof panel to have good waterproof, thermal insulation, load-bearing, and wind resistance performance, which can meet various building needs.

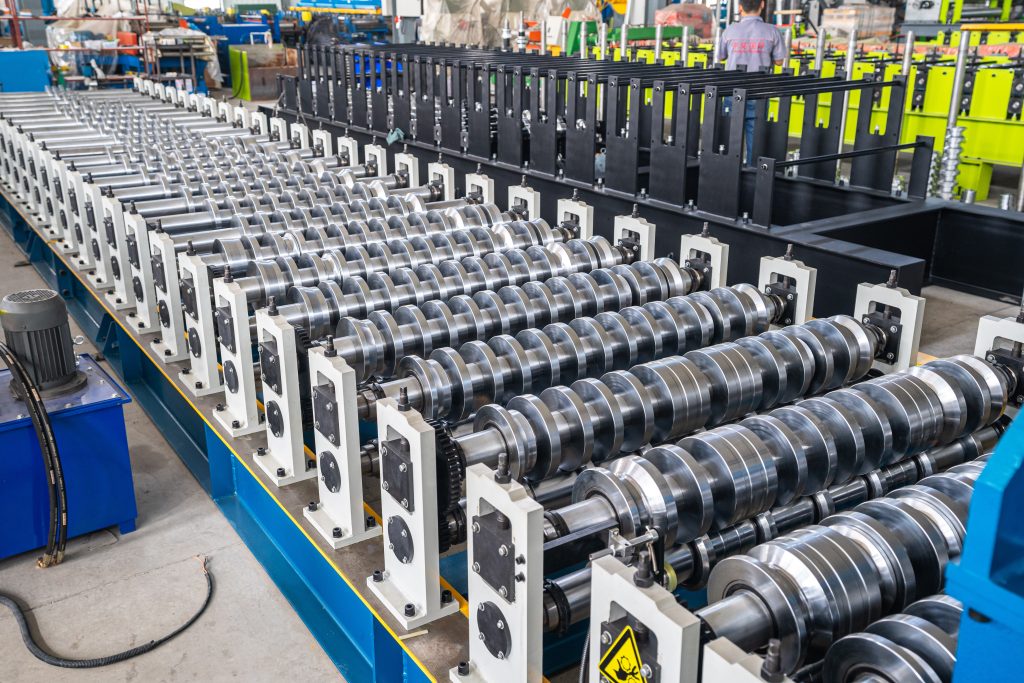

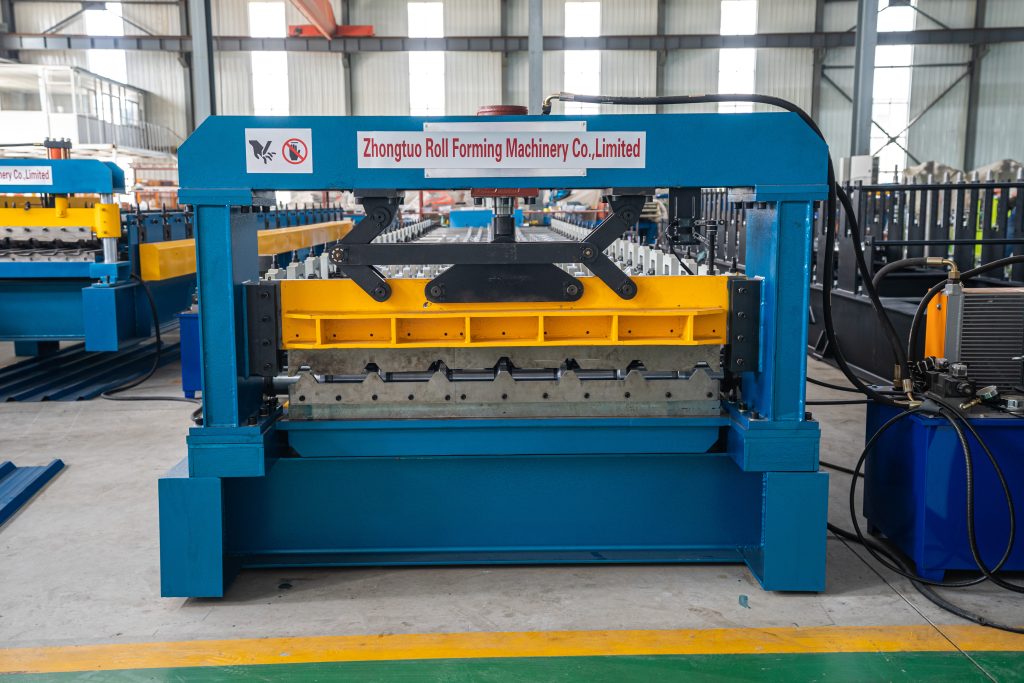

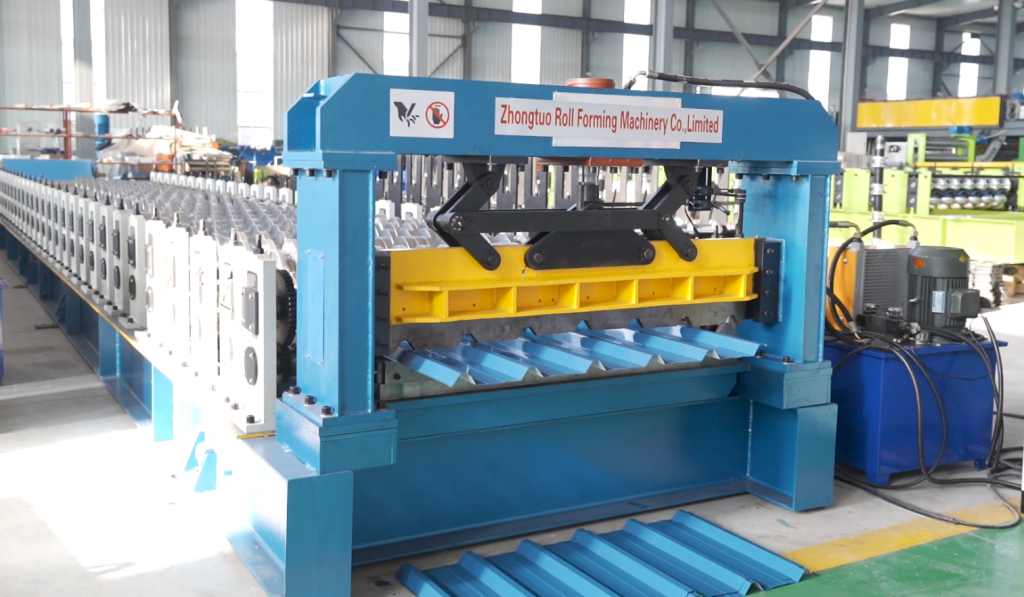

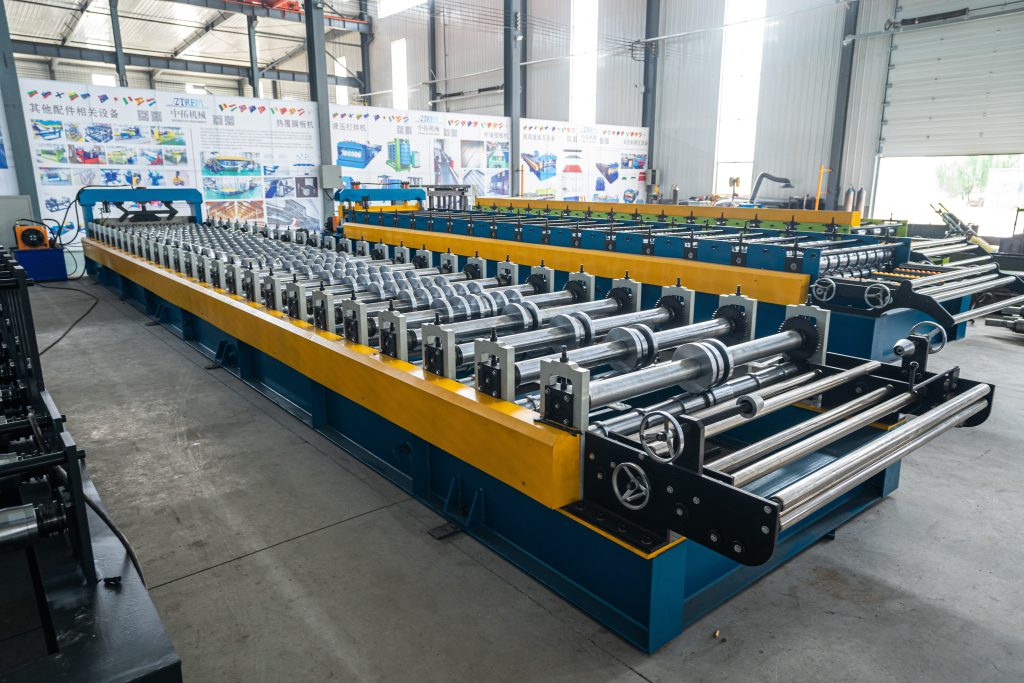

Products Display:
