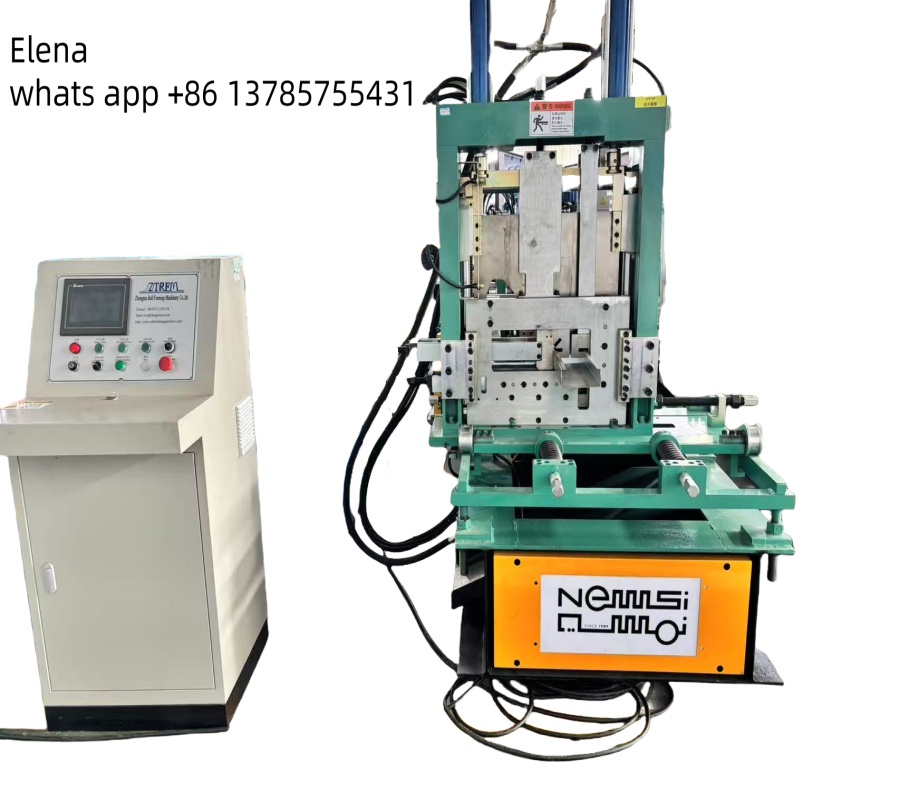

CZ full automatic purlin roll forming machine are widely used in fields such as construction and industry. C-shaped and Z-shaped steel are common building materials used for wall and roof structures in buildings. TheCZ full automatic purlin roll forming machine processes steel to produce C-shaped and Z-shaped steel with specific shapes and sizes, meeting the needs of various construction projects.
Technical features:

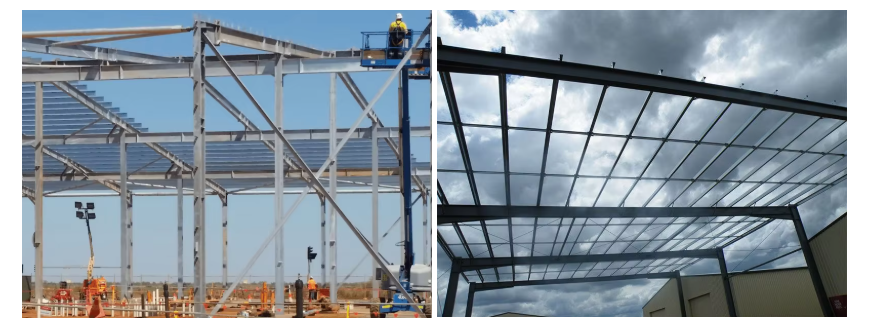

CZ steel structure has the advantages of light weight, fast installation, short construction period, and strong seismic performance, and is suitable for low rise villas, industrial plants, and other buildings. With the increasing demand for efficient and high-quality building materials in the construction industry, the market prospects of CZ steel machines are broad, especially in economically developed areas and projects that require rapid construction.

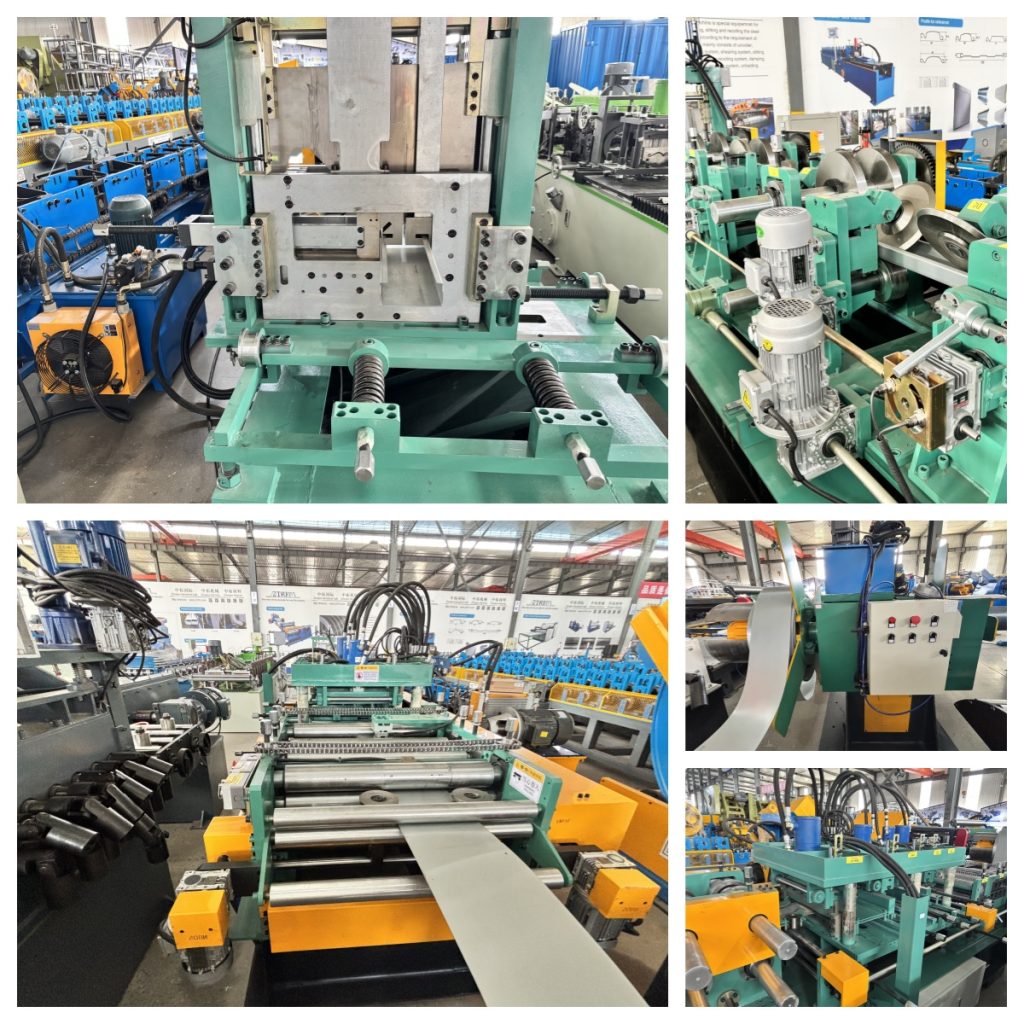

working flow:

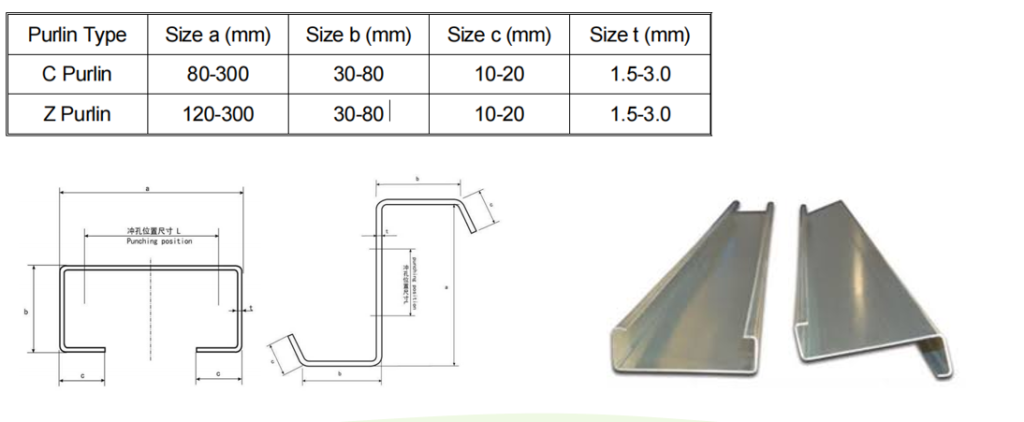

Pattern diagram：
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-3 mm (standard)
|
||
|
2.Decoiler
|
3 Tons Hydraulic automatic decoiler
|
3 Tons Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows (As your requirement)
|
||
|
Diameter of shaft
|
80 mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
as your requirement
|
|||
|
Dimension(L*W*H)
|
15000*1800*1600(customize)
|
|||
|
Weight
|
5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
8.Forming Speed
|
25 m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
