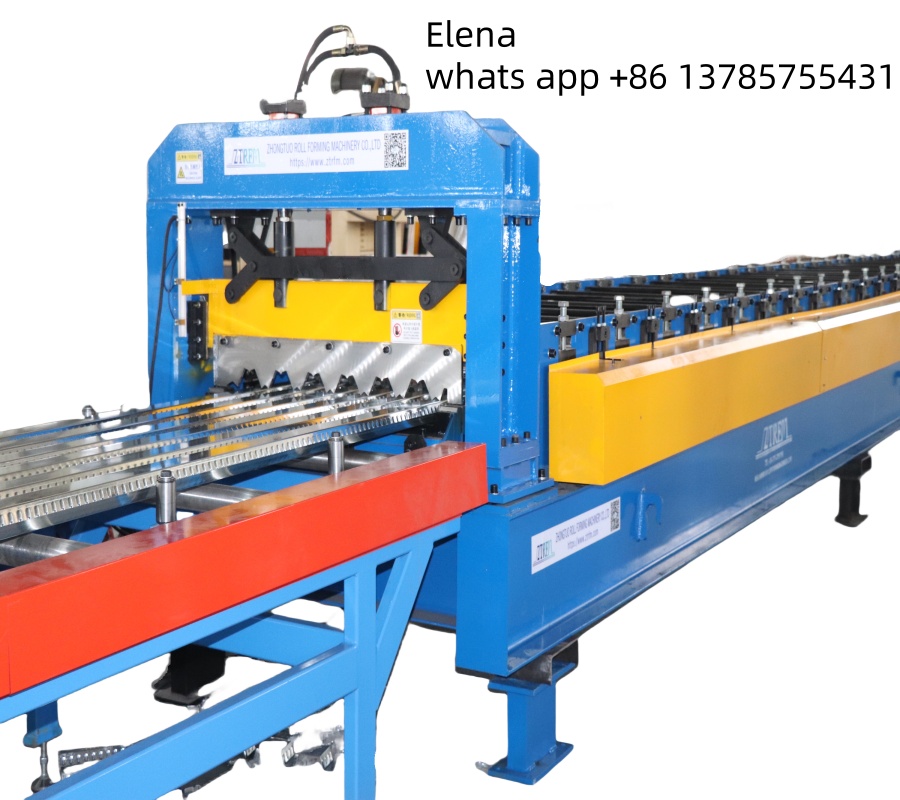

Metal Steel Decking 1.5” Composite Floor Deck Roll Forming Machine
Product Attributes :
|
Processing material
|
galvanized coils yield strength till 550 Mpa
|
|||
|
Material thickness
|
0.8-1.5 mm(16-22gauge)
|
|||
|
Input material width
|
1220mm
|
|||
|

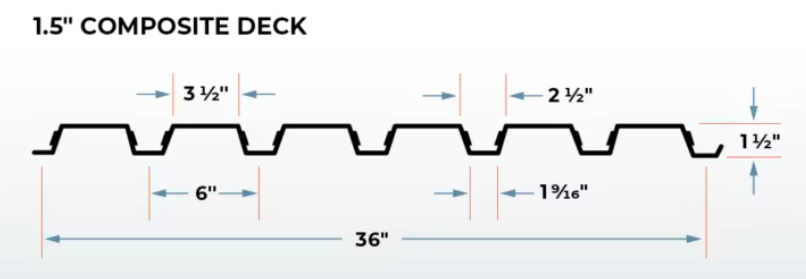

Effective width after forming
|
36‘’， 914mm
|
|||
|
Voltage
|
480 v 60 hz 3 phase or as request
|
|||
|
Frame
|
400 H beam steel welded
|
|||
|
Roller fixer
|
Middle plate (thickness 20mm)
|
|||
|
Drive mode
|
2 inches double chain with chain tensors(gearbox type optional)
|
|||
|
Material of rollers
|
Gcr15 quenching treat HRC58-60
|
|||
|
Material of shafts
|
45# steel precision-machined
|
|||
|
Diameter of shafts
|
φ 95 mm
|
|||
|
Number of rollers
|
about 28 rollers
|
|||
|
Drive motor power
|
18.5 kw x 2 sets
|
|||
|
Forming speed
|
0-15 m per minute
|
|||
The advantage of Metal Steel Decking 1.5” Composite Floor Deck Roll Forming Machine：
1.Efficiency:
The metal steel decking 1.5” composite floor deck roll forming machine can achieve fast and precise installation, greatly improving construction efficiency. Through intelligent positioning systems and powerful fixed functions, it is possible to quickly build floor structures and shorten construction periods.
2.Environmental friendliness:
The metal steel decking 1.5” composite floor deck roll forming machine adopts prefabricated components, reducing the amount of wet work and construction waste on the construction site, which is conducive to environmental protection and sustainable development. For example, the Zhoushan 200 free pouring floor slab machine reduces environmental pollution caused by traditional pouring operations and greatly reduces construction waste on the construction site.
3.Intelligence and automation:
Advanced floor slab manufacturing equipment adopts automated and intelligent production, improving the accuracy and stability of the production process, reducing errors caused by manual operation, and meeting the demand for products in the rapidly developing construction market.
Product Description：

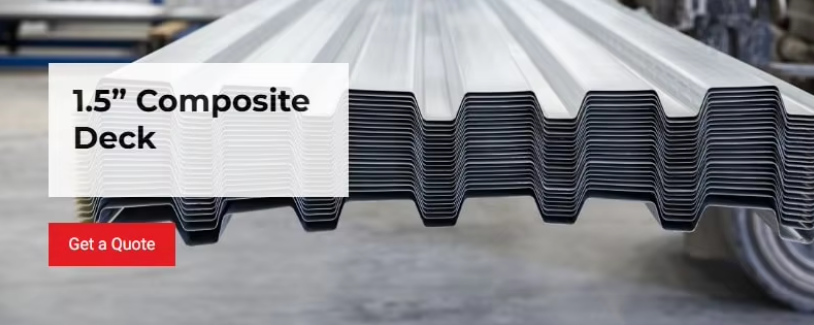

Metal steel decking 1.5” composite floor deck roll forming machine is a mechanical equipment used for producing floor slabs, mainly used for the production and installation of floor slabs in the construction industry. Zhongtuo Machinery has simplified the processing and installation process of floor slabs through automation and mechanization, improving construction efficiency and quality. Widely used in multi story buildings, industrial plants and other scenarios, especially suitable for projects with high schedule requirements. Its efficient, environmentally friendly, and safe characteristics make it an indispensable and important tool in modern construction.

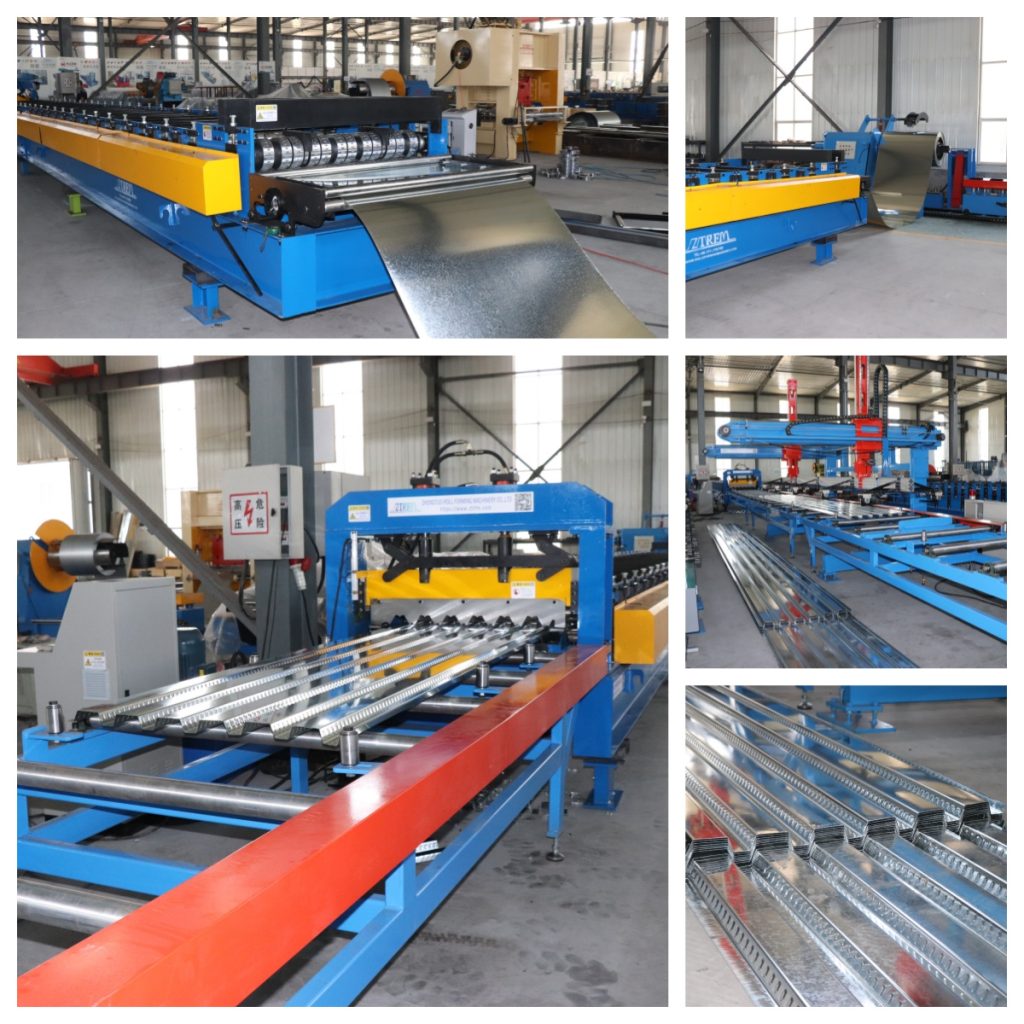

Products Display：
