Metal roofing sheet with anti-condensation felt roll forming machine
Our factory is professional in manufacturing different kinds of roll forming machines,such as IBR roof sheet machine,Metal tile machine,floor deck machine,Drywall stud and track machine,slitting and cutting to length machine and so on,our machines have exported to the whole world and we gain good reputation in the world.
Metal roofing sheet with anti-condensation felt roll forming machine is produced for Ireland customer,the features of this machine:
- One machine can produce both trapezoidal sheet and corrugated sheet.
- One machine can use both 1220mm width coil and 1250mm width coil.
- This machine has felt device,which can attach the felt on the sheet.
- The finished product is absolutelyflat after cut.
- The voltage of this machine is 230V,50HZ,Single phase!
The common problem of the most machine manufacturer:
Because this sheet need to add the felt on the bottom of the sheet,so it increase the difficulty of the machine’s design.A lot of factories’ machine can’t produce the flat sheet,it has a big curve of the sheet.But our machine can make the sheet very flat,please see the comparison in the delow:

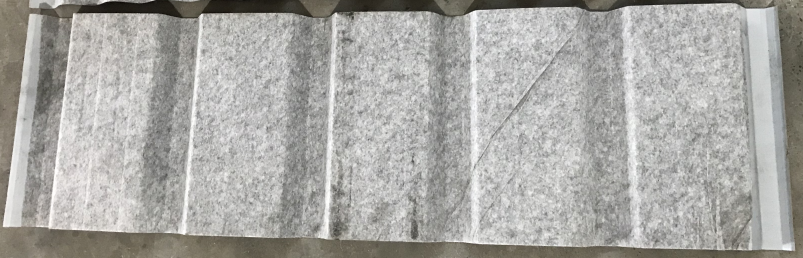

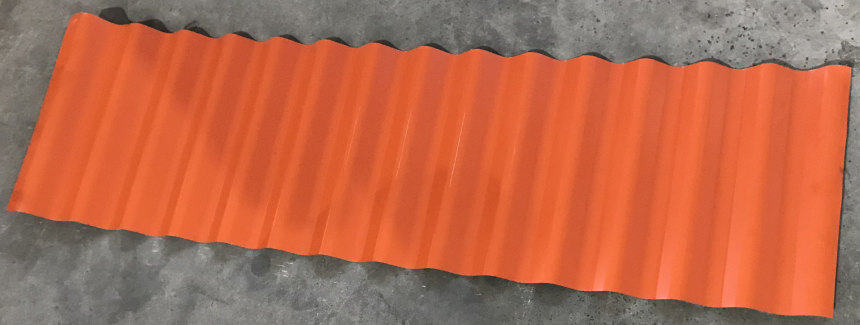

More pictures for our finished product:
The profile drawing for the felt sheet:
The components of the metal roofing sheet with anti-condensation felt roll forming machine:
| No. | Name | Quantity |
| 1 | Manual/hydraulic Decoiler | 1 set |
| 2 | Felt device | 1 set |
| 3 | Main roll former | 1 set |
| 4 | Control system | 1 set |
| 5 | Hydraulic system | 1 set |
| 6 | Product Run-out table | 1 set |
The technical specifications of the metal roofing sheet with anti-condensation felt roll forming machine:
| Item | Name | Specifications |
| 1 | Raw material | Galvanized steel and Pre-painted steel |
| 2 | Raw material thickness | 0.3-0.6mm(thickness range shouldn’t be too big) |
| 3 | Decoiler | 5T Hydraulic decoiler(Different capacity for option,manual one for option) |
| 4 | Felt device | Available |
| 5 | Roller station | 17+19 stations |
| 6 | Roller material | 45# steel with quenched treatment |
| 7 | Shaft diameter | 80mm |
| 8 | Shaft material | 45# steel with tempered |
| 9 | Transmission | by chain |
| 10 | Motor power | 5.5kw |
| 11 | Machine frame | 350H steel welded |
| 12 | Cutting type | Hydraulic cutting |
| 13 | Hydraulic power | 5.5kw |
| 14 | Cutting blade material | Cr12 with quenched treatment |
| 15 | Cutting tolerance | +/-1mm |
| 16 | Control system | PLC |
| 17 | Brand | PLC:Delta/Siemens/Mitsubishi
Touch screen:Delta/Siemens/Mitsubishi Encoder:Omron |
The features of metal roofing sheet with anti-condensation felt roll forming machine:
- Decoiler:Manual one or hydraulic one for option,different budge can choose different type.
- Roll forming machine:
- Machine frame:350# H steel welded,with beam supporter in the middle of frame
- Transmission:Double chains
- Shaft diameter:80mm,all the shaft are guaranteed solid
- Roller material:High grade 45# steel,the surface is chromed to improve the hardness of the roller
- Our double layer machine has the clutch device,with this device the machine’s upper layer and lower layer will not work at the same time,which can reduce the roller abrasion,so the machine’s life time will be longer too.
- Cutter:We use 4 pillars strong cutter frame,and the cutting mould is Cr12 mov with quenched treatment which can guarantee the quality
- Control system:Our control system use famous brand,such as Delt,Siemens,Omron, Schneider and Mitsubishi,and we also use the brand that customer want.
- Hydraulic system:All of our hydraulic stations are equipped with fan cooling,which can cool down the coil’s temperature after long time working or the working at hot weather.
The pictures of metal roofing sheet with anti-condensation felt roll forming machine:
- Decoiler(Manual and automatic for option)
2.Felt device
3.Roll former
4.Control station & hydraulic station
5.Run-out table
