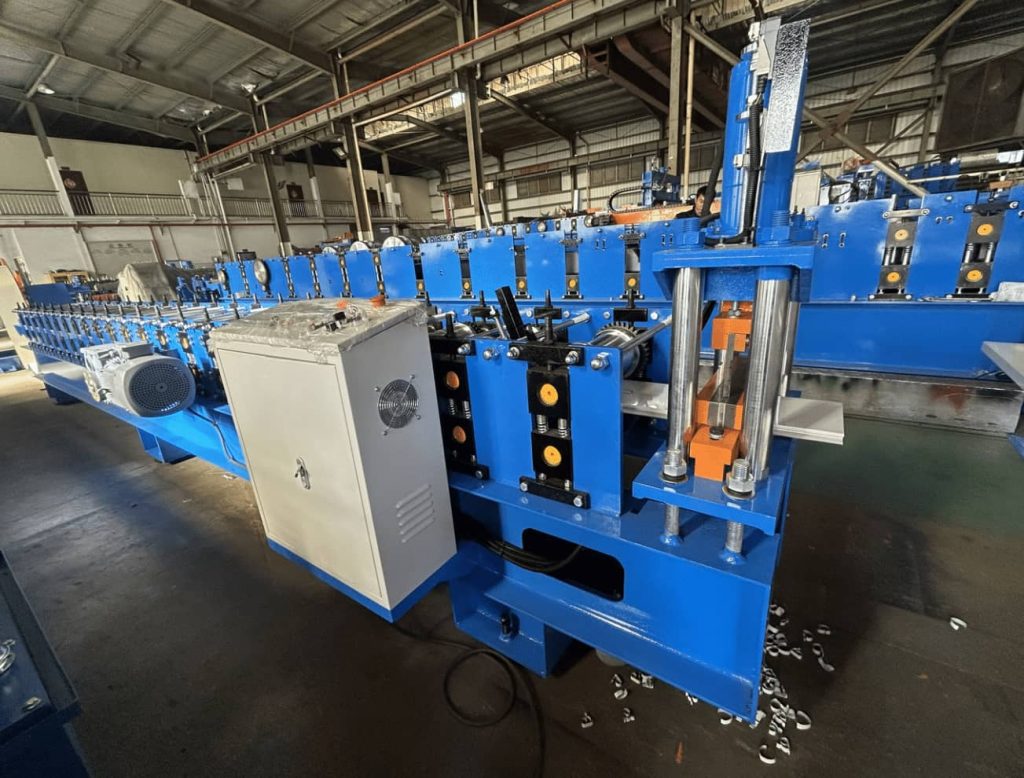

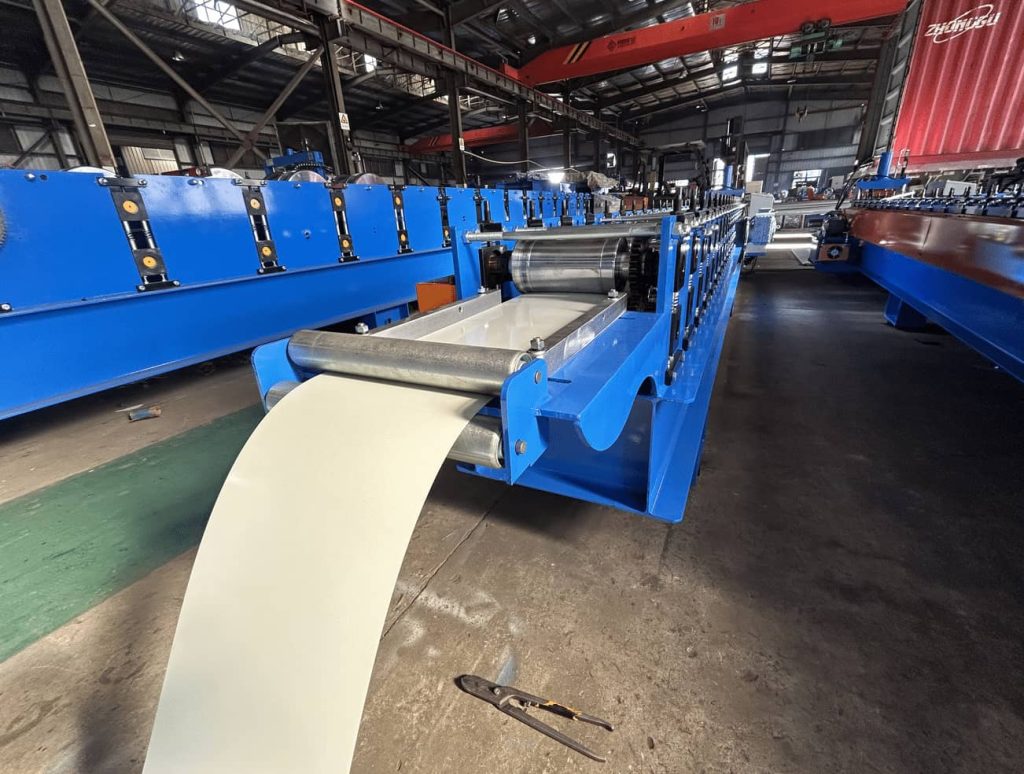

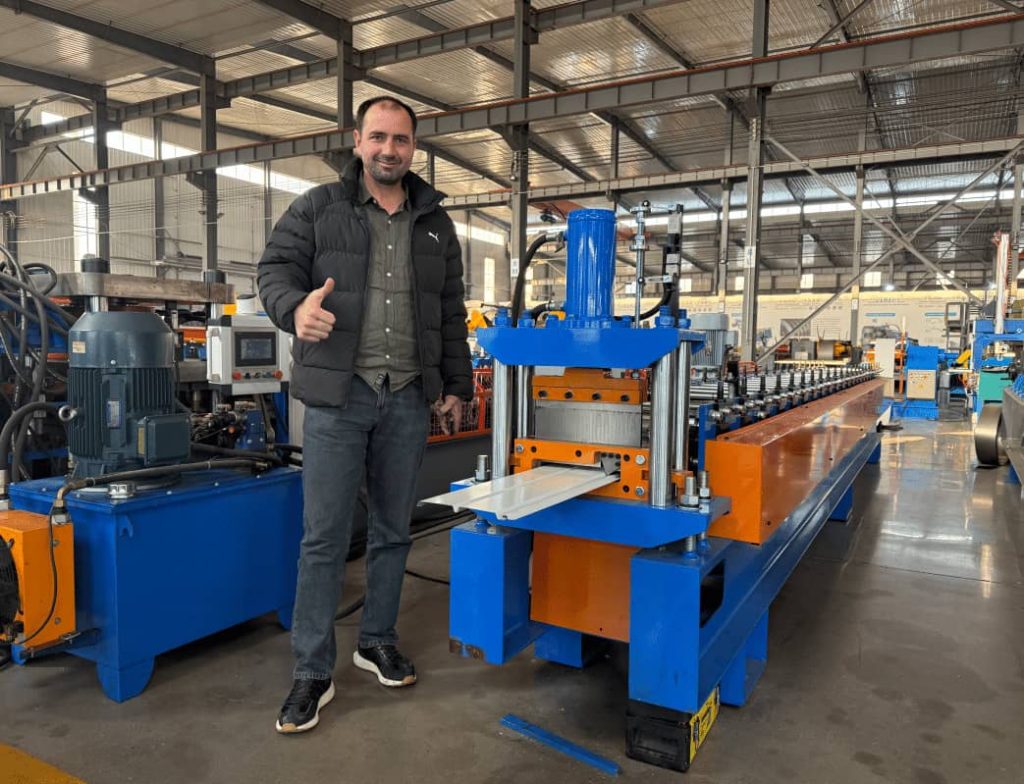

The Automatic High Quality Ceiling Panel Roll Forming Machine is a fully automatic cold bending roll forming equipment, mainly used to continuously roll and cut aluminum coils, galvanized coils, color steel coils, stainless steel coils, and produce various integrated ceilings, aluminum buckle plates, long buckle plates, engineering ceiling panels, ceiling dragon bones and other finished panels in one go.

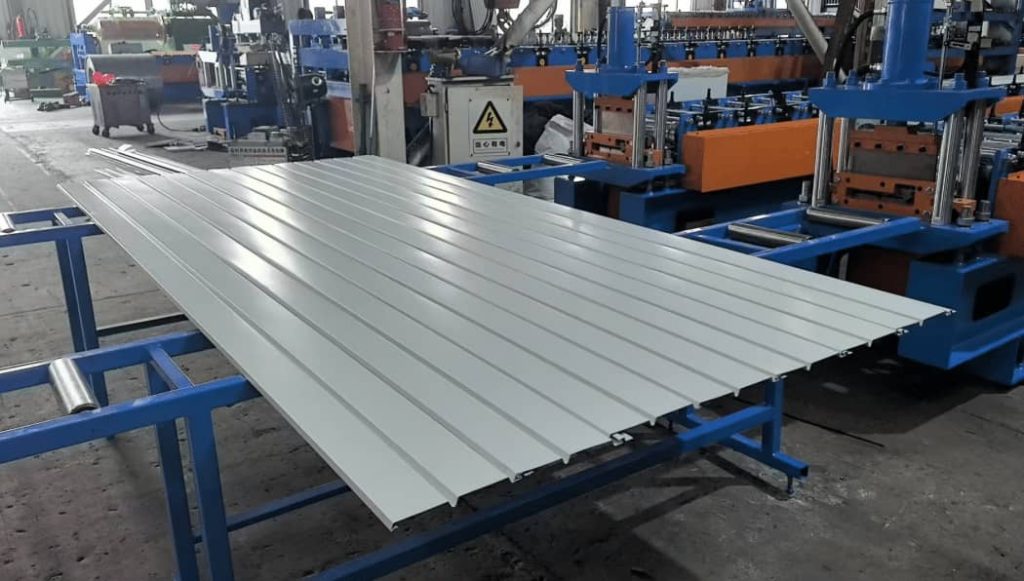

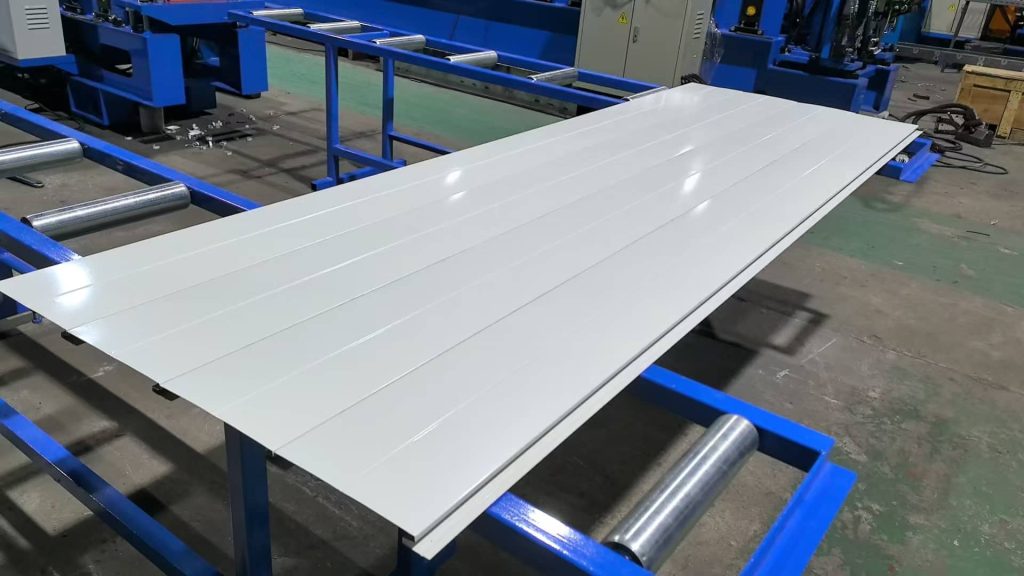

Finished product image:

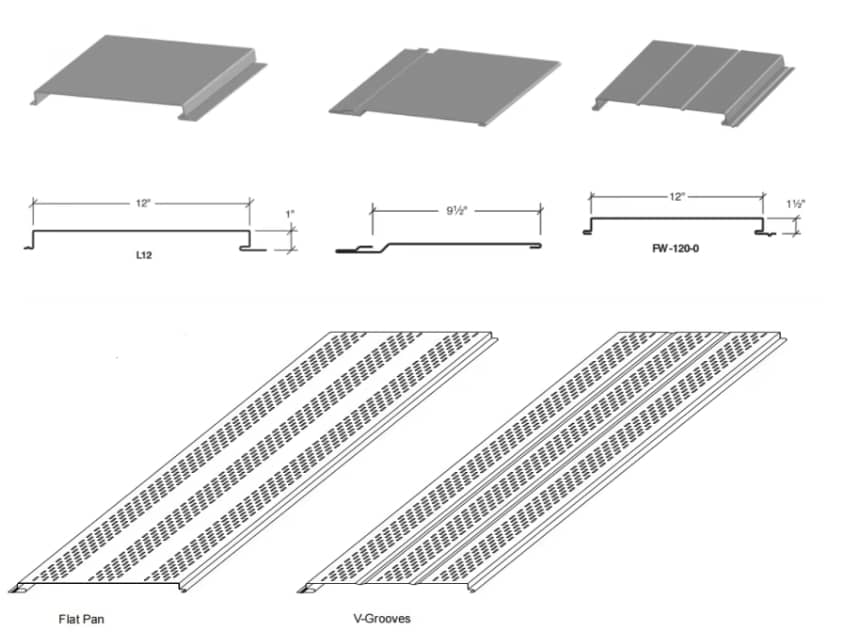

Pattern diagram:

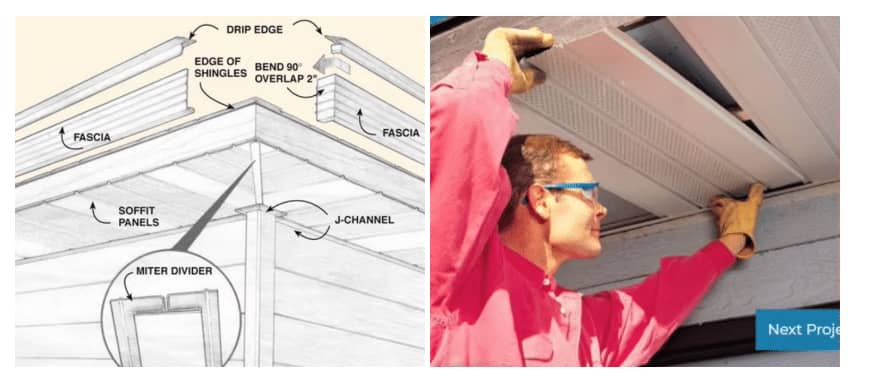

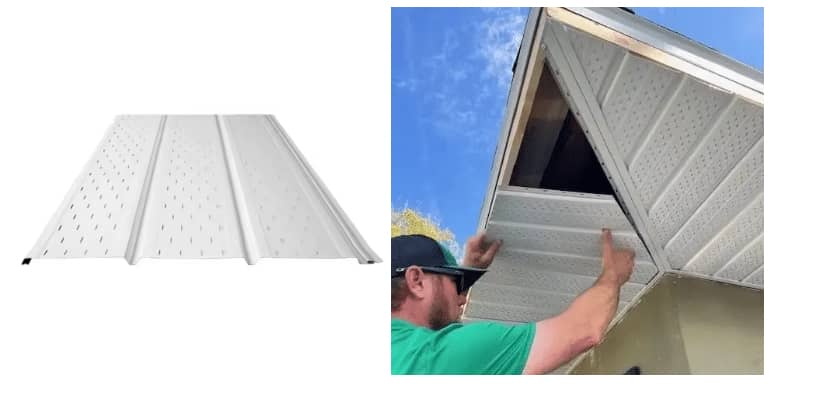

Application scenarios：
• Manufacturing of commercial and residential decoration materials:
used for producing decorative ceiling panels required for spaces such as kitchens, bathrooms, shops, offices, etc., meeting quality requirements such as high flatness, small joints, and uniform R-angles.
• Customized metal ceiling processing:
It can adapt to aluminum plate raw materials with different thicknesses (such as 0.4mm-0.8mm) and surface treatments (mirror, wire drawing, film coating, carving, etc.), and flexibly produce irregular or patterned buckle plates.
• Small and medium-sized building materials factory automation production line:
The equipment structure is compact (covering an area of about 1.5-3 square meters), and a single person can achieve an output efficiency of 8-10 pieces/minute. The defect rate is as low as 0.1%, which is suitable for small and medium-sized manufacturers to invest in.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|

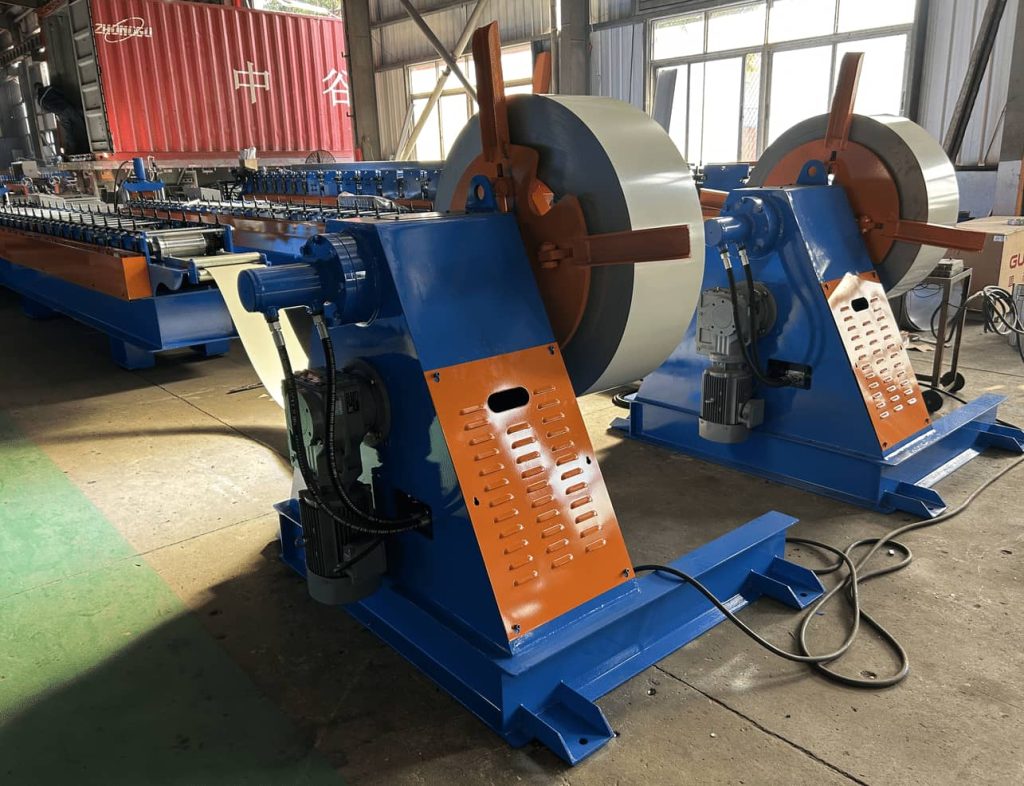

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|

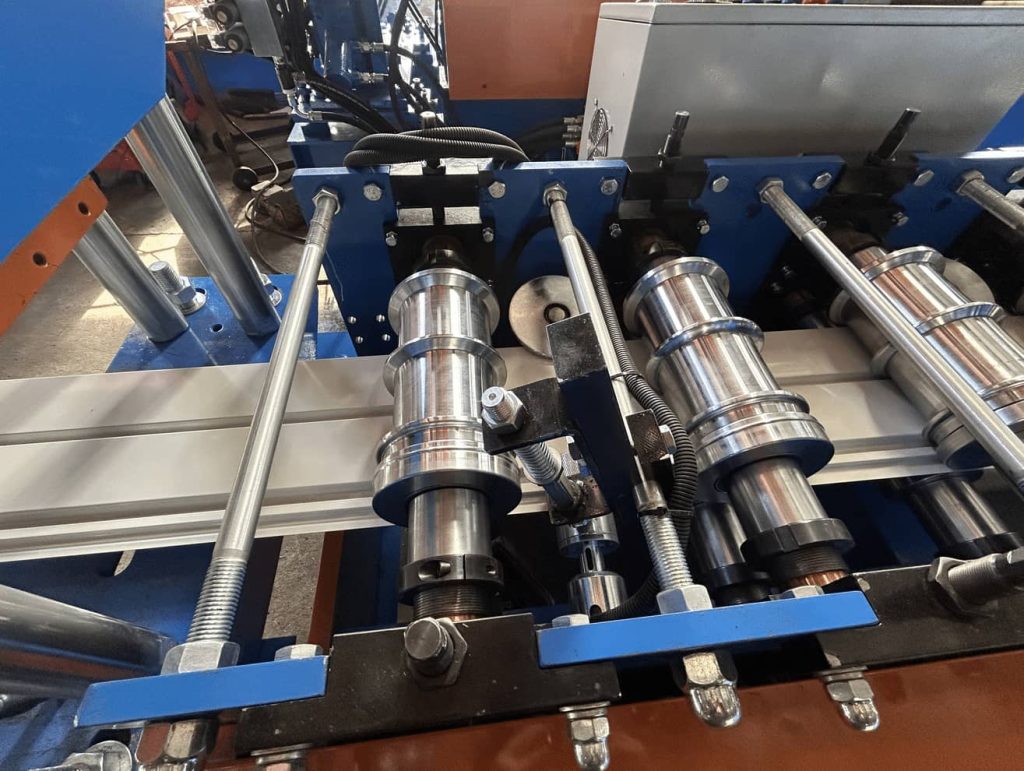

3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive way
|
gear
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 8T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
30m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Brief characteristics：
1.Fully automated production, fast speed and high efficiency
2.The board surface is flat, without deformation or burrs
3.Suitable for various metal sheets, with strong versatility
4.Easy to operate, one person can take care of it
5.Stable structure, durable mold, low failure rate
