The Container column Panel Roll Forming Machine is a fully automatic cold bending roll forming production line specifically designed for container/packing rooms. It uses galvanized sheet and steel coil as raw materials, and after unwinding, leveling, pre punching, multi-stage roll bending, fixed length cutting, and discharging, it can form the four corner load-bearing columns (corner columns) of containers in one go. It is the core specialized equipment for container manufacturing.
Standard Configuration：
1.Uncoiler → Leveling machine → Pre punching unit → Cold bending host → Hydraulic cutting → Discharge platform → PLC electronic control system
2.Molding process: 26 processes; Roller material: GCr15 bearing steel (quenched HRC58-62)
3.Applicable plate thickness: 1.5-3.0mm; forming speed: 8-15m/min
4.Control: PLC+frequency converter+encoder, length accuracy ± 0.5-2mm
Application scenarios：
• Standard sea freight container
The four corner load-bearing columns of 20 ‘/40’ dry cargo boxes, refrigerated boxes, and special boxes meet the requirements of lifting, stacking, and sea transportation fastening.
• Modular packaging box room
Frame columns for temporary construction sites, makeshift hospitals, mobile offices, homestays, energy storage cabins, and equipment cabins.
• Special carriage/steel structure
Logistics trucks, sanitation vehicles, cabin cabinets, and load-bearing columns made of modular steel structures.

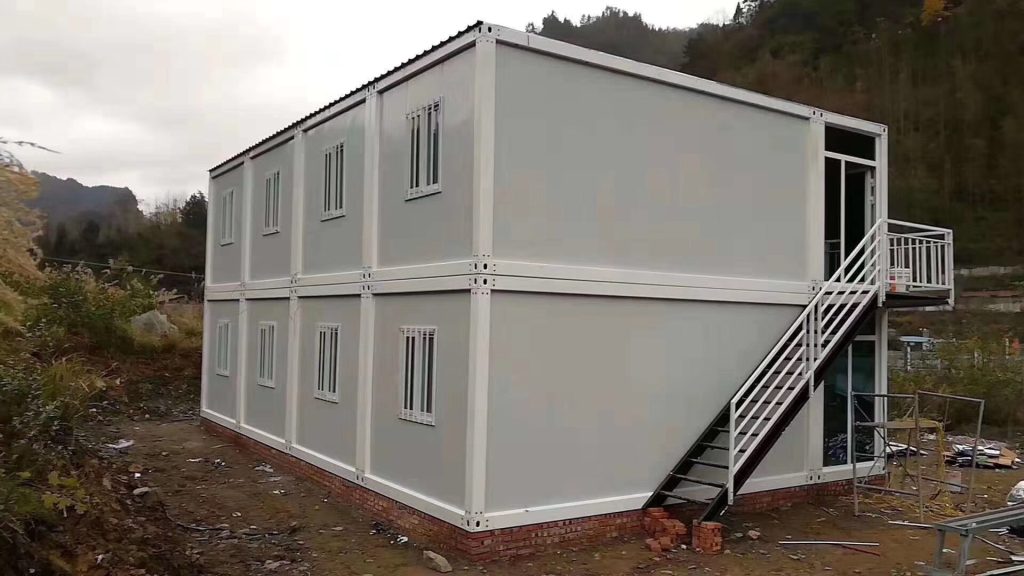

• prefabricated building
Vertical load-bearing components for integrated houses, multi story modular buildings, and temporary venues.
Core values：
1.Replace manual/bending, increase efficiency by 5-10 times, reduce labor by 60%+.
2.High consistency of profiles, fast welding and assembly, and high qualification rate.
3.High material utilization rate, low loss, and significant reduction in overall cost.
4.Adapt to scale and flexible customization, meet the fast switching of multiple specifications.
Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:1.5-3.0mm Width:1220mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
26rows(As your requirement)
|
||
|
Diameter of shaft
|
95mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
400 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features：
1.High-precision forming
Progressive cold bending without thermal deformation, good cross-sectional consistency, suitable for lifting, stacking, welding assembly, and meets ISO container standards.
2.High strength and durability
The frame is welded with H-shaped steel, with large diameter solid roller shafts and chrome plated wear-resistant rollers. The whole machine has a long service life and low failure rate.
3.fully automated
One click changeover, automatic length calculation, servo follow-up/stop cutting, saving manpower and reducing consumption, suitable for batch continuous production.
4.Wide material adaptability
Can process galvanized sheet, cold-rolled sheet, weather resistant steel, high-strength steel, compatible with sea freight and packing box columns.
5.stable and efficient
Stable line speed, no burrs during cutting, no distortion during molding, and a comprehensive efficiency (OEE) of over 85%.
6.Highly customizable
It can integrate punching, chamfering, reinforcing, and online detection, adapting to different box types and hole specifications.
