What’s the price for the 6 ribs roofing sheet roll forming machine?—Contact us for the price immediately!Wechat/WhatsApp:0086-15127785988
How to get the price for the 6 ribs roofing sheet roll forming machine?—Just provide the profile drawing or roughly sizes is ok.
We have professional engineer who can design the machine for you!
Compoments of the whole machine:
No. | Name | Quantity | Specifications | Pictures |
1 | Manual/hydraulic Decoiler | 1 set | 1.Capacity:5-10T 2.Coil inner diameter:450-550mm 3.Coil width:1250mm as request 4.Equipped with manual braking system 5.Equipped with big hand wheel for easy working |
|
2 | Main roll former | 1 set | 1.Roller station:16 stations 2.Roller material:45# steel with quenched treatment 3.Shaft diameter:80mm,SOLID 4.Shaft material:45# steel 5.Machine frame:350# steel welded 6.Transmission:By double chains 7.Main motor power:5.5kw |
|
3 | Control system | 1 set | 1.Control system:PLC 2.Screen:Touche screen 3.Language:English and other language 4.PLC brand:Delta or Siemens 5.Inverter:Delta or Siemens |
|
4 | Hydraulic system | 1 set | 1.For cutting 2.Power:4kw 3.Cooling system:By fan |
|
5 |
Product table |
2 sets | 1.Length:3 meters 2.Quantity:2 sets 3.With 5 rollers |  |

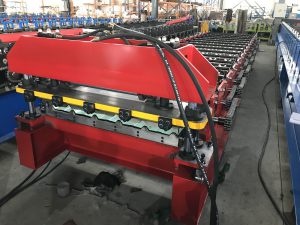

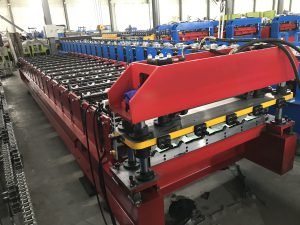

More pictures for this machine:
