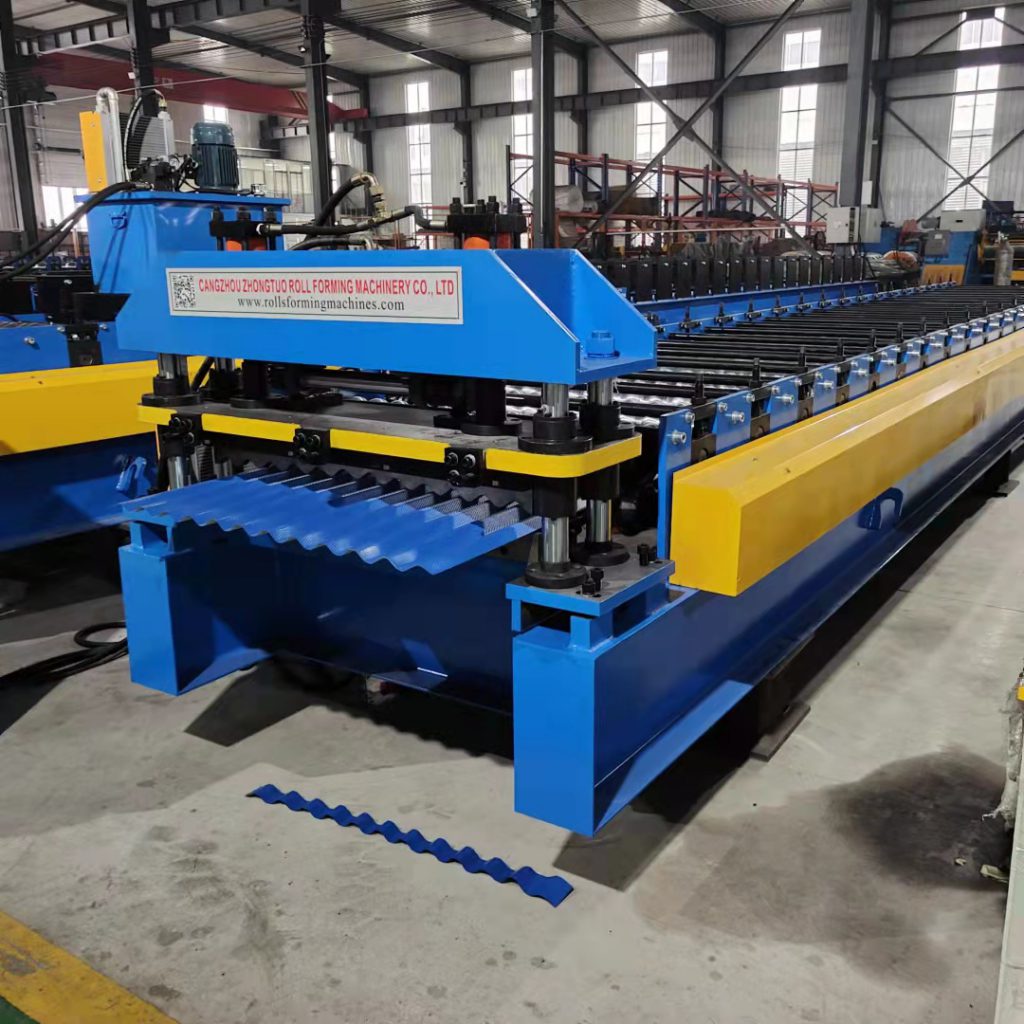

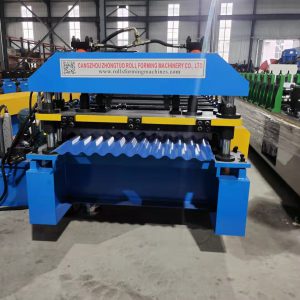

Our this 0.13-0.18mm Aluminum sheet roofing panel roll forming machine is mainly to produce the thin material for roofing panel,especially for 0.13mm,0.14mm,0.15mm,0.16mm,0.17mm,0.18mm.The raw material can be galvanized steel,galvalume,Aluminum,painted steel(PPGI).
We also can produce the machine as customer’s request,we support customization.
Technical specifications of the whole machine:
1.Layout
2.Technical specifications
Item | Name | Specifications |
|
1 | Material | 1.Raw material:PPGI,Galvanized steel,Stainless steel 2.Raw material thickness:0.3-0.8mm 3.Yield strength:350Mpa,550Mpa 4.Coil width:as the profile drawing |
|

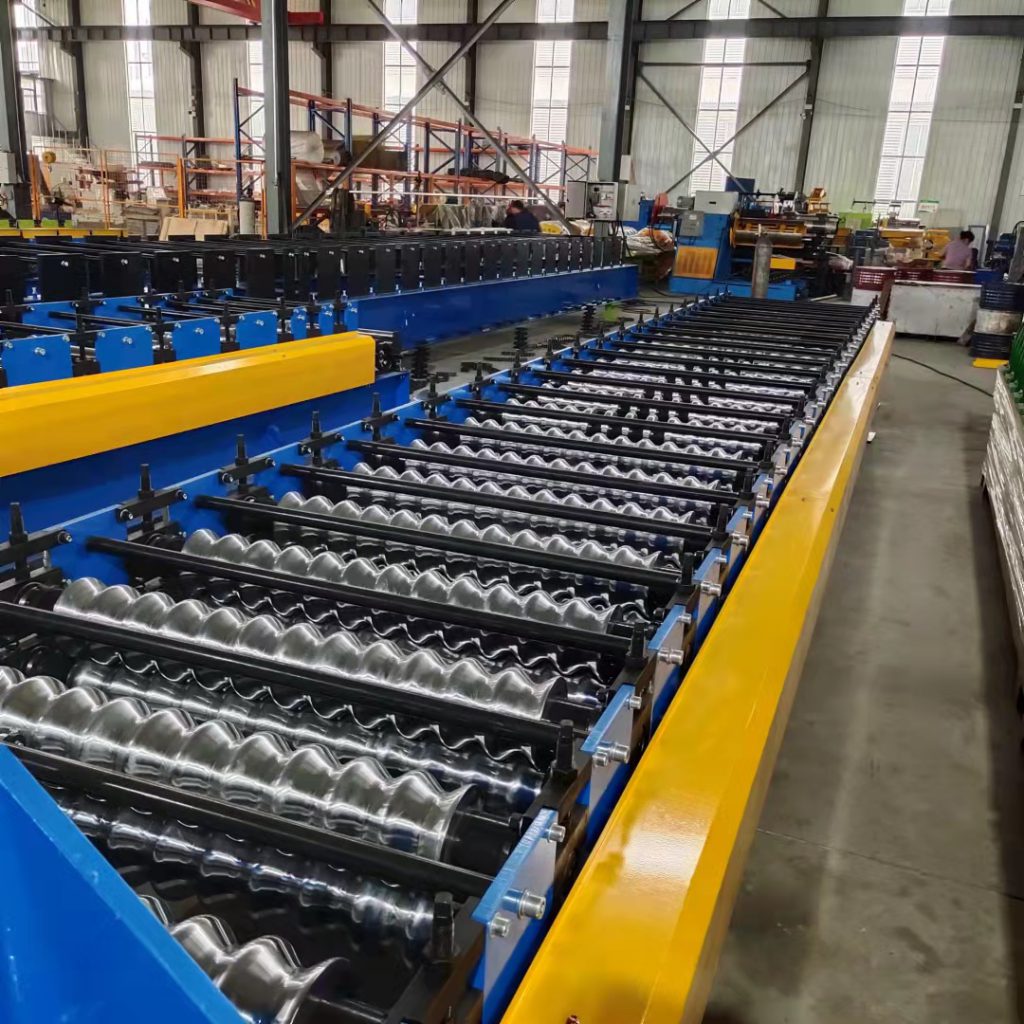

2 | Main roll former | 1.Roller station:18 station(according to profile drawing) 2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:80mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:5.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
|
3 | Electric brand | 1.Control system:PLC 2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |   |
