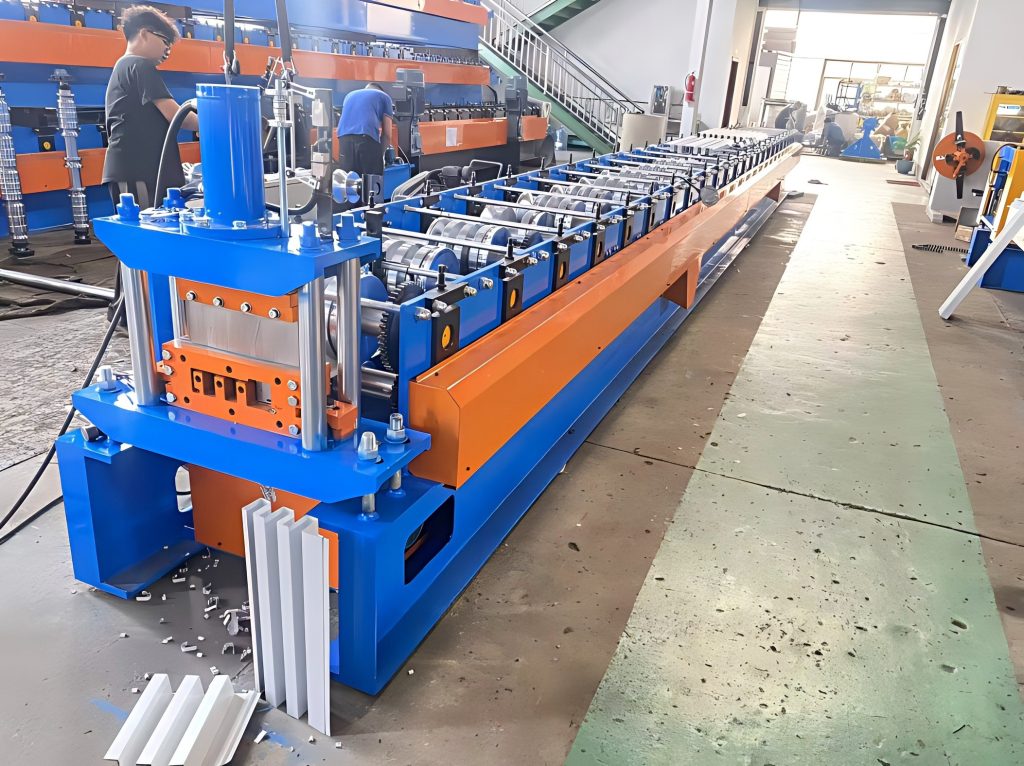

The 90 Degree Horizontal Board Metal Wall Cladding Roll Forming Machine (also known as the 90 degree right angle transverse hanging plate machine or Great Wall plate machine) is a fully automatic cold bending roll forming equipment, specifically used to process metal coils such as color steel coils and galvanized coils into decorative and enclosure plates with a cross-section of 90 ° right angle and can be hung horizontally through continuous multi roller cold bending.
The core production process is:
coil feeding → guided feeding → multi row roll cold bending → 90 ° folding and shaping → PLC fixed length hydraulic cutting → finished product output.

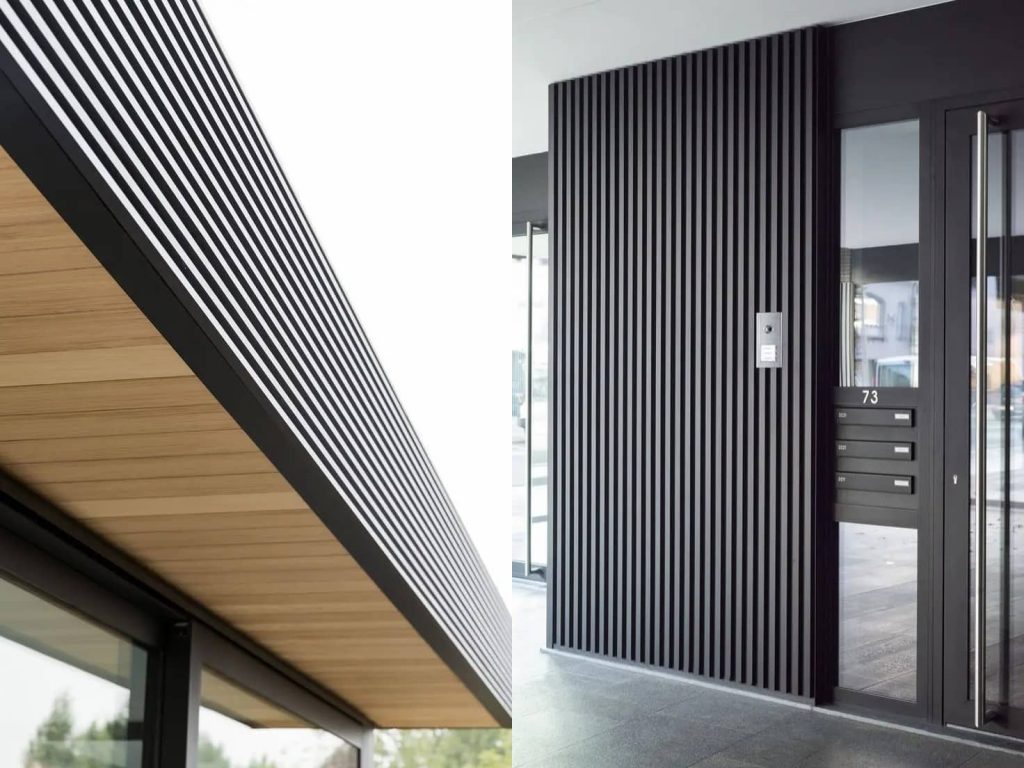

Application scenarios：
1.industrial building
• External wall cladding for steel structure factories, warehouses, and logistics centers.
• Exterior wall enclosure of industrial facilities such as locomotive depots, aircraft hangars, and substations.
2.public building
• Exterior wall decorative panels for sports venues, exhibition halls, cinemas, and large supermarkets.
• Modern style exterior wall systems for office buildings, schools, and hospitals.
3.Civil and Commercial
• Walls of activity board houses, integrated houses, and container houses.
• Shop storefront, indoor partitions, background walls, ceilings and other interior decorations (mini version).

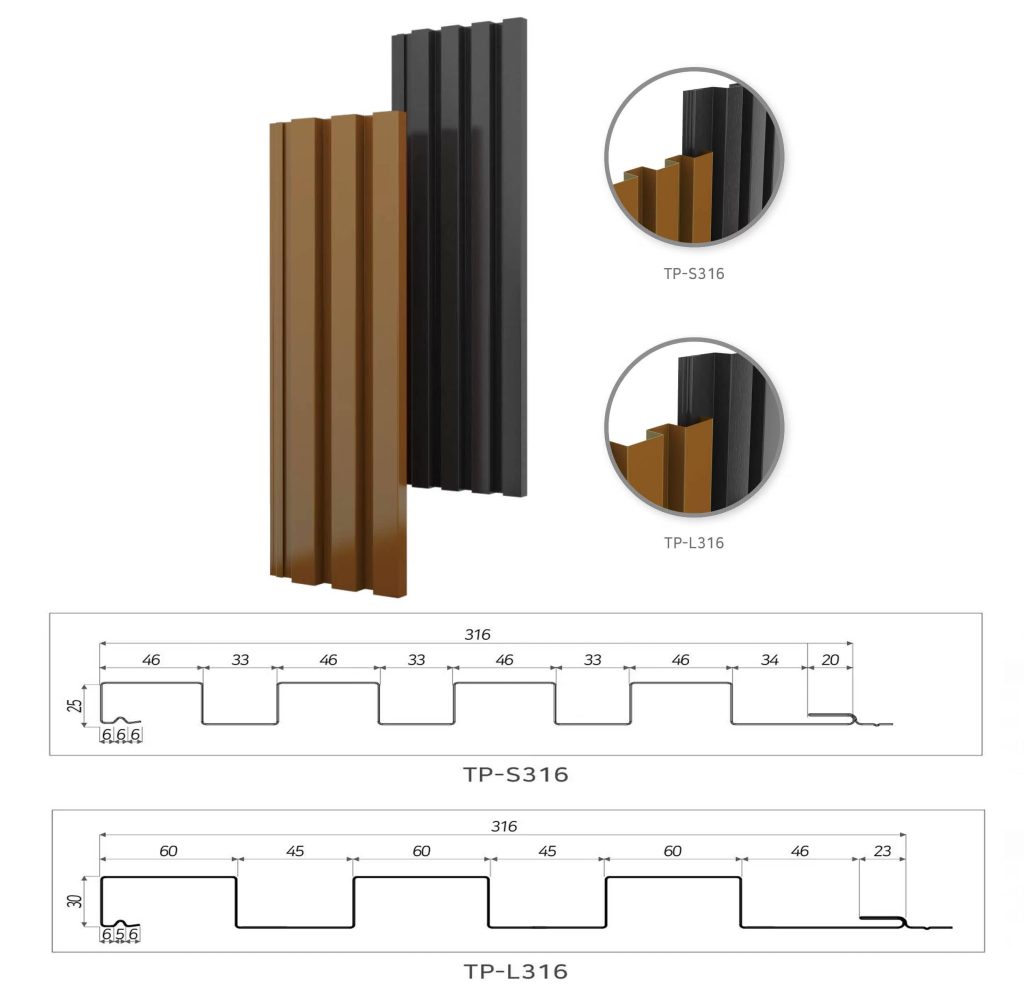

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL,AI,Etc.
|
Material Thickness:0.4-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
Due to your requirement profile
|
||
|
Diameter of shaft
|
Due to your requirement profile
|
|||
|
Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
Due to your requirement profile
|
|||
|
Drive
|
gear and Double Chain transmission/gearbox transmission optional
|
|||
|
Dimension(L*W*H)
|
Due to design
|
|||
|
Weight
|
Due to design
|
|||
|

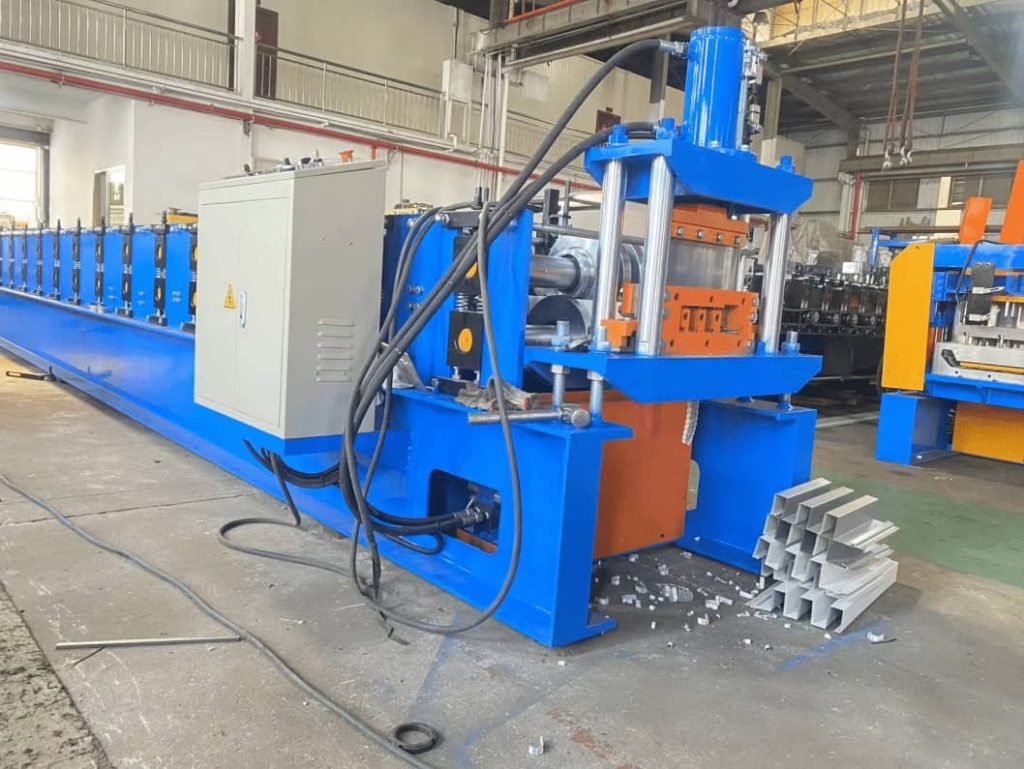

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW(normally)
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
As your requirement
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
Support multiple languages
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
0-80m/min
|
Provide customized
|
||
Equipment features：
1. Accurate pattern and stable structure

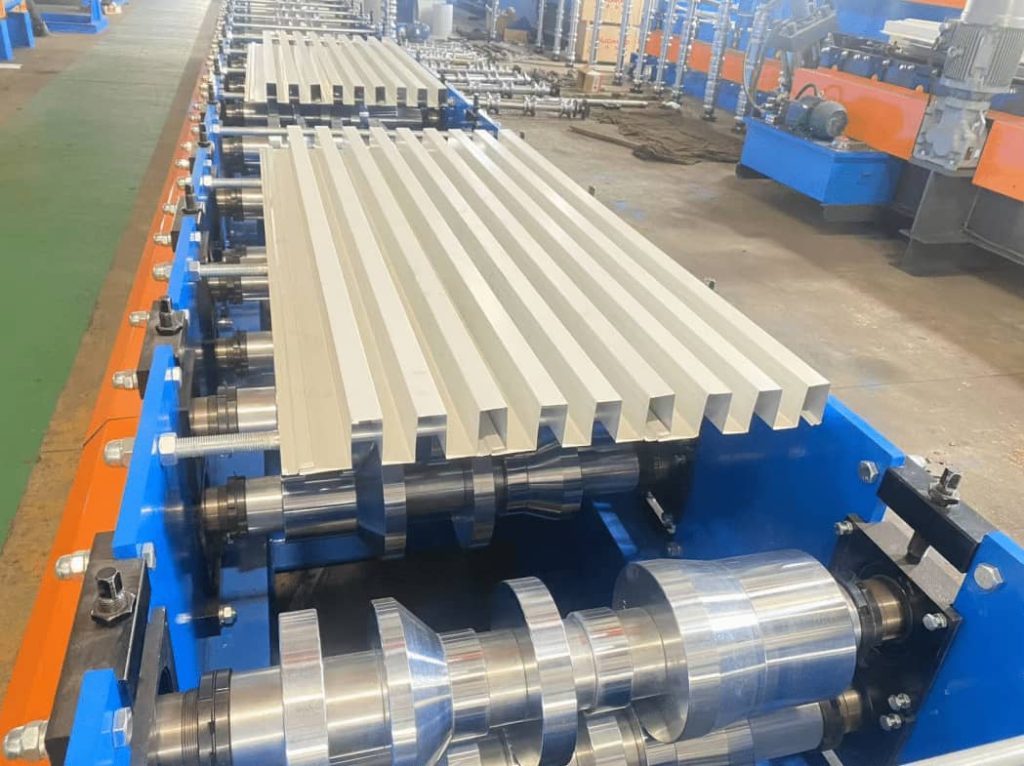

• Adopting 18-25 rows of precision rolling mill design, the rolling mill material is forged from 45 # steel and plated with hard chromium, ensuring that the plate has a standard 90 ° angle, a flat surface, uniform ripples, and no distortion.
• The main frame is welded with 300-400H steel, which has strong rigidity and does not deform during high-speed operation, ensuring long-term production accuracy.
2. High degree of automation, efficient and labor-saving

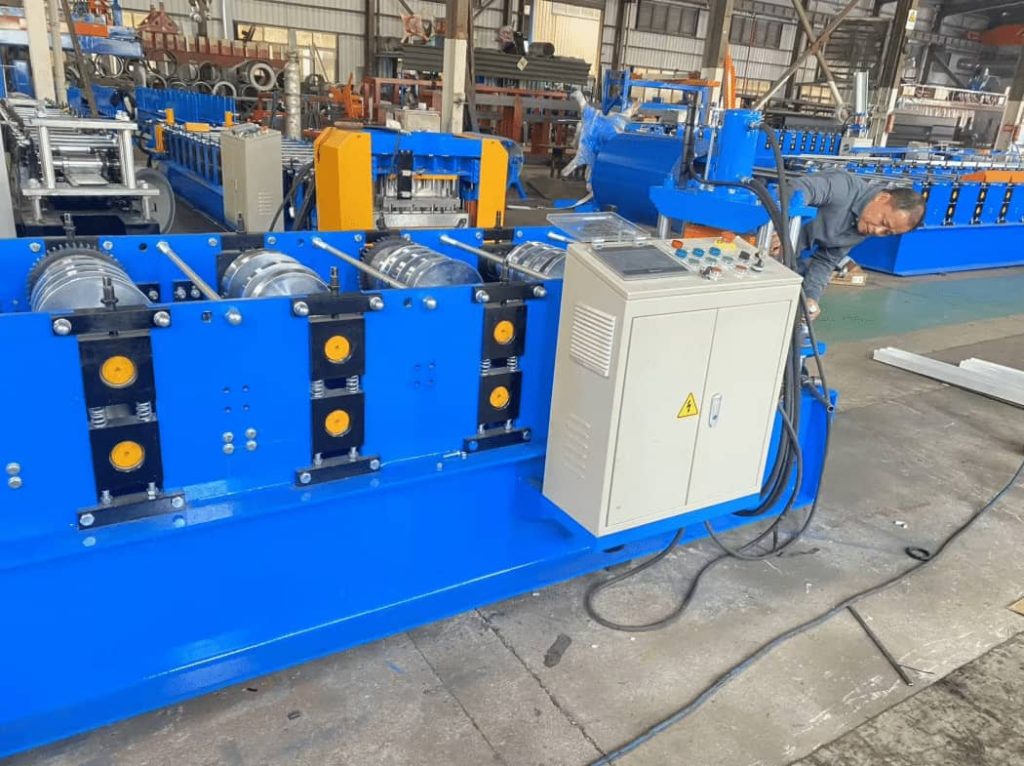

• The complete PLC frequency conversion control system can freely set the length and quantity of the board on the touch screen, achieving automatic sizing, automatic meter counting, and automatic cutting.
• The molding speed can reach 8-15 meters per minute, with continuous automation throughout the entire process, and one person can operate the entire line.
3. Wide material adaptability and strong durability
• Suitable for color coated sheets, galvanized sheets, aluminum magnesium manganese sheets, etc. with a thickness of 0.4-0.8mm.
• The cutting tool adopts Cr12 quenching process, which is sharp and durable, with a straight and burr free cut.
4. Superior performance of the finished product

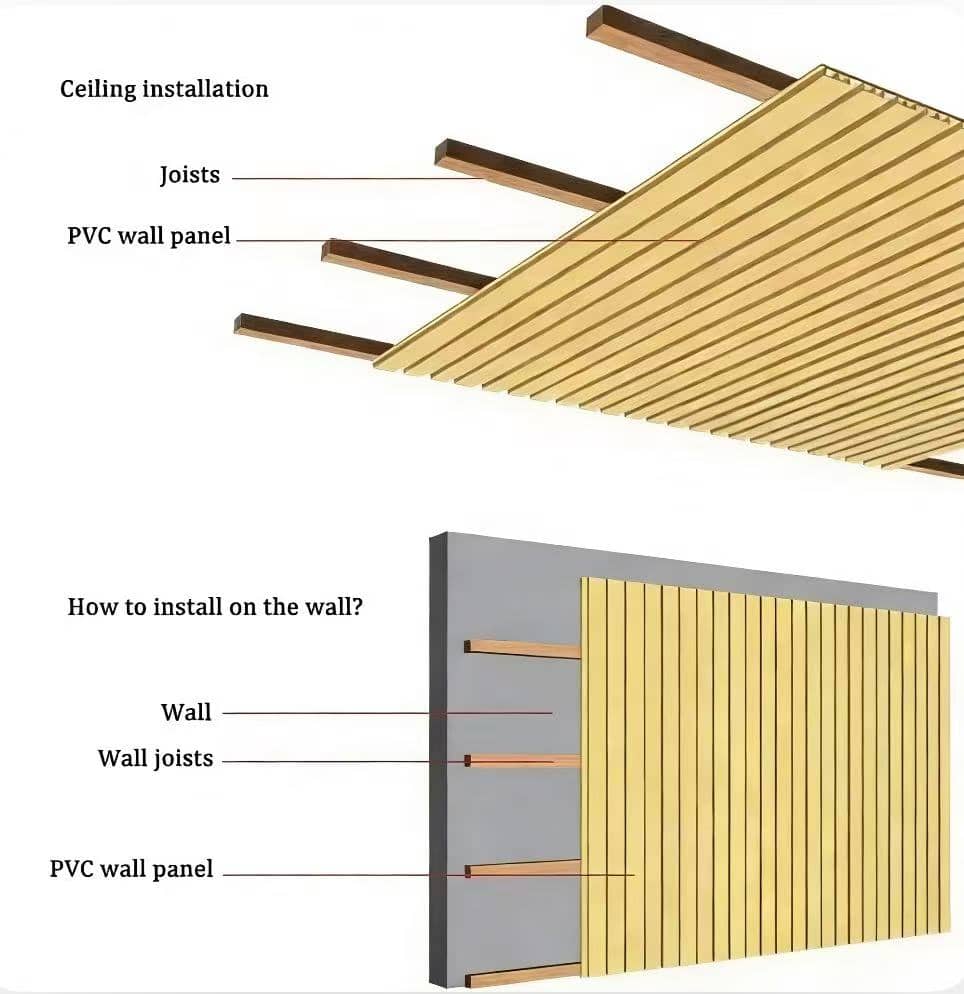

• The horizontal hanging board produced is of concealed/hidden overlap type, without the need for exposed screws, and has excellent waterproof, windproof, and sealing properties.
• The 90 ° right angle structure endows the board with extremely high bending and compressive strength, strong three-dimensional sense, and modern and atmospheric appearance.
