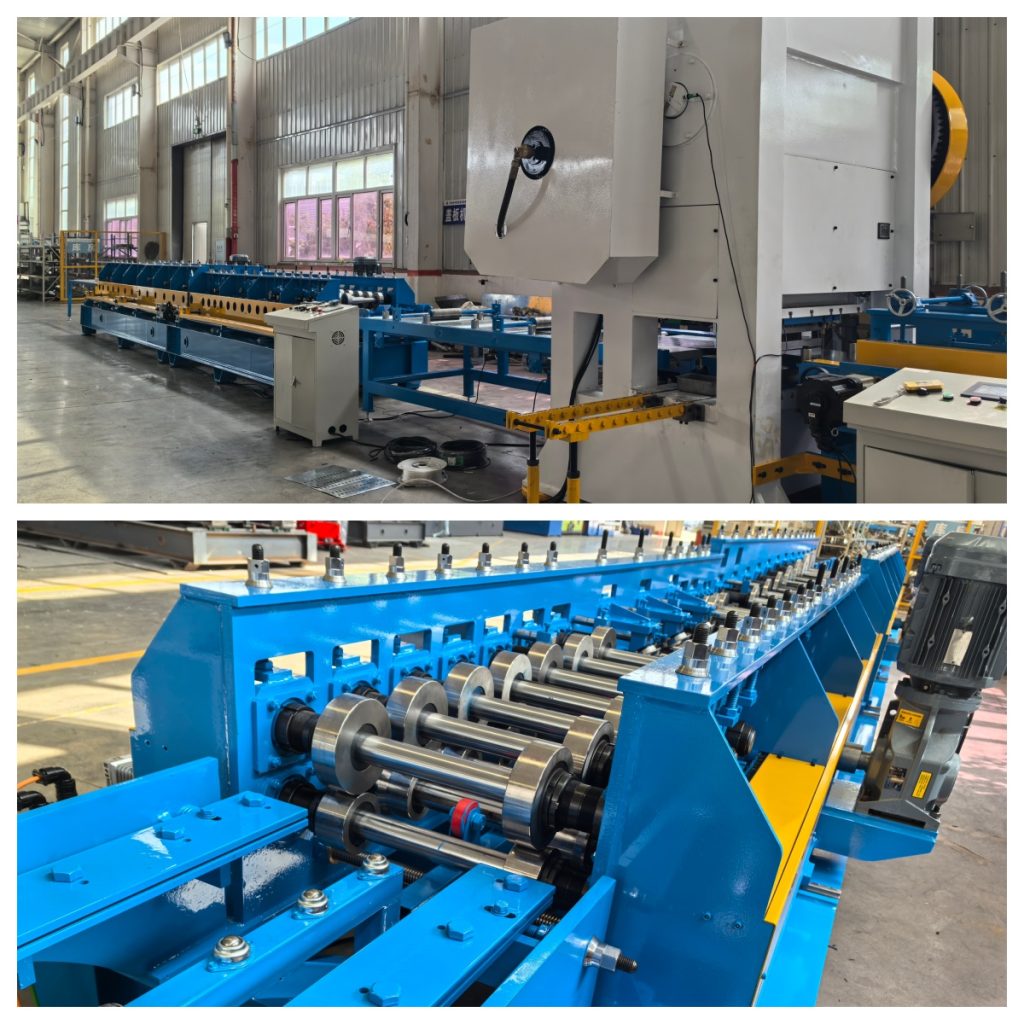

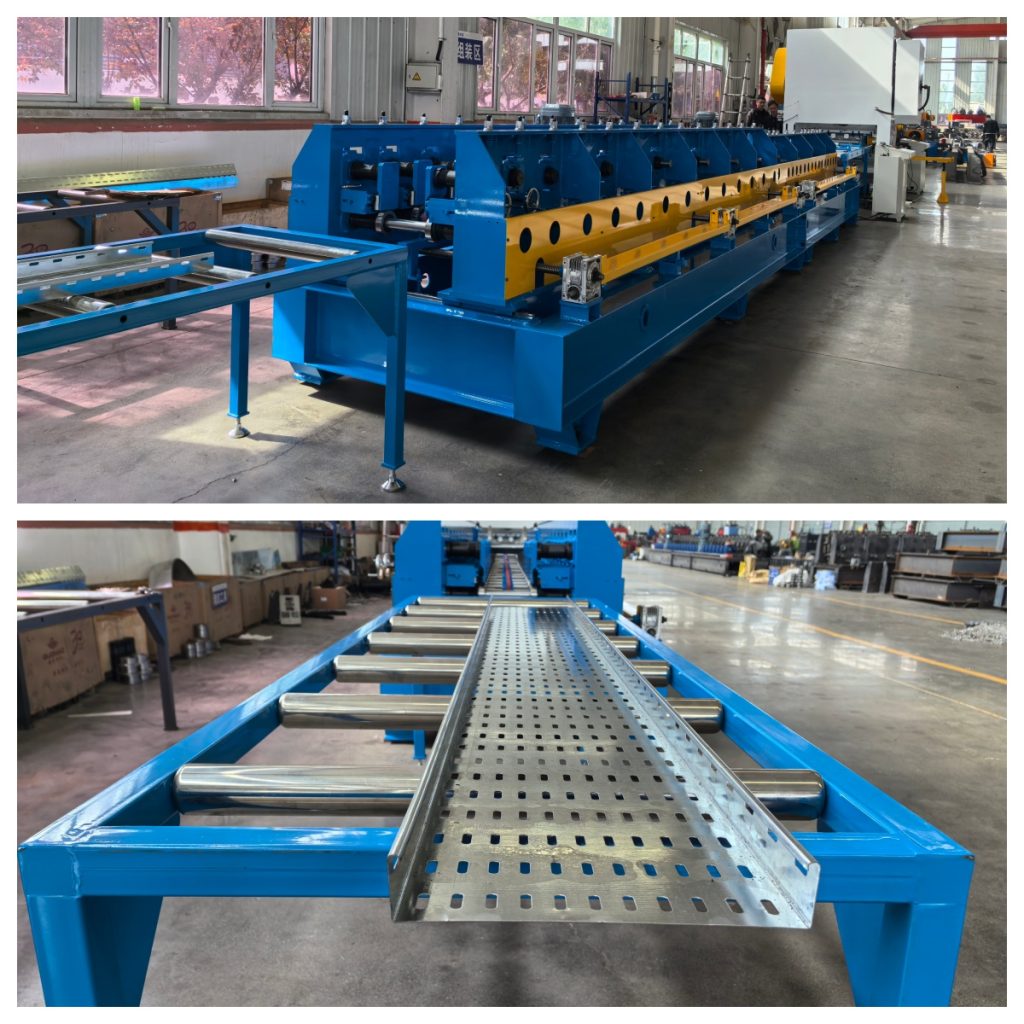

Cable Tray Ladder Making Cold Roll Forming Machine is a specialized cold bending production line (also known as tray forming machine) used for mass production of steel/aluminum alloy cable trays such as trough type, tray type, and step type. The equipment consists of units such as feeding, leveling, servo feeding, multi roll forming, online punching, cutting to length, and receiving. Through cold bending technology, galvanized steel strips, cold-rolled steel strips, or aluminum alloy coils are processed into bridge finished products that meet the size and hole requirements in one go.
Application scenarios：
Mainly used for large-scale production of various cable trays, downstream coverage includes the following fields:
• Construction projects:
Electrical shafts and ceiling wiring for high-rise residential buildings, office buildings, shopping malls, and hotels, and production of trough/tray type cable trays.
• Industrial plant:
power and control cable laying for chemical, metallurgical, mechanical, and light industry workshops, compatible with ladder/trough type cable trays.
• Data center and computer room:
high heat dissipation demand scenario, producing perforated tray type cable trays to ensure heat dissipation and expansion of high load cables.
• Electricity and Rail Transit:
Main cable supports for substations, power plants, and subway lines, often using high-strength steel cable trays.
• Other special environments:
corrosive environments such as seaside and sewage treatment plants, can produce hot-dip galvanized/stainless steel/spray painted bridge frames.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:200-1130 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
7T
|
||
|
3.Main body
|
Roller station
|
22 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
35×1.5×1.6m
|
|||
|
Weight
|
About 60KW
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
5-10m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

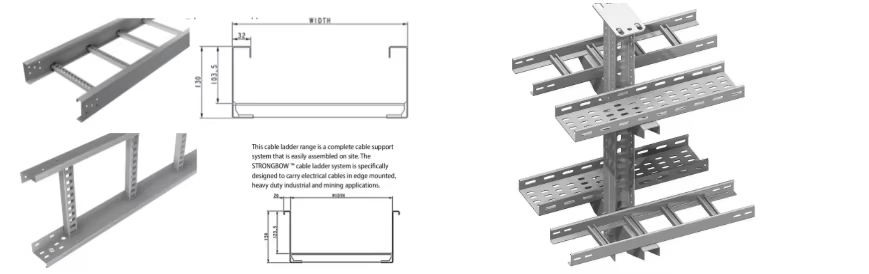

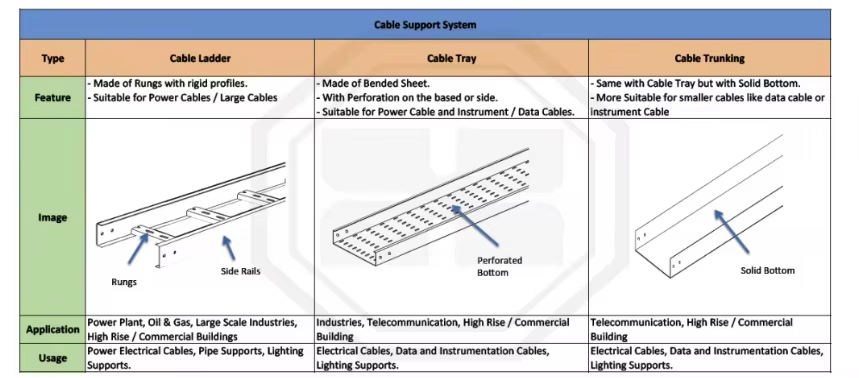

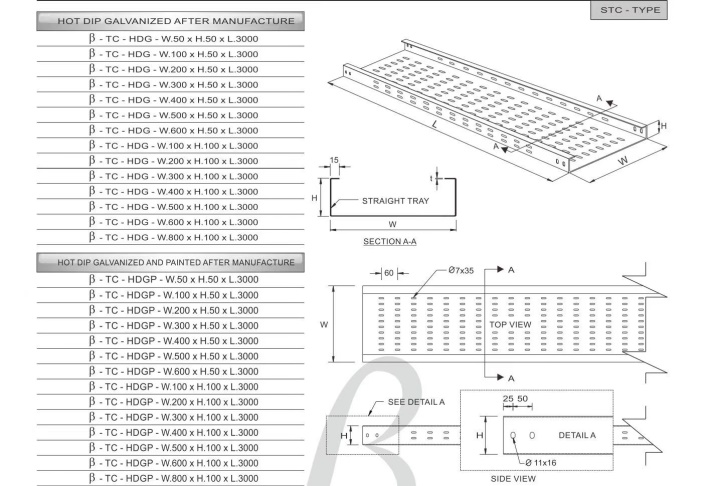

Pattern diagram:
Overall general characteristics：
1.Regular wiring enhances safety:
providing a dedicated load-bearing structure for cables, allowing them to be laid in an orderly and orderly manner, avoiding safety hazards caused by disorder, effectively preventing cables from being squeezed or damaged by collisions, while reducing electromagnetic interference between cables and ensuring stable operation of the power system.
2.Easy installation and high efficiency:
Factory and series production, easy quality control, simplified installation process, compared to traditional cable laying methods, can greatly improve construction efficiency, and easy maintenance and repair in the later stage.
3.Strong adaptability and wide range of scenarios:
It can be independently installed or laid on various buildings and pipe gallery supports, suitable for many indoor and outdoor scenarios such as industrial and mining enterprises, commercial buildings, transportation facilities, data centers, etc. It can meet the laying needs of various cables such as power cables, control cables, communication cables, etc.
4.Flexible configuration and good scalability:
Different structures, materials, and specifications of cable trays can be selected according to actual needs. Steering and branching can also be achieved through accessories such as bends, tees, and crosses. Some cable trays support on-site processing of special components, which is convenient for system upgrades and line adjustments.
