Efficient mass production, precise molding, and versatile adaptation – choose the right roller shutter door roll forming machine to unlock new efficiency in door and window manufacturing!
As the core equipment for manufacturing rolling shutter doors,ZTRFM Full Automatic Roller Shutter Door Roll Forming Machine is a fully automatic intelligent device specially designed for cold bending of metal coils. With technology empowering production, every rolling shutter door profile has both quality and efficiency, helping manufacturers reduce costs, increase efficiency, and seize market opportunities.

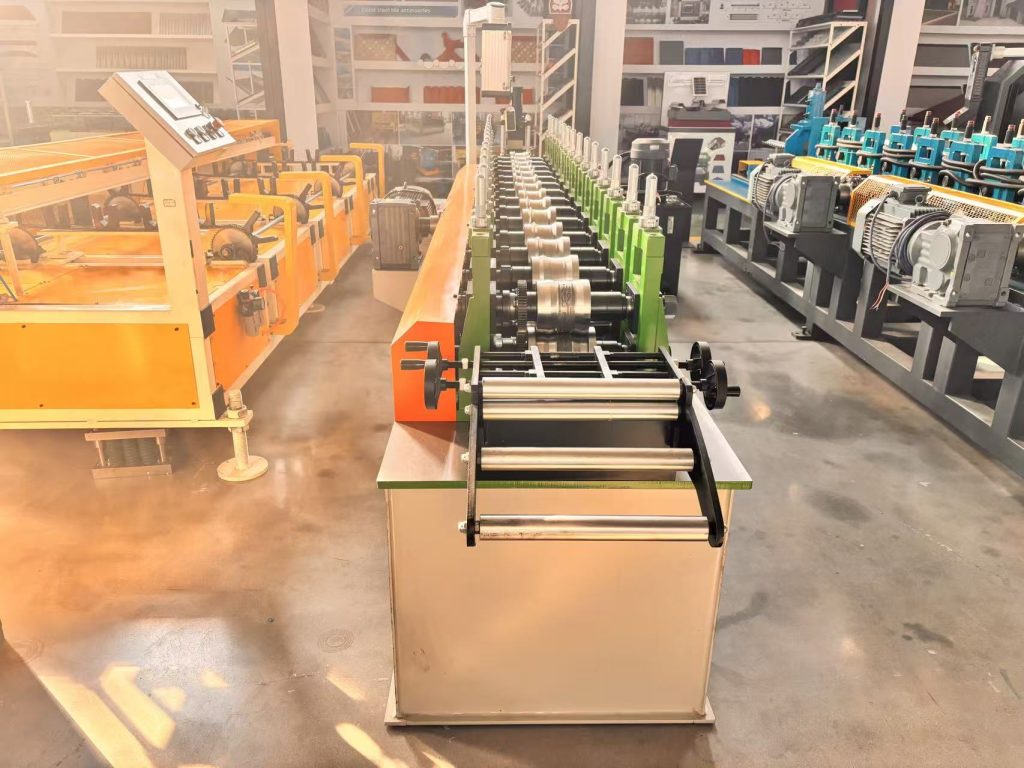

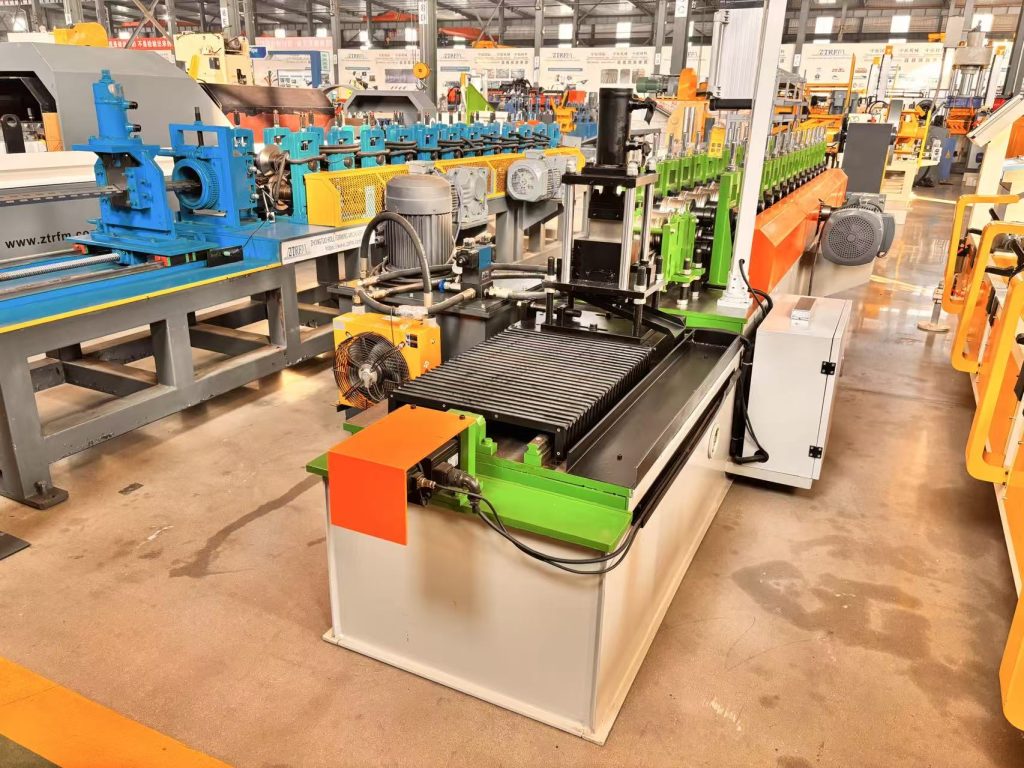

The entire production line integrates feeding, forming, hydraulic shearing, and PLC intelligent control, without the need for complex manual intervention, achieving one-stop automated operations from metal coil feeding to finished product cutting, completely eliminating the inefficiency and errors of traditional manual processes, making mass production more worry free and efficient.
Global adaptation, empowering multiple industry scenarios:

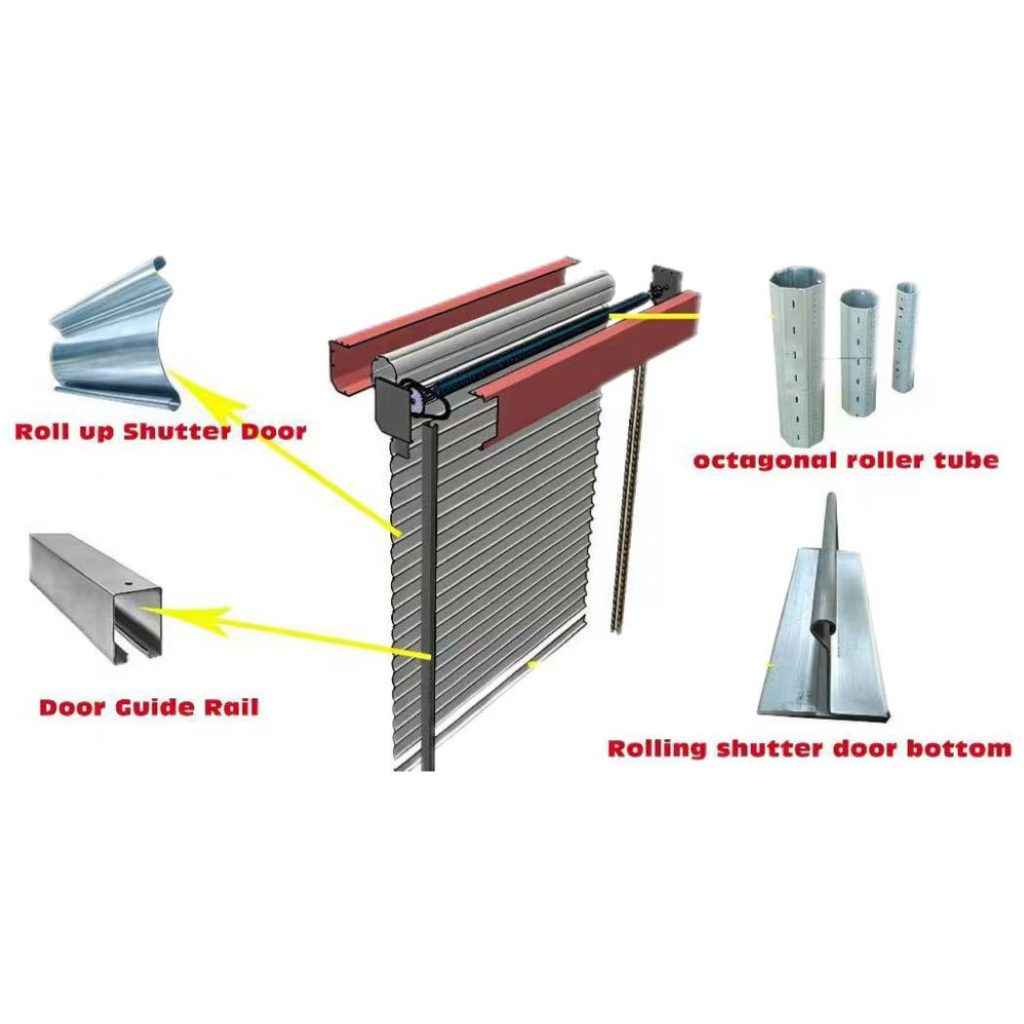

Whether it’s wind resistant and durable doors for industrial plants, warehouse logistics centers, security and aesthetic rolling shutter doors for shopping malls, underground garages, fire isolation doors for fire exits, anti typhoon air doors for coastal areas, or customized rolling shutter doors for residential villas, our molding machines can accurately match the needs, with stable performance and efficient production capacity, to help various industries create high-quality rolling shutter door products.
Improve efficiency with technology and win the market with quality! Choose our rolling shutter door molding machine to save on tedious processes, reduce labor costs, and enhance product competitiveness. Let every investment be converted into tangible production capacity and revenue, and work together to create a new future for door and window manufacturing!

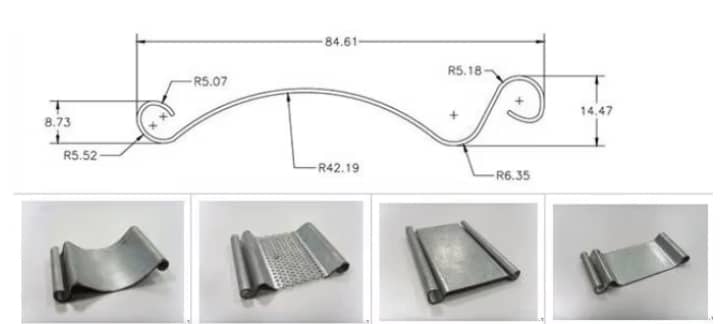

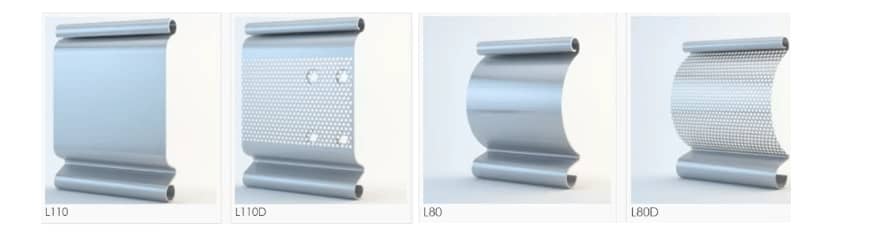

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.8-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
14rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 5T
|
|||
|

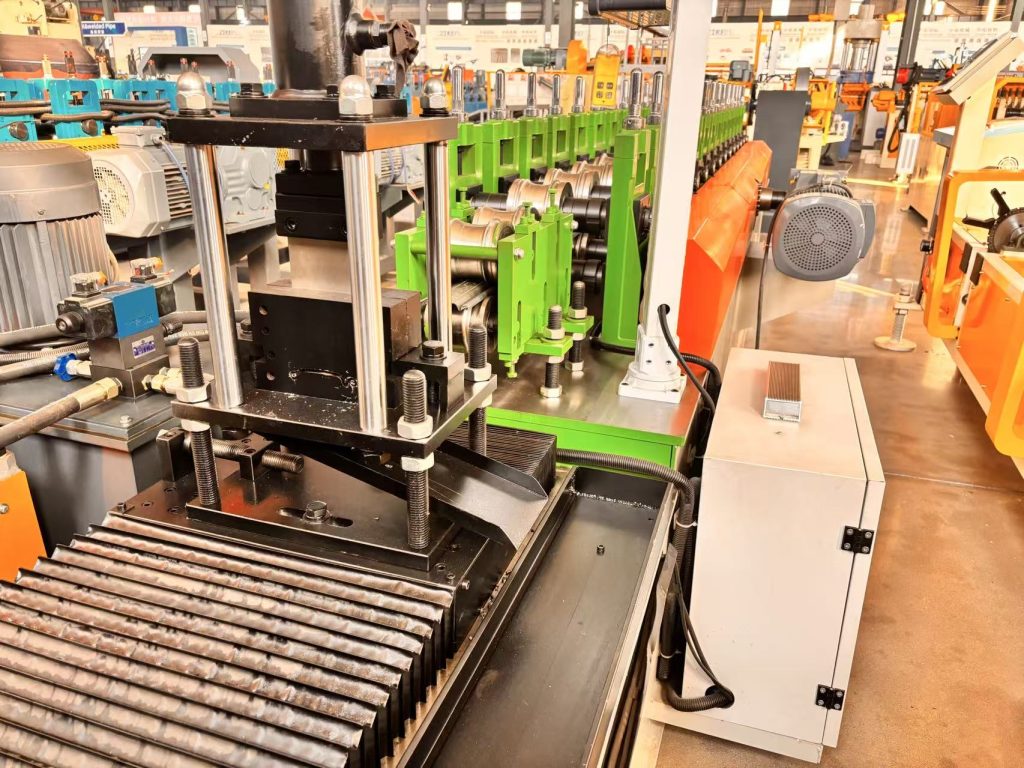

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-25m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Core advantages, creating quality benchmarks:
1.Efficient and stable production, full capacity:
The molding speed can reach 8-15 meters/minute, supporting 24-hour continuous operation, PLC+touch screen intelligent control, automatic sizing, automatic cutting, automatic counting, bidding farewell to manual errors, material utilization rate of over 95%, significantly reducing production costs, and easily responding to large-scale order demands.
2.Precision molding, controllable quality:

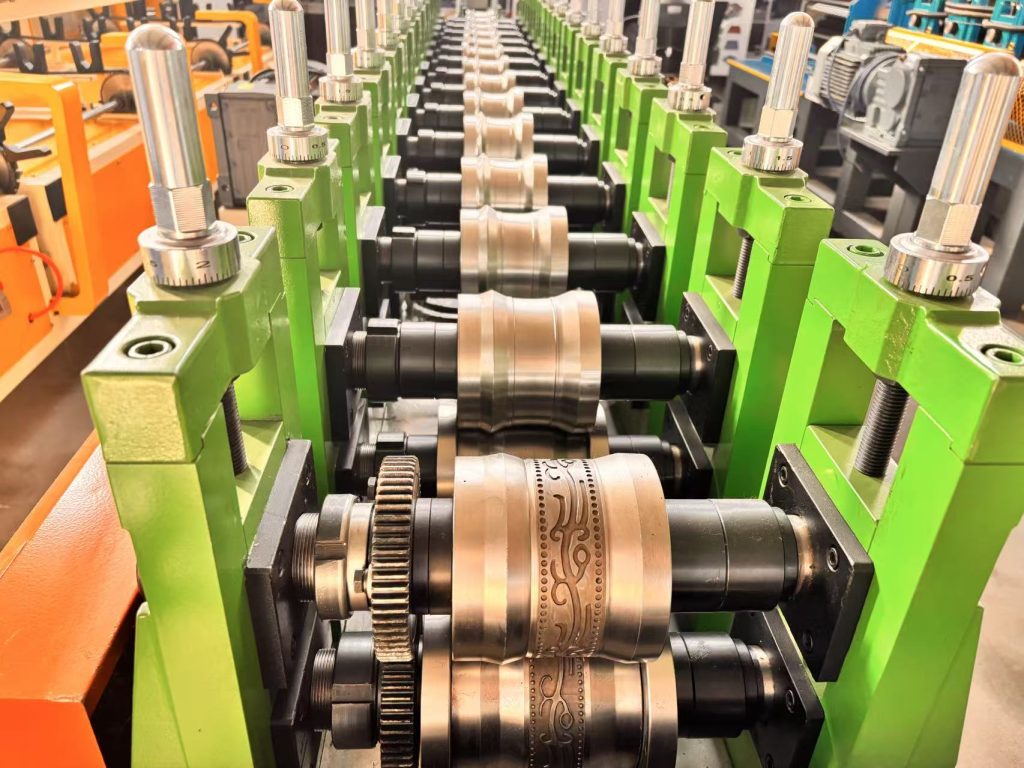

equipped with 14 precision rolling rolls, made of 45 # steel or Cr12 die steel that has been quenched, wear-resistant and durable, with a profile size error of ≤± 0.5mm. The molding lines are straight, without ripples or deformation, and the door pieces are tightly interlocked, ensuring product consistency and helping to create high-end rolling shutter door products.
3.Versatile and versatile:
One machine unlocks multiple categories and can produce ordinary rolling shutter doors, wind resistant rolling shutter doors, European rolling shutter doors, fire-resistant rolling shutter doors, etc. It is compatible with 0.8-1.2mm thick galvanized sheet, color coated sheet, stainless steel sheet, and can be equipped with automatic punching function to meet diverse needs such as ventilation and decoration, and is suitable for multi scene production.
4.Stable and durable, easy to operate and protect:
Thick steel plate body, strong rigidity, anti vibration, long-term use without displacement; Modular design, simple operation, convenient maintenance, efficient mold replacement, significantly reduces equipment downtime, and provides support for production.
