Introduction of solar structure
Solar structure is a device that utilizes solar energy for power generation. It typically consists of a steel pipe and several brackets, on which one or more solar panel arrays are installed. When sunlight shines on the solar panels, it generates electricity that drives equipment like windmills and generators to rotate, thereby powering loads to operate. According to different scenarios, solar structures can be classified into two types: fixed and mobile.
The fixed solar structure generally features a simple design, making it easy to operate and maintain. It also has a long service life due to its stable structure. In contrast, the mobile solar structure, despite meeting specific application needs, suffers from a complex structure, which leads to difficulties in operation and maintenance. Frequent movement and adjustment also cause faster wear and tear, resulting in a relatively shorter service life.

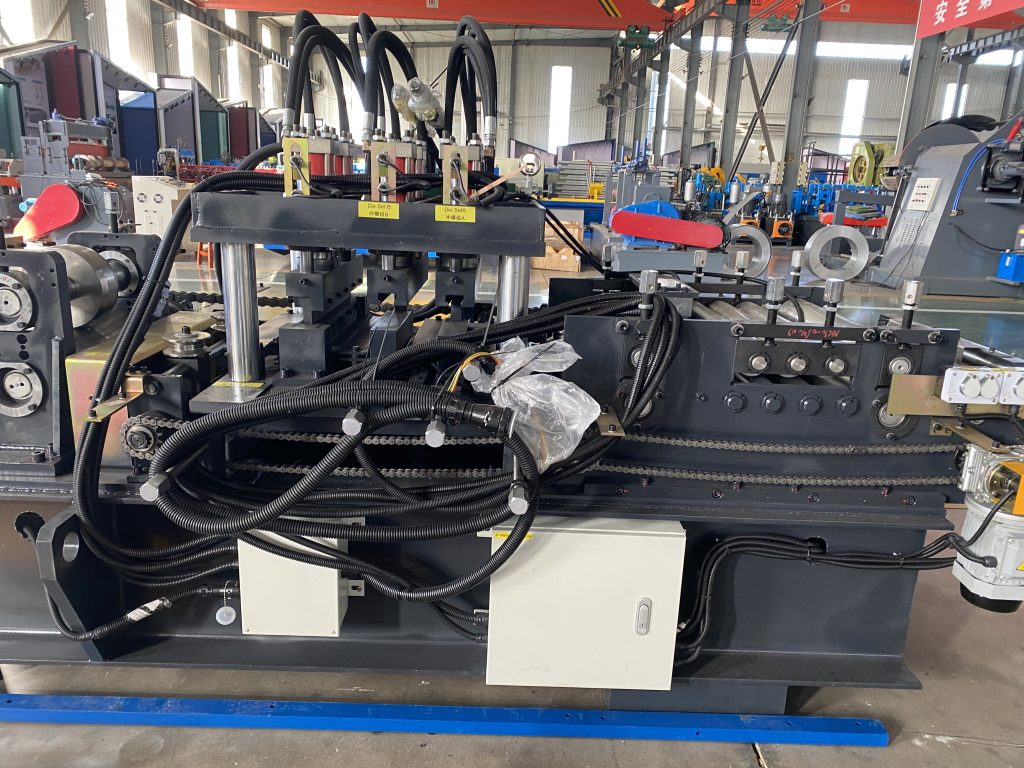

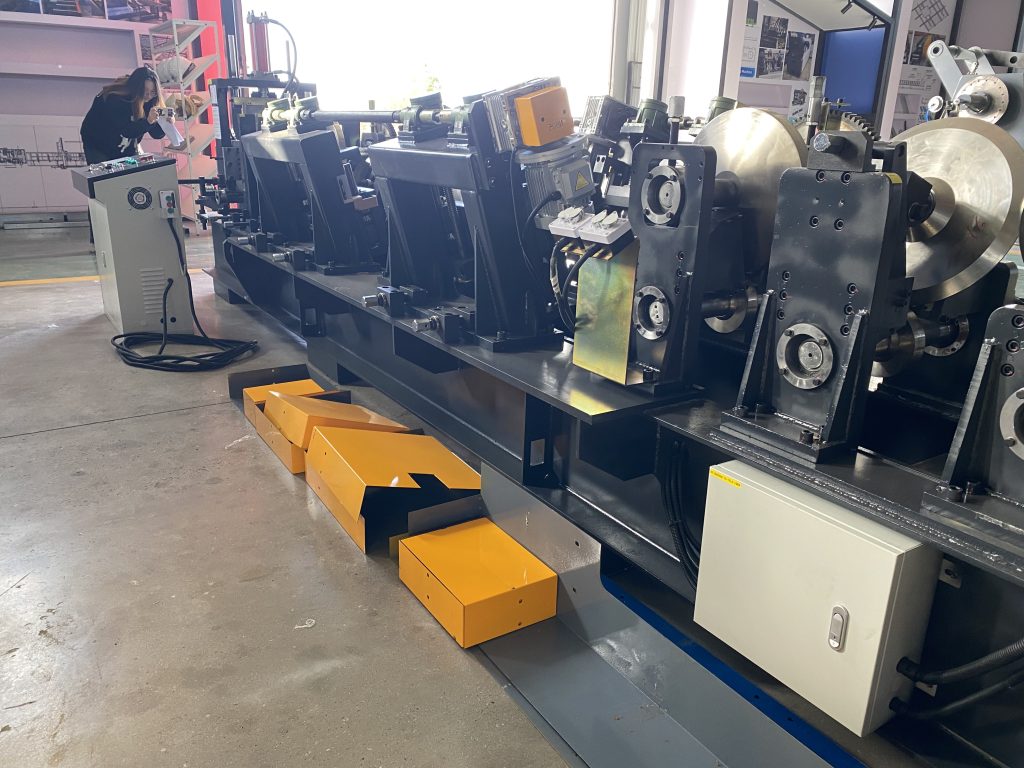

Main roll forming machine
1.Rolling forming speed: 28 meters per minute, comprehensive speed of 12 meters per minute -18 meters per minute (depending on the number of holes drilled)
2.Support material: Hot rolled strip steel or hot-rolled galvanized strip steel with a yield strength not exceeding 440Mpa.
3.Feed: guide shaft+guide wheel
4.Leveling: Three on top, four on bottom, and two channels for feeding. The fully solid core is subjected to quenching and tempering heat treatment, and then electroplated after precision machining.

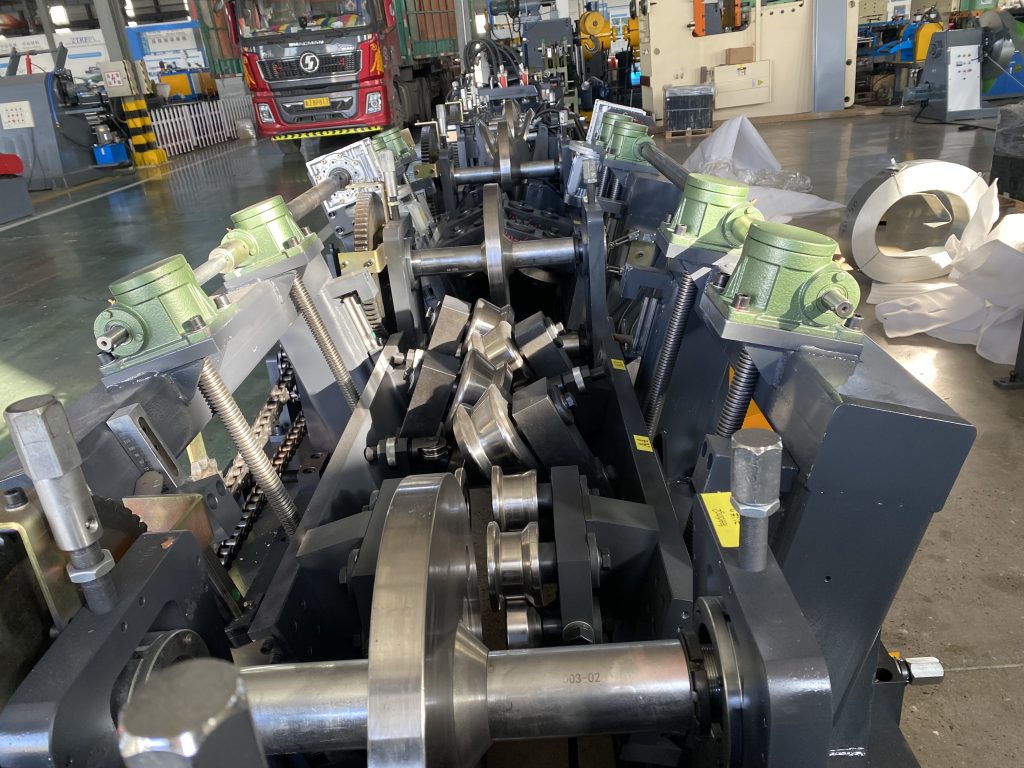

5.Main molding: 16 molding processes (one of which is waist height molding with any adjustable roller set at 72-80 degrees)

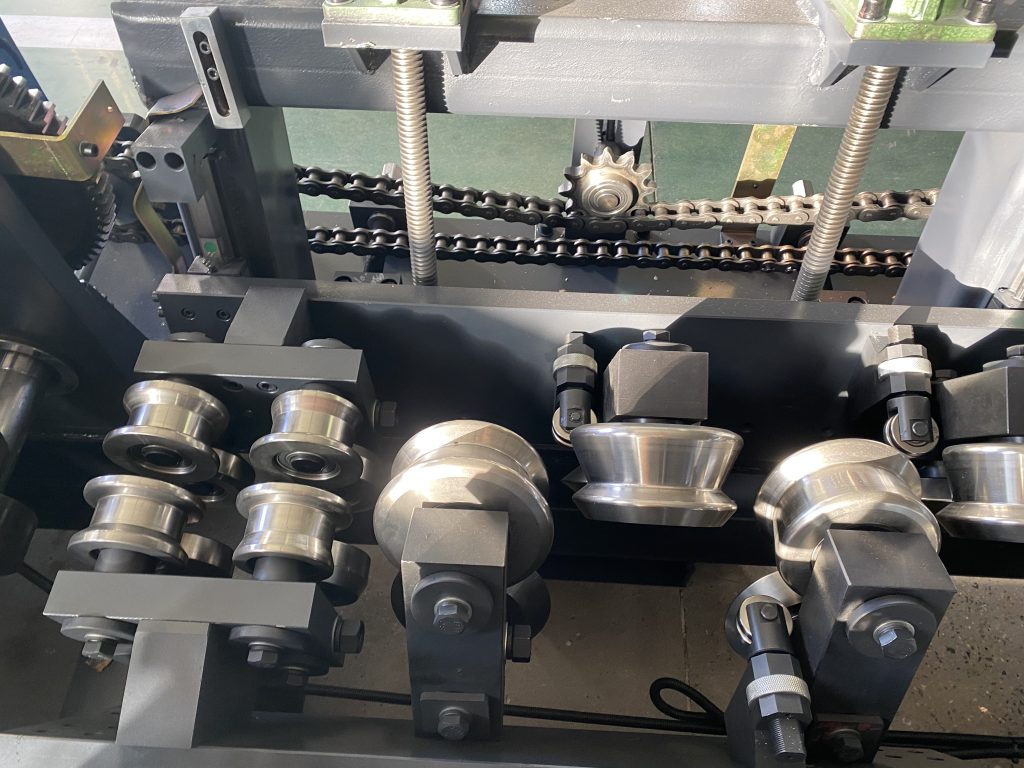

6.20A chain for transmission 7.Introduction: Equipped with transmission, driven by upper and lower shaft gears
