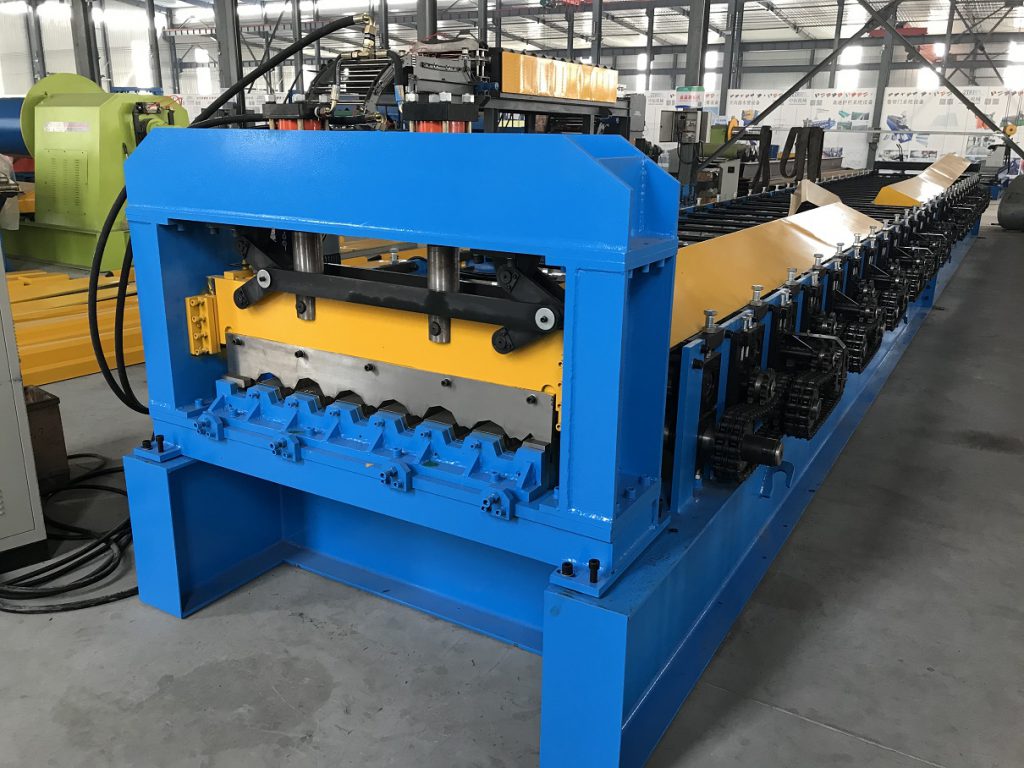

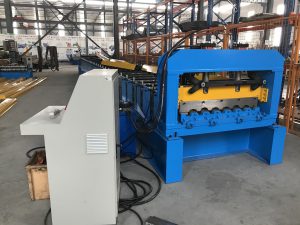

This Roof deck roll forming machine is used to produce the Galvanized steel roof deck,the profile is designed as customer’s request in America.And we also can produce the machine as customer’s request too.
The layout of the whole machine:
The component of the whole machine:
| No. | Name | Quantity | Specifications | Pictures |
| 1 | Manual/hydraulic Decoiler | 1 set | Capacity:5-15T Working type:Full automatic Power:5.5kw+4kw Coil width:max 1250mm |  |
| 2 | Main roll former | 1 set | Roller station:18 stations Roller material:Gcr15 with quenched treatment,sufure are hard chromed Shaft diameter:90mm Power:15kw*2 sets |  |
| 3 | Control system | 1 set | PLC control,English and other language Brand:Siemens |  |
| 4 | Hydraulic system | 1 set | Power:5.5kw |  |
| 5 | Product table | 2 sets | 3 meters*2 sets |  |
