What is Roof and wall sheet roll forming machine?

What is Roof and wall sheet roll forming machine?

TN35 TN40 Roofing sheet roll forming machine for Algeria

Roofing sheet roll forming machine is an industrial equipment that is designed to produce high-quality roofing sheets used for constructing commercial, residential, and industrial buildings.

This machine can produce different shapes, different materials and different thickness of roofing sheet. It is customized as final user’s request.

Different products which can be produced in the roll forming machine:

The component of the Roof and wall sheet roll forming machine:

  • Hydraulic Uncoiler/ decoiler / Manual uncoiler
  • Main Roll Forming Machine
  • Control station
  • Hydraulic station
  • Auto stacker/ receive table

 Manual Decoiler/ uncoiler                                                    Main Roll Forming Machine


 Control station                      Hydraulic station                                  Product receive table


Layout of the whole production line:

roll forming machine layout

How many types of Roof and wall sheet roll forming machine?

  1. IBR trapezoidal sheet roll forming machine:

This is the classic roofing sheet which is used widedly. IBR comes from the name of “ Inverted Box Rib” which is a famous name in African market. Some other countries call R panel sheet, BOX profile sheet, trapezoidal sheet and so on. This is the most variable sheets in the whole world, each country has different sizes.


2. Corrugated roll forming machine

This corrugated sheet machine is used to produce the wave shape, this is the famous and standard sheet in the whole world.

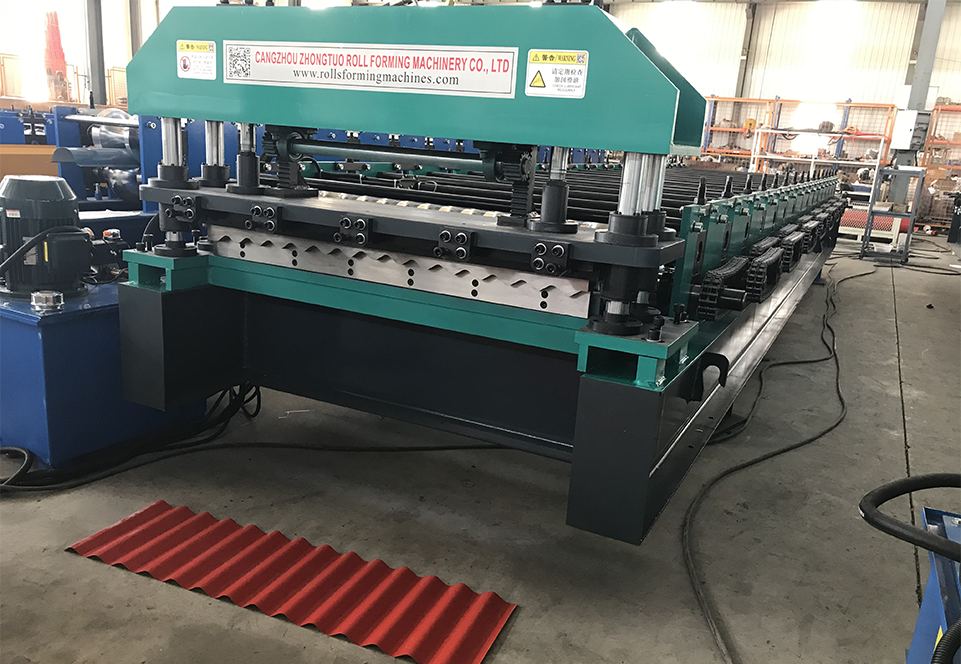

Corrugated sheet roll forming machine

3. Metal Tile making machine

Metal tile is different with IBR sheet and corrugated sheet, this one has step, which is more beautiful, and it is widely used.

Step tile roll forming machine

4. Standing seam roll forming machine

Standing seam metal roofing is defined as a concealed fastener metal panel system that features vertical legs and a broad, flat area between the two legs. It’s also described as having raised seams, or vertical legs, that rise above the panel’s flat area. Standing seam systems can be used for either metal roofing or metal walls.

The main idea for standing seam systems is that the fastener is hidden, whether the panel is attached to the roof deck using a clip or is directly fastened to the decking material under the vertical leg (fastener flange).

Snap Lock Standing seam roll forming machine


Roof and wall sheet roll forming machine used in different countries:

Type S Roll forming machine for SAUDI ARABIA        TR4 Roll forming machine for Peru

TR 101 1008 Roll forming machine for Mexico           Double layer machine for Chile

R panel AG panel PBR panel machine for USA    TR35/TN40 Roll forming machine

TN40 roofing sheet machine

We #ZTRFM Cangzhou Zhongtuo Roll Forming Machinery #rollformingmachine is the professional manufacturer to produce this kind of roll forming machines, such as Roof and wall sheet roll forming machine, metal tile making machine, floor deck roll forming machine, CZ purlin roll forming machine, Drywall stud and track roll forming machine, slitting and cutting to length line and so on. We have exported machines to more than 150 countries which includes: USA, Canada, Italy, Mexico, Iraq, India, Peru and so on.

Welcome to contact us if you need this kind of roll forming machines.
