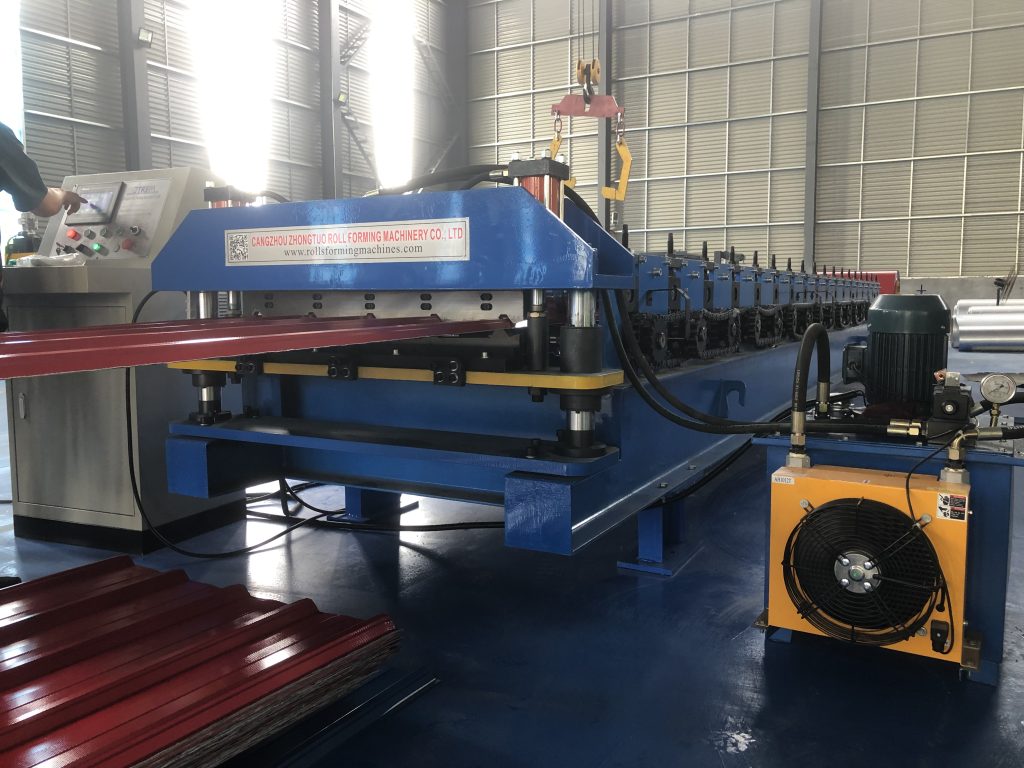

ZTRFM QuanXin Colored Steel Tile Forming Machine：
Zhongtuo Quanxin colored Steel Tile adopting a polymer hot bonding process，cover the metal sheet with film materials that have anti-corrosion, thermal insulation, and anti fading functions,the powerful board eliminates paint coatings with single functions.In hot weather, the insulation cotton attached to the color steel tile roof can only resist heat conduction through thickness,if it is too thick, it will cause load-bearing problems and significantly increase costs, while if it is too thin, the effect will be poor.Zhongtuo Quanxin Thermal lnsulation Functional Tile,using up to three layers of aluminum foil and rubber plastic board technology,UV thermal energy undergoes three refractions,the residual heat energy is absorbed by the rubber plastic cotton,realize the thermal insulation effect of traditional composite panels with a thickness of about 4mm, achieving a cost reduction of half overall.
Product Attributes :
| 1 | Suitable material | Color steel sheet ,galvanized steel sheet, aluminium sheet |
| 2 | Width of material | 1200mm or as you required |
| 3 | Thickness of material | 0.3-0.8mm or as your needs |
| 4 | Working speed | 10-20m/min |
| 5 | Main motor power | 5.5kw with cycloidal reducer |
| 6 | Hydraulic station power | 5.5kw |
| 7 | Electrical control system | PLC control system |
| 8 | Shaft diameter | 80mm |
| 9 | Roller station | 12rows or as you required |
| 10 | Dimension | 7500x1500x1910mm |
| 11 | Weight | About 5 T |
| 12 | Voltage | 380V 3phase 50HZ or as the customer’s requirements |
| 13 | Material of roller | High grade 45# forged steel plated with hard chrome plating |
| 14 | Material of cutting | Cr12 mould steel with quenched treatment |
| 15 | Working time | Can be 24 hours |
Product Description：
Zhongtuo Quanxin colored Steel Tile Forming Machine creates flat roof panels with excellent performance. The design of hidden bolts not only looks beautiful, but also enhances waterproof and windproof capabilities; The tight overlapping method ensures the integrity and stability of the roof, and the installation is simple, greatly saving construction time and cost.
Zhongtuo Quanxin colored Steel Tile Widely used in industries such as construction, home appliances, and transportation. In the construction industry, color steel tiles are commonly used for the roofs and walls of industrial and commercial buildings such as steel structure factories, airports, warehouses, and freezers. Color steel tiles have the advantages of thermal insulation, high temperature resistance, bright colors, beautiful appearance, easy processing and low cost.

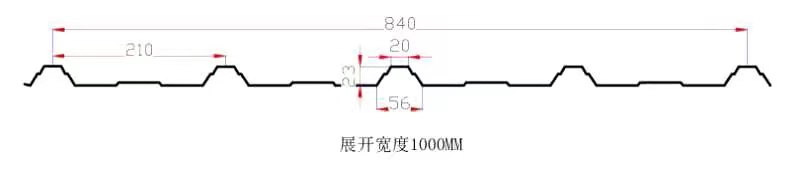

Pattern diagram：

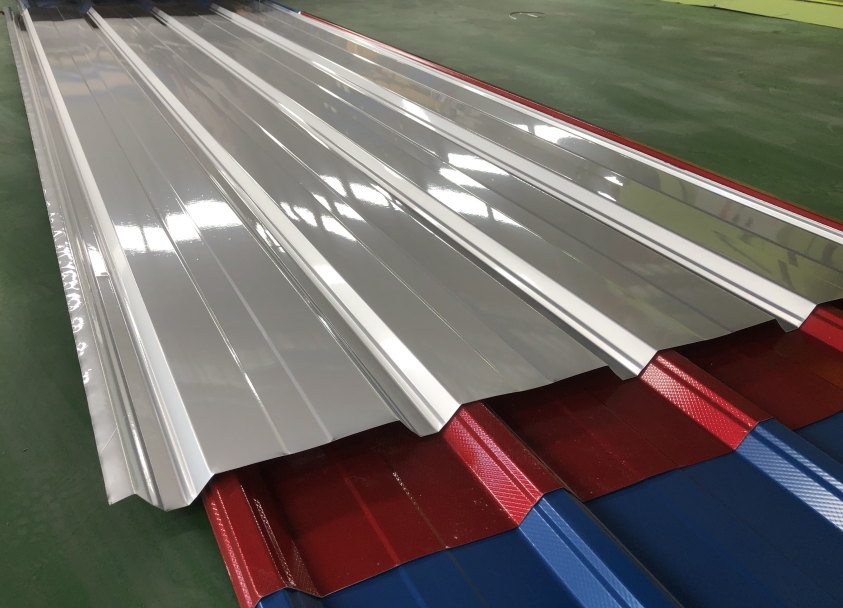

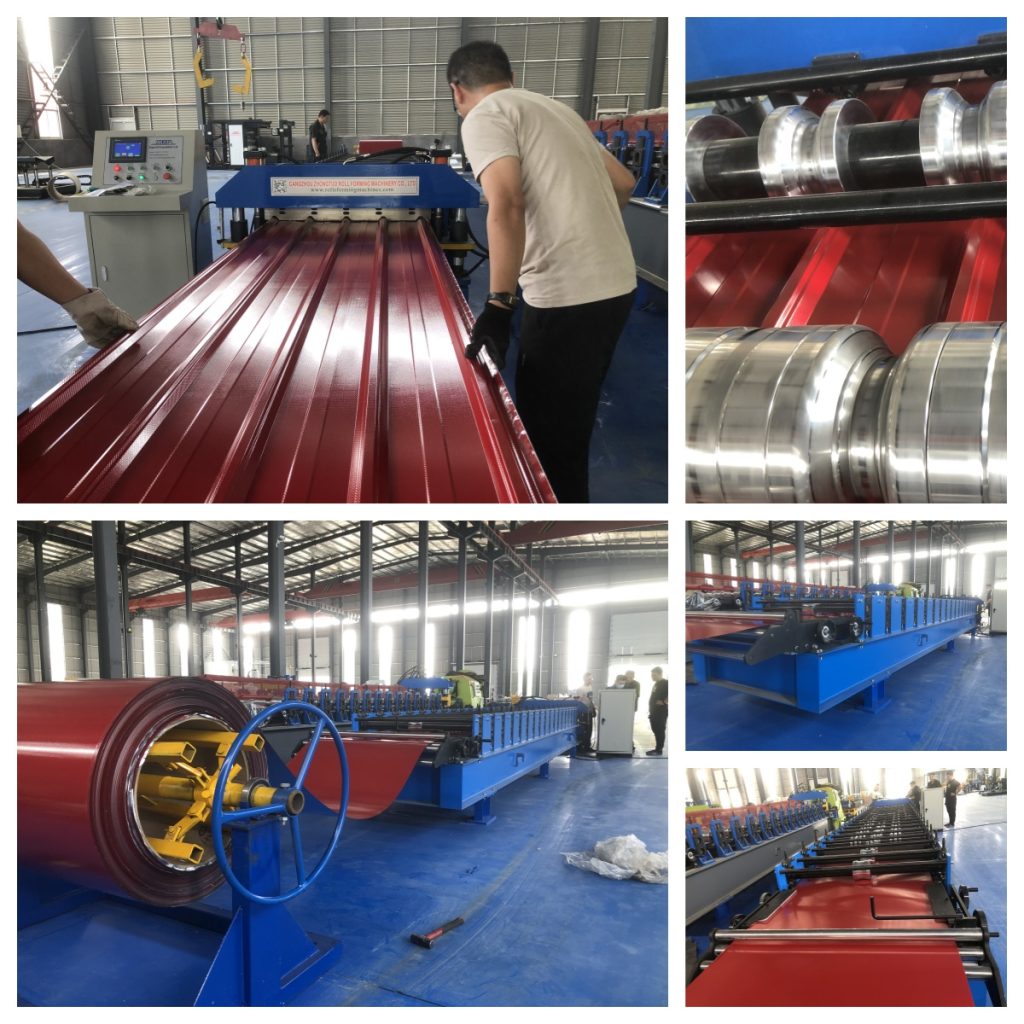

Products Display：
