As a core equipment in the field of modern metal processing, the Metal Steel Sheet Embossing Machine achieves precise pressing of the uneven texture on the surface of metal sheets through precision molds and high-pressure forming technology. Its application has expanded from the traditional decoration field to high-end manufacturing scenarios such as architecture, automobiles, and electronics, becoming a key tool for enhancing the added value and functionality of metal products. Currently, with the deepening of Industry 4.0 and the concept of green manufacturing, metal embossing machines continue to make breakthroughs in lightweight, high-strength, and environmentally friendly directions, promoting the industry’s transformation towards efficiency, intelligence, and sustainability.
Packing list：
| Item | Name | Unit | Quantity |
| 1 | Feeding table | set | 1 |
| 2 | Embossing machine | set | 1 |
| 3 | Leveler | set | 1 |
| 4 | PLC control system PLC | set | 1 |
| 5 | Run-out table | set | 1 |
Typical application scenarios
1. In the field of automobile manufacturing
• Interior parts processing:
Embossing the seat frame, door panels, and dashboard to increase friction coefficient and luxury, while meeting lightweight requirements. For example, a certain new energy vehicle company uses a metal embossing machine to achieve three-dimensional texture molding of the seat adjustment mechanism, improving product recognition.
• Structural strengthening:
Pressing reinforcement ribs on the surface of the frame and suspension components to enhance torsional stiffness and extend service life.
2. Construction and Decoration Industry
• Curtain Wall and Doors and Windows:
Aluminum alloy curtain wall panels and stainless steel door and window frames are embossed with decorative patterns such as wood grain and stone grain, combining aesthetics and weather resistance. For example, a landmark building project uses a metal embossing machine to achieve personalized texture customization of curtain wall panels, shortening the construction period by 30%.
• Interior decoration:
Embossing metal ceilings and wall decorative panels to create a modern and minimalist style, widely used in commercial spaces and residential decoration.
Technical of the whole line：
Part 1:Input feeding table
1.Usage：When feeding the sheet, as the material thickness up to 4mm, it will be quite heavy, by this device we can feed the sheet easily and to the right direction.
2.dimension：Dimensions (length, width, height): 3 * 1.5 * 1m Weight: about 0.8 tons (max 4mm)

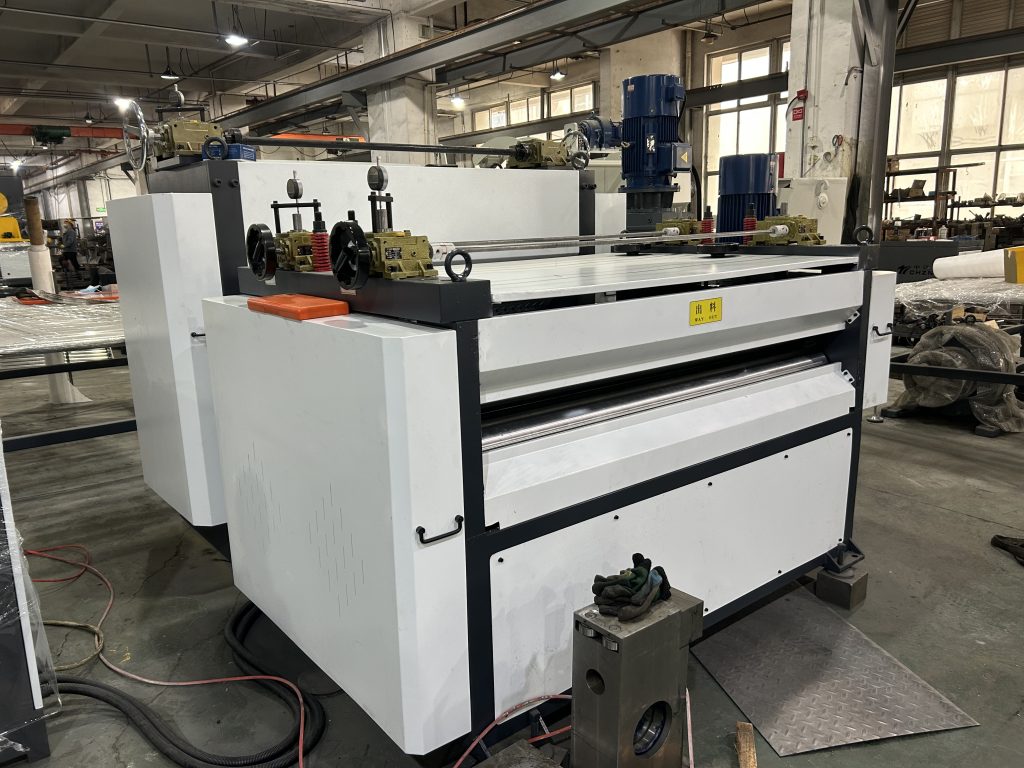

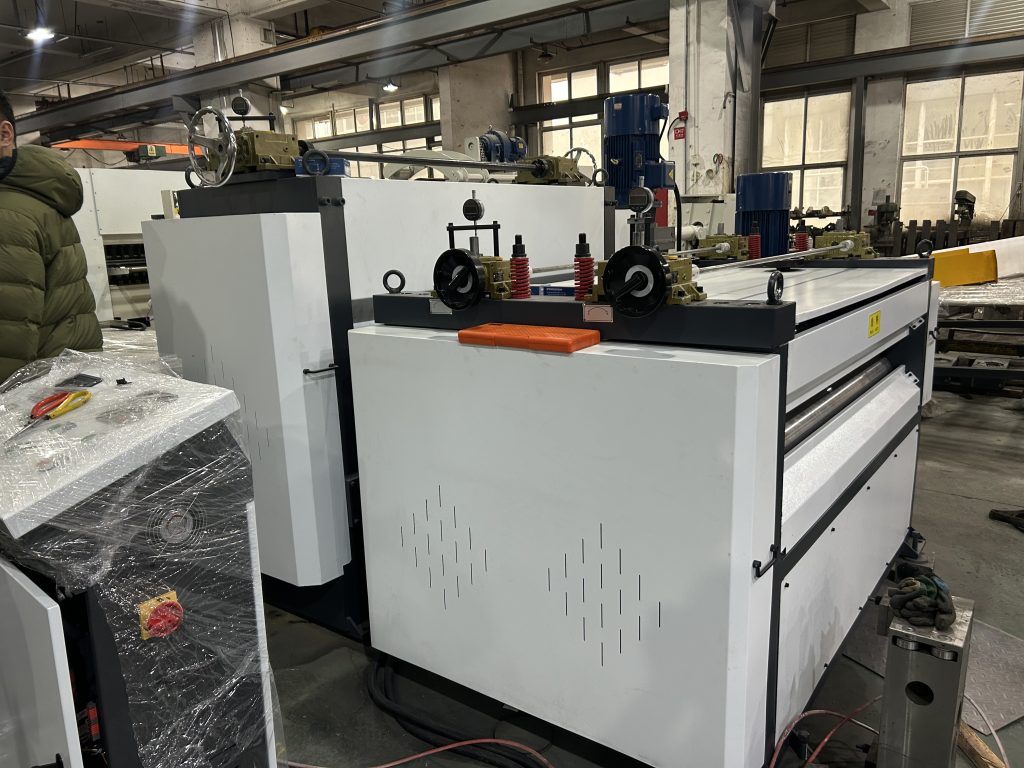

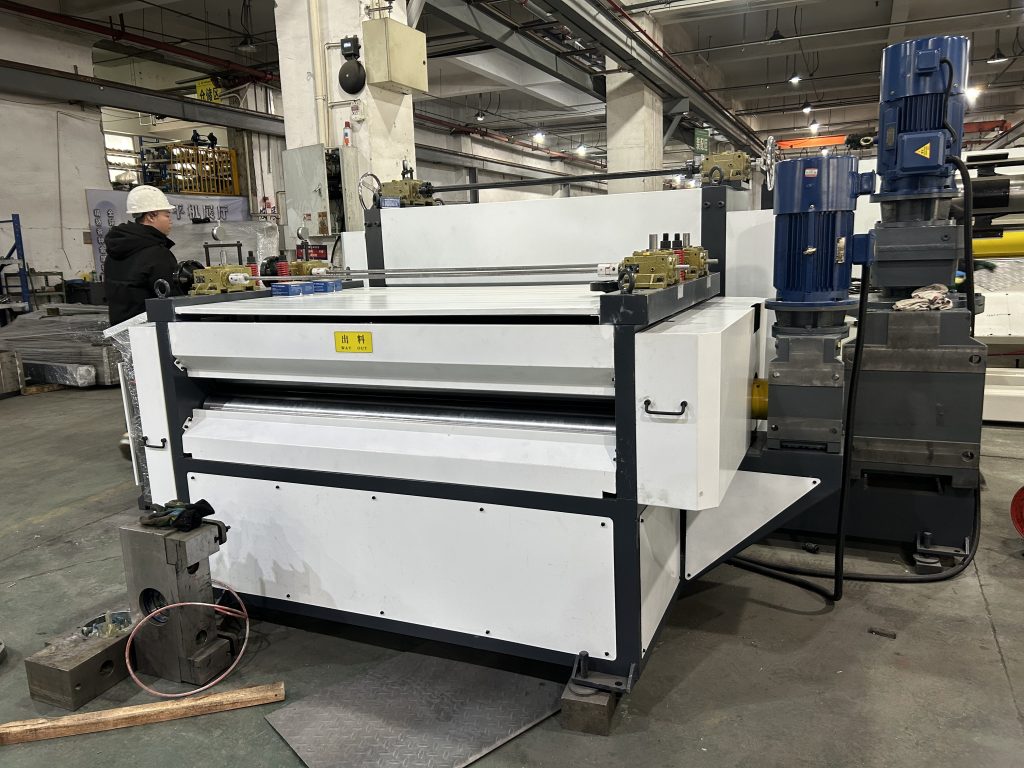

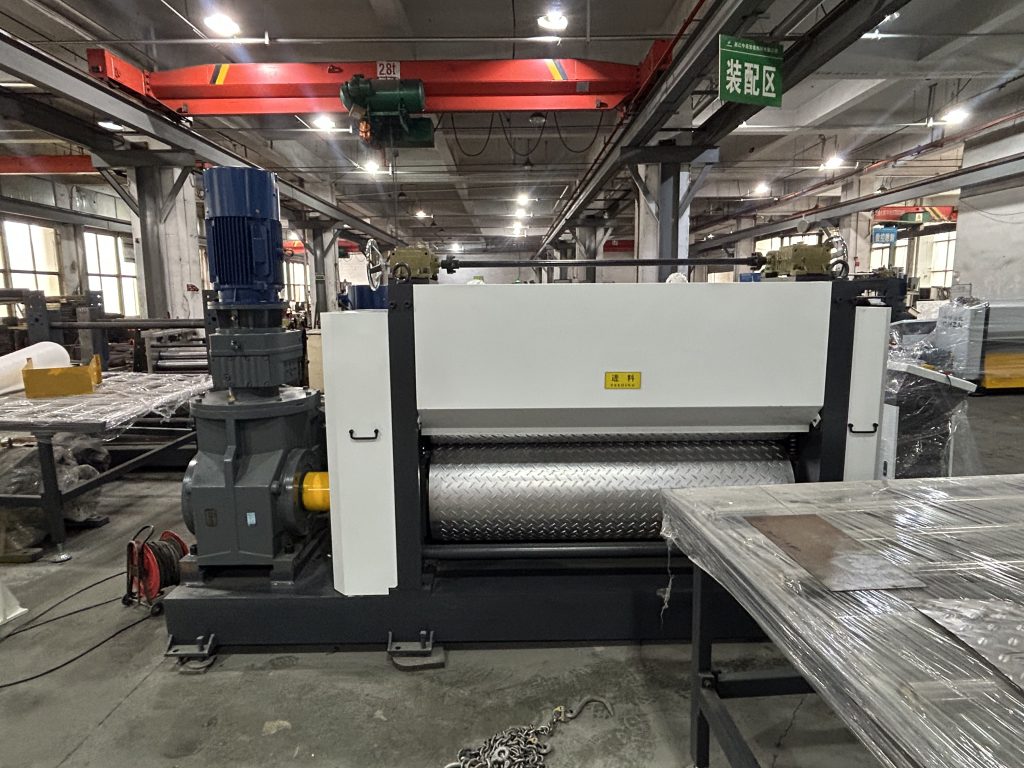

Part 2:Embossed rollers parameters
1.Machine frame：Frame steel plate welded structure, polished, tempering, machining, solid wall plate Q235 90 mm thick
2.Embossed roller：2pcs, Ø440*1600mm,surface with hard chrome coating
3.Material：9Cr2Mo, solid forging
4.Hardness：Tempering and intermediate-frequency quenching, roller surface hardness HRC63-64.
5.dimension：2.5*1*1.5m(L*W*H)
6.Weight ：About 9-10tons
Part 3:Drive system
1.Motor：15KW motor
2.Cycloidal speed reducer：BBWD7-87-15KW-4P
3.Embossing speed：0-8m/min speed adjustable
4.Press-down：by screw rod driven by worm speed-reducing motor WPWKO 100
Part 4:Leveler
1.Leveling rollers：Ø100*5pcs
2.Motor power：5.5kw motor
3.Pressure type：Screw with worm reducer WPWKO 70
4.Speed：0-8m/min speed adjustable
dimension：1.8*1*1.5m(L*W*H)
Weight：About 2-3tons
