In today’s rapidly developing fields such as steel structure construction, industrial manufacturing, and new energy, efficient, precise, and flexible steel processing equipment has become the core support for industrial upgrading. As an innovative model in the field of cold bending, High Accuracy CZM Channel Sigma Purlin Roll Forming Machine integrates advanced technology and practical design, breaks the limitations of traditional processing, and uses integrated solutions to help enterprises reduce costs, increase efficiency, and enhance quality. It has become the preferred equipment in the current steel processing field, interpreting the core connotation of “smart manufacturing changes production” with its hardcore strength.
Application scenario: Global coverage, empowering multi industry upgrading
With excellent performance and flexible adaptability, CZM steel machines have deeply penetrated into multiple fields such as construction, industry, new energy, agriculture, etc., becoming the core equipment for steel processing in various industries, and helping the high-quality development of industries with their strength.
• In the field of architecture：

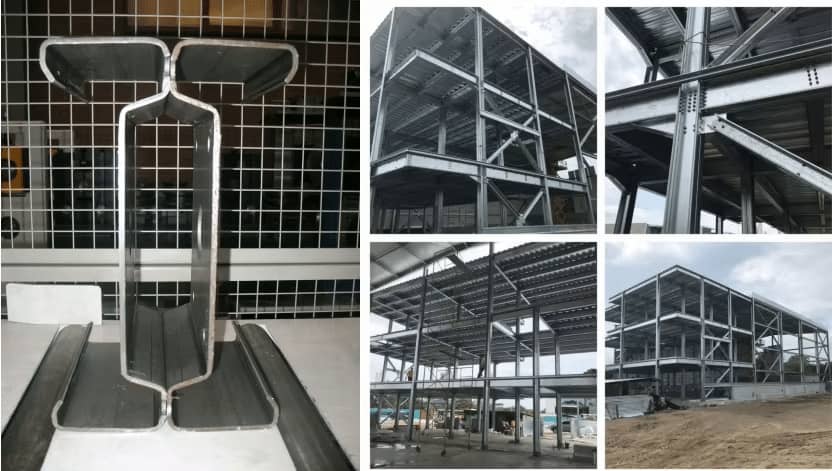

as the core processing equipment for steel structure buildings, CZM steel machines produce C and Z steel, which are widely used in structural components such as purlins, wall beams, and keels in industrial plants, warehouses, super high-rise buildings, sports venues, exhibition centers, etc
• In the industrial field：
CZM steel machines produce steel for storage shelves, equipment brackets, cable trays, and other applications such as logistics warehousing, machinery manufacturing, electronic clean factories, and food processing cold storage. Their load-bearing capacity is increased by more than 30% compared to traditional welded structures, making them suitable for heavy-duty scenarios.
• In the field of new energy:
With the rapid development of the photovoltaic industry, CZM steel machines have become the preferred equipment for processing photovoltaic brackets. The produced steel can be used to fix and support solar panels, ensuring that the panels are at the optimal lighting angle and optimizing light absorption efficiency.
• In the field of agriculture:
In agricultural facilities, the steel produced by CZM steel mills can be used for frame structures such as multi span greenhouses and mushroom houses, with a service life that is more than three times longer than traditional bamboo and wood structures, while balancing lighting efficiency and structural strength.

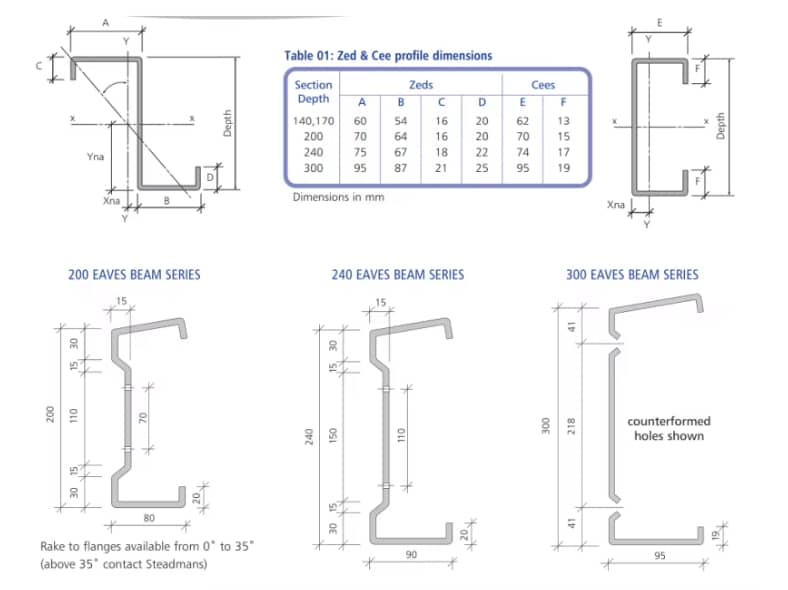

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm or customize
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

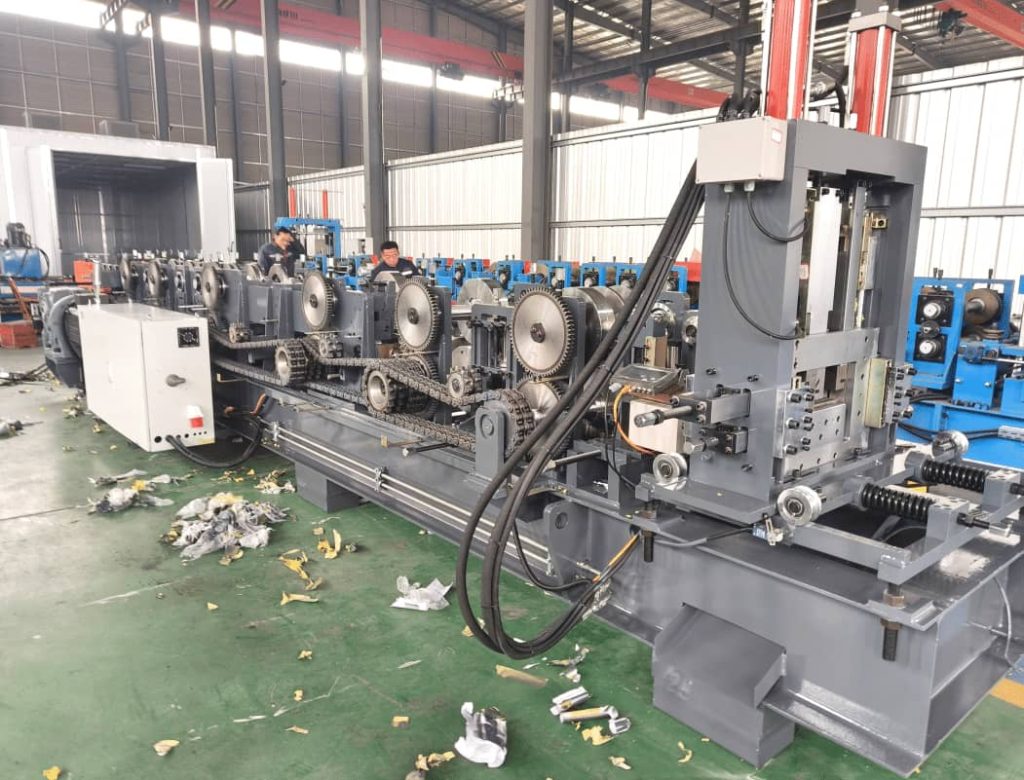

3.Main body
|
Roller station
|
32 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|

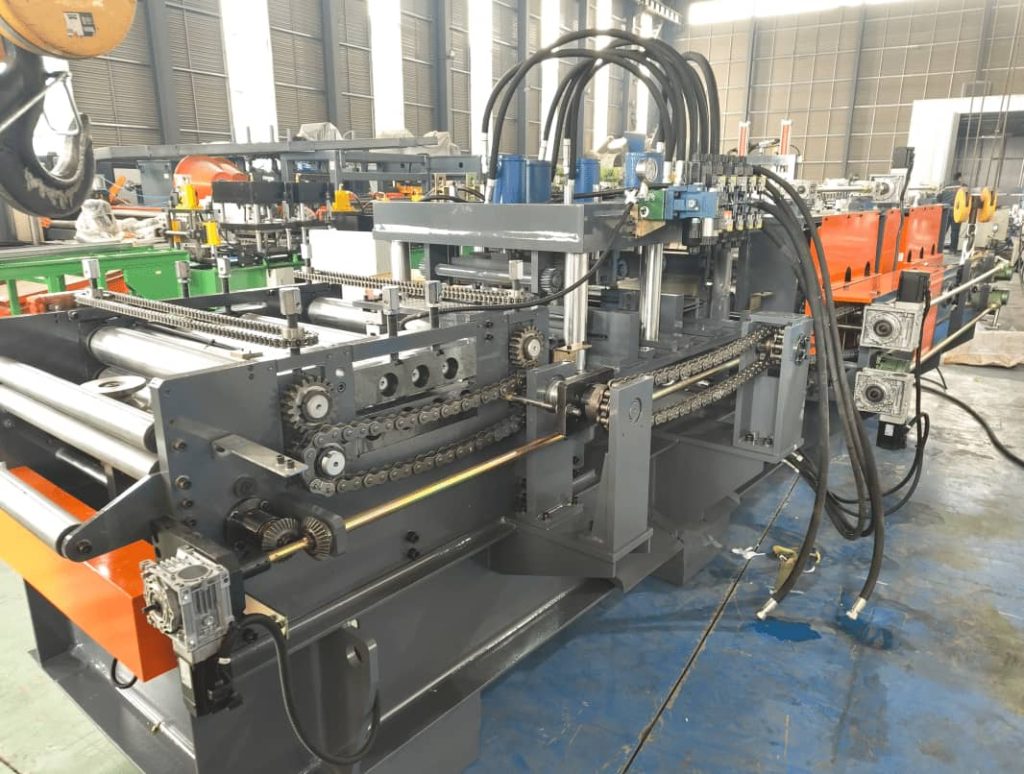

Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 24T
|
|||
|

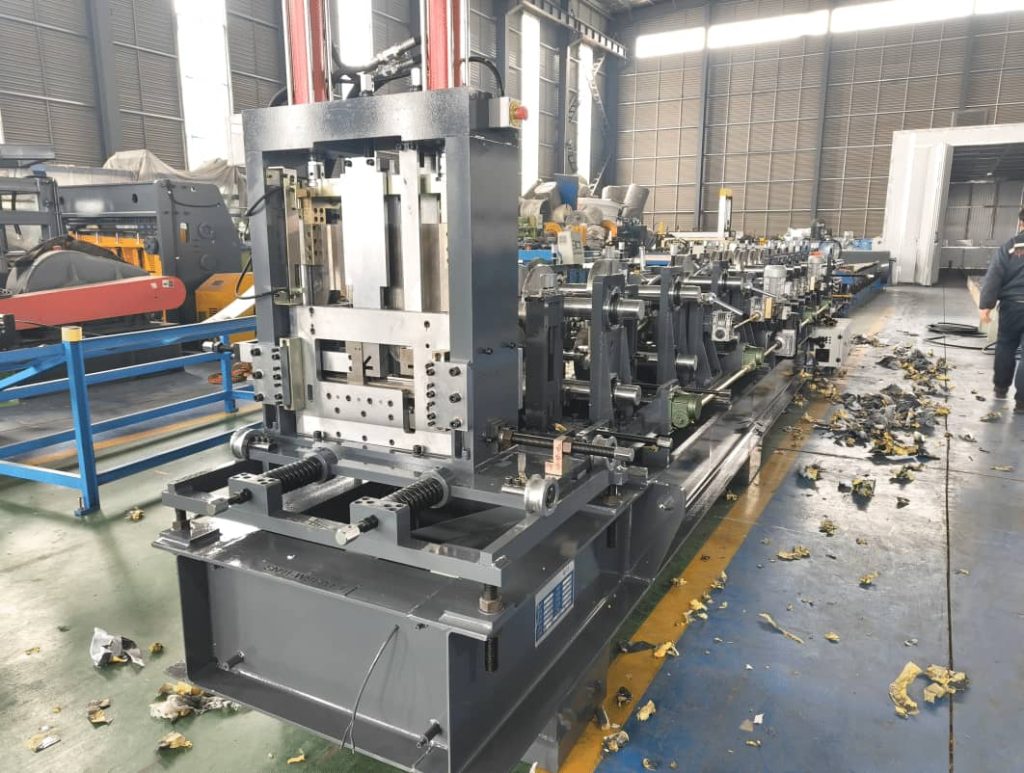

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
15Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core feature: Multi dimensional breakthrough, highlighting the advantages of intelligent manufacturing
Compared with traditional steel processing equipment, CZM steel machines focus on “efficiency, precision, flexibility, and energy conservation” as their core, creating four differentiated advantages, comprehensively improving processing efficiency and product quality, and helping enterprises enhance their core competitiveness.
1.Efficient and convenient, no need to disassemble parts when changing models.
The equipment adopts an innovative CZ interchange structure, which can quickly switch between C-shaped and Z-shaped steel by flipping the rollers 180 degrees without disassembling any parts. The changeover time is greatly reduced, completely changing the current situation of traditional equipment that needs to process C-shaped and Z-shaped steel separately. A single equipment can produce full specifications of C-shaped and Z-shaped steel, greatly saving equipment investment and site space.
2.Accurate and durable，with controllable and traceable quality.
The core rolling unit adopts GCr15 bearing steel, which has a hardness of 55-58HRC after quenching treatment. The surface is chrome plated to enhance wear resistance. The 16-20 rolling forming process ensures that the steel is formed smoothly and without burrs, and the cross-sectional accuracy is controlled within ± 1.5mm, far exceeding industry standards. The cutting system uses Cr12Mov die steel, combined with hydraulic shearing technology, to cut smoothly without deformation, effectively improving the product qualification rate.
3.Flexible and diverse, adaptable to various needs.
The device supports intelligent control of key parameters such as waist height, bottom width, and small edges, and can process various complex cross-sectional shapes of profiles. It can also be equipped with reinforcement function according to needs to enhance the rigidity of the steel and adapt to different usage needs in different scenarios.
4.Energy saving and worry free, with controllable operation and maintenance costs.
The equipment adopts AC variable frequency speed regulation technology, which can flexibly adjust the operating speed according to production needs. Combined with an energy-saving feedback system, energy consumption is reduced by more than 25% compared to traditional equipment, effectively reducing production costs for enterprises.
