As the “wiring skeleton” of industries such as power, construction, and new energy, the production efficiency and accuracy of cable trays directly determine the project schedule and cost control. Traditional manual processing, low production capacity of old equipment, high losses, and single tile types can no longer keep up with the explosive demand of projects. However, an intelligent, efficient, adaptable, stable, and Full Automatic Metal Steel Cable Tray Manufacturer Line is the core weapon for you to seize the market!
Product Attributes：
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:200-1130 mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
7T
|
||
|

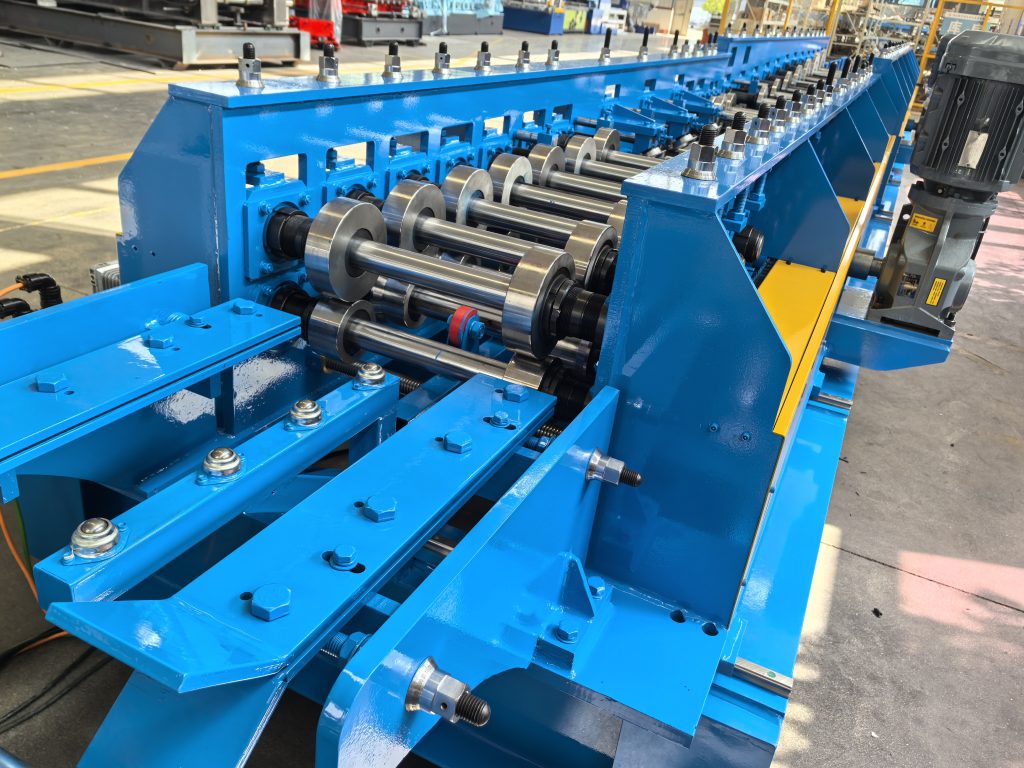

3.Main body
|
Roller station
|
22 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
35×1.5×1.6m
|
|||
|
Weight
|
About 60KW
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
5-10m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Three core advantages, crushing traditional production models!
• Fully automated integration: integrating the entire process of feeding, punching, forming, cutting, and stacking, with a production speed of 8-25m/min and a daily output of over 5000 meters, increasing efficiency by 3-5 times.
• High precision machining: cutting error ≤ ± 1mm, hole position accuracy ≤ ± 0.2mm, seamless splicing, no need for secondary correction.
• Material saving and cost reduction: The raw material loss rate is as low as 2% or less, and the annual material saving cost exceeds hundreds of thousands.
2. Multi adaptability, one unit can accommodate up to N units
• Full material compatibility: supports steel, aluminum alloy, stainless steel, etc., with a thickness of 1.2-6mm, covering a full range of bridge types.
• Flexible production mode: semi-automatic/fully automatic dual mode, suitable for small batch customization and large-scale production.
• Quick changeover: 10 minutes to switch specifications, easily handling urgent and small orders.
3. Stable and durable, worry free and cost-effective
• Intelligent and easy to operate: Siemens PLC+touch screen control, can be independently operated within 1 day of training.
• Energy saving and silent: energy consumption reduced by 20%, noise ≤ 82dB, environmentally friendly and energy-saving.
Covering all industry scenarios, orders come knocking on your door proactively!
• Industrial field:
Batch production of cable wiring and cable trays in factory workshops and chemical industrial parks;
• Architectural field:
Customization of strong and weak electrical bridge frames for office buildings, residential communities, and commercial complexes;
• In the field of new energy:
anti-corrosion bridge processing for photovoltaic power plants and wind power projects;
• In the municipal field:
high-density cabling bridge structures are formed for rail transit, smart cities, and data centers.
Why do 90% of top manufacturers choose it?
• Cost reduction:
Labor costs are reduced by 60%, material losses are halved, and overall production costs are directly reduced by 30%;
• Efficiency increase:
doubled production capacity, shortened delivery cycle by 40%, more confident in undertaking large orders;
• Tuoke:
supports diversified and customized production to meet different customer needs, and reputation fission brings more orders;
• Value preservation:
Modular design of equipment, upgradable and expandable, suitable for future industry development, with long-term benefits from a single investment.
