Metal Rain Gutter Making Machine picture:

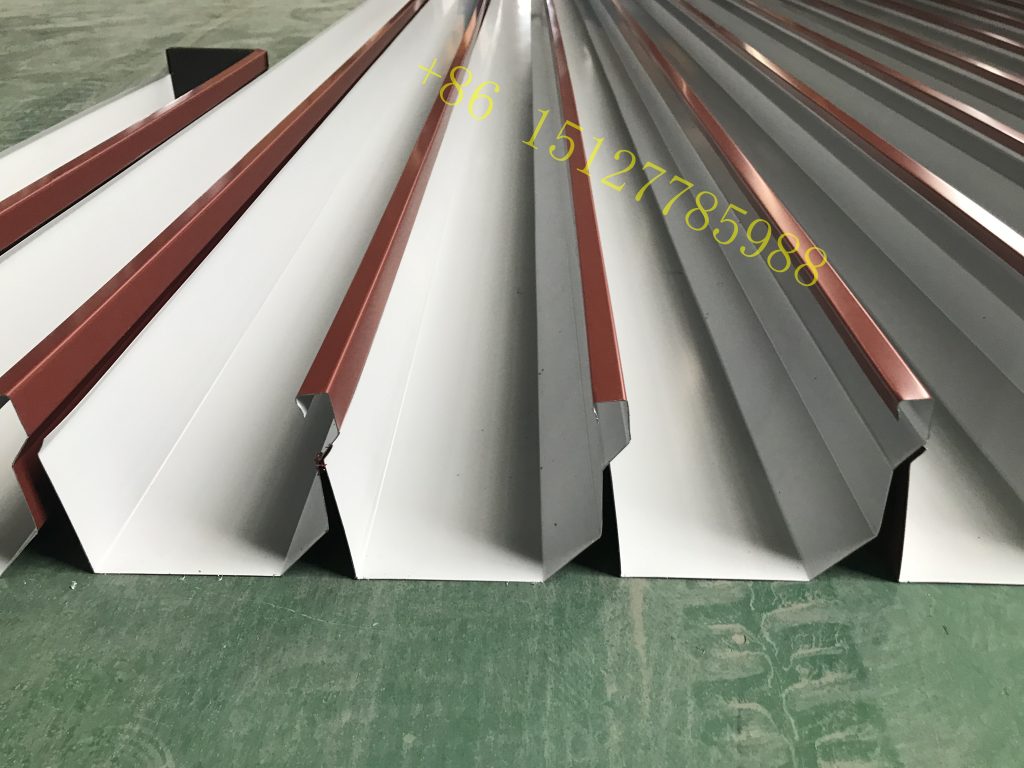

Finished Rain Gutter product show:
The application of the gutter:
The technical specifications of the Metal Rain Gutter Making Machine:
| Item | Name | Specifications |
| 1 | Raw material | Galvanized steel and Pre-painted steel |
| 2 | Raw material thickness | 0.3-0.6mm or as customized |
| 3 | Decoiler | 3T Hydraulic decoiler(Different capacity for option,manual one for option) |
| 4 | Roller station | 18 station(according to profile drawing) |
| 5 | Roller material | 45# steel with quenched treatment |
| 6 | Shaft diameter | 70mm |
| 7 | Shaft material | 45# steel with tempered |
| 8 | Transmission | by chain |
| 9 | Motor power | 5.5kw |
| 10 | Machine frame | 350H steel welded |
| 11 | Cutting type | Hydraulic cutting |
| 12 | Hydraulic power | 5.5kw |
| 13 | Cutting blade material | Cr12 with quenched treatment |
| 14 | Cutting tolerance | +/-1mm |
| 15 | Control system | PLC |
| 16 | Brand | PLC:Delta/Siemens/Mitsubishi
Touch screen:Delta/Siemens/Mitsubishi Encoder:Omron |
The whole production line of Metal Rain Gutter Making Machine components:

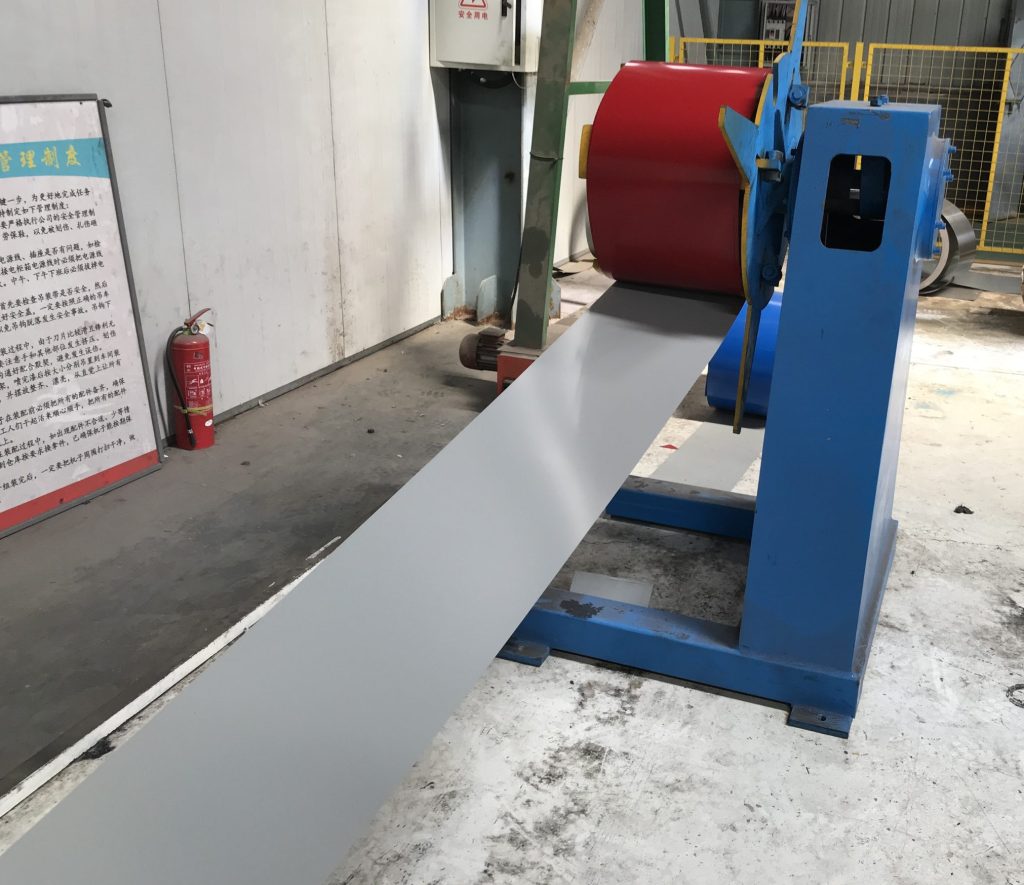

1.Manual/Automatic uncoiler
2.Roll former
3.Hydraulic cutting system
4.PLC control system
5.Product receive table
