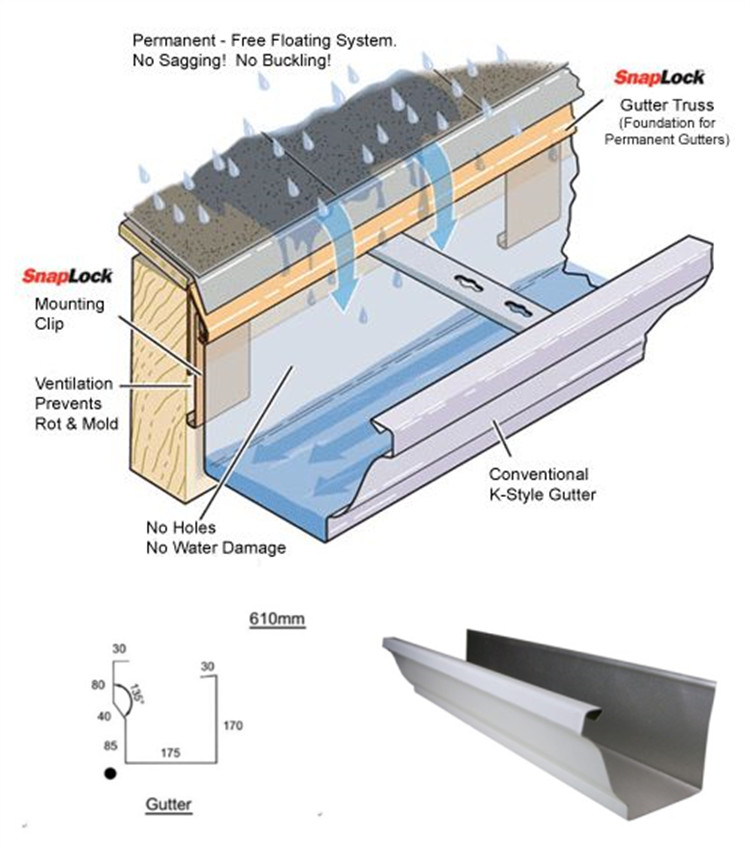

This Rain Gutter Roll Forming Machine is used to produce rain gutter or water gutter,the raw material can be stainless steel,galvanized steel and color steel too.
The design of the gutter is customized as user’s demand.
Technical specifications of the machine:
Item | Name | Specifications |
1 | Material | 1.Raw material:PPGI,Galvanized steel,Stainless steel 2.Raw material thickness:0.3-0.8mm 3.Yield strength:350Mpa,550Mpa 4.Coil width:as the profile drawing |
2 | Main roll former | 1.Roller station:16 station(according to profile drawing) 2.Roller material:Cr 12 with quenched treatment 3.Shaft diameter:80mm 4.Shaft material:45# steel with tempered 5.Transmission:by chain 6.Motor power:5.5kw 7.Machine frame:350H steel welded 8.Cutting type:Hydraulic cutting 9.Cutting blade material:Cr12 with quenched treatment 10.Cutting tolerance:+/-1mm |
3 | Electric brand | 1.Control system:PLC 2.PLC brand:Siemens 3.Touch screen brand:Siemens 4.Button brand:Schneider 5.Encoder brand:Omron 6.Low voltage apparatus:Schneider |
More pictures of the machine:
