Product Attributes :
| Material | Thickness | 0.4-0.6mm |
| Coil width | 1000mm | |
| Yield Strength | 235 Mpa | |
| Material | Aluminium Coils, PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Flat Sheet Rolling Mill | Forming Stations | 14 Stations ( Depend on Profiles ) |
| Roller material | 45# steel coated with 0.05mm hard chrome | |
| Diameter of shaft | 80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Gearbox transmission | |
| Machine structure | Cast iron archway | |
| Forming speed | 5-8m/min | |
| Main power | 7.5KW | |
| Step Pressing Device | Pressing Type | Hydraulic type pressing |
| Pressing Mould | Cr12 Mov steel, HRC58-62 | |
| Automatic Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| CuttingTolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control Board | PLC | Delta from Taiwan |
| Inverter | Delta | |
| Touch screen | Delta | |
| Operation type | Touching screen & Buttons | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
| Runout Tables | Table type | Simple unpowered type |
| Function | To support the finished panels |
The advantage of Metal Glazed Tile Roofing Sheet Making Machine：
- High production efficiency:
It can continuously produce a large number of tiles, improving production efficiency. - Stable product quality:
By precisely controlling process parameters, the quality of tiles is ensured to be stable. - Easy to operate:
The user-friendly interface makes it easy for operators to get started. - Easy maintenance:
The machine has a simple structure and is easy to maintain. - Environmental protection and energy conservation:
adopting advanced combustion technology to reduce energy consumption and pollutant emissions.
Product Description：

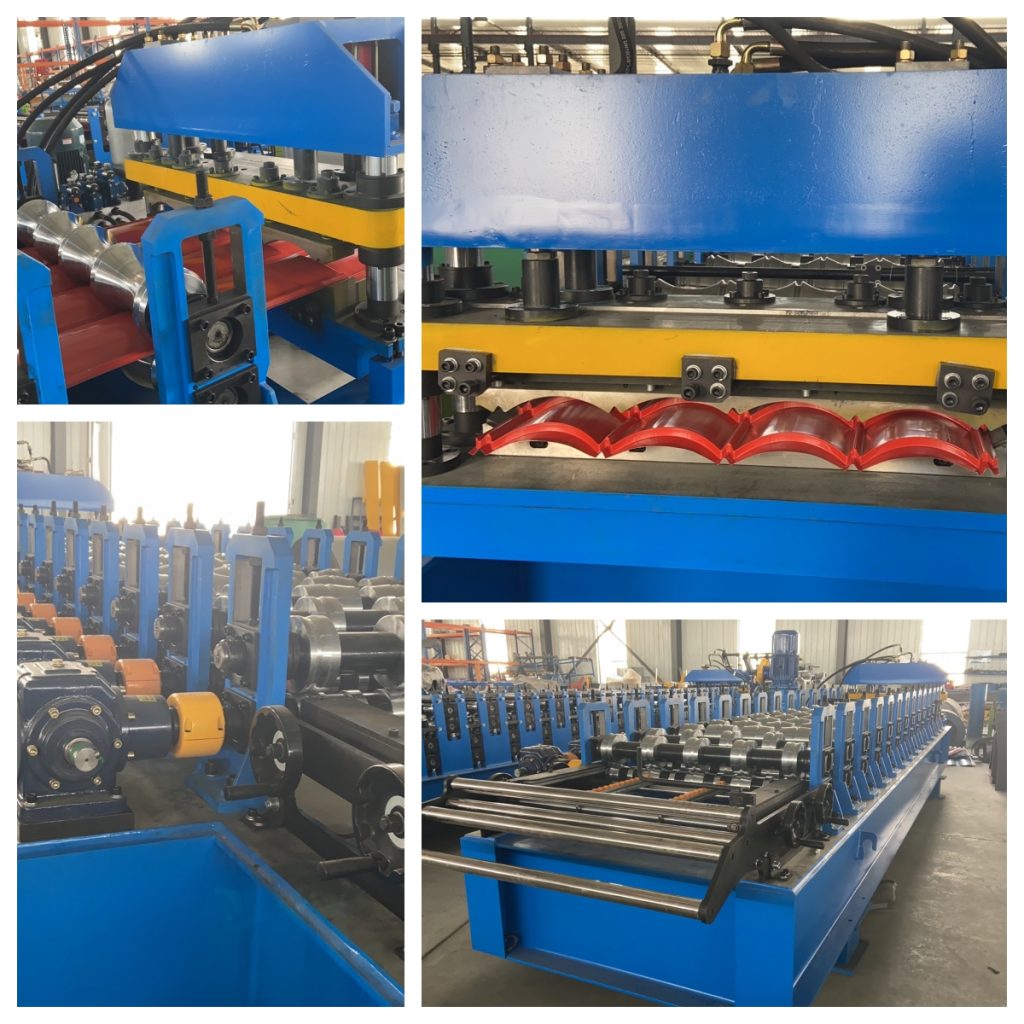

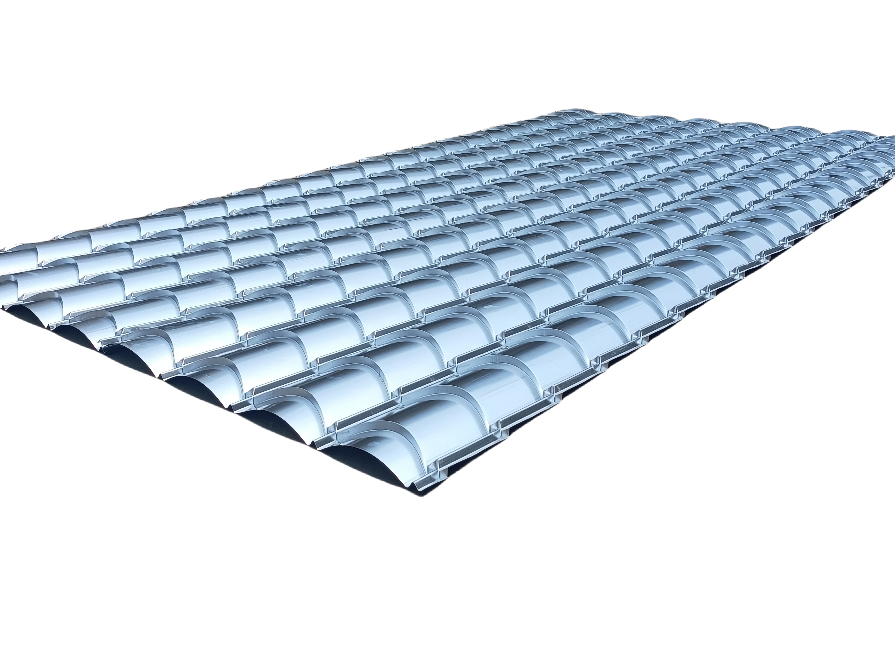

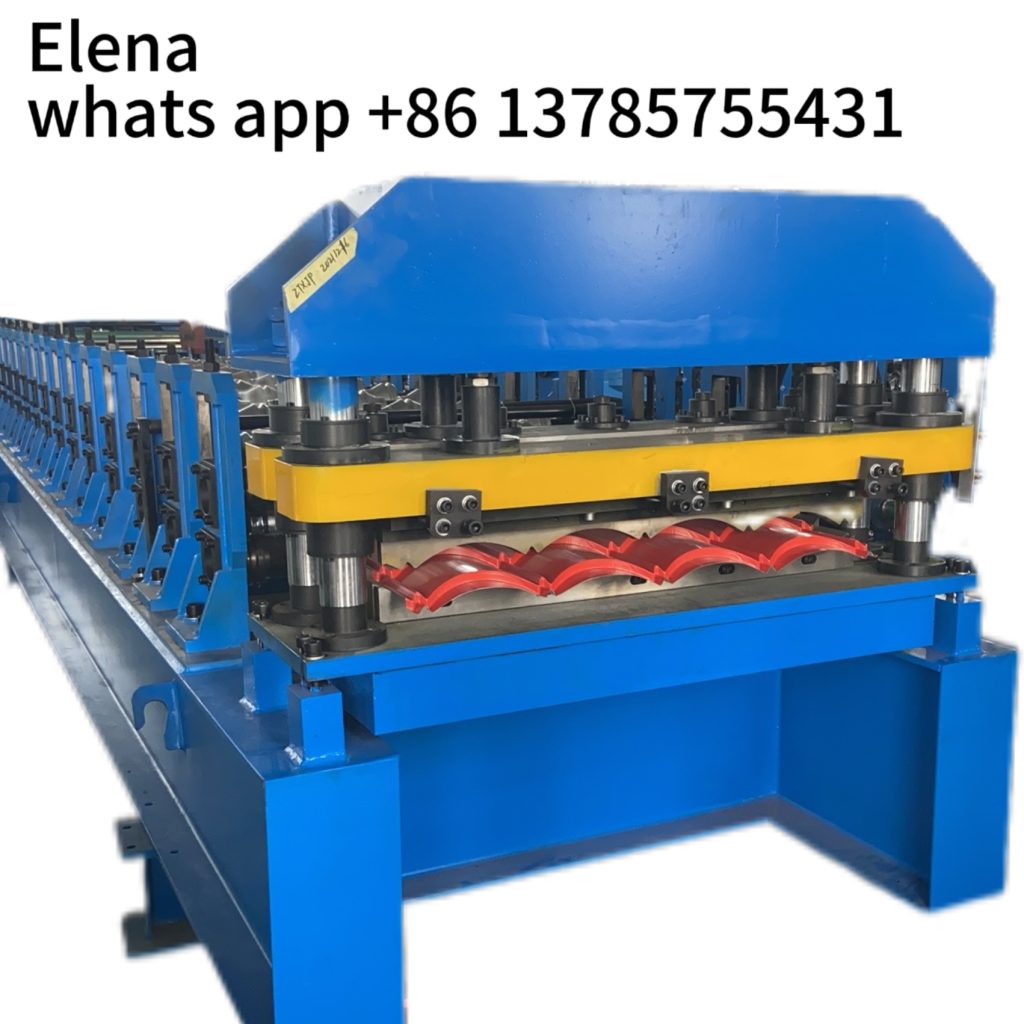

The metal glazed tile roofing sheet making machine is a mechanical equipment used for producing metal glazed tiles, mainly used to process metal sheets (such as galvanized steel plates, color steel plates, or aluminum plates) or clay materials into metal glazed tiles with specific shapes and sizes. These tiles are widely used in roof, wall decoration, and interior decoration of buildings, with characteristics such as beauty, durability, and waterproofing.
