Cable Tray Cable Pallet are widely used in various buildings, industrial facilities, and power systems to support and protect wiring projects. They can be independently erected or attached to various buildings and pipe gallery supports. The design of cable trays should consider the stability of the structure, load capacity, and environmental adaptability to ensure the safe operation and convenient maintenance of Cable Tray Cable Pallet .

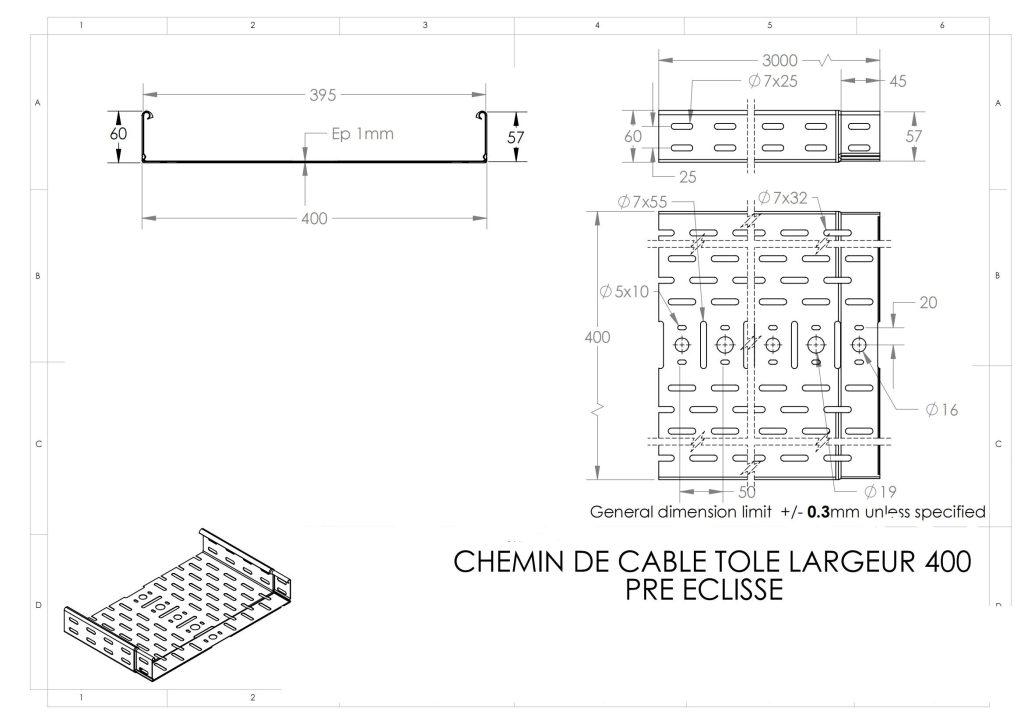

The main types and characteristics of Cable Tray Cable Pallet ：
Trough type cable tray:
suitable for occasions where interference shielding is required, with good shielding effect.
Tray type cable tray:
suitable for laying cables with large spans and no heavy loads, with a simple structure and easy installation.
Ladder type cable tray:
suitable for laying high and low voltage power cables, with the advantages of light weight, low cost, and good heat dissipation and ventilation.
Network format cable tray:
suitable for occasions that require ventilation and heat dissipation, with an open structure and easy maintenance.

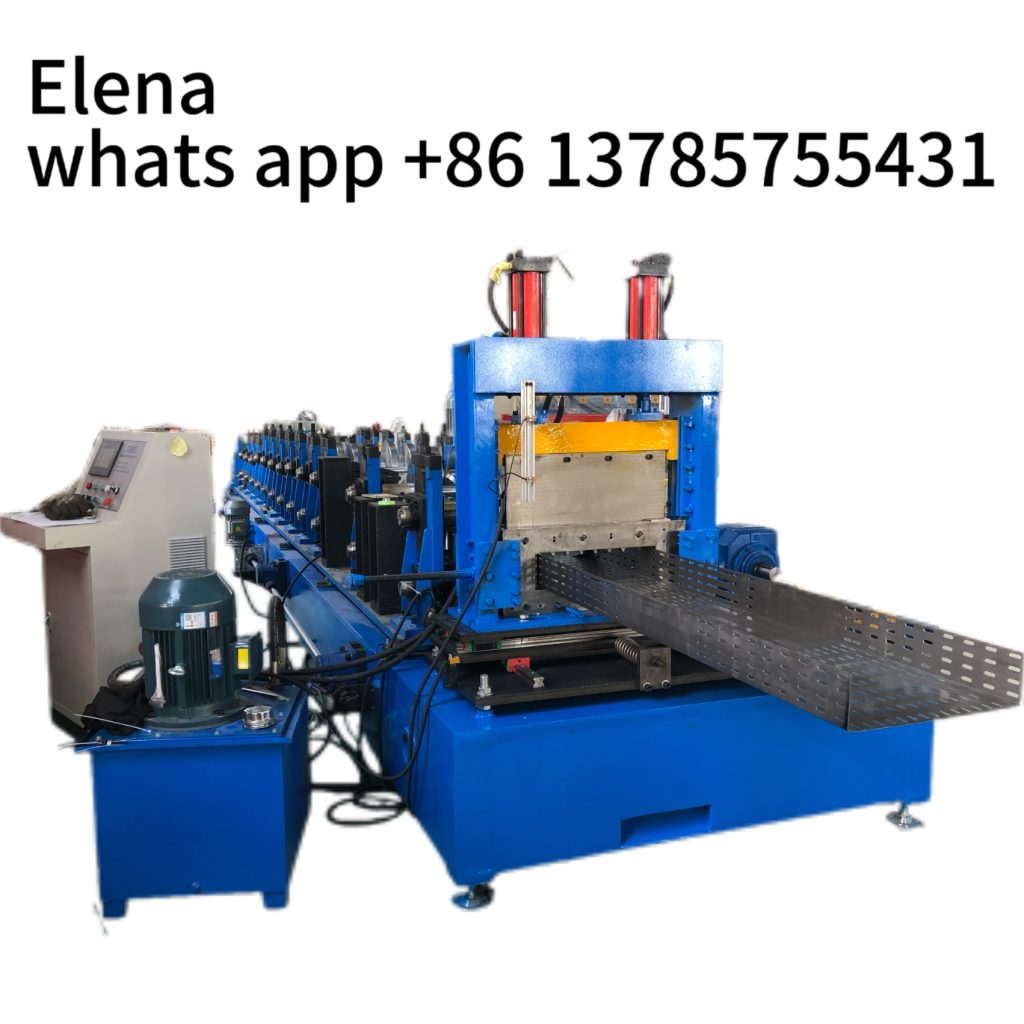

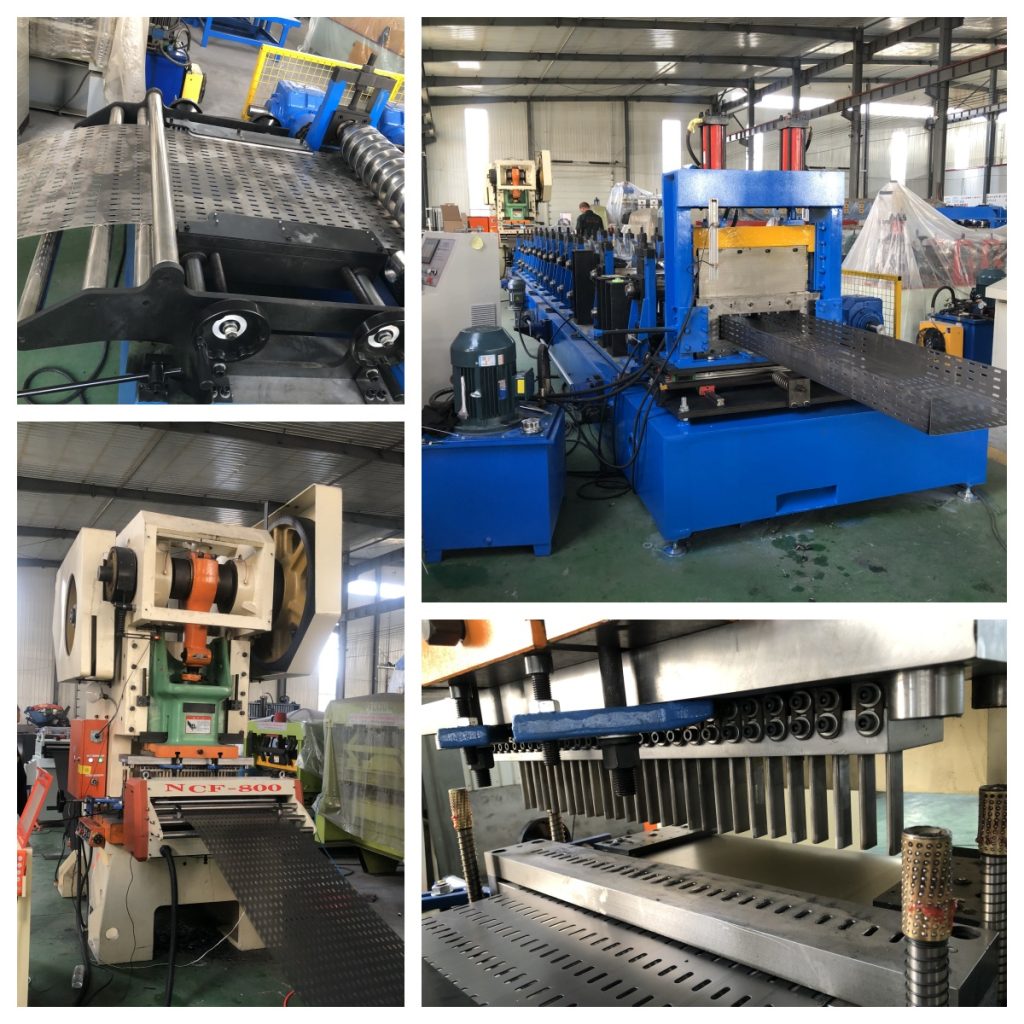

Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
65mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
customize
|
|||
|
Weight
|
About 6T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
30m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
