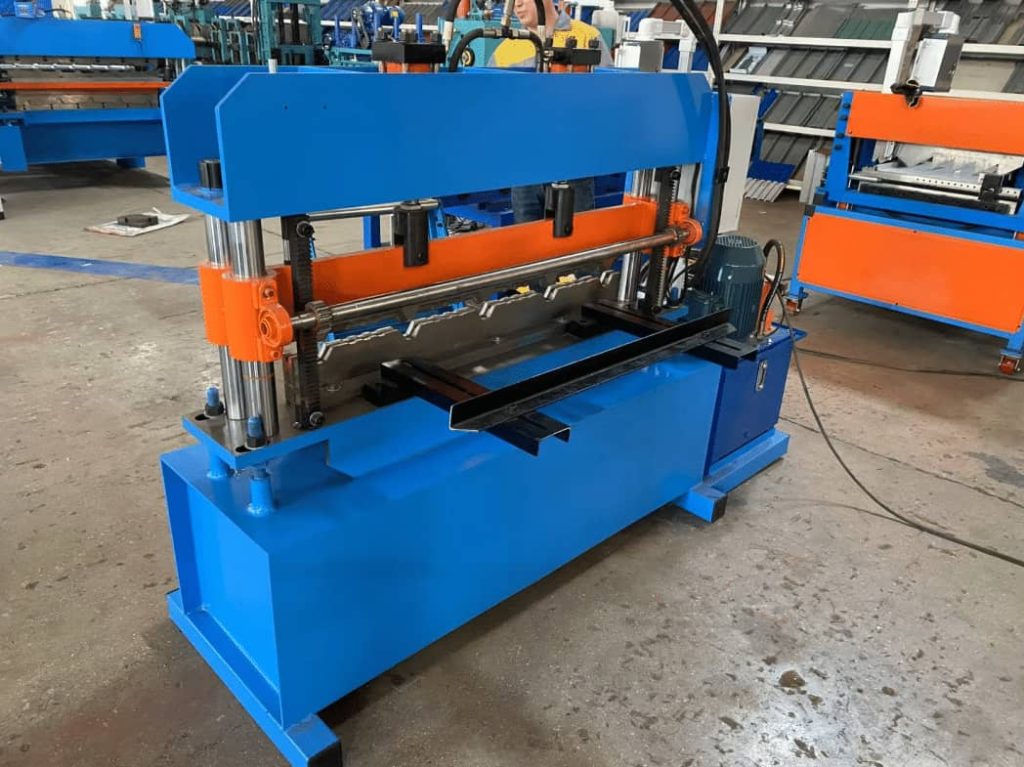

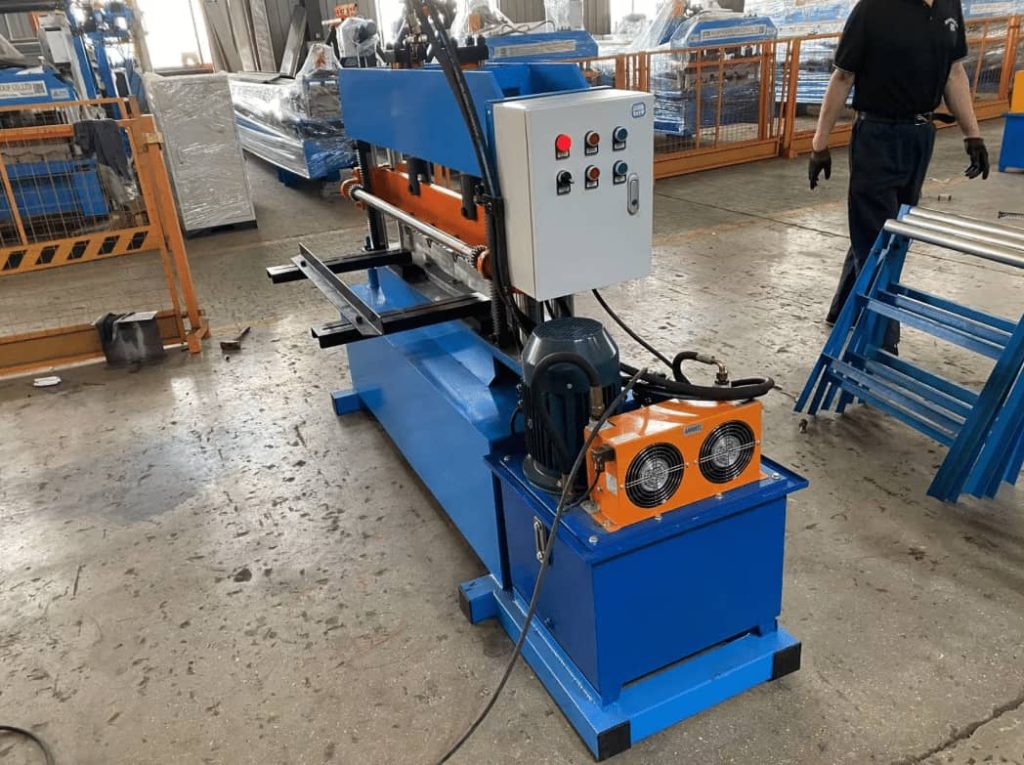

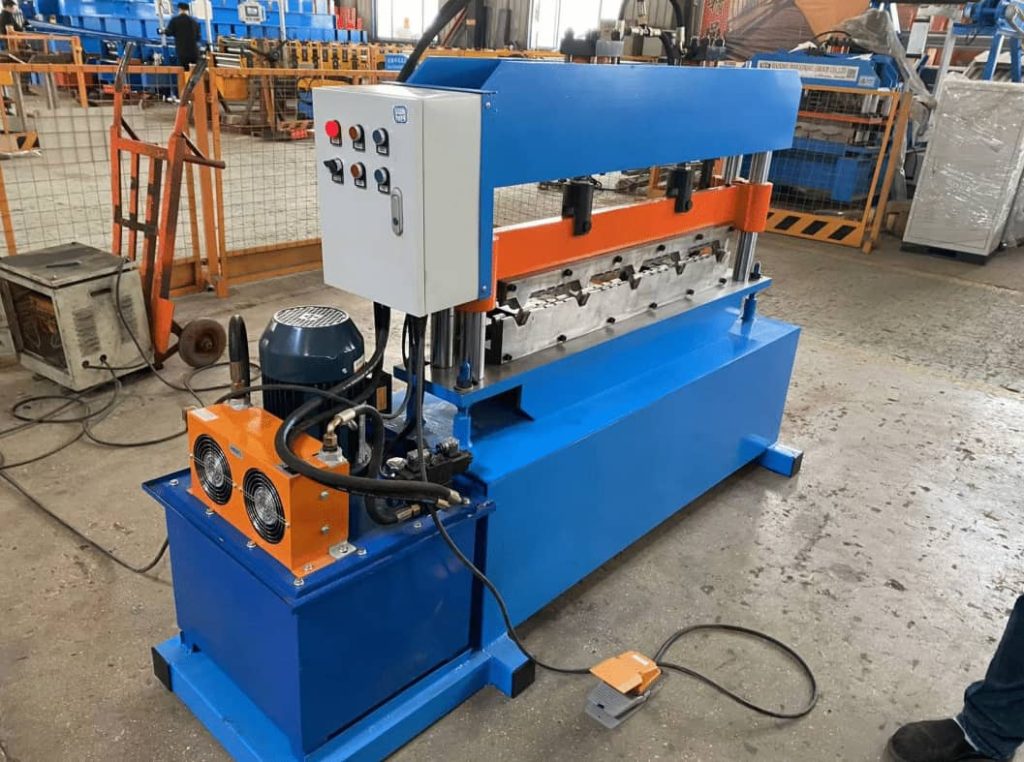

The Metal Stainless Steel Hydraulic Roof Bending Machine is a specialized hydraulic equipment designed for the formation of metal roof ridge covers (ridge tiles). It drives the upper and lower molds to close through a hydraulic system, and bends metal sheets such as color steel plates and galvanized plates into a ridge shape that conforms to the roof slope (such as V-shaped, herringbone shaped) in one go. It is the core supporting equipment for steel structure and color steel tile roof engineering. Its core structure includes: hydraulic pump station, body frame, adjustable ridge mold, foot pedal/PLC control system, limit and safety protection device.
Typical application scenarios：

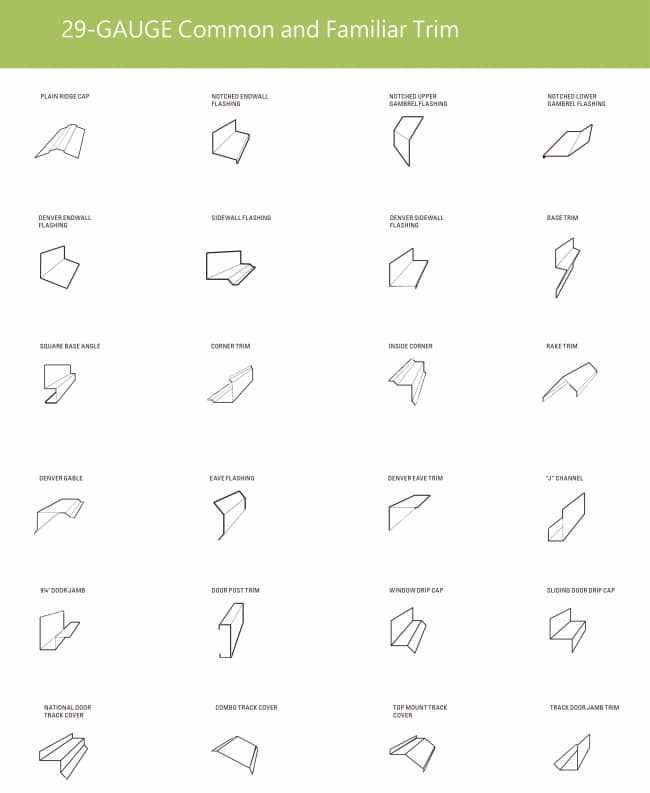

• Civil buildings: Production of color steel tiles/metal roof ridges for rural self built houses, residential communities, and villas.
• Industrial and Commercial: Roofing works for factories, warehouses, farmers’ markets, steel structure greenhouses, and prefabricated houses.
• Municipal and Venue: Processing of ridge tiles for gas station ceilings, toll station canopies, and sports arena metal roofs.
• Plate processing store: Color steel plate processing factory, steel structure supporting workshop, used for mass customization of different specifications of ridge covers.
Product Attributes :
|
1
|
Machine frame
|
Middle plate with H shape steel beam
|
|
2
|
Material thickness
|
0.3-1.0mm
|
|
3
|
Material of forming mold
|
Cr12 quenched steel
|
|
4
|
Hydraulic oil pump press
|
32 mpa
|
|
5
|
Voltage
|
415 v 50hz 3phase or customize
|
|
6
|
Feeding equipment
|
1) Motor power: 5.5kw
2) Chain transmission 3) DC motor: calculates arc length automatically |
|
7
|
Hydraulic system
|
1) Advanced hydraulic system
2) Power: 4kw |
|
8
|
Automatic control system
|
1) Screen: 5.7 inch DELTA screen from Taiwan
2) PLC: DELTA from Taiwan |
|
9
|
Option
|
1. Mould Cassette design for future quick exchanging
2. Servo Motor with reducer for crimping curved machine 3. Concave curving tools |
Core Features：
1.Hydraulic drive, stable pressure:
large and uniform output force, no rebound during bending, precise angle, strong consistency in mass production; To avoid damage to the coating of the board caused by the impact force of mechanical bending.
2.Flexible and adjustable, with strong versatility:
The mold and bending depth can be quickly adjusted to adapt to different roof slopes, board widths, and materials (color steel, galvanized, aluminum magnesium manganese board).
3.Efficient, safe, and easy to operate:

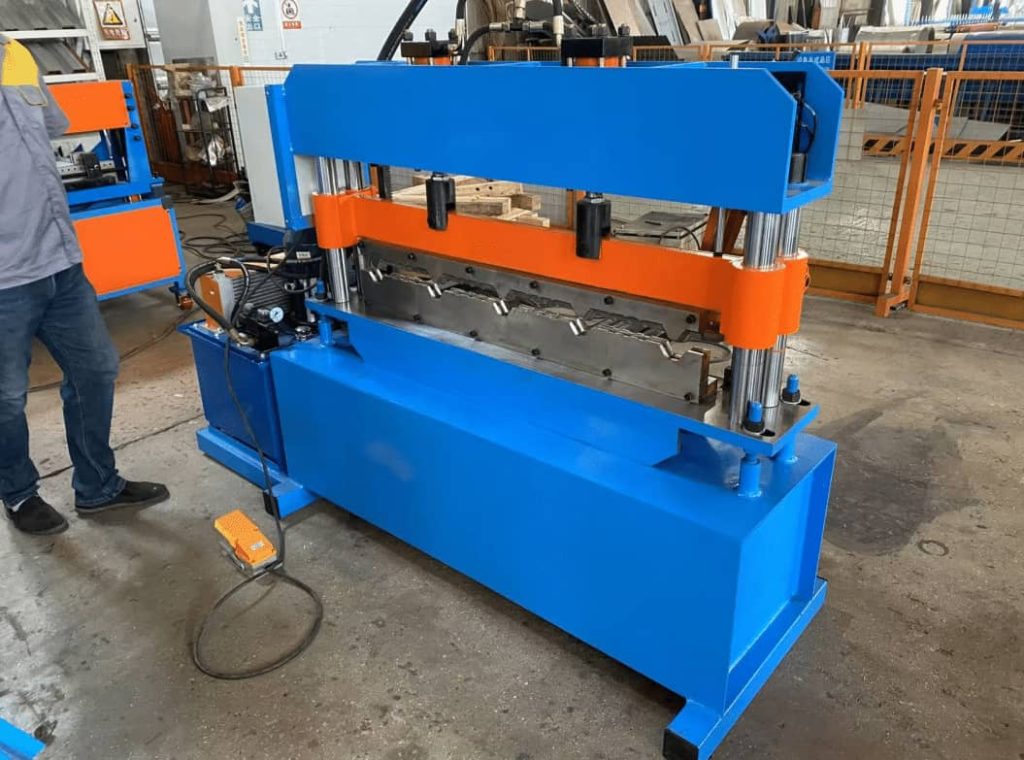

the foot switch allows for hands-free operation, paired with a protective cover; Some models are equipped with CNC systems to achieve parameter storage and automated production, with an efficiency of 3-4 pieces per minute.
4.Sturdy structure and good durability:
The entire machine is mostly welded with thick steel plates, and industrial grade accessories are used for hydraulic and sealing components, suitable for long-term continuous operation in factories and construction sites.
