Here is the working video of this machine for everyone to watch:
Product Attributes :
| Item | Name | Specifications |
| 1 | Raw material | GI&PPGI |
| 2 | Raw material thickness | 0.3-0.5 mm |
| 3 | coil feeding width | 1250 mm |
| 4 | Felt device | Available |
| 5 | Roller station | 14stations |
| 6 | Punching speed | 0-6 m/min |
| 7 | Motor for roll forming | 5.5 KW |
| 8 | Machine frame | Hot rolled H-beam |
| 9 | Transmission | Gear box transmission(bevel gear inside) |
| 10 | Roller material | High grade 45# steel |
| 11 | Shaft diameter | 80 mm |
| 12 | Cutting type | Hydraulic cutting |
| 13 | PLC brand | Delta |
| 14 | Frequency brand | Delta |
| 16 | Coder brand | Omron |
Product Description：
Azerbaijan has a unique architectural style and strict requirements for building materials. Zhongtuo’s glazed tile production equipment is capable of producing colorful and high gloss building materials, meeting Azerbaijan’s demand for high-quality building materials. These glazed tiles not only add beautiful scenery to the building, but also enhance its artistic value and aesthetic taste. Zhongtuo’s glazed tile production equipment combines modern technology with traditional craftsmanship, and has gained a good reputation in the international market for its high technological level and product quality, demonstrating the strong strength and innovation ability of “Made in China”. This recognition not only promotes economic cooperation between China and Arab countries, but also demonstrates the competitiveness of Chinese enterprises in the process of globalization. In addition, the application of glazed tile machines in Azerbaijan also reflects the exchange and cooperation between China and Azerbaijan in the field of technology.
Performance characteristics:
- Efficiency:
It can achieve continuous production, greatly improve production efficiency, and meet the needs of large-scale production. - Accuracy:
High precision processing technology ensures that the tiles produced have precise dimensions and uniform texture. - Safety:
Equipped with multiple safety protection devices to reduce safety risks during operation. - Reliability:
Through strict quality control and testing, it demonstrates excellent reliability and stability. - High degree of automation:
reduces manual intervention, lowers labor intensity, and improves production efficiency. - Adapt to multiple materials:
Adapt to various raw materials, produce glazed tiles with bright colors, durability, and adaptability to various harsh weather conditions.

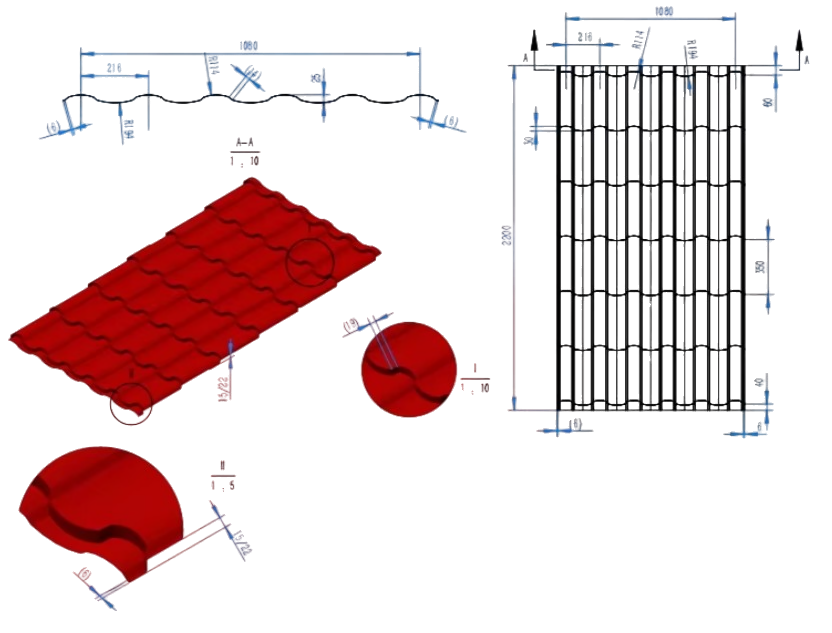

Pattern diagram:

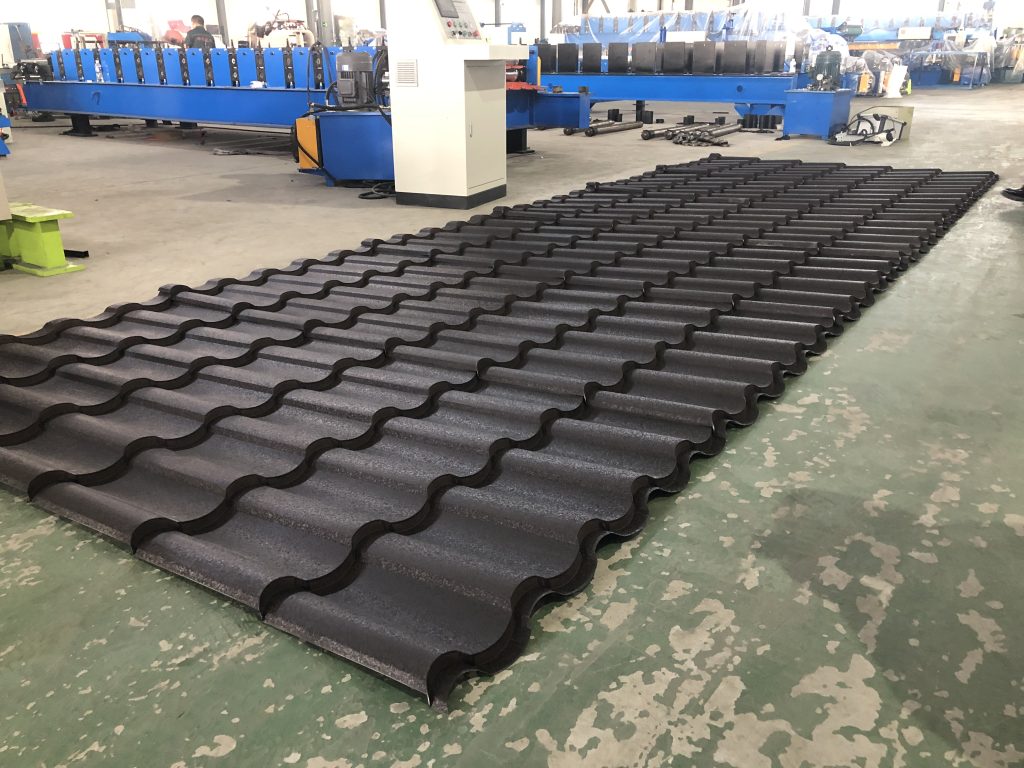

Finished product image:
Products Display：
