Product Attributes :
|
Size of main part
|
about 15000 х 1850 х 1500 mm(customized)
|
|||
|
Weight of main part
|
about 15t
|
|||
|
Processing material
|
galvanized coils yield strength till 550 Mpa
|
|||
|
Material thickness
|
0.8-1.2 mm
|
|||
|
Voltage
|
380 v 50 hz 3 phase or as request
|
|||
|
Frame
|
400 H beam steel welded
|
|||
|
Roller fixer
|
Middle plate (thickness 20mm)
|
|||
|
Drive mode
|
chain transmission(gearbox type optional)
|
|||
|
Material of rollers
|
Gcr15 quenching treat HRC58-60
|
|||
|
Material of shafts
|
45# steel precision-machined
|
|||
|
Diameter of shafts
|
φ 95 mm
|
|||
|
Number of rollers
|
about 30 rollers
|
|||
|
Drive motor power
|
15 kw
|
|||
|
Forming speed
|
0-25 m per minute(customized)
|
|||
The advantage of Popular building Structure floor deck roll forming machine：
- Light weight, high strength, large load-bearing capacity, good seismic resistance, suitable for multi story and high-rise steel structure buildings.
- The construction is fast and simple, and the product has a clean and beautiful appearance, which can replace traditional templates and improve construction efficiency.
- Save steel and concrete usage, improve floor stiffness, and save investment.
Product Description：

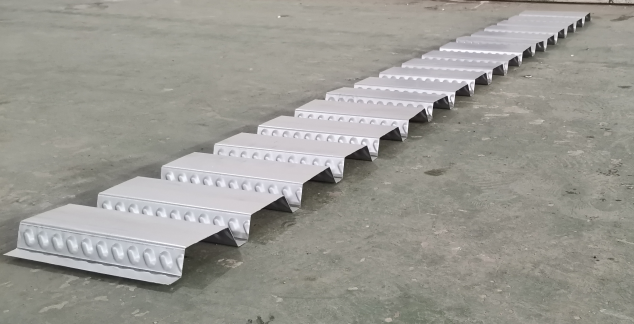

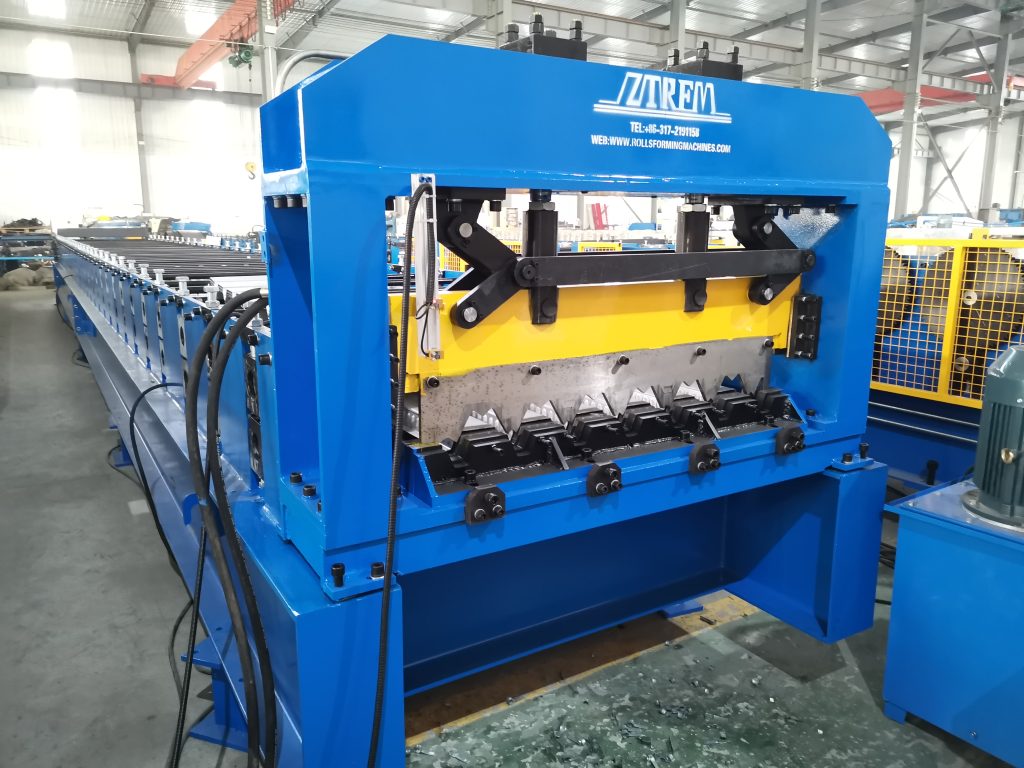

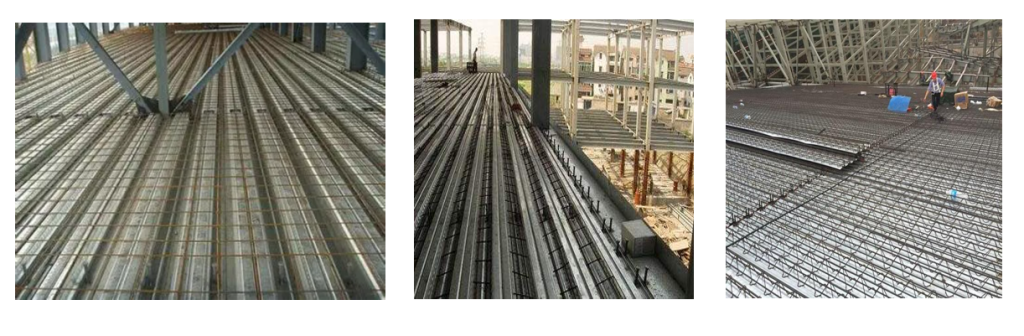

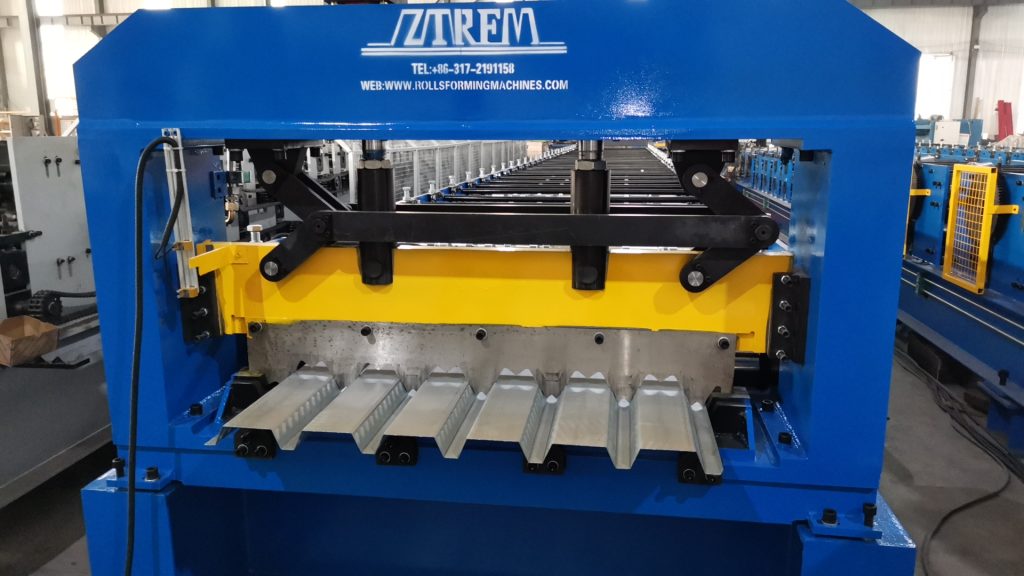

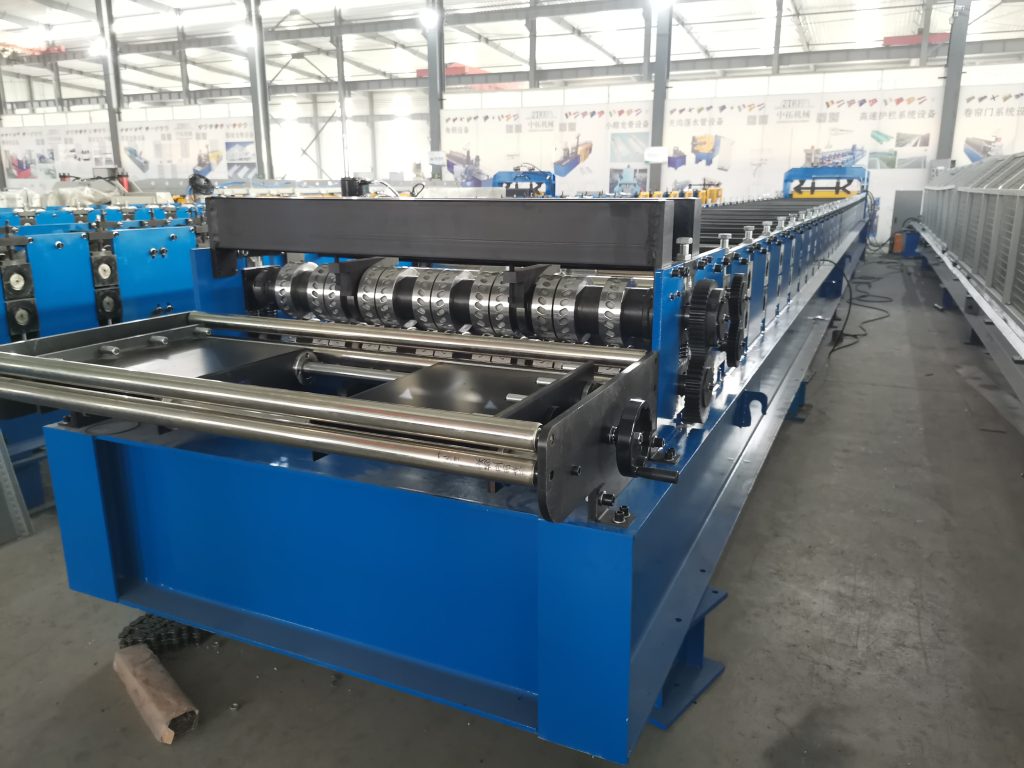

Popular building Structure floor deck roll forming machine is an equipment used for producing profiled steel plates for construction, mainly used for manufacturing floor support plates. The floor loading machine is usually composed of a material rack, a roll forming system, a hydraulic cutting device, and an electrical control system, and is widely used in the roofs of multi story steel structure buildings, industrial and civil buildings, warehouses, and large-span steel structure houses. Its advantages include fast and simple construction, replacing traditional templates and improving construction efficiency. The appearance of the produced floor slabs is neat, which enhances the aesthetic appeal of the building.
Zhongtuo’s newly upgraded technology：

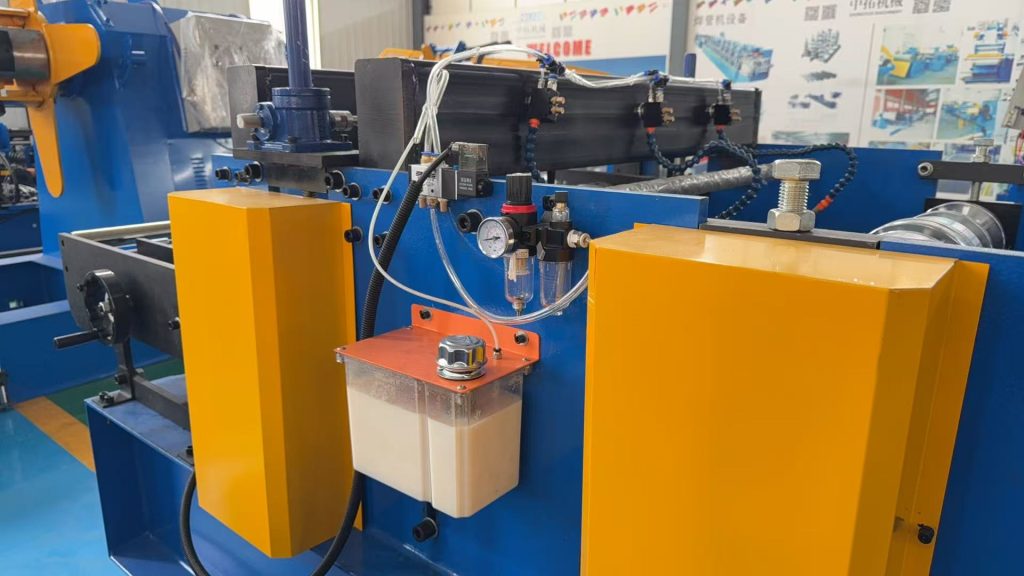

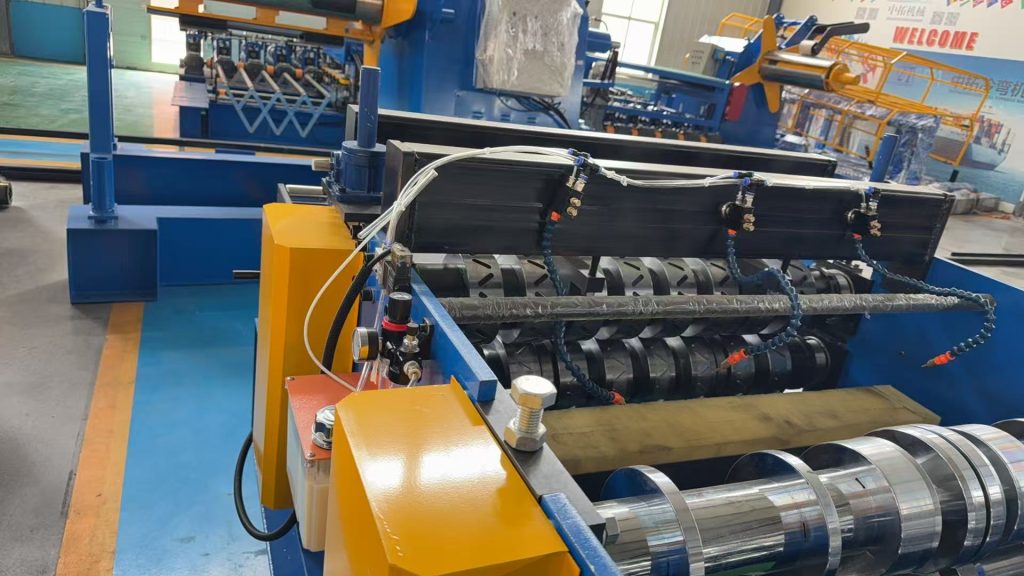

Automatic oil spraying or emulsion solution for floor support plate machine to solve the problem of zinc removal and adhesion of galvanized sheet rollers.
