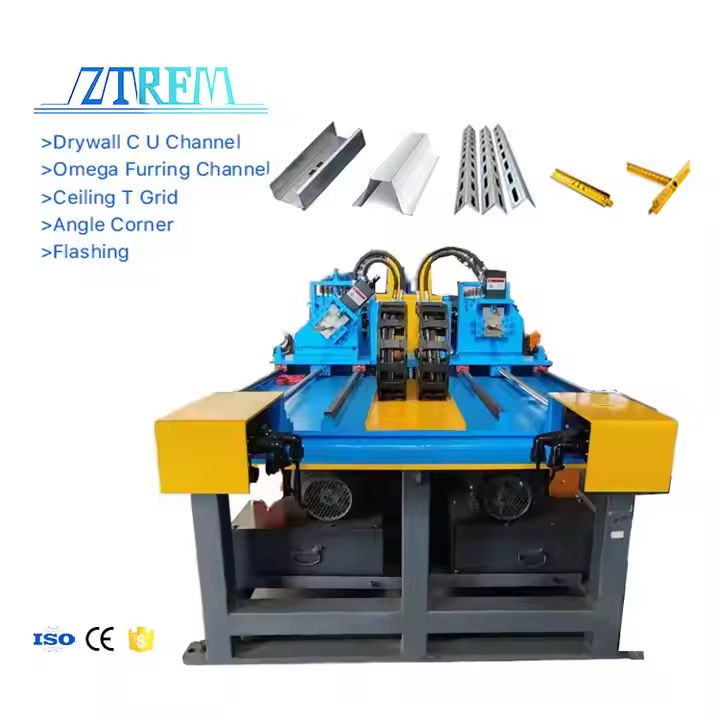

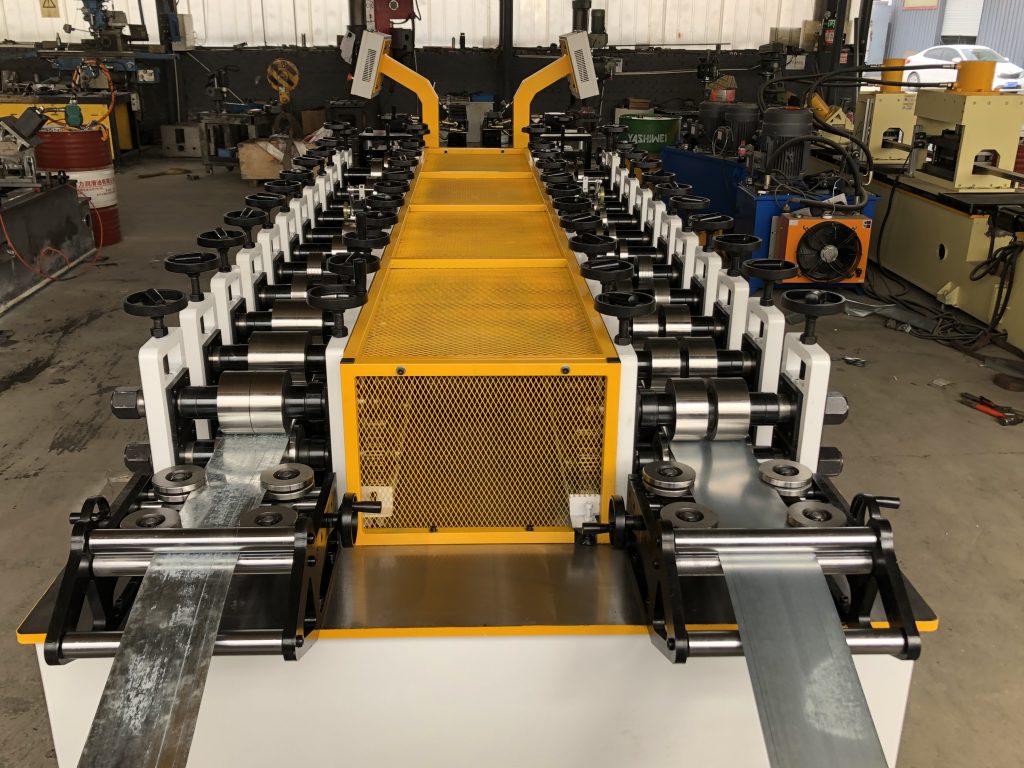

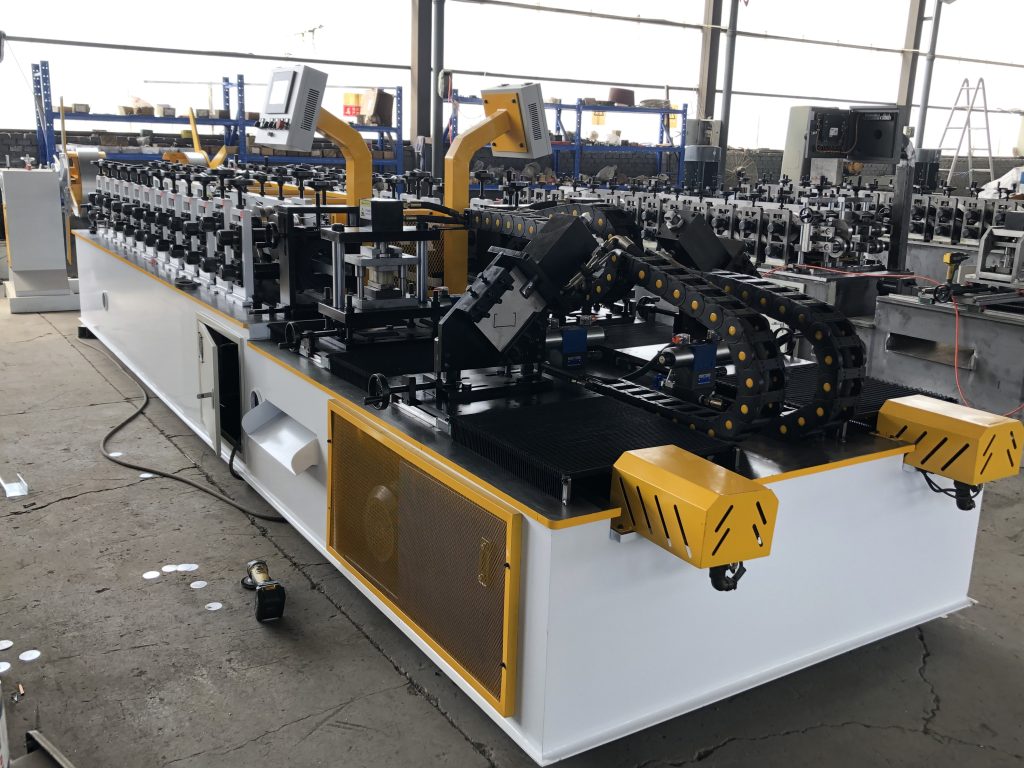

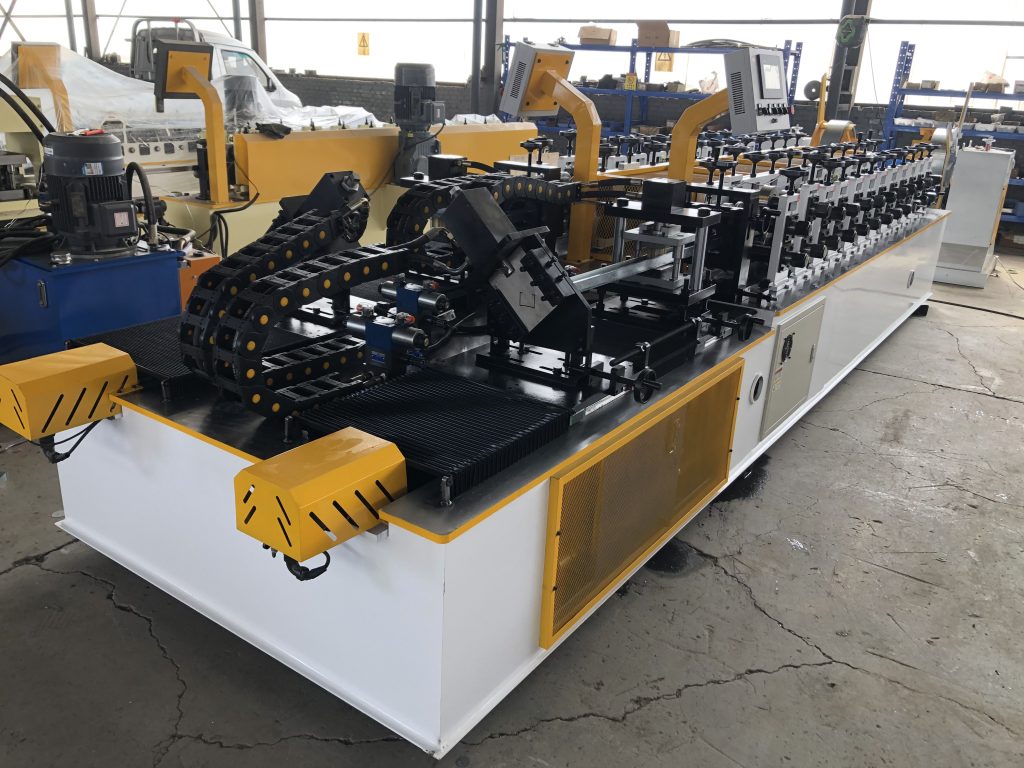

Integrated High-Speed Dual-Line C/U Channel Roll Forming System for Drywall Ceiling Metal Studs and Tracks
The dual-line C/U channel roll forming machine demonstrates remarkable advantages in the current industrial production environment, enabling significant space saving, labor cost reduction, and production efficiency enhancement.
In terms of design, the machine prioritizes spatial utilization through a compact structural layout. This design allows the machine to operate at optimal efficiency within limited spaces, thereby saving substantial spatial resources.
Equipped with an advanced remote operation and maintenance system, the dual-line C/U channel roll forming machine realizes real-time monitoring and fault diagnosis of equipment via high-speed servo cutting technology. The integrated artificial intelligence (AI) system not only optimizes production processes but also continuously evolves through machine learning, further elevating the machine’s intelligence level.
As a reliable solution for enterprises to cut labor costs, the dual-line C/U channel roll forming machine achieves production automation, boosts productivity, and reduces manual costs while ensuring product quality. These features empower enterprises to expand into broader markets and gain a competitive edge in the industry.
The main parameters of the machine
|
Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
Main body
|
Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|
Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
