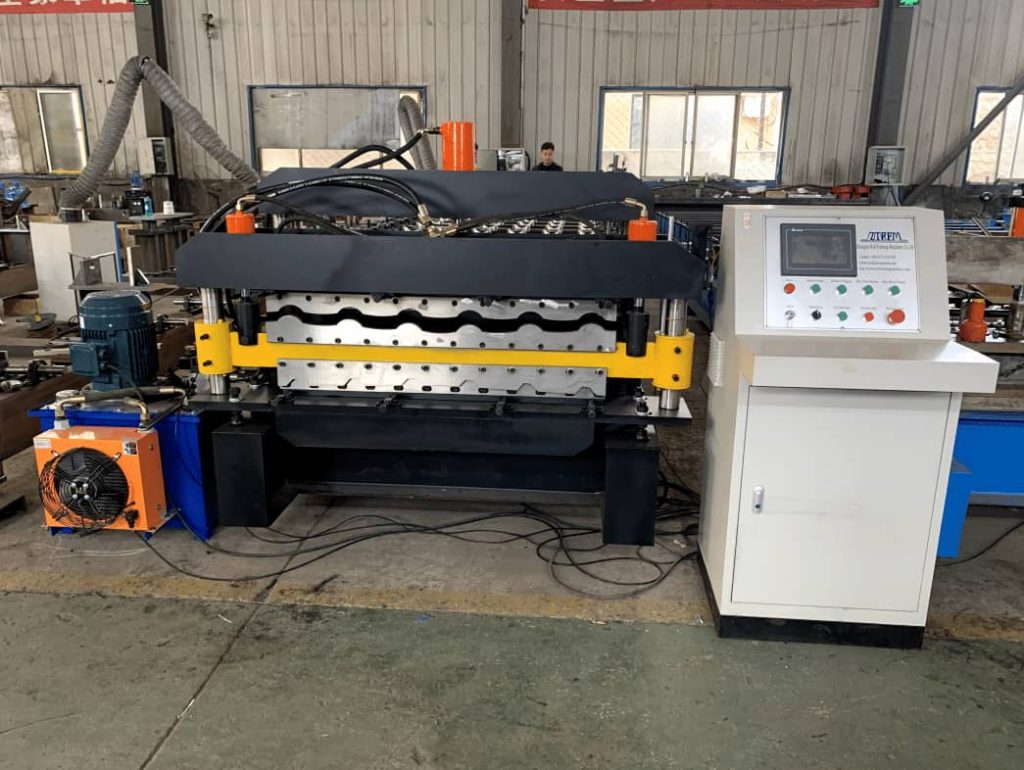

The Double Layer Glazed Trapezoidal Tile Roll Forming Machine is a fully automatic cold bending forming equipment that integrates upper and lower layers. One machine has two different rolling molds on the upper and lower layers, which can simultaneously or separately produce metal antique glazed tiles and ordinary color steel roof panels.
The equipment uses color steel coils and galvanized steel coils as raw materials, and automatically completes the entire process of unwinding, leveling, pressing, cutting to length, and discharging. It is controlled by PLC computer, without the need for manual repeated debugging, and can be used in one machine with low land occupation and high investment cost-effectiveness.
Application scenarios：
• Antique building roof
New rural self built houses, villas, homestays, and farm antique roof paving.
• Cultural tourism and ancient architecture projects
Retro roof projects such as gate towers, temples, corridors, and antique quadrangle courtyards in scenic areas.
• Factory and warehouse enclosure
Production and use of roof tiles and wall tiles for steel structure factories, warehouses, and breeding sheds.
• Building materials processing and wholesale factory
Color steel tile processing factory, building materials distributor, wholesale and retail of glazed tiles and wall panels in bulk.
• Rural renovation project
Beautiful rural roof renovation, dangerous house renovation, and antique roof matching materials for resettlement houses.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm
|
||
|
2.Decoiler
|
Hydraulic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Double Chain transmission
|
|||
|
Dimension(L*W*H)
|
7500*1600*1600(customize)
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Main Power
|
5.5KW
|
||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
8-12m/min
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features：
1.One machine dual use, high cost-effectiveness
The upper layer produces antique glazed tiles, while the lower layer produces trapezoidal roof panels/wall panels, with one unit on top of two units, saving equipment investment and factory floor space.
2.Fully automatic CNC operation
The entire process includes automatic feeding, molding, and cutting to length, with precise dimensions and simple operation. One person can be on duty, resulting in high production efficiency.
3.The formed appearance is neat and orderly
The tile has a smooth curvature, clear patterns, a flat surface, no distortion, no raised edges, strong antique texture, and good waterproof sealing effect.
4.The body is sturdy, durable, and stable
The whole machine has a thickened frame, stress relief during aging, and the forming rollers are treated with quenched chrome plating, which is wear-resistant and resistant to manufacturing, and can be produced continuously for 24 hours without interruption.
5.Widely applicable materials
It can process color coated steel plates, galvanized plates, and aluminum magnesium manganese sheets. The finished products are corrosion-resistant, weather resistant, and have a long service life.
6.Quick change of specifications and fast discharge of materials
No need for complex disassembly and debugging, simple switching of tile types, uniform discharge speed, suitable for large-scale order production.
