In the grand context of modern architecture and industrial production, cables are like nerves and blood vessels, silently conveying energy and information, supporting the efficient operation of every system. However, disorganized cables not only become a breeding ground for safety hazards, but also make maintenance difficult in the later stages. Adjustable Muti Sizes Steel Cable Tray Roll Forming Machine, as the core equipment of cable management, are becoming the “invisible guardians” in many fields such as construction, industry, and communication due to their excellent performance and wide applicability.
Diversified categories, precise adaptation to diverse scenarios
Cable trays are not a singular product, but a vast family of members with different structures and materials that can accurately adapt to vastly different usage scenarios.

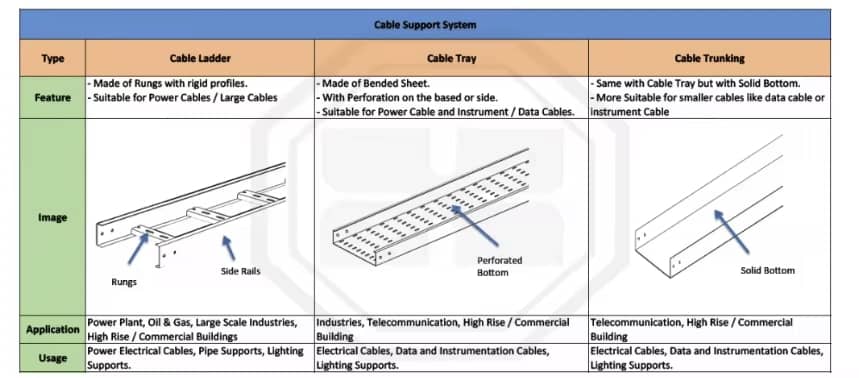

• The ladder style cable tray
stands out with its open ladder like structure. It adopts steel metal material with reinforced rib design, which has strong bearing capacity, excellent deformation resistance, and outstanding ventilation and heat dissipation effect. For the laying of large-diameter and large-span power cables, such as high-voltage cables, busbars, etc., ladder type cable trays are an ideal choice.
• Tray type cable trays combine practicality and aesthetics.
It consists of a bottom plate and two side trays, with a simple structure but strong load-bearing capacity. It can be used for laying power cables and also meets the needs of control cables.
• The trough type cable tray adopts a fully enclosed trough structure
which is like putting a strong “protective armor” on the cables. It can provide comprehensive coverage and shielding for interference sensitive cables such as communication cables, computer network cables, and automatic control cables, effectively preventing external mechanical damage and electromagnetic interference.

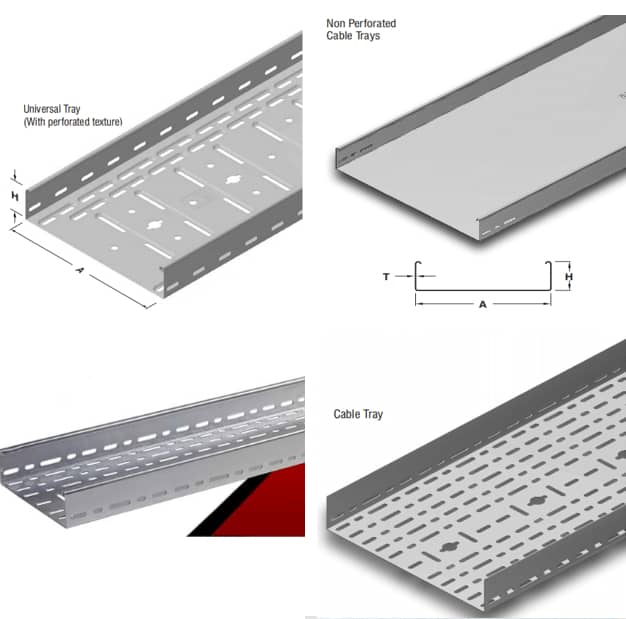

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:200-1130 mm
|
||
|

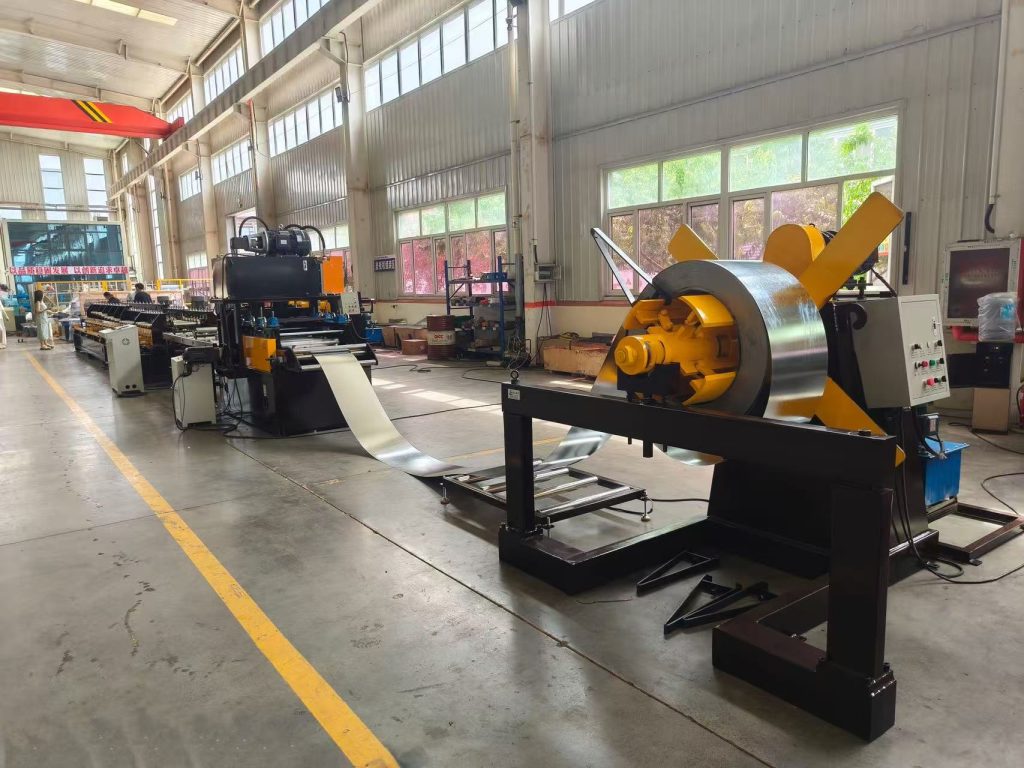

2.Decoiler
|
Hydraulic automatic decoiler
|
7T
|
||
|
3.Main body
|
Roller station
|
22 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chains transmission
|
|||
|
Dimension(L*W*H)
|
35×1.5×1.6m
|
|||
|
Weight
|
About 60KW
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
5-10m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core characteristics of cable tray equipment:
1.Fully automatic integrated molding:
integrating unwinding, leveling, punching, rolling, cutting, and receiving into one, continuous automated production, smooth process, and no need for manual intervention in multiple links.
2.High forming accuracy and regular pattern:
using precision rollers and servo positioning system, the bridge size is standard, the edge height is symmetrical, the incision is flat, and the installation fit is high.
3.Fast speed and stable production capacity:
High speed cold bending forming can operate continuously for a long time, meeting the production of large orders and delivering faster.
4.One machine with multiple specifications and strong versatility:
supports quick changeover and can produce various types of cable trays such as trough, ladder, and tray, adapting to different thickness and width requirements.
5.Save materials and labor, lower costs:
high material utilization rate, less waste; High degree of automation, reducing manual labor and lowering long-term production costs.
6.Stable operation and low failure rate:
The body is sturdy, the transmission is smooth, the key components are wear-resistant and durable, easy to maintain, and have a long service life.
