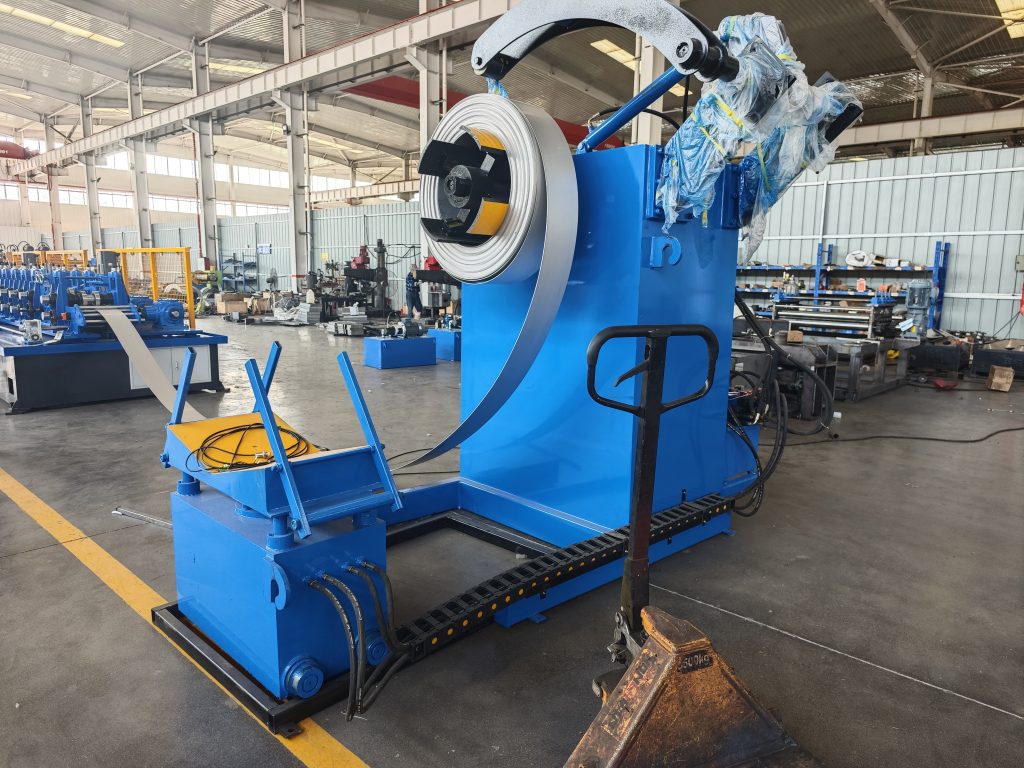

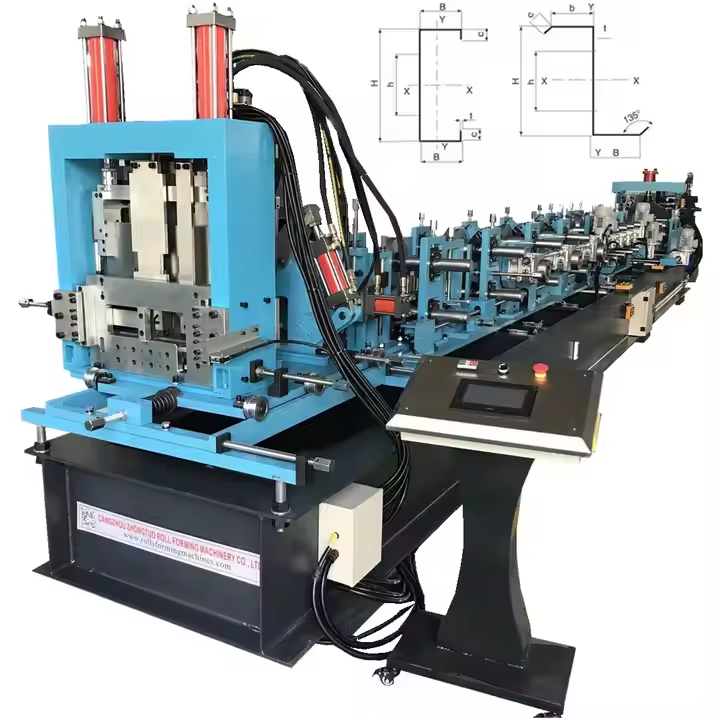

The Automatic C Purlin Roll Forming Machine is a specialized apparatus designed for the continuous production of C – shaped steel channels. It integrates multiple functions, enabling seamless and automated processes such as uncoiling, leveling, punching, roll forming, post – cutting, and material output in a continuous flow.
This advanced machine is equipped with an intelligent sizing system. It has the remarkable ability to automatically modify the dimensions of C – profiles. By simply pressing a button, the rollers within the machine will self – adjust to the desired sizes, eliminating the need for any manual intervention and ensuring both efficiency and accuracy.
Moreover, the Automatic C Purlin Roll Forming Machine offers high flexibility in customization. It can be tailored precisely according to customers’ specific technical specifications, guaranteeing that it meets diverse industrial needs and project requirements.
Some pictures of the machine

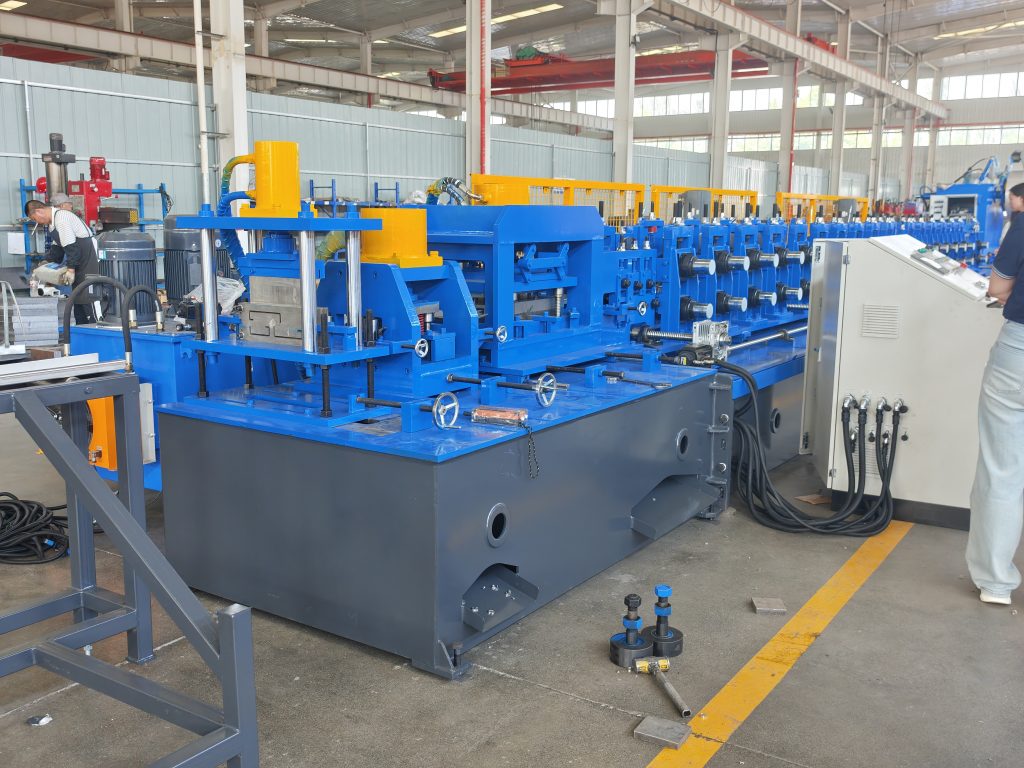

Main roll forming machine
Main forming: 18 stations forming (inside 1 station for forming flange, 87-95 degree adjustable), 13 stations C change mould, turnover 180 degree to finish the change. Changing the Specification size by means of an electric button.
Rib forming: Straight rib.
Straighten: 10 rollers CZ special-use double axis straightening and 4 rollers
Double axis straightening, total 2 straightening units.
Guiding and sending: Driven by up and down gears.
Main advantages of C purlin machine
High degree of machine automation: fully automatic purlin size adjustment
Wide range of steel and purlins: raw material types can be galvanized steel, black steel.

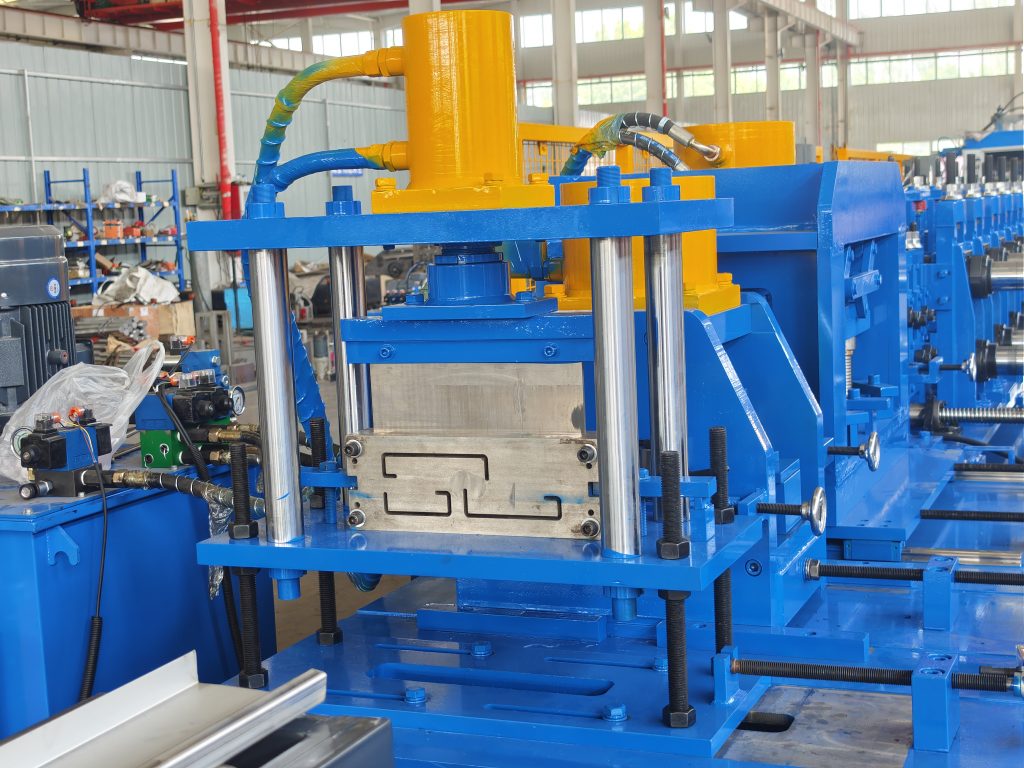

Universal cutter: Suitable for all C, Z and U purlin sizes
Quick change: Quick C purlin size within 2 minutes
Through shaft design: Reduces uneven height caused by machine spindle breakage
High-strength structure: Made of cold-pressed high-strength steel plate, uniform wall thickness and high compressive strength
High precision: High plate shape accuracy, easy adjustment of length offset and purlin punch position
