TR4-36 metal roofing sheet rolling forming machine for Peru for wall and roofing system

The TR4-36 profile features four 1 1/2” [38 mm] deep ribs on 9” [229mm] centers which gives an attractive, standing rib appearance. TR4-36 side laps in the high cell when used as a wall or roof panel.All Exposed Fastener wall panels may be installed in a variety of rainscreen applications

to form a complete wall system. This profile is quite popular in South American.

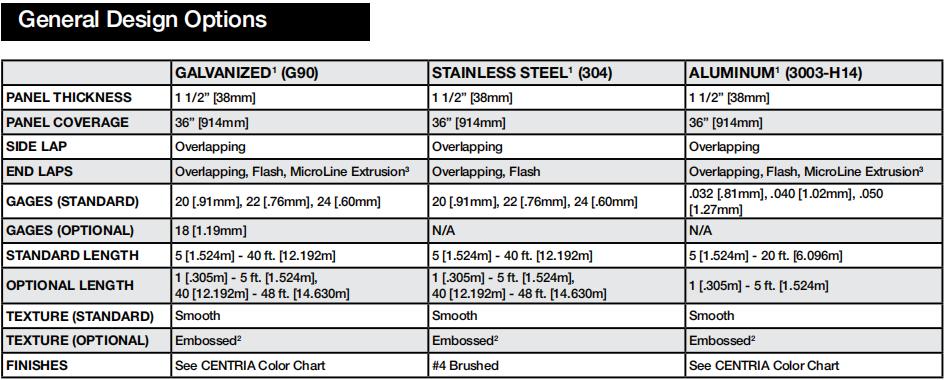

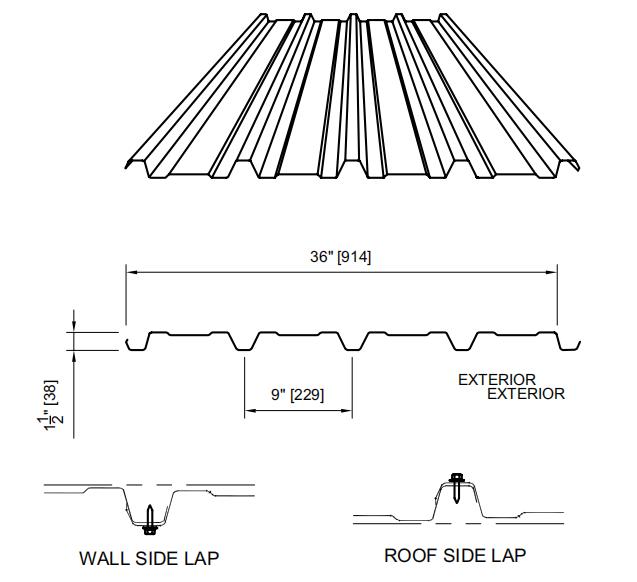

Here is the TR4-36 drawing profile for your reference:


TR4-36 metal roofing sheet rolling forming machine

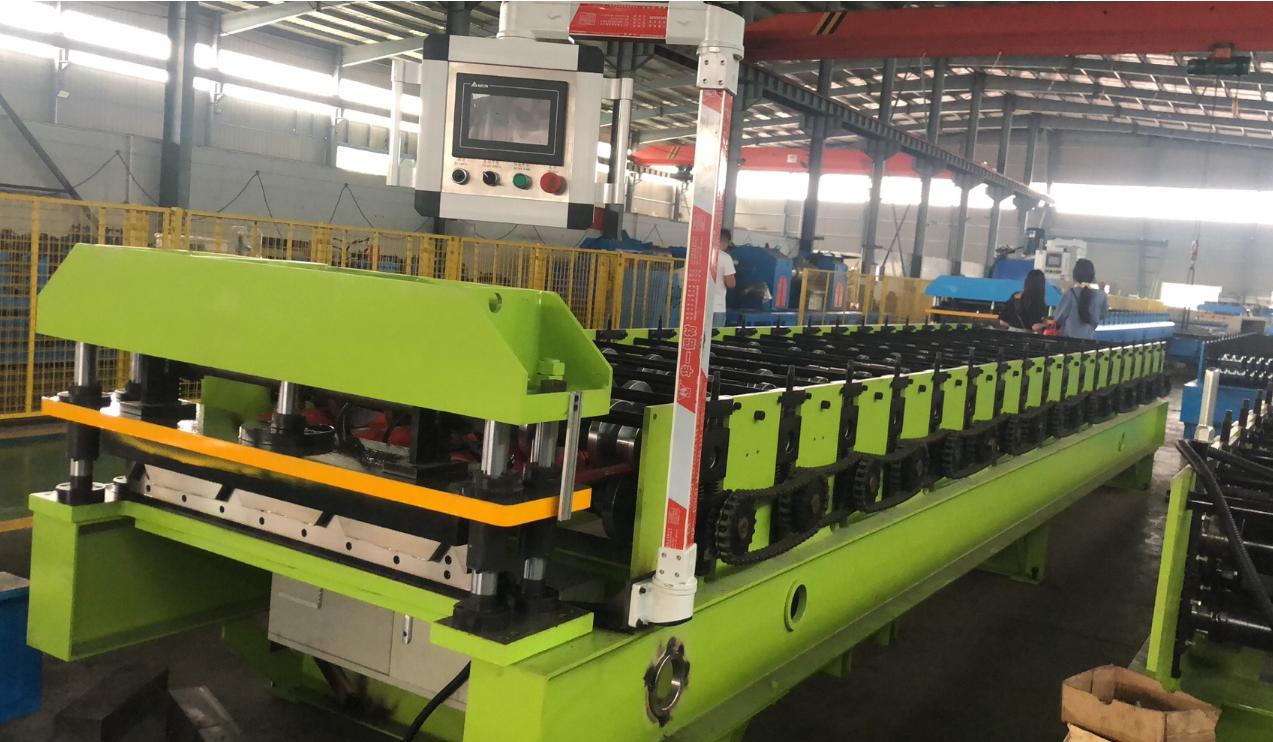

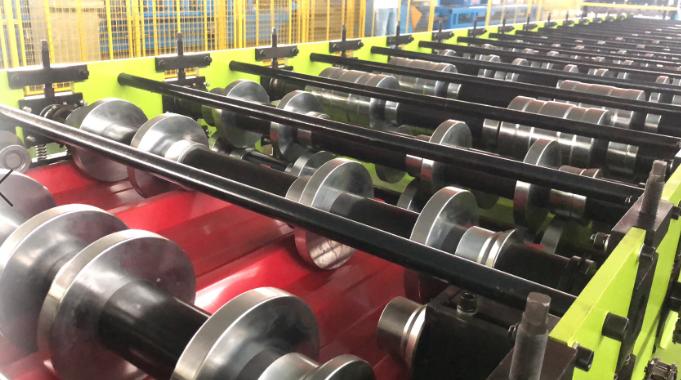

This machine is designed based on knowing fully requirements of this Tr4 drawing profile. The metal roofing sheet machine, we design like this:


Processing flow diagram of Tr4 metal roofing sheet machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

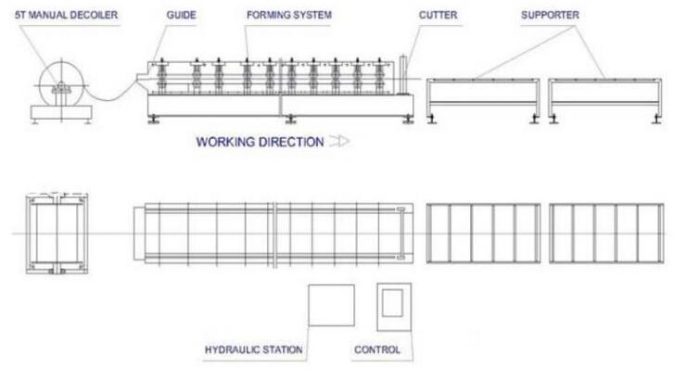

Roll forming machine layout

Technical parameters for Peru Tr4 Trapezoidal Metal Roof Sheet Roll Forming Machine :

Article No.Item NameSpecification
       1Width of feeding material1000 mm coil sheet
       2Thickness of feeding material0.3-0.8 mm coil sheet
       3Roller station19 stations
       4Shaft Diameter90 mm
       5Productivity55 m/min
       6Rollers’ materialGcr15 quenching with 0.1 mm chrome
       7 Shaft material45# steel with 0.1 mm chrome
       8Weight7 tons
       9length7.5 meter
      10Voltage220V 50Hz 3phases
      11ControlPortable PLC
      12Decoiler5 tons
      13Motor5.5 kw
      14Driving wayChain transmission
      15Chain sizeDouble chain
      16Cutting systemHydraulic cutter with two hydraulic Jacks


Why Zhongtuo metal roofing sheet machine is different with others?

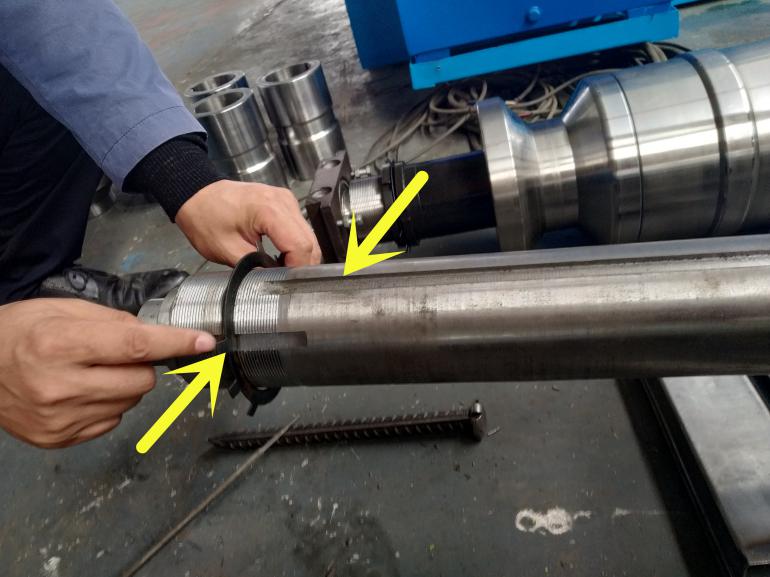

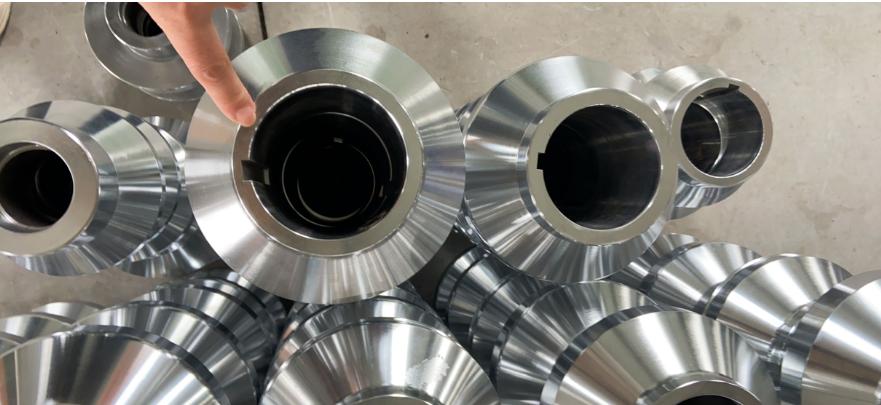

  1. For the rollers, all we design with keynotes for rollers and shaft tightly together:

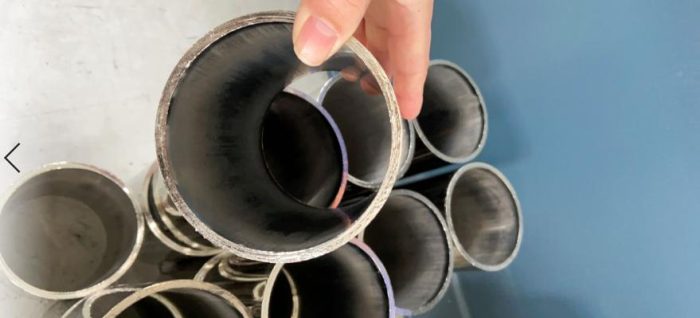

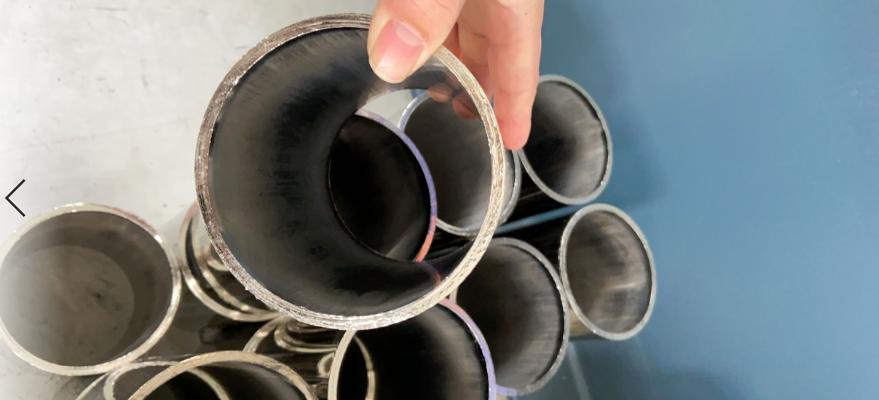

2.For the spacer, we also use seamless pipe and thickness is more thicker to make sure the machine long time to use and high accuracy. This kind of spacer will not go rusting easily. It can protect the shaft in some degree:


3.For the rollers, we use the material GCR15 quenching at 58 degree to make sure the hardness of rollers. For some bigger rollers, we will do the quencing even if two or three times.

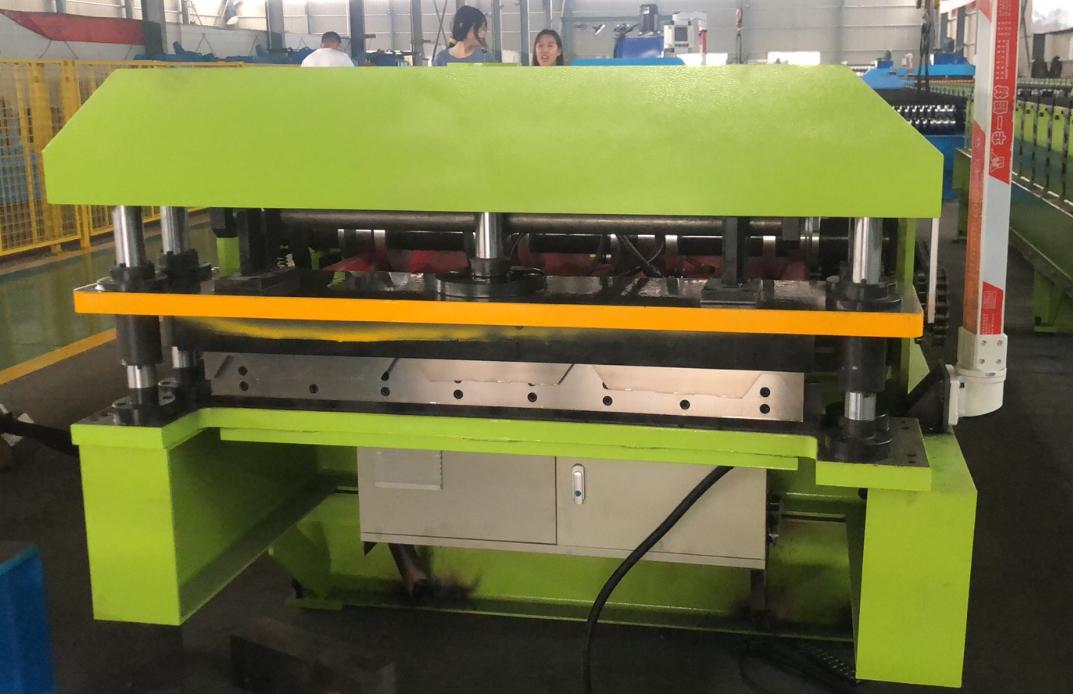

4.The last but the most important of our roofing sheet machine is easy for installation. We will put the PLC and hydraulic station all together, when machine arrives to you, simply connect the main electricity, that is enough. All the installation could be finished within half an hour.

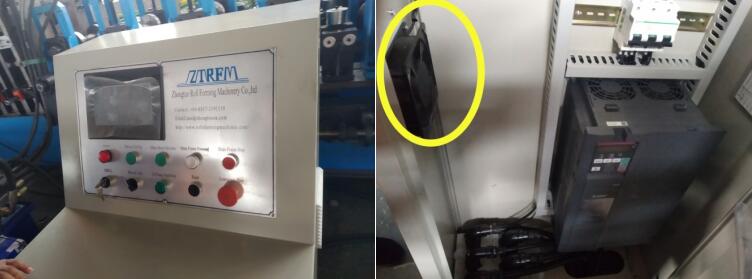

For the PLC control, Zhongtuo machinery designs like this:


For this machine, if you want to know more, please contact us at any time.
