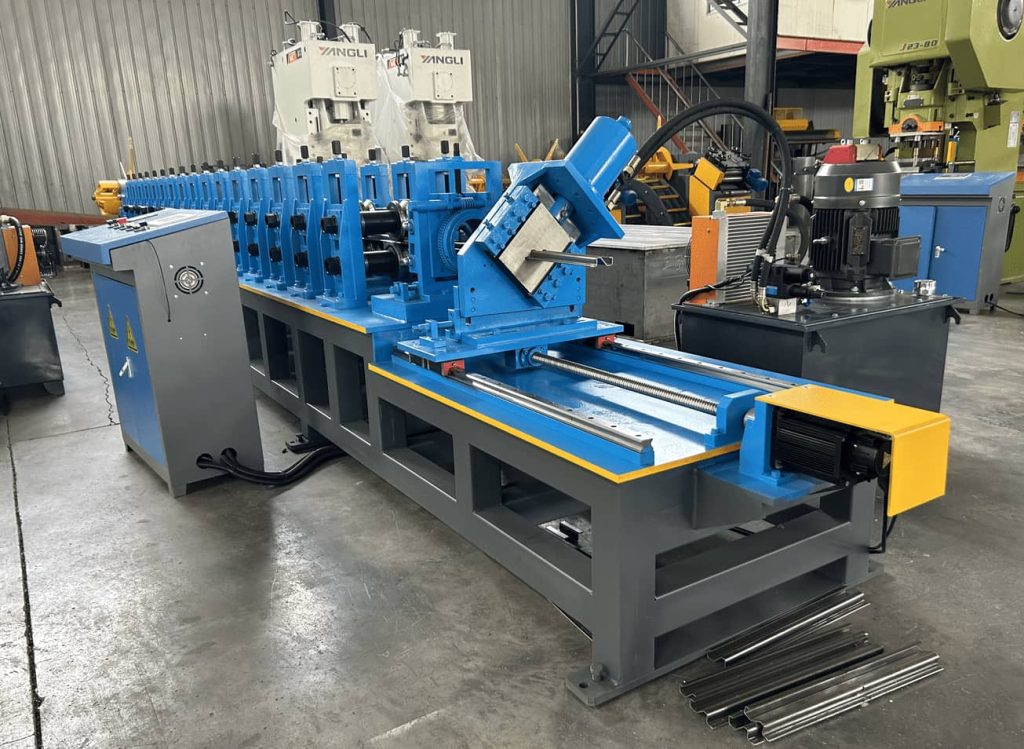

SuperMarket Storage Shelf Upright Z Beam Making Machine
The Z-shaped supermarket shelves produced by the SuperMarket Storage Shelf Upright Z Beam Making Machine are made of high-grade cold-rolled steel as the core material, and the columns and shelves are thickened and reinforced. The overall design adopts a Z-shaped integrated structure, matched with precise buckle splicing and electrostatic spraying technology, which combines durability and aesthetics. The shelves support single-sided/double-sided combination, and the height of the shelves can be freely adjusted. They can be matched with hooks, hanging baskets, corner connectors and other accessories, and can be quickly disassembled and flexibly combined without the need for professional tools, adapting to different store spaces and product display needs. From regular snacks and daily necessities to heavy items such as grain, oil, and alcohol, it can stably carry and meet the retail display needs of all categories.

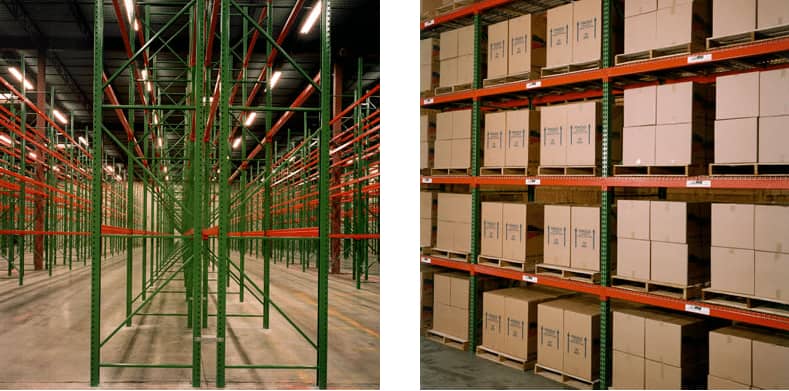

Application scenario: Full scene coverage, suitable for diverse retail formats
• Large supermarkets/comprehensive supermarkets
As an island shelf, corner connecting shelf, and end promotion shelf in the main channel, it is suitable for displaying all categories of food, daily necessities, home furnishings, etc., optimizing the layout of the flow line, guiding customers to shop efficiently, and improving the associated consumption rate.
• Community convenience stores/boutique supermarkets
The compact and flexible combination design is suitable for small area stores, making full use of spaces such as cash registers, corners, and windows to display fast-moving consumer goods such as snacks, beverages, and daily necessities, achieving large revenue in small spaces.
• Maternal and child store/beauty store/stationery store
Paired with exclusive accessories, it accurately displays light and small items such as mother and baby products, cosmetics and skincare, stationery and toys, etc., with clear layering and classification to enhance the quality of product display and stimulate customers’ purchasing desire.
• Pharmacy/Fresh Convenience Store
The anti-corrosion and durable material characteristics make it suitable for displaying special products such as pharmaceuticals and refrigerated food peripherals. It is easy to clean and maintain, meets the hygiene standards of retail scenes, and is safe and practical.

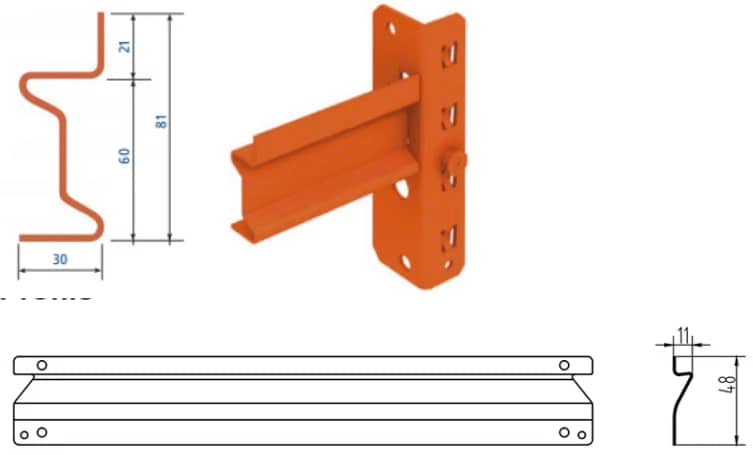

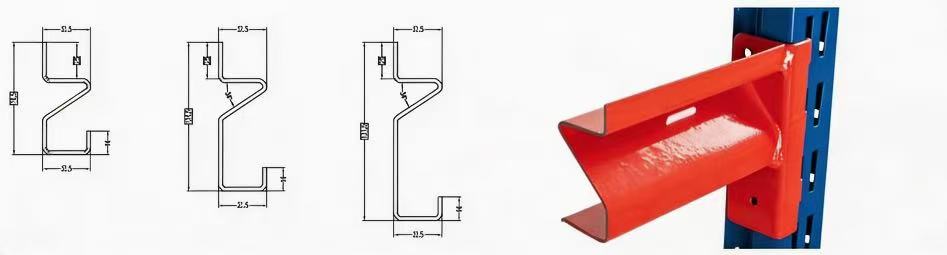

Pattern diagram of SuperMarket Storage Shelf Upright Z Beam Making Machine:
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-2.7mm
|
||
|

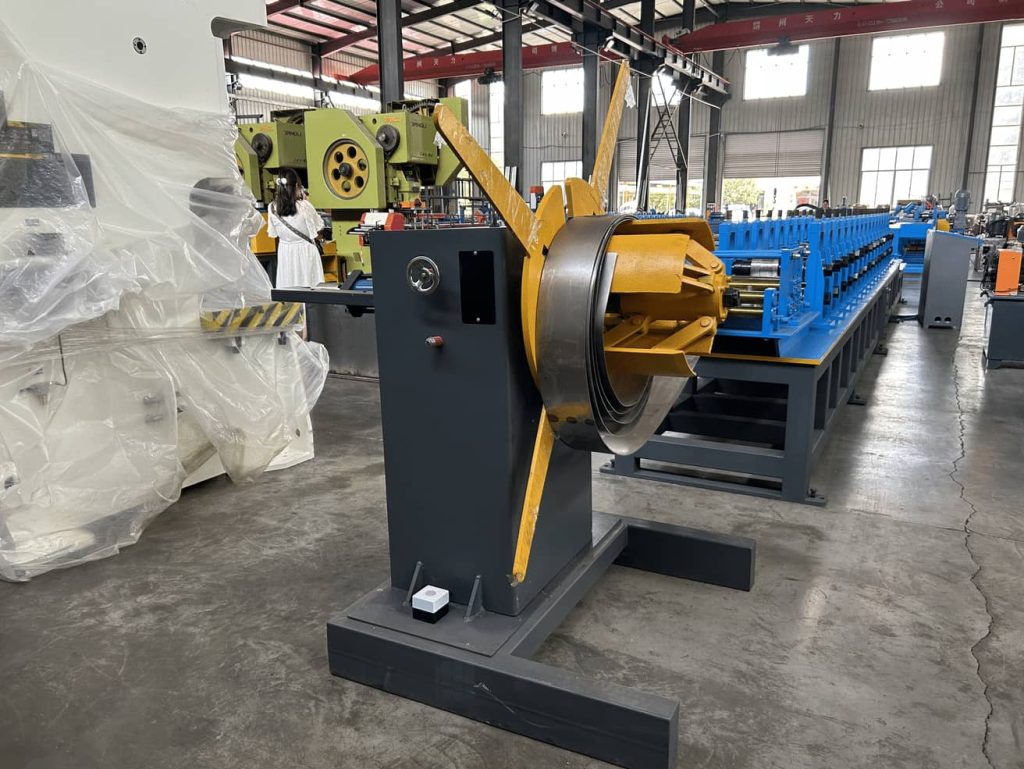

2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

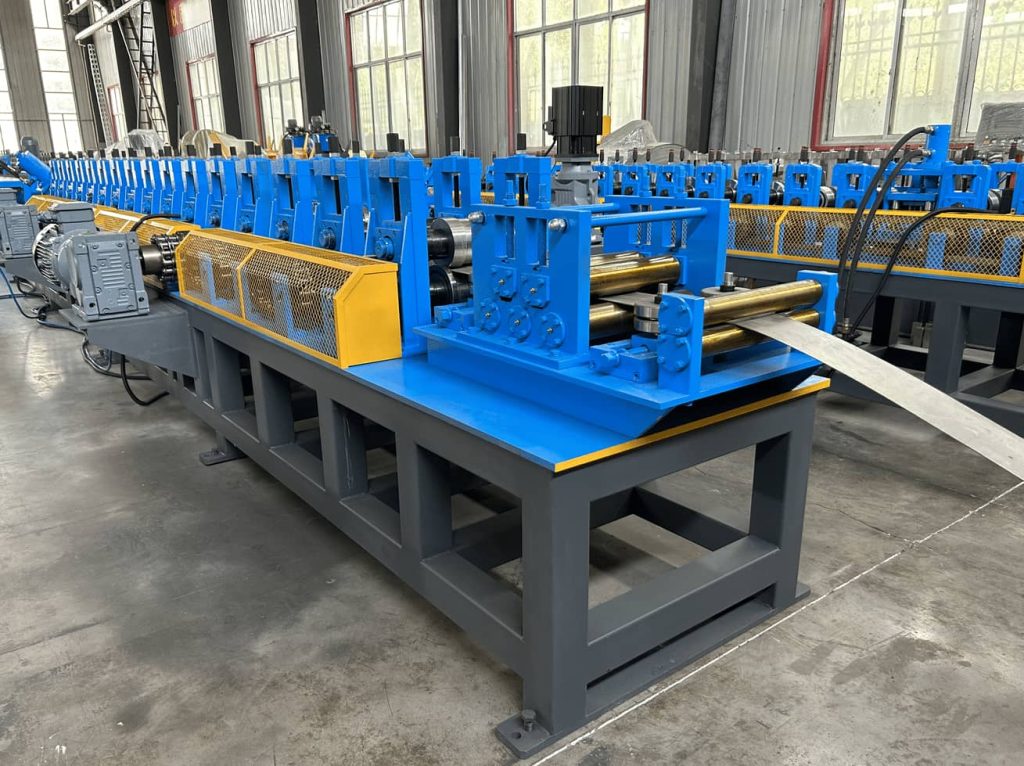

3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3T
|
|||
|

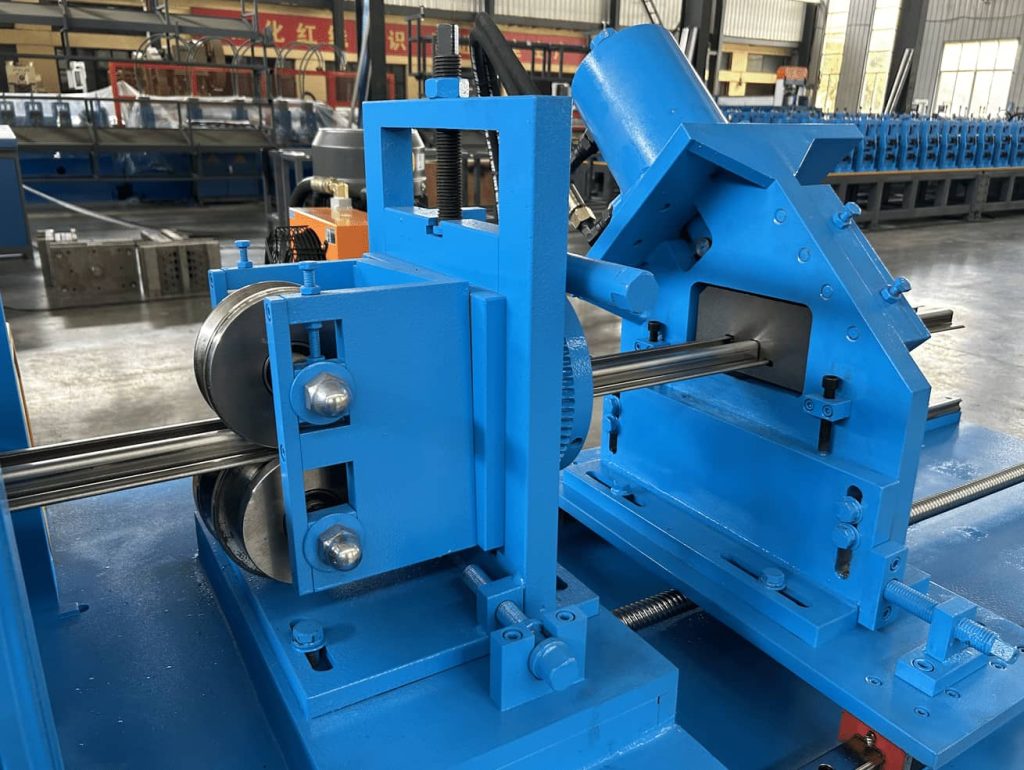

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
70m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Core features: Four major advantages, empowering efficient retail operations
1. Double the space utilization rate and solve the problem of store layout
Different from traditional right angled shelves, the Z-shaped unique stepped structure perfectly adapts to irregular spaces such as corners, passages, and display windows, effectively improving the floor area efficiency of corner areas by more than 25% and turning blind spots into golden display spaces; Vertical layered design maximizes the utilization of vertical space, allowing small storefronts to achieve large capacity displays and bid farewell to space waste.
2. Stable load-bearing and durable, safe, worry free, and cost-effective
The combination of thickened columns and reinforced plywood allows for a single-layer load-bearing capacity of up to 80-100kg, ensuring stable and stable support for the entire frame; Surface epoxy resin electrostatic spraying, rust proof, anti-corrosion, wear-resistant, long-term use is not easy to deform and fade, the service life far exceeds ordinary shelves, reducing the cost of store equipment replacement.
3. Flexible and versatile display, suitable for all product categories
The spacing between the shelves can be adjusted as needed, and high and low products can be freely placed; Supporting the expansion of accessories such as hooks, partitions, and end frames, snacks, daily necessities, stationery, alcoholic beverages, and maternal and child products can be displayed accurately; Multiple layout options such as single-sided wall, double-sided island, and corner combinations can easily adapt to different store styles and promotional needs.
4. Combining appearance and texture to enhance the brand image of the store
Simple and smooth Z-shaped lines, paired with matte black, elegant white and other colors to choose from, with a high-end texture that is not abrupt; The overall design is transparent and tidy, with clear display of goods, making it convenient for customers to choose and creating a clean and comfortable shopping environment, strengthening the store’s professional image and customer favorability.
