The Hot Sale Solar Strut PV Mounting Bracket Roll Forming Machine is an efficient automated production line that continuously produces finished brackets by a series of processes including unwinding, leveling, servo feeding, online punching, multi pass cold bending roll pressing, fixed length cutting, and automatic feeding of steel strip coils.
The entire equipment usually consists of a hydraulic unwinding machine, a servo feeding leveling mechanism, a high-speed punching system, a precision cold bending forming host, a hydraulic/flying saw cutting device, a PLC electronic control system, and an automatic palletizing rack. Just set the parameters on the touch screen, and the device can use advanced closed-loop control to shape steel coils made of galvanized, aluminum magnesium zinc, and other materials into various cross-sectional specifications such as C-shaped, U-shaped, zigzag, L-shaped photovoltaic bracket rails, columns, and purlins in one go. The entire process does not require secondary handling or processing, truly achieving continuous automated production of “coil in, finished product out”.
Core feature: Redefine the production standards for brackets
1. One machine with multiple functions, fast changeover
2. Flying speed, millimeter level accuracy
3. Non damaging coating, strong corrosion resistance
4. Intelligent center, unmanned operation
5. Rigid body, as stable as a rock
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:1.5-2.5mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
120mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
customize
|
|||
|
Weight
|
About 6.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20m/min(customized)
|
Speed is adjustable according to customer’s request
|
||

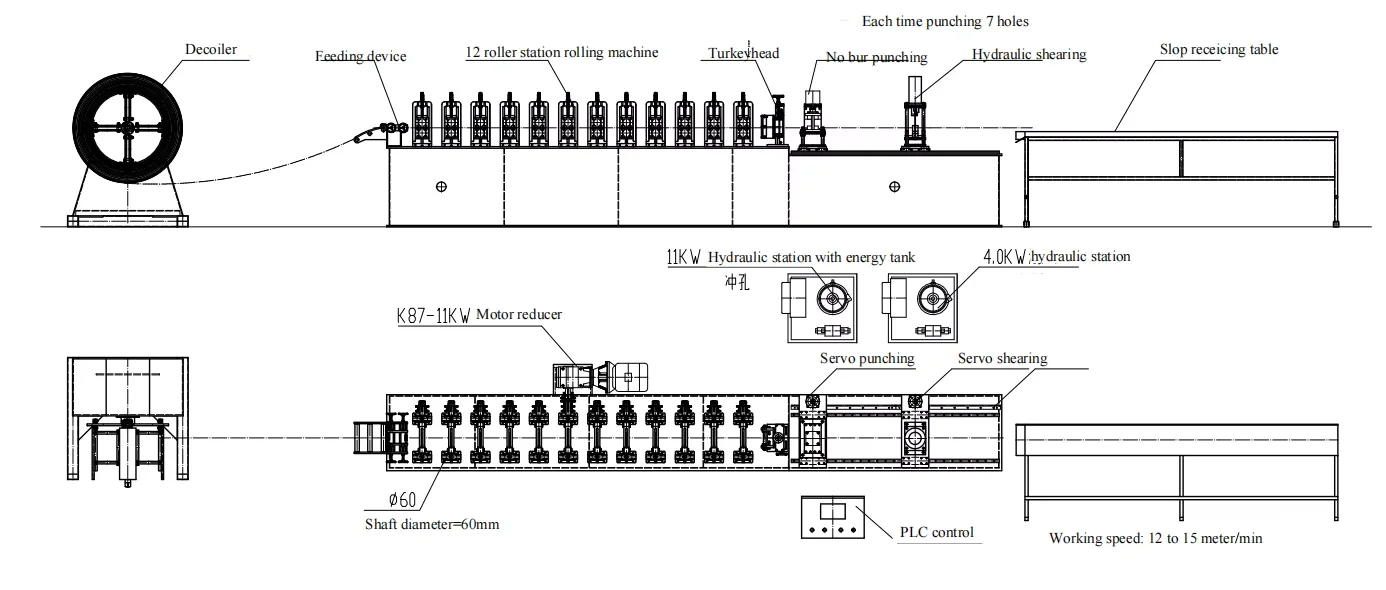

Pattern diagram：
Application scenario: Full scene coverage, empowering every ray of sunshine
• Large scale ground photovoltaic power station
For large-scale projects in desert, gobi, mudflat, etc., the C-shaped main keel, U-shaped purlin and zigzag column of pile driving support can be mass produced at high speed. Continuous operation is stable, with a single shift capacity of tens of thousands of meters, providing strong delivery guarantee for GW level projects.
• Distributed roofs for industrial, commercial, and household use
Whether it is aluminum alloy/steel guide rails for color steel tile roofs or load-bearing brackets for concrete roofs, the equipment can accurately produce lightweight and high-strength customized cross-sectional profiles. Quick changeover capability, perfectly responding to the distributed order rhythm of “short, frequent, and fast”.
• Agricultural photovoltaic complementarity, fishery photovoltaic complementarity
In such scenarios with high humidity and strong corrosiveness, high-strength steel such as zinc aluminum magnesium is often used. The excellent protective characteristics of the equipment that do not damage the coating, combined with flexible molding technology, can produce various high load-bearing and high anti-corrosion shaped brackets, which can assist in dual-use and sunlight sharing.
working flow :
Uncoiling with feeding & Leveler feeder → Punch press with servo feeder → Roll former →Hydraulic flying cut →Auto stacker

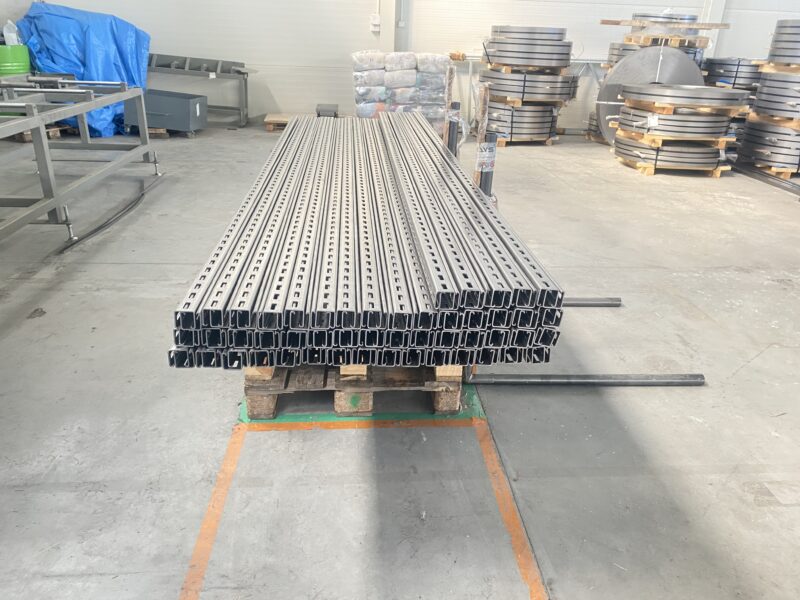

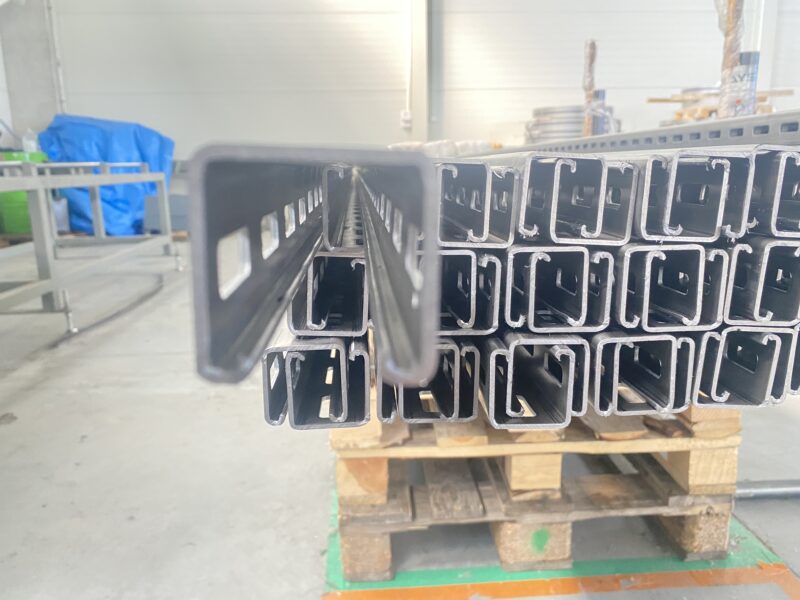

Products Display:
Contact Us：
Choosing an intelligent photovoltaic bracket forming machine means choosing competitiveness.
We are not only equipment manufacturers, but also overall solution providers for intelligent manufacturing of photovoltaic brackets. From factory layout to mold design, from process debugging to lifelong after-sales service, we are willing to use our hardcore equipment technology and exquisite service to help you seize the dividends of the new energy era and make every production line a profit center.
Illuminate a green future with the light of intelligent manufacturing. Welcome to inquire for exclusive solutions!
