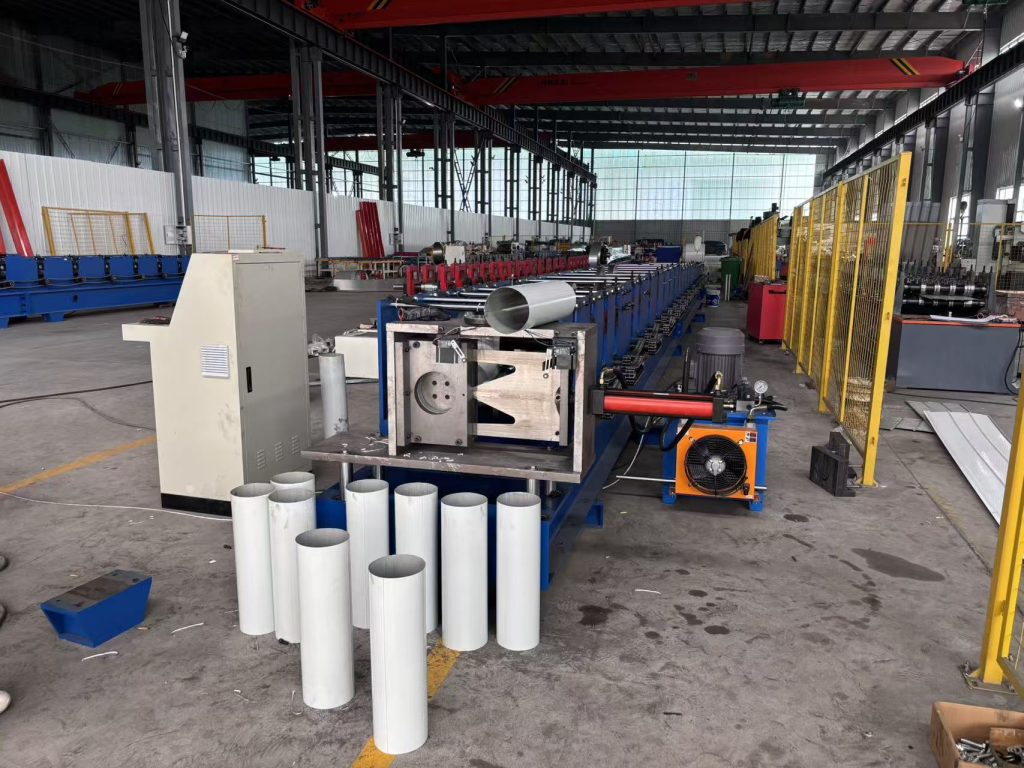

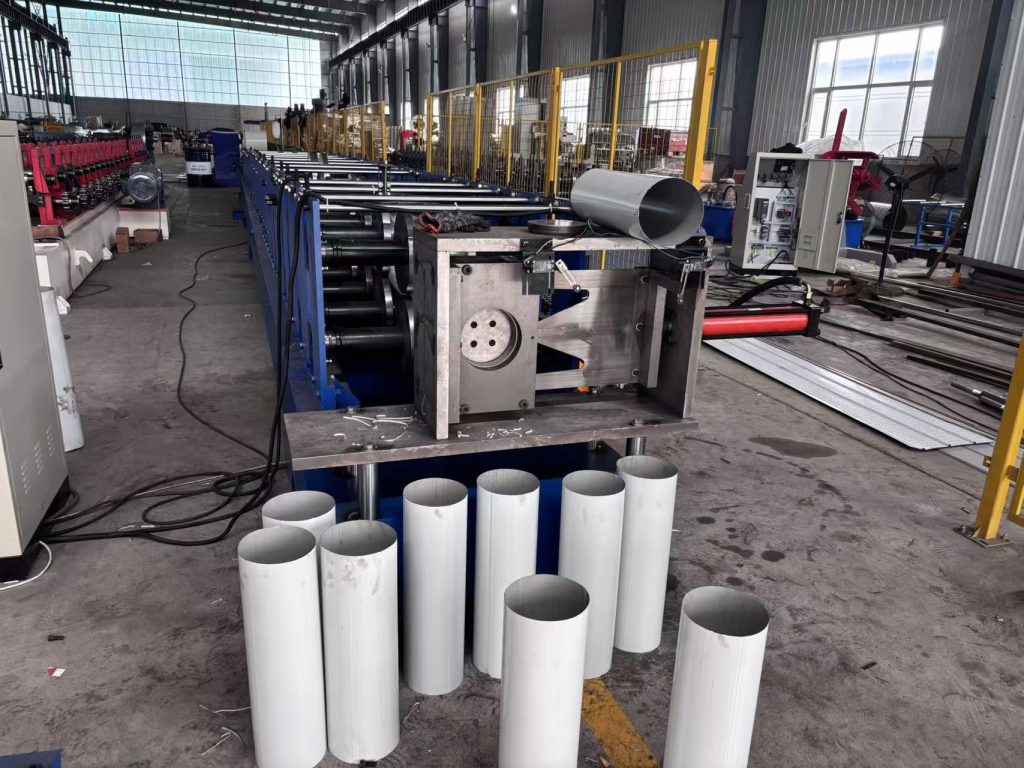

In the language system of modern architecture, downspouts have long surpassed their simple drainage function and become an important component of facade aesthetics and structural safety. However, the traditional processing method of metal downspouts often faces pain points such as low efficiency, poor accuracy, and numerous appearance defects. In order to break this deadlock, we have launched a new generation of Metal Round Shape Gutter Downspout Pipe Roll Forming Machine – with cold bending forming technology as the core, redefining the production standards of high-quality downpipes.
Application scenario: Escort every breath of the building
• High end residential and villa clusters

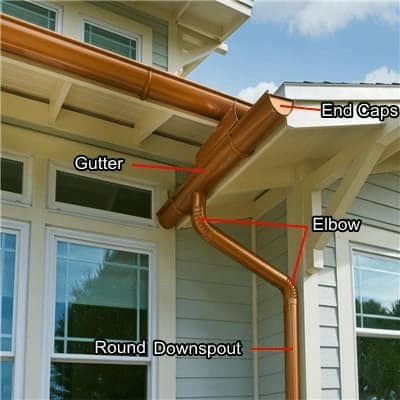

In the eyes of designers, downspouts are an extension of building facade lines. The aluminum magnesium manganese or copper circular downspouts produced by this equipment have rich colors and delicate textures, which can perfectly blend with stone, real stone paint or wood grain exterior walls, showcasing a low-key and luxurious architectural taste.
• Industrial plants and large venues
Faced with the centralized drainage demand of large-span plants, the equipment can produce large-diameter and thick metal downpipes. With the excellent impact resistance and weather resistance of metal materials, it can easily cope with extreme weather such as rainstorm and hail, and ensure the safety of structural drainage.
• Restoration and renovation of ancient buildings
Copper downspouts are a classic choice for repairing ancient buildings that require high load-bearing and anti-corrosion requirements. The high-precision molding process of the equipment can perfectly replicate the smooth curvature of classical pipes, retaining the weight of history and endowing the building with modern drainage functionality.

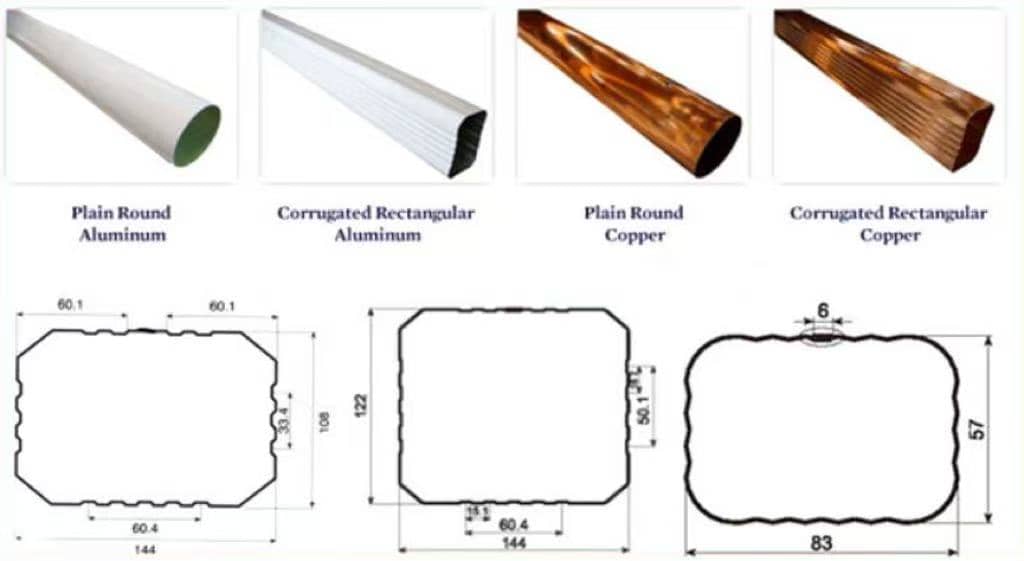

Pattern diagram:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.4-0.6mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|

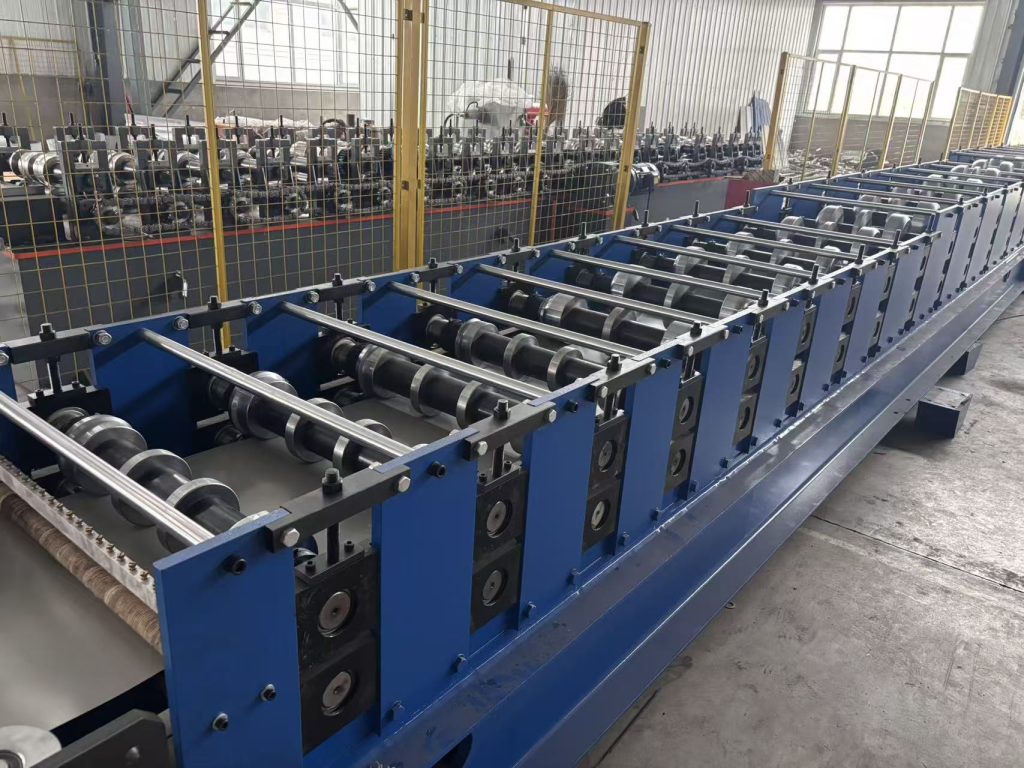

Roller station
|
22 rows(As your requirement)
|
||
|
Diameter of shaft
|
70mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
8500*1000*1200(customize)
|
|||
|
Weight
|
5.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
7.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|

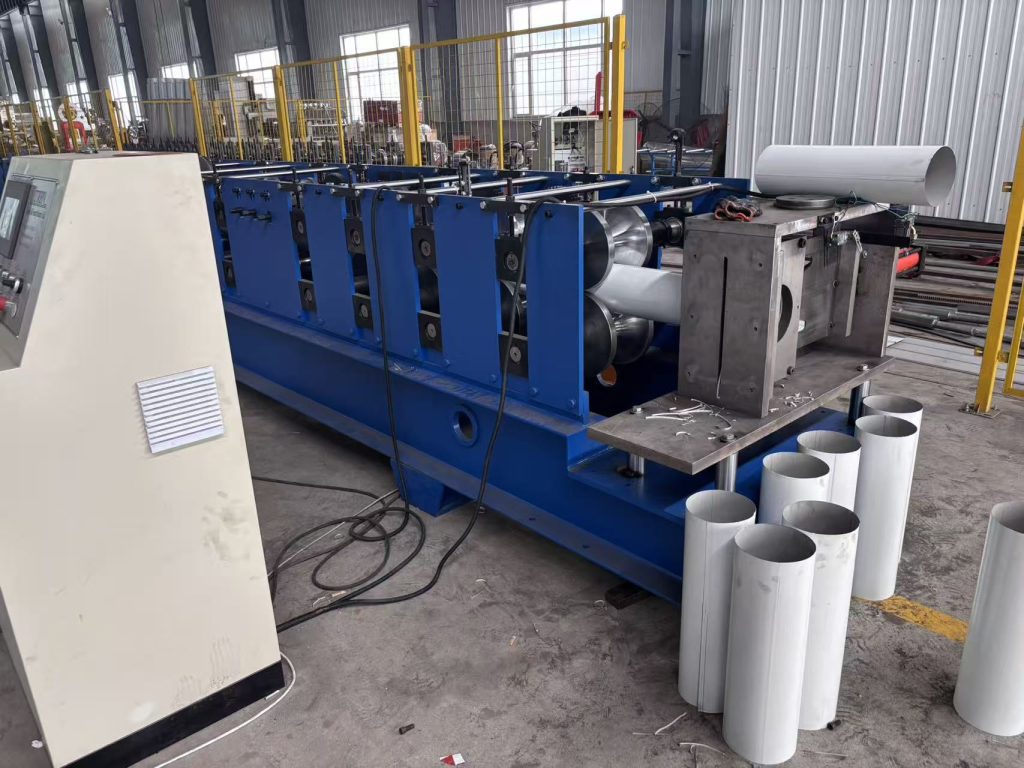

7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
8-10m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core feature: Not only fast, but also precise

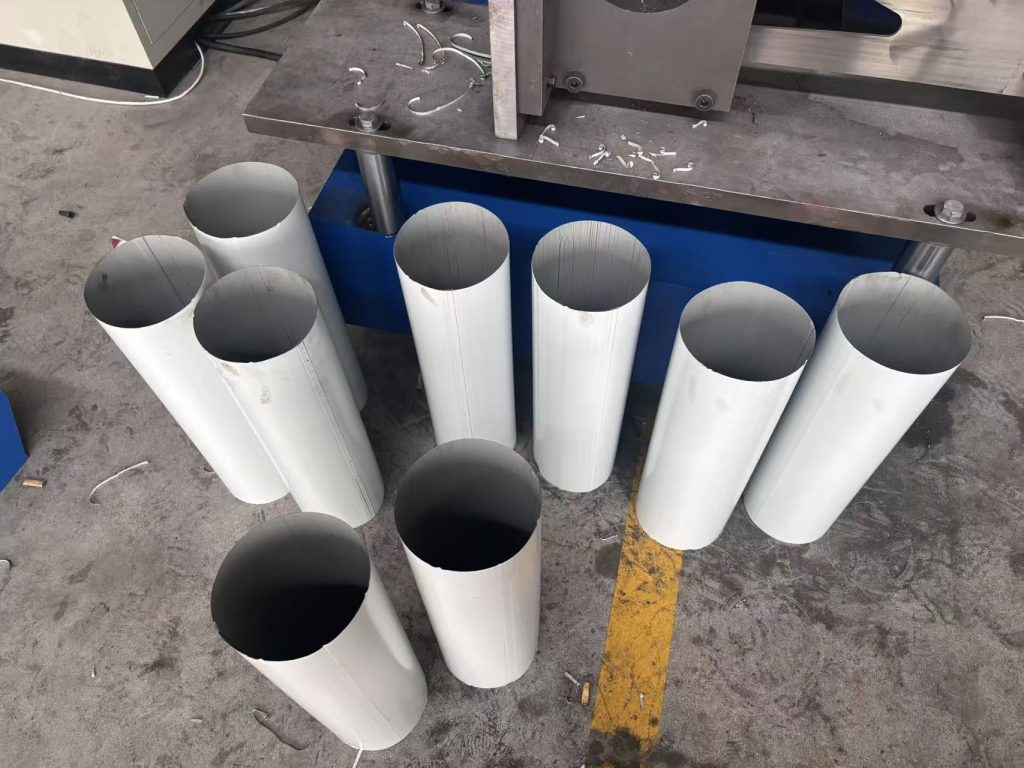

1. High precision molding, with a tight bite and no leakage of water

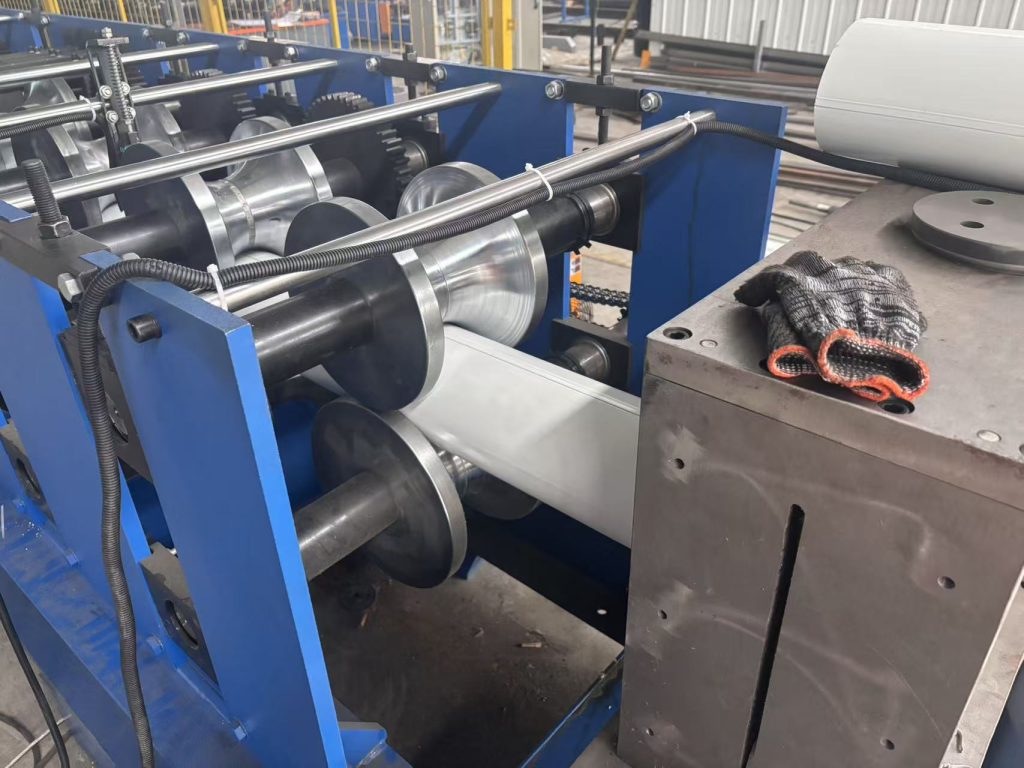

The equipment adopts high-quality alloy steel rollers, which have undergone precision heat treatment and CNC machining, resulting in extremely high surface smoothness. The unique lock edge structure design ensures that the longitudinal biting of the pipe is tightly fastened, with high tensile strength, and fundamentally eliminates the leakage hazards caused by loose joints in traditional downspouts.
2. Full servo control, intelligent and efficient
Equipped with imported brand PLC control system and servo motor drive, it achieves fixed length cutting and precise follow-up cutting. The operator only needs to input the length and quantity on the touch screen, and the equipment can automatically complete the production. The length error is controlled within ± 1mm, and the incision is smooth without burrs, greatly improving the utilization rate of materials.
3. Flexible changeover and versatile use of one machine
We have designed a rapid changeover system to meet the production needs of multiple specifications. By replacing some of the rolling mill molds or adjusting the spacing between the units, it is possible to switch between products with different diameters in a short period of time, which is particularly suitable for building material manufacturers that undertake multiple batches and specifications of orders.
4. Strong rigidity and stable operation
The overall bed body is welded with thick walled steel plates and undergoes stress relief annealing treatment, with excellent rigidity. It remains stable like a rock even under high-speed continuous operation, and the equipment has a service life of over 15 years.
5. Compatible with multiple types of environmentally friendly metals
The equipment is perfectly compatible with mainstream metal materials such as galvanized sheet, aluminum magnesium manganese alloy sheet, copper plate, etc. Whether it is a cost-effective engineering project or a high-end villa that emphasizes texture, suitable coils can be found for processing.
