High speed rolling shutter door machine is a device used to drive the rapid lifting and lowering of rolling shutter doors, widely used in commercial and industrial fields. Its main features include high efficiency, safety, and intelligence, suitable for various places that require frequent opening and closing of doors.
High speed rolling shutter door machines are widely used in the following scenarios:
1.Industrial sites:
such as warehouses and workshops, are used to block external dust, insects, and noise, maintain a clean and quiet indoor environment, quickly isolate different production areas, and improve work efficiency.
2.Commercial venues:
such as shopping malls, supermarkets, restaurants, etc., are used to maintain comfortable indoor temperatures, prevent dust and insects from affecting shopping or dining environments, and improve import and export traffic efficiency.
3.Medical field:
such as hospitals, nursing homes and other medical facilities, used to ensure hygiene and isolation, prevent pollution and transmission, reduce noise, and provide a quiet environment for medical treatment.
Product Attributes :
|
1.Formed Material
|
GI
|
Thickness:0.8-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

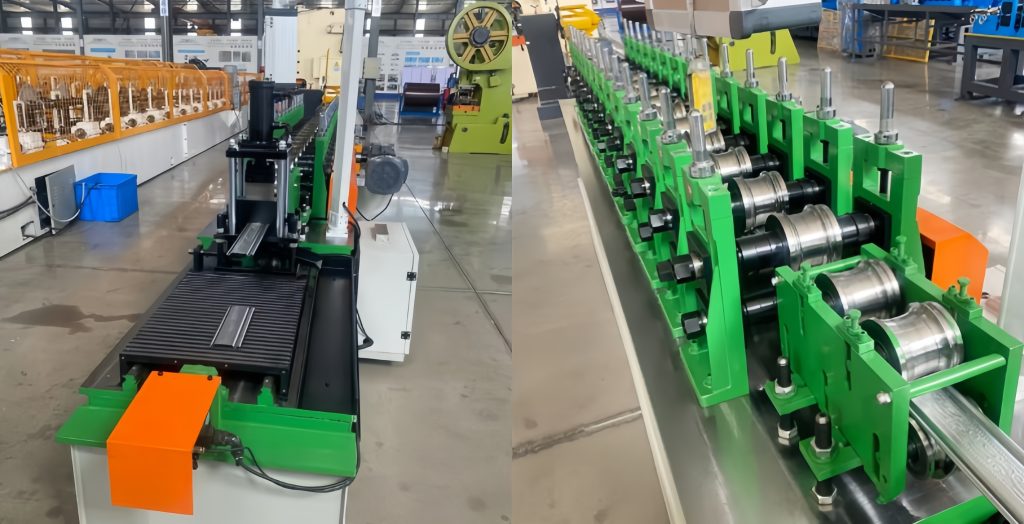

3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
50mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 5T
|
|||
|

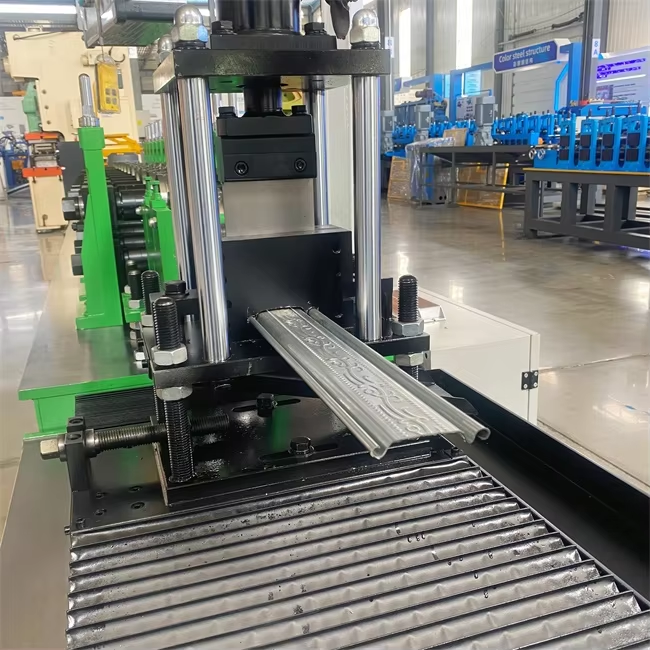

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
20-30m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Specific functions and application scenarios:
- Quick isolation:
The high-speed rolling shutter door can quickly rise and fall, effectively isolating the air quality in the workshop and ensuring a dust-free environment. - Insulation and Cooling:
With excellent insulation and cooling performance, it is suitable for places that require temperature control. - Insect and wind prevention:
It can effectively prevent the influence of insects and external wind, and maintain a clean and quiet indoor environment. - Dust and sound insulation:
The door edge is equipped with sealing strips, which can effectively prevent dust and noise from entering. - Fire and odor prevention:
It has the functions of fire prevention and odor prevention, ensuring fresh indoor air. - Lighting:
Some high-speed rolling shutter doors are designed to be transparent or semi transparent, providing natural light while ensuring isolation.

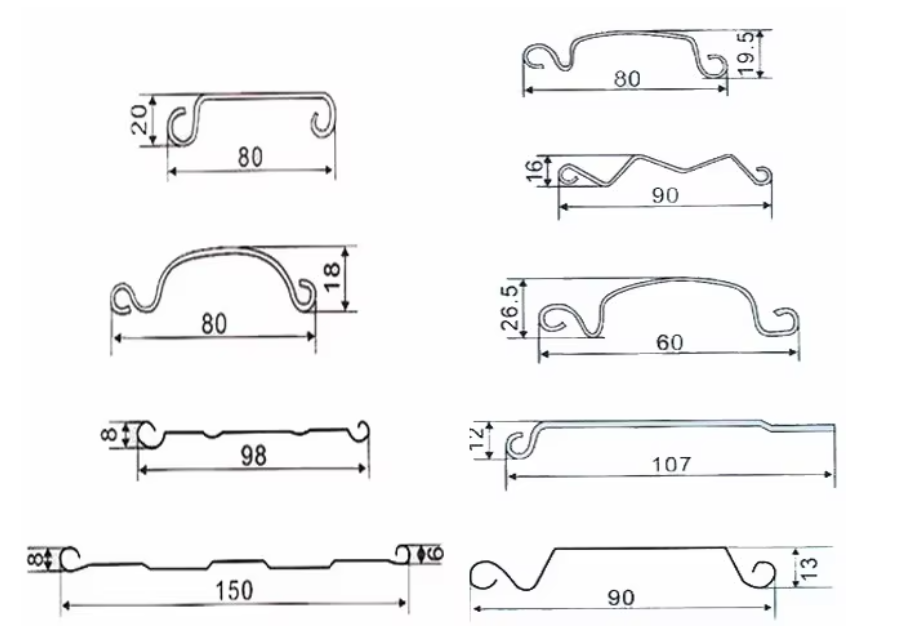

Shutter door profiles:
