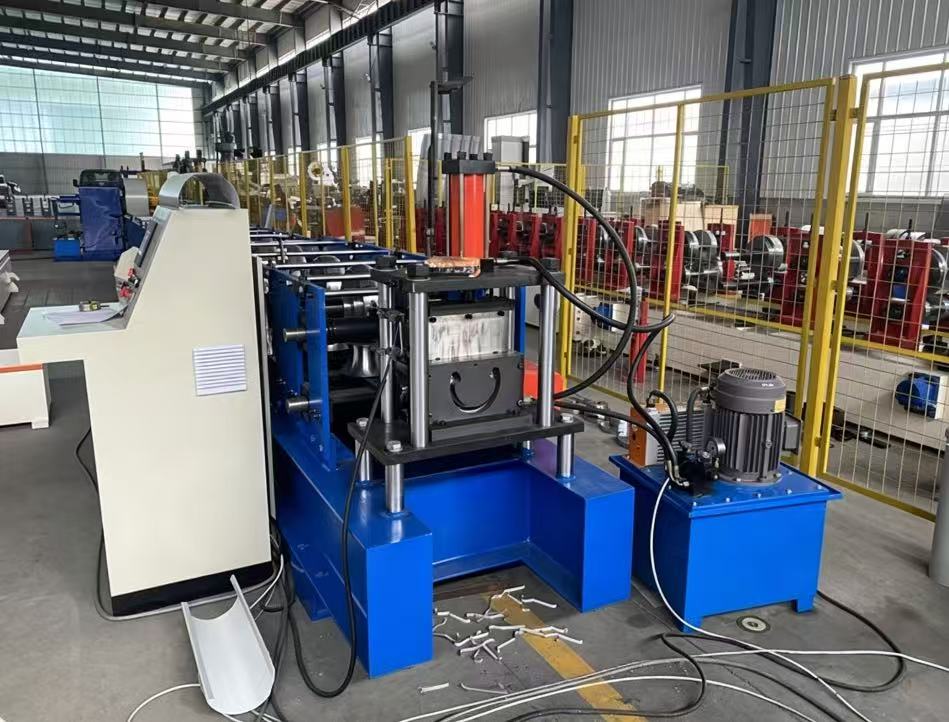

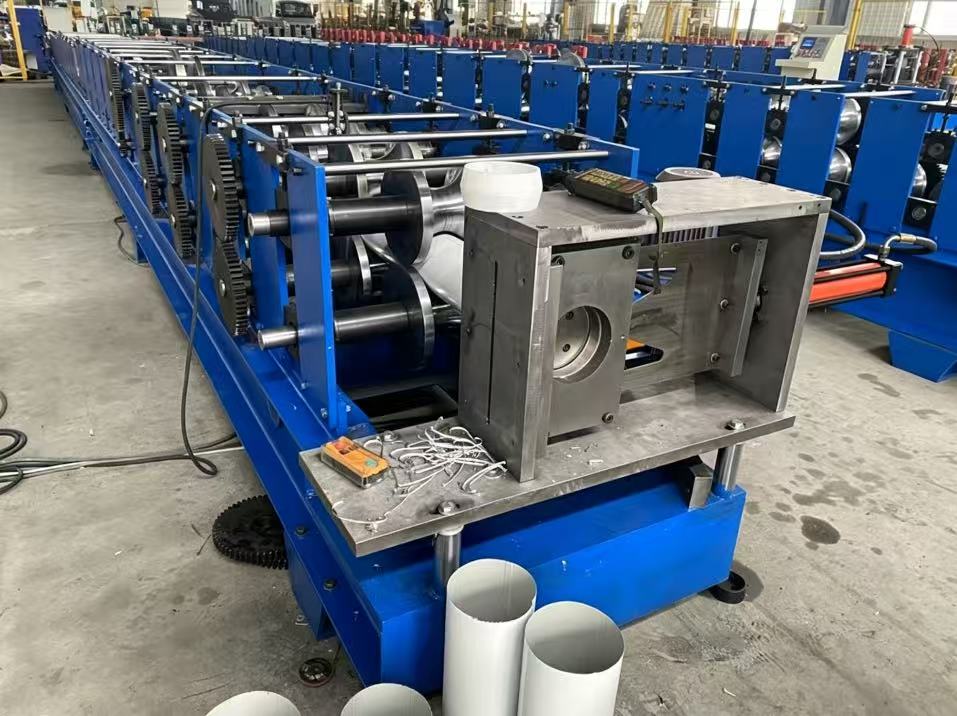

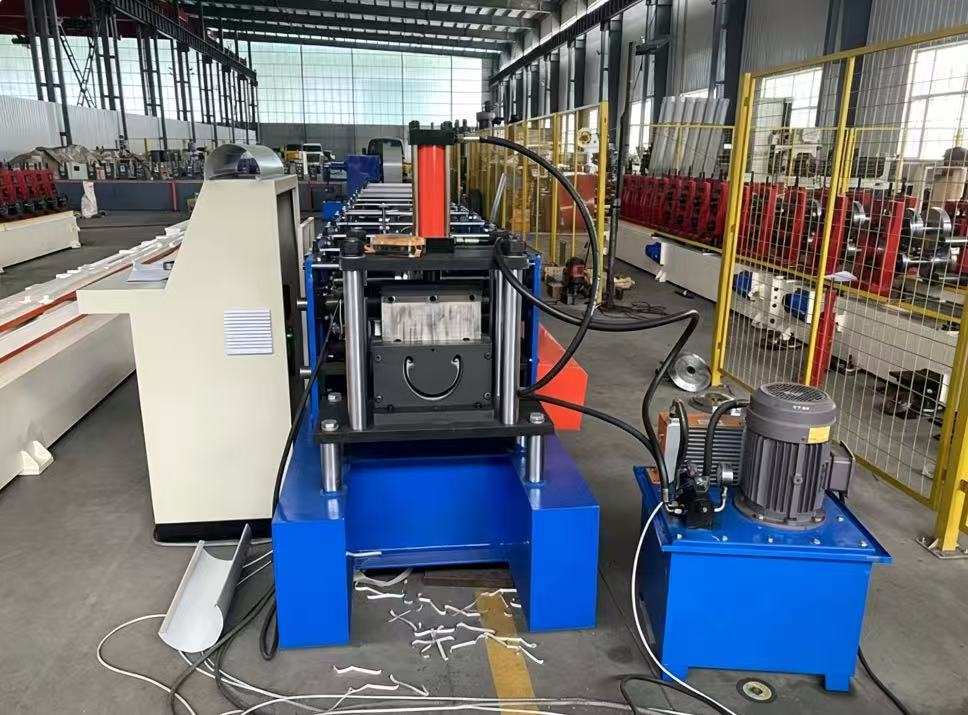

The Rain Water Roof Valley Gutter Roll Forming Machine is an automated cold bending equipment specifically designed for producing gutters (rainwater troughs) and downspouts in building roof drainage systems. It mainly forms metal coils such as color steel plates, galvanized plates, or aluminum plates into various specifications of drainage profiles through continuous rolling.
Main application scenarios:
• Industrial and civil building drainage:
widely used for roof eaves drainage of large-span buildings such as steel structure factories, warehouses, and sports halls, as well as for the renovation of drainage systems in residential areas.
• Temporary construction and construction site:
Portable modular models can be directly produced by construction teams on site according to demand, avoiding the problems of inconvenient transportation and mismatched sizes of prefabricated parts.
• Decoration and supporting engineering:

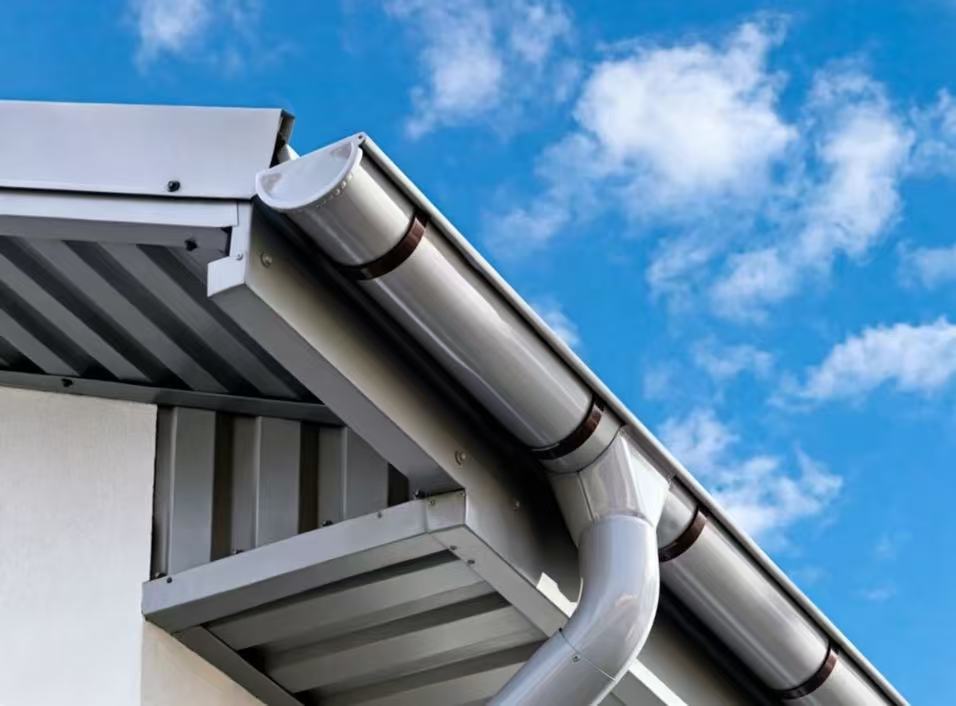

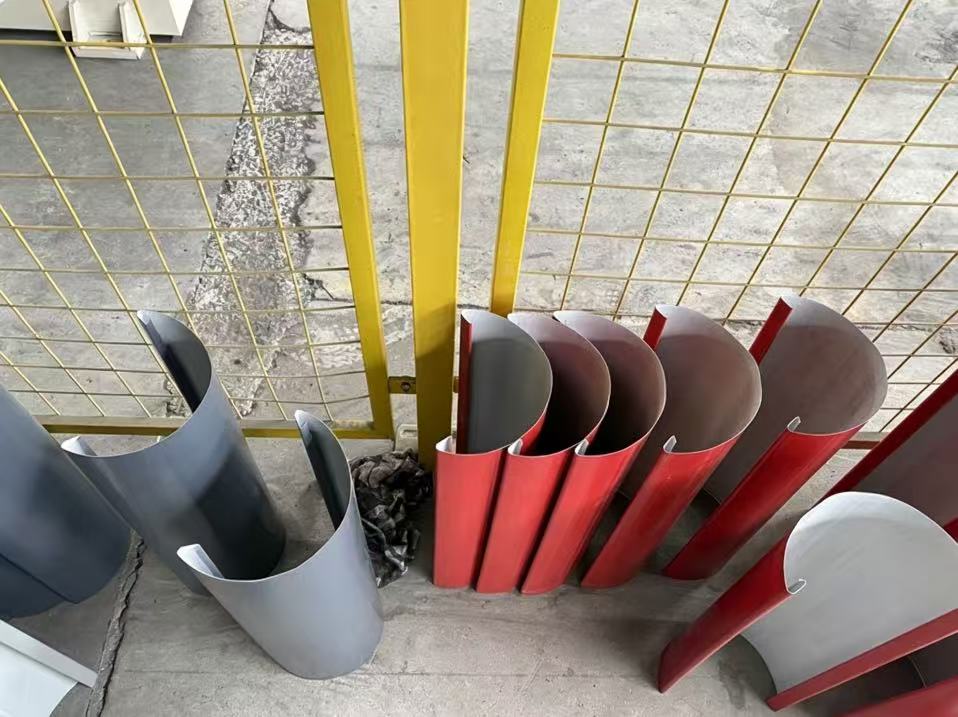

The colored coated metal gutters and downspouts produced have both drainage function and architectural decoration effect, and are commonly used in projects such as villas and garden landscapes that require uniformity in appearance.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.5-1.2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free)
|
||
|
3.Main body
|

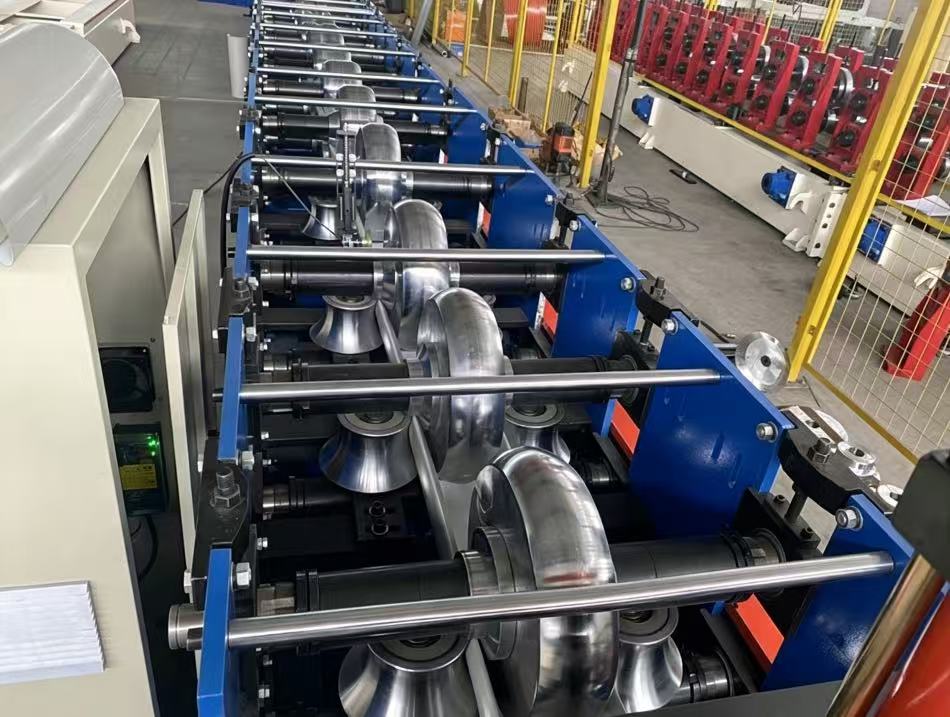

Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
8500*1000*1200(customize)
|
|||
|
Weight
|
6.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

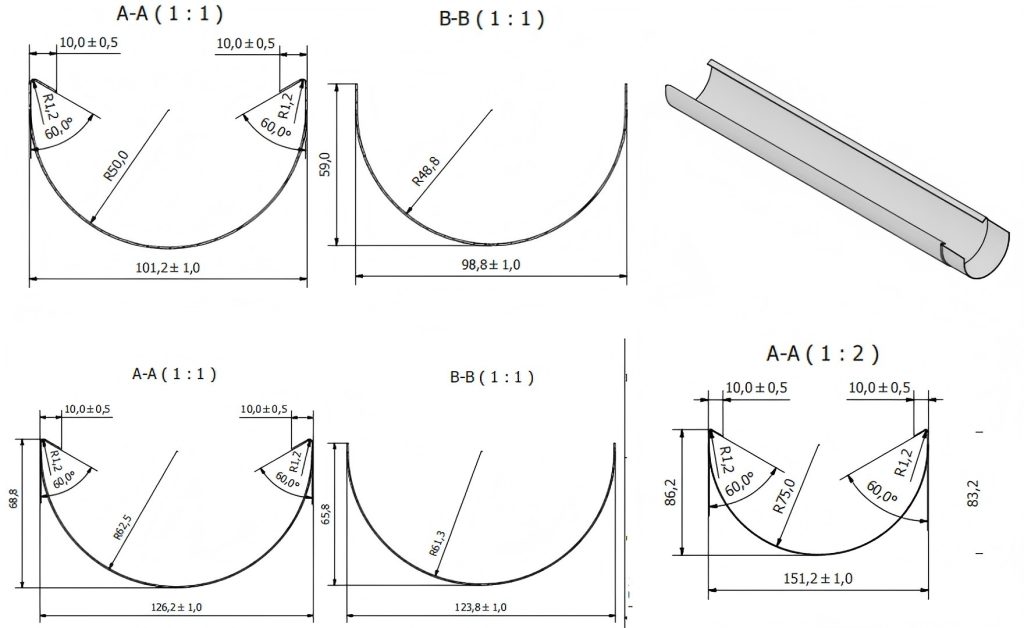

Pattern diagram:
Core Features:
1.One machine with multiple uses and strong adaptability:
By replacing molds or adjusting rollers, products of different sizes and shapes (such as K-shaped gutters, semi-circular gutters, square/circular downspouts) can be produced to meet different architectural design needs.
2.High efficiency automation:
Adopting PLC automatic control system, supporting fixed length cutting and automatic counting. Some models can produce continuously at high speed, with a speed of 10-15 meters per minute, suitable for batch operations.
3.Accurate molding and high strength:
The board undergoes multiple cold bending processes, resulting in uniform deformation and a smooth and even surface of the profile. The equipment body is mostly welded with steel plates and tempered, and the roller shaft is quenched with 45 # steel, which has high overall rigidity and is not easily deformed.
4.Good sealing and drainage performance:
The formed downspout is often connected with a bite joint, and the gutter is formed as a whole without welding seams. With a reasonable interface design, it can effectively prevent rainwater leakage and ensure smooth drainage.
