In the field of modern building construction, the application of various machinery and equipment has greatly improved the construction efficiency and quality. Among them, the CU keel opening and closing keel machine has gradually become one of the indispensable equipment in the construction industry due to its unique functions and advantages. The working principle of the CU keel is based on cold-formed forming technology. First of all, the coils of metal plates, such as galvanized steel plates, color steel plates, etc., are placed on the unloading rack of the equipment. The unloading frame is driven by a motor, which can accurately control the feeding speed and tension of the plate to ensure that the plate enters the main machine part smoothly. The main engine part is the heart of the keel machine, which consists of a series of elaborate rolls inside. These rolls are precisely machined and mounted according to the shape requirements of the CU keel. When the plate enters the main machine, it goes through the rolling action of multiple groups of rolls in turn. Each group of rolls is responsible for a specific forming task, and the flat sheet is gradually cold-formed into the shape of a CU-shaped keel according to the preset arc and size. In order to ensure the accuracy and quality of the keel during the forming process, the equipment is equipped with high-precision guides and positioning systems. The guide ensures that the sheet always maintains the correct direction of travel during the rolling process, avoiding deviation or twisting; The positioning system can accurately control the length of the keel according to the preset size, and when the keel reaches the set length, the shearing device will be quickly activated to cut the formed keel and complete a production cycle.
Product Attributes ：
|
1.Formed Material
|
GI
|
Thickness:0.4-0.8 mm
|
||
|

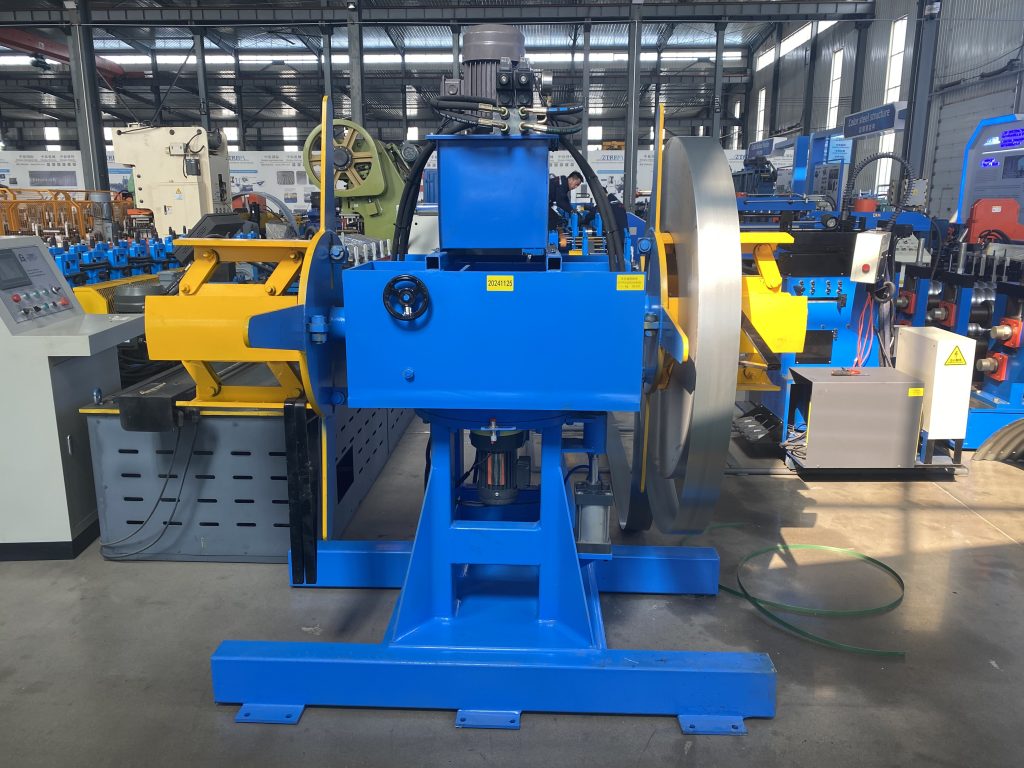

2.Decoiler
|
Hydraulic automatic decoiler
|
Electric double head decoiler
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
50 mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
5500*800*1200(customize)
|
|||
|
Weight
|
About 3 T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5 KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
40m/min(customized)
|
Speed is adjustable according to customer’s request
|
||
Structural Design Highlights：
1.Rugged frame:
The frame of the CU keel machine is welded from high-strength steel and undergoes a rigorous heat treatment process to provide excellent stability and load capacity. Even during long, high-intensity production operations, the frame remains stable and provides a solid foundation for the normal operation of the equipment.
2.High-precision roll system:
As a key component that determines the quality of keel forming, the roll is made of high-quality alloy steel, and undergoes precision processing and heat treatment. The surface of the roll is chrome-plated, which not only improves the hardness and wear resistance, but also makes the formed keel surface smoother, reducing scratches and blemishes. At the same time, the design of the rolls adopts a modular concept, which makes it easy to install and debug quickly and easily when different types of dies need to be replaced.
3.Advanced transmission and control system:
The transmission system of the equipment adopts a combination of motor and reducer, and transmits power to each roll and working parts accurately through chain or gear transmission. This transmission mode has the advantages of high transmission efficiency, stable operation and low noise. The control system adopts advanced PLC programmable controller, the operator only needs to input the required keel specifications, production speed and other parameters on the operation panel, and the equipment can automatically complete the entire production process, achieve a high degree of automatic control, and greatly improve the production efficiency and product consistency.

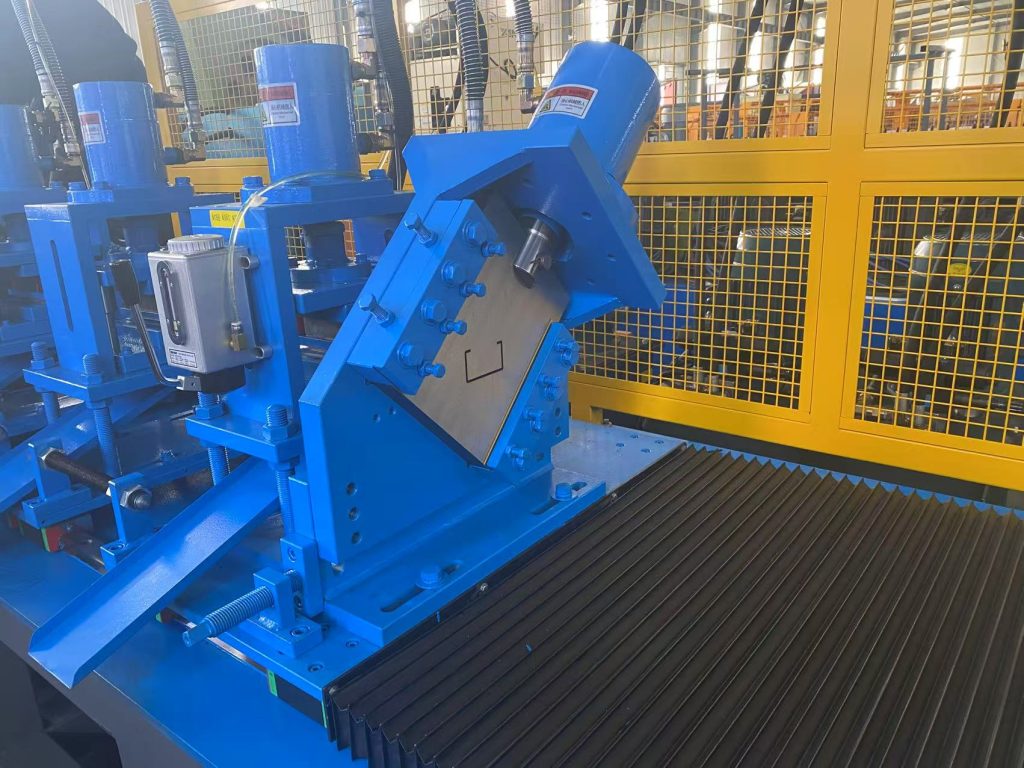

4.Convenient shearing and discharging device:

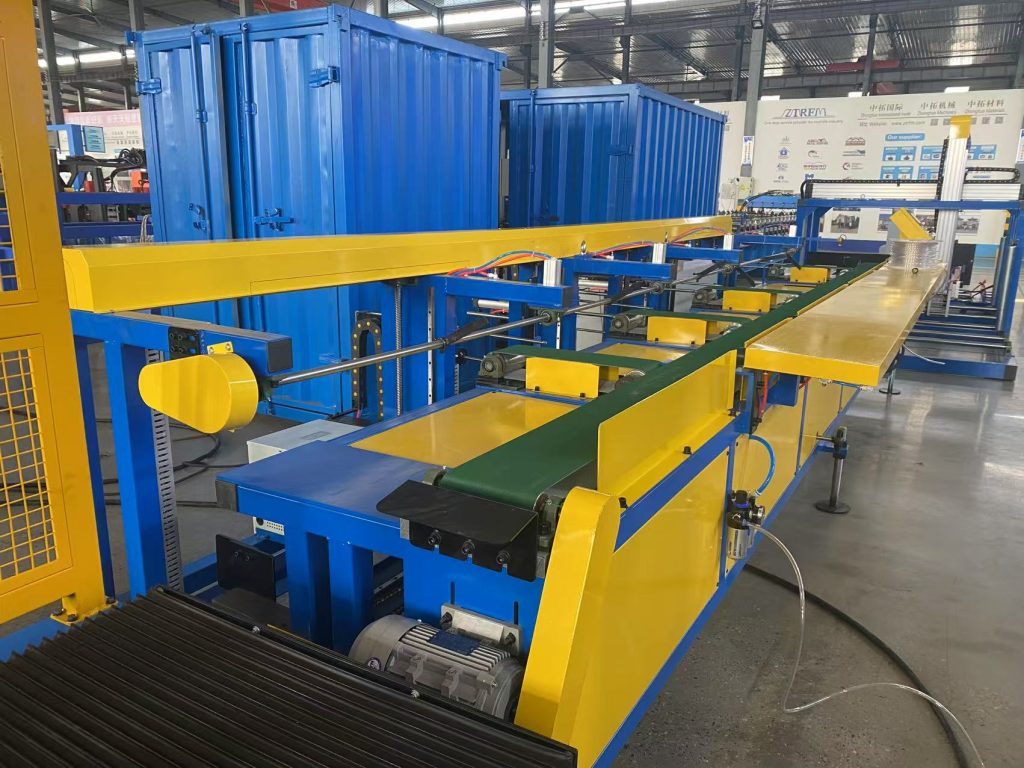

The shearing device adopts hydraulic drive or mechanical drive, and the cutter is made of special alloy material, which has the characteristics of sharp and durable, large shear force, and can quickly and accurately cut the formed keel. The discharging device is designed as a conveyor frame with adjustable height and angle, which is convenient for conveying the severed keel to the designated position, which is convenient for subsequent handling and stacking.
The performance benefits are highlighted：
1.Efficient production:
The CU keel opening and closing machine has a high production speed of 15 – 30 meters per minute, which can meet the construction needs of large-scale construction projects. The highly automated production process reduces manual intervention, which not only improves production efficiency, but also reduces labor costs and labor intensity.
2.High-precision products:
Through advanced control system and precise mechanical structure, the equipment can ensure that the produced CU-type keel has high dimensional accuracy and the error is controlled within a very small range. The flatness and consistency of the keel can reach the industry-leading level, providing high-quality material guarantee for building construction.
3.Strong versatility:
The equipment has good versatility, and can produce a variety of sizes and models of CU keels by replacing molds of different specifications to meet different architectural design and construction requirements. Whether it is a lightweight keel for interior partition walls and suspended ceilings, or a heavy-duty keel for large buildings such as industrial plants and warehouses, it can be easily handled.
4.Stability and reliability:
In the design and manufacturing process of the equipment, the stability and reliability of long-term operation are fully considered. The selection of high-quality parts, after strict quality inspection and debugging, to ensure that the equipment can operate stably in a complex working environment, reduce the probability of failure, reduce maintenance costs.
Wide range of application scenarios：
1.Commercial buildings:
In the decoration of commercial buildings such as shopping malls, office buildings, hotels, etc., CU keels are widely used in the construction of ceilings and partition walls. The CU keel opens and closes the high-quality keel that provides an aesthetically pleasing, sturdy interior structure for these venues.
2.Residential construction:
Whether it is an ordinary house or a villa, the CU-type keel is also one of the commonly used materials in interior decoration. Its good supporting performance and fireproof and moisture-proof characteristics create a safe and comfortable living environment for residents.
3.Industrial buildings:
Factories, warehouses and other industrial buildings have high requirements for structural strength. The heavy-duty keel produced by the CU keel opening and closing machine can meet the strict requirements of industrial buildings in terms of bearing capacity and stability, and ensure the safe operation of industrial production.
4.Public buildings:
Schools, hospitals, gymnasiums and other public buildings, due to the dense population, have extremely high standards for the safety and fire performance of building structures. With its excellent performance, the CU keel is ideal for the construction of these public buildings, and the CU keel machine provides an efficient and stable production guarantee.
CU keel opening and closing machines play an important role in the field of building construction with its advanced technology, excellent performance and wide range of applications. With the continuous development and progress of the construction industry, it is believed that the CU keel will continue to innovate and upgrade, bring more convenience and value to the construction industry, and help all kinds of construction projects be completed efficiently and with high quality.
