In the modern construction industry, as an important building material, the quality and production efficiency of roofing tile directly affect the overall performance and construction progress of the building. The double-layer roof tile machine came into being, which has become an indispensable tile-making equipment in the construction field with its efficient, accurate and multi-functional characteristics. The double-layer roofing tile machine processes metal sheets or other raw materials into double-layer roofing tiles with specific shapes and sizes through a series of sophisticated mechanical devices and automated control systems. Rolls of raw material are placed on a discharge rack and the sheets are introduced into the machine either automatically or manually. After the plate enters the main machine, it is continuously rolled by multiple groups of rolls to gradually form the required tile shape. The design and arrangement of the rolls are customized according to the different tile patterns, ensuring the accuracy and consistency of the tiles. For some double-layer roof tiles that require functions such as thermal insulation and sound insulation, the machine will add thermal insulation core materials or other composite materials during the molding process to achieve the composite of multi-layer structure. When the roof tile is formed to a set length, the shearing device will automatically cut it off to ensure that the size of each tile is accurate. The cut roof tile is output through the discharge rack, which is convenient for subsequent handling and stacking.
Product Attributes ：
|
1.Formed Material
|
PPGI,GI,AI,GL
|
Thickness:0.3-0.8mm Width:1000mm/1200mm(As per profile drawing)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
As your requirement
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|

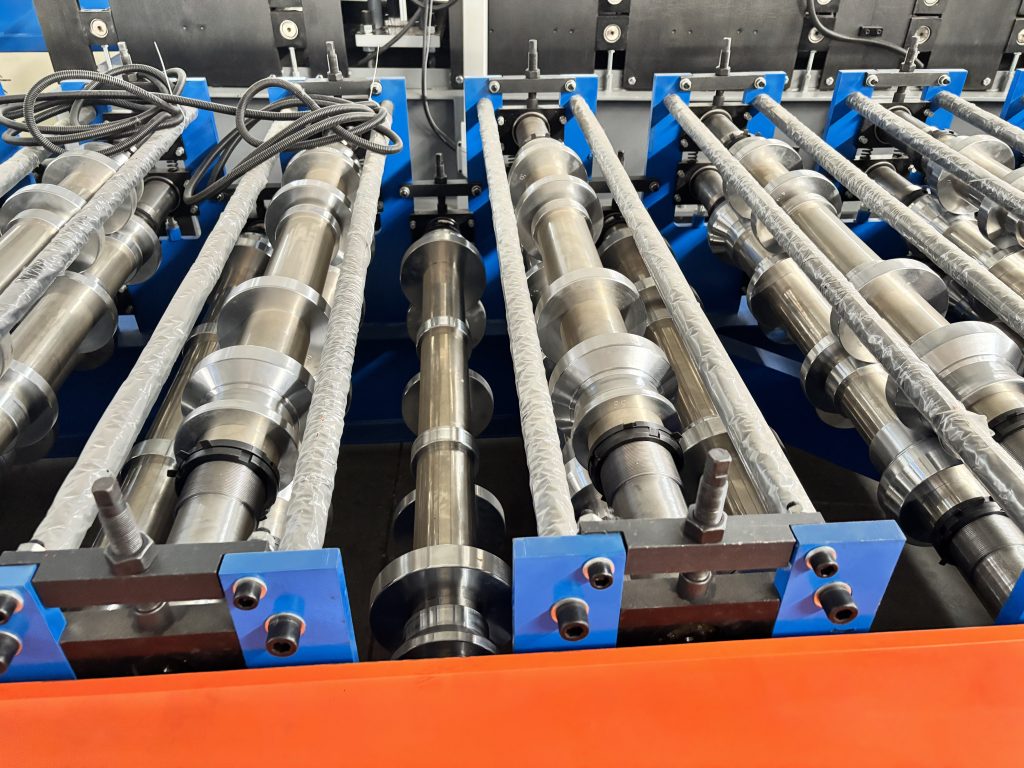

Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
10500*1600*1600(customize)
|
|||
|
Weight
|
6.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
5.5KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15m/min
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Significant advantages:
1.Efficient production:
The double roof tile machine has a fast production speed and is able to meet the needs of large-scale construction projects. It has a high degree of automation, reduces manual intervention, and improves production efficiency and product quality stability.
2.Cost saving:
One machine can produce two different types of roofing tiles at the same time, which greatly saves equipment investment, floor space and labor costs compared to using two single-layer equipment. At the same time, by optimizing the production process, the waste of raw materials is reduced, and the production cost is further reduced.
3.Versatility:
According to different building needs, we can produce double-layer roof tiles of various specifications, shapes and colors to meet diverse design requirements. By adjusting the machine parameters, it is also possible to adapt to raw materials of different thicknesses and materials.
4.Reliable quality:
Advanced manufacturing technology and high-quality parts are used to ensure the stability and durability of the machine. The produced roofing tile has good flatness, strength and waterproof performance, which can effectively extend the service life of the building.
5.Easy to operate:
The user-friendly control system and operation interface enable operators to get started quickly, reducing the cost of training and the risk of operation errors. At the same time, the machine has fault diagnosis and alarm functions, which is convenient for timely detection and problem solving.
Applications:
Roofing tiles produced by Double Roof Tile Machine are widely used in various construction fields, including:
1.Industrial plants:
It has good waterproofing, thermal insulation and load-bearing properties, and can provide reliable roofing coverage for industrial plants.
2.Commercial buildings:
A variety of tile types and color options can meet the requirements of commercial buildings for aesthetic appearance.
3.Residential Buildings:
Provide a comfortable and safe living environment for the residence, while improving the overall quality of the building.
4.Public buildings:
such as gymnasiums, exhibition halls, schools, etc., the high performance of double-layer roof tiles can meet the strict requirements of these buildings for roofing materials.
5.Temporary buildings:
In temporary buildings such as construction sites and activity venues, the roofing tiles produced by double-layer roof tile machines are easy to install and have low cost, which has great advantages.
With its excellent performance and advantages, the double roof tile machine brings an efficient and high-quality roof tile production solution to the construction industry. With the continuous development of construction technology and the growing market demand, double roof tile machines will play a more important role in the construction field and promote the progress and development of the construction industry.
