Color steel roofing sheet is a color coated steel plate or galvanized steel plate by rolling cold bending molding plate, widely used in industrial buildings, such as factories, warehouses, garage, hangar, gymnasium, exhibition hall, theater and another surface of the rooms, wall, and fence. As the manufacture of the High Speed Color Steel Roof Making Machine 35 meter per minute Zhongtuo does hope that we can give the customers high efficiency equipment.
Normally for the roofing sheet, the thickness could be from 0.2 to 0.8mm, the coil width depends, we can customize according to the customer requirements.

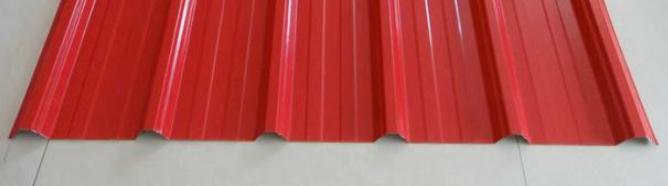

Take the following drawing profile for example to show you how the High Speed Color Steel Roof Making Machine 35 meter per minute works.
High Speed Color Steel Roof Making Machine 35 meter per minute machine designed:
The High Speed Color Steel Roof Making Machine 35 meter per minute is composed by the following elements
5Ton hydraulic Decoiler high speed also 1set
Main Machine for roll forming 1set
Control System(PLC) 1set
Cutting System 1set
Output Table 1set
Main Machine for roll forming High Speed Color Steel Roof Making Machine 35 meter per minute
production mode: automatic roll forming
The width of the feeding material: 1000-1250mm
The thickness of the plate: 0.4mm-1.2mm
Shaft diameter after processing:￠80mm
The power of the main motor:5.5kw
Scissor material: Cr12Mov, herd steel HRC 58-62°C
Gr12 The material of the back cutting machine: Gr12
The material of the roller:45#steel
The material of the forming shaft: 45# steel
Voltage:380V,50HZ,3 phase(adjustable by customer needs)
The material of the big shelf: 350H steel
The size of the whole machine: 7500*1800mm*1400mm
The weight of the whole machine: about 5.7Tons
Control System(PLC) of High Speed Color Steel Roof Making Machine 35 meter per minute
The Brand of PLC: Panasonic or Mitsubishi
-to ensure the high speed, stability, precision and long lifetime. If you need, we can change it to other brand or another little computer for you.
The Advantages of PLC:
the smoothness when the machine starts and stops.
there is no slipping or the sharp tension of the chains;
there is no the breakdown of the electrical circuit caused by the starting electricity.
the long-term operation and the durability of the machine.
the normal and high-efficiency operation of the machine.
the precision of cutting.The error of 6m panel is 1mm.

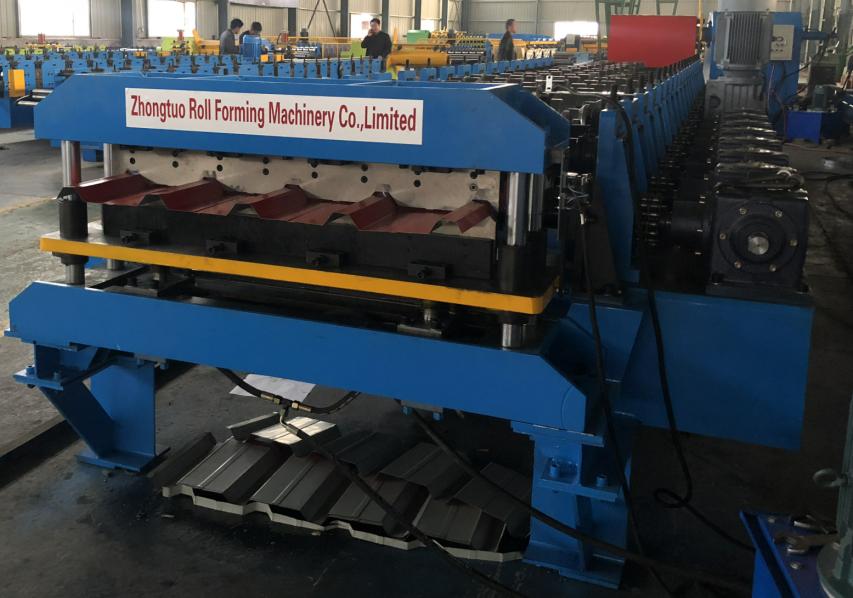

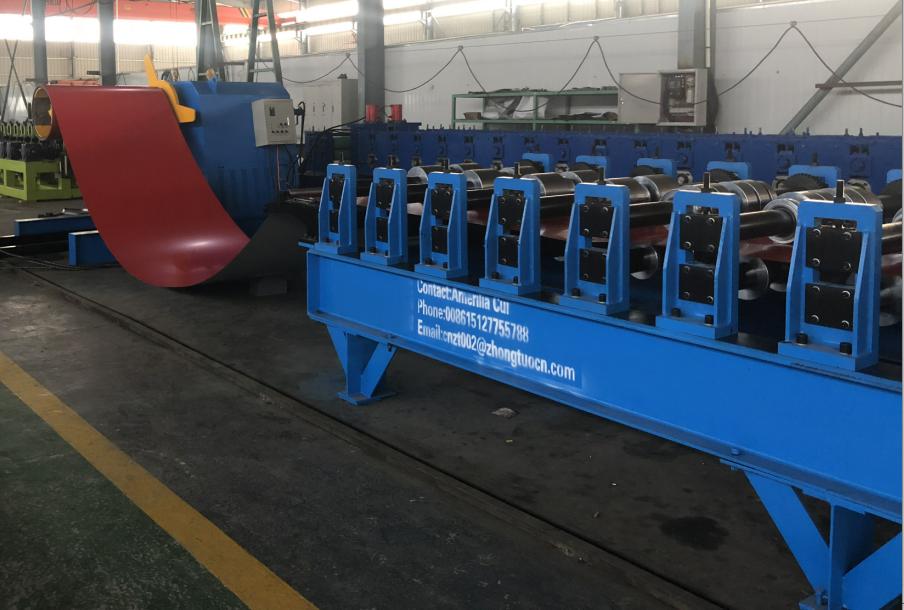

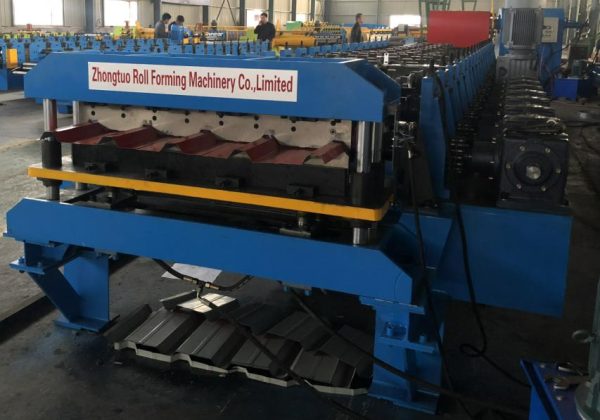

Here are more pictures of High Speed Color Steel Roof Making Machine 35 meter per minute for your reference:
Competitive Advantage of High Speed Color Steel Roof Making Machine
- Good service, we can give 24/7 service.
- Easy installation, as you just need to connect the electricity and then you can use, no need to do other complicated connection.
- Short delivery time
- Professional design team
- easy to use
For this machine, if you need to know more information, please contact us at any time.
