Here is the working video of this machine for everyone to watch:
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.3-0.8mm Width:1000mm/1250mm(customized)
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
16 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
45# steel, hard chrome plated on the surface
|
|||
|
Machine body frame
|
350 H steel
|
|||
|
Drive
|
Gearbox transmission
|
|||
|
Dimension(L*W*H)
|
8500*1600*1600(customize)
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
30-35m/min
|
The speed is adjustable as customer’s request
|
||
Product Description：
The glazed roofing sheet machine is a device used for producing laminated glazed tiles, mainly used to cover the surface of glazed tiles with a protective film to enhance their weather resistance, corrosion resistance, and aesthetics. The glazed roofing sheet machine is widely used in the construction industry, mainly for producing glazed tiles. Its advantages include:
1. Strong weather resistance:
Even under long-term exposure to sunlight, temperature changes, wind and rain, there will be no fading, discoloration, cracking, or decrease in strength.
2. Durable and long-lasting:
Adopting three-layer co extrusion technology, the surface layer is made of weather resistant engineering resin, the middle layer is made of PVC, and the bottom layer is a wear-resistant layer of weather resistant resin, ensuring a long service life of the product.
3. Strong anti-corrosion properties:
Synthetic resin tiles have excellent anti-corrosion properties and are suitable for various harsh environments.
Main features:
- Stable performance and no fading:
The glazed roofing sheet machine uses high-temperature weather resistant engineering resin, which can maintain color unchanged in long-term exposure to sunlight, humidity, cold and other environments. - Chemical corrosion resistance:
The glazed tiles produced by this machine can maintain stable performance in highly corrosive environments such as acid, alkali, and salt, making it particularly suitable for areas with severe air pollution. - High physical strength:
Coated glazed tiles have high tensile strength and buckling resistance, able to withstand a weight of 80 kilograms, and are not easily broken or torn. - High fire resistance:
The fire resistance level of laminated glazed tiles reaches B1 level, which is not easy to burn and has high fire resistance.

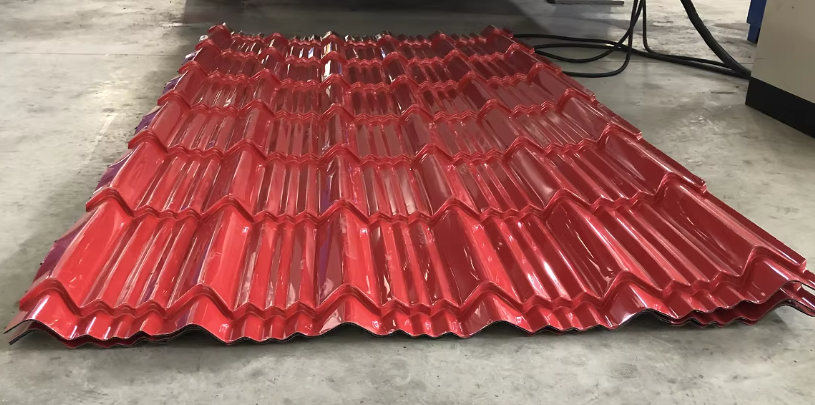

Finished product image:

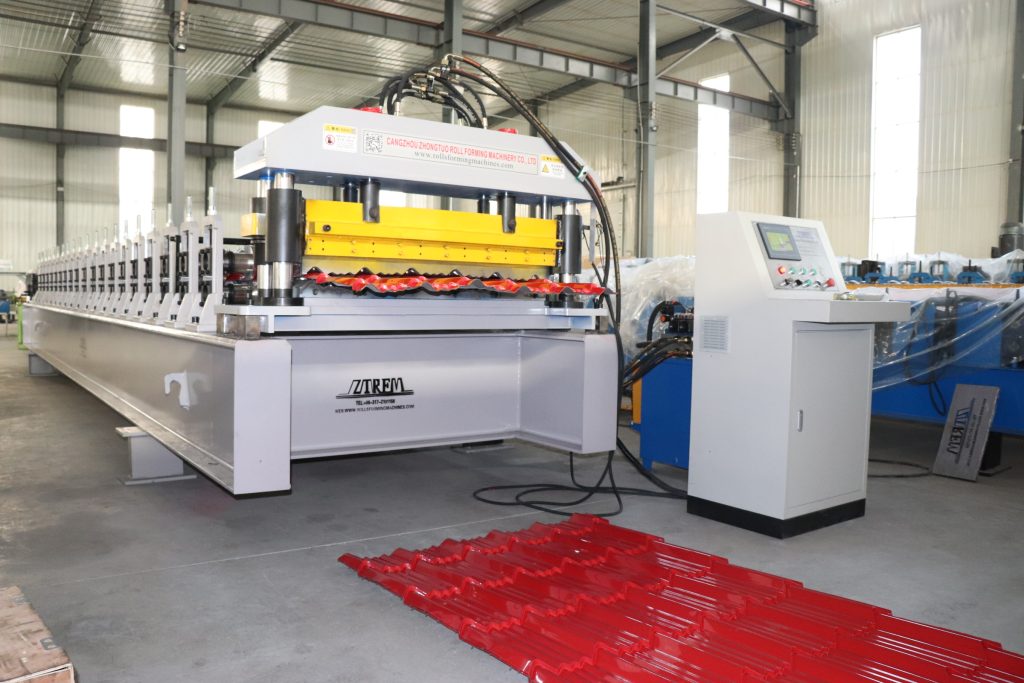

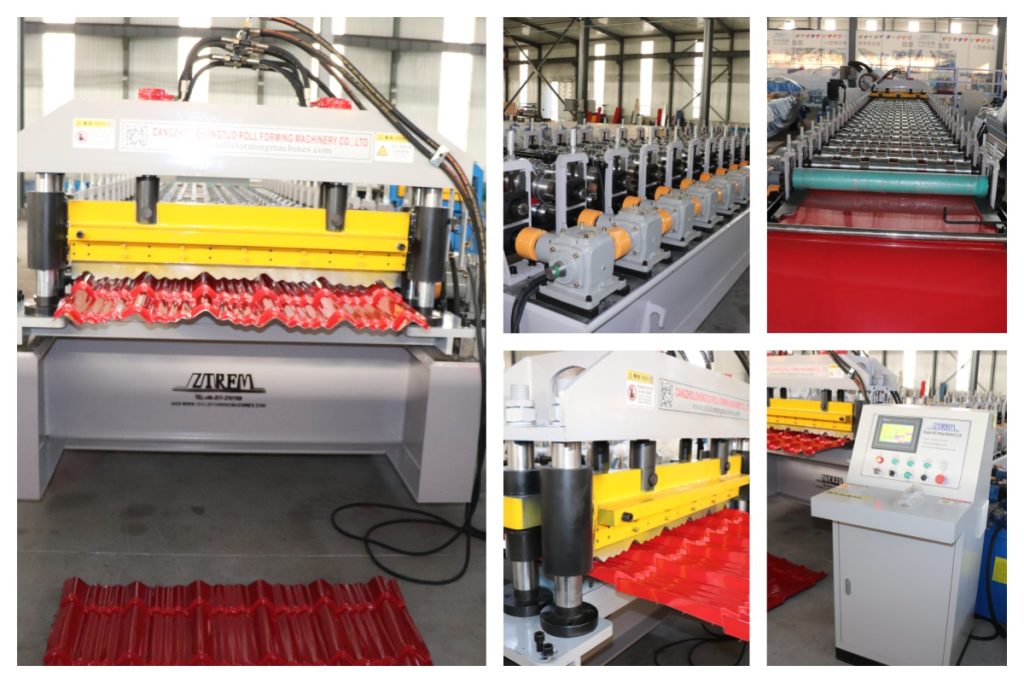

Products Display：
