Floor deck roll forming machine
A floor deck roll forming machine is a type of specialized industrial equipment. It is mainly used to process flat metal sheets, and galvanized steel sheets are commonly chosen as the raw material. Through this machine, the metal sheets are formed into accurately shaped floor decking profiles. These profiles are intended to act as a strong and stable base for concrete floors. By using them, the requirement for traditional scaffolding and formwork can be avoided.
The floor decks produced by this machine have a unique shape. They often present a corrugated or trapezoidal form. This special shape not only strengthens their structural stability but also offers excellent support when they are welded to hollow steel beams with circular or triangular cross – sections.

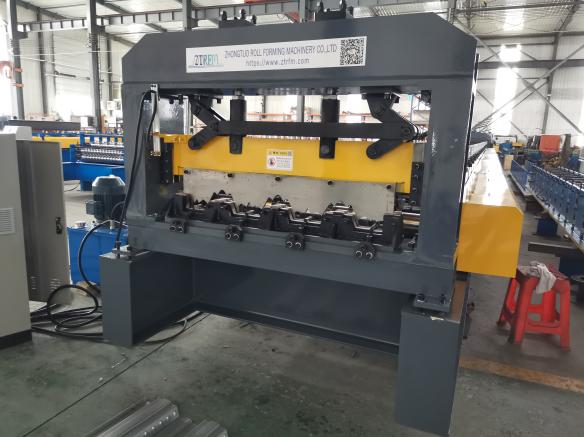

This is the floor deck roll forming machine that we export to Saudi Arabia.

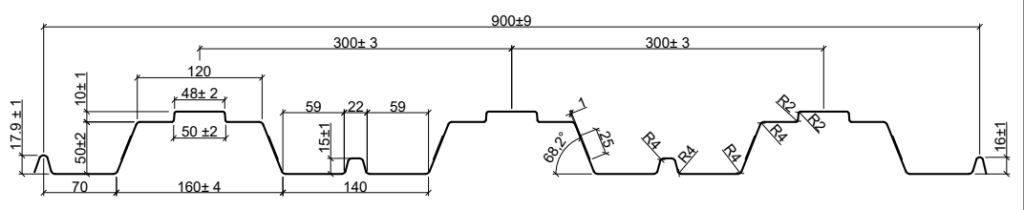

This is the profile drawing of floor deck

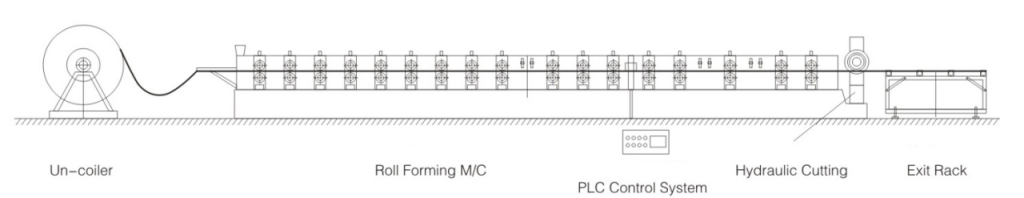

The work flow of roll forming machine

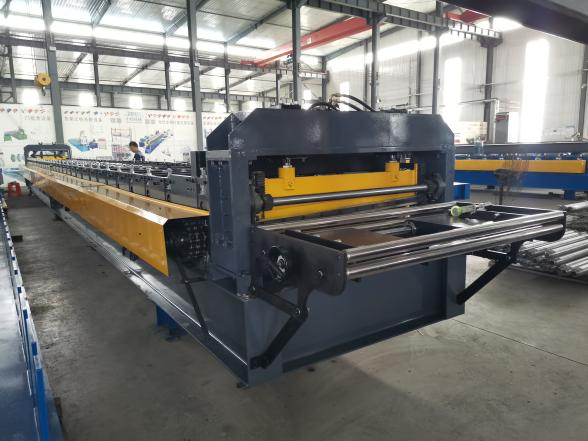

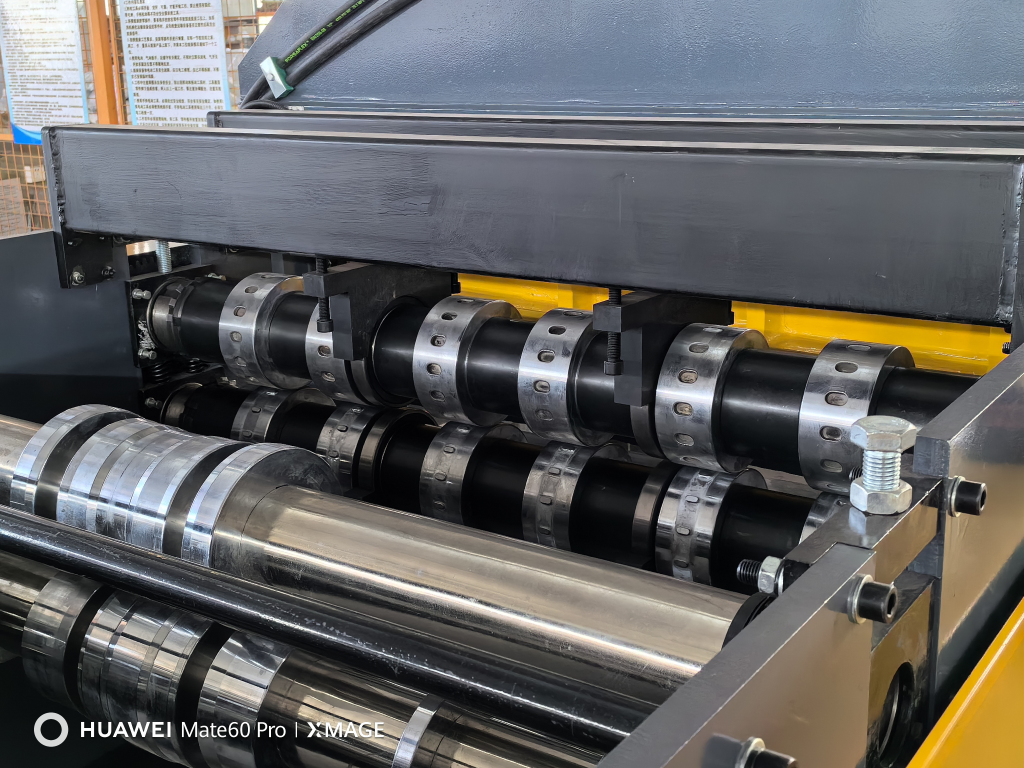

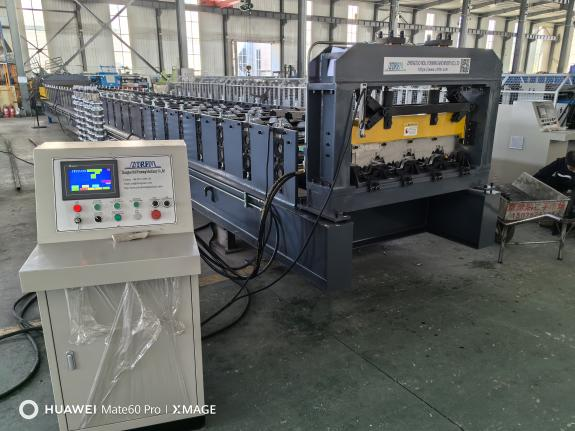

Some pictures of the machine
Main roll forming machine
| Feeding&Guiding device | Placed on the machine by seller |
| Rolling shaft material | 45# STEEL |
| Shaft diameter | 85 mm |
| Roller material | 45# steel |
| Rolling station | 28stations |
| Work speed | 10-15 m/min |
| Machine structure | Middle plate welded frame |
| Machine basic frame | 400# H steel welded |
| Bearing | Roller bearing |
| Work power | Customized |
| Transmission | By Chains |
Here’s how the floor deck system functions:
Once the metal floor decking is laid and firmly secured to the support structure—whether as part of a composite or non-composite deck configuration—structural concrete is poured over it. As the concrete cures, it bonds with the metal decking, seamlessly integrating to form a strong and unified floor structural system.
Floor decking produced by these roll forming machines finds extensive use across various sectors.
In the industrial field, it serves as a preferred option for factory floors, warehouses, and garages, where durability and the ability to bear heavy loads are of utmost importance.
Within the commercial sector, it is utilized in the construction of commercial buildings, showrooms, restaurants, wedding banquet centers, and movie theaters. By doing so, it guarantees a stable foundation for both daily business operations and large – scale gatherings.
Moreover, in public and residential environments, floor decks are applied in offices, hospitals, schools, as well as houses and apartments. They offer reliable structural support while simplifying the construction process.
