80-300mm C/Z purlin Roll Forming Machine’s price for sale!
Description:This machine is used to produce the C and Z purlin,the normal size is 80-300mm and normal thickness is 1-3mm.But we also can produce as customer's request.

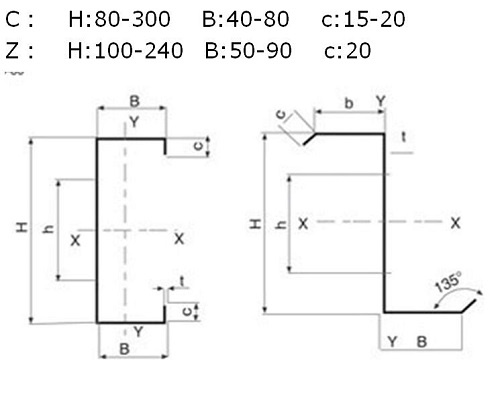

Profile drawing:
Application:

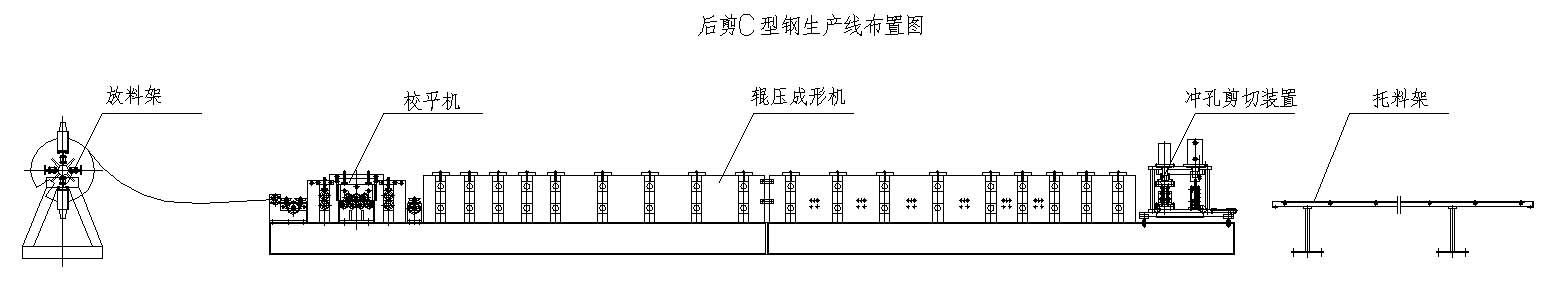

Layout of the whole production line:
Technical specifications of the whole production line:
|
Item |
Name |
Specifications |
|
1 |
Raw material |
Galvanized steel |
|
2 |
Raw material thickness | 1.5-3mm |
|
3 |
Decoiler | Manual/Hydraulic decoiler |
| 4 | Roller station |
18 station(according to profile drawing) |
| 5 | Roller material |
Cr 12 with quenched treatment |
|
6 |
Shaft diameter | 90mm |
|
7 |
Shaft material | 45# steel with tempered |
| 8 | Transmission |
by chain |
|
9 |
Motor power | 15kw |
| 10 | Machine frame |
350H steel welded |
| 11 | Cutting type |
Hydraulic cutting |
|
12 |
Cutting blade material | Cr12 with quenched treatment |
| 13 | Cutting tolerance |
+/-1mm |
|
14 |
Control system | PLC |
| 15 | Brand |
PLC:Delta/Siemens/Mitsubishi Touch screen:Delta/Siemens/Mitsubishi Encoder:Omron |
More pictures of the machine:
