Automatic C Z Purlin Cold Roll Forming Machine is a fully automatic cold bending equipment, specifically used to quickly convert galvanized steel coils, cold-rolled steel coils and other metal coils into two types of building profiles, C-shaped steel and Z-shaped steel, through continuous rolling process. It is the core production equipment in the steel structure construction industry, and the entire production line is usually composed of units such as uncoiler, leveling machine, servo feeding, roll forming host, punching/cutting, and finished product discharge, achieving fully automated assembly line production from steel coils to finished products.
Main application scenarios

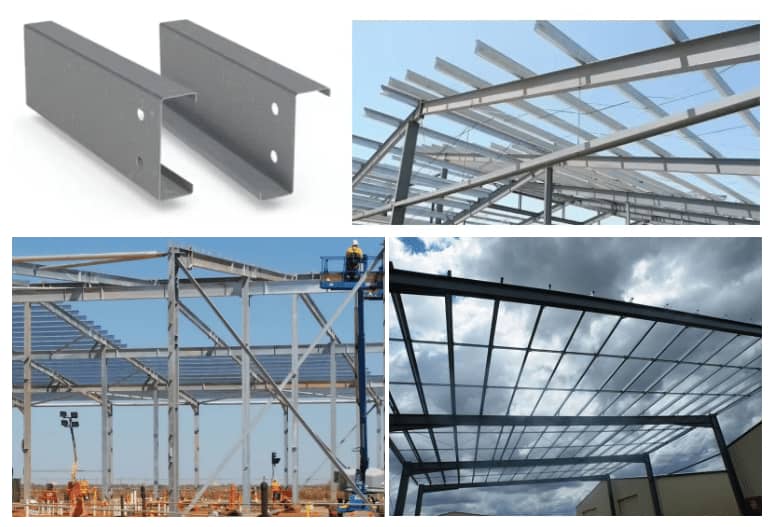

The C/Z steel purlins produced by CZ steel machines are the core load-bearing components of steel structure buildings, mainly used for:
• industrial building

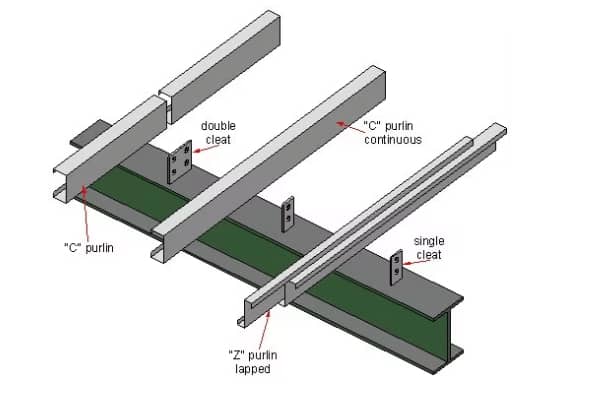

Steel structure factories, warehouses, and workshops: C-shaped steel is commonly used as wall purlins and secondary beams; Z-shaped steel is used for large-span roof purlins.
• prefabricated building
The keel and skeleton of light steel villas, integrated houses, and container houses.
• New Energy and Logistics
Photovoltaic bracket: a bracket guide rail used for solar photovoltaic power plants.
Storage shelves: shelf columns, crossbeam supports.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:1.5-3mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|

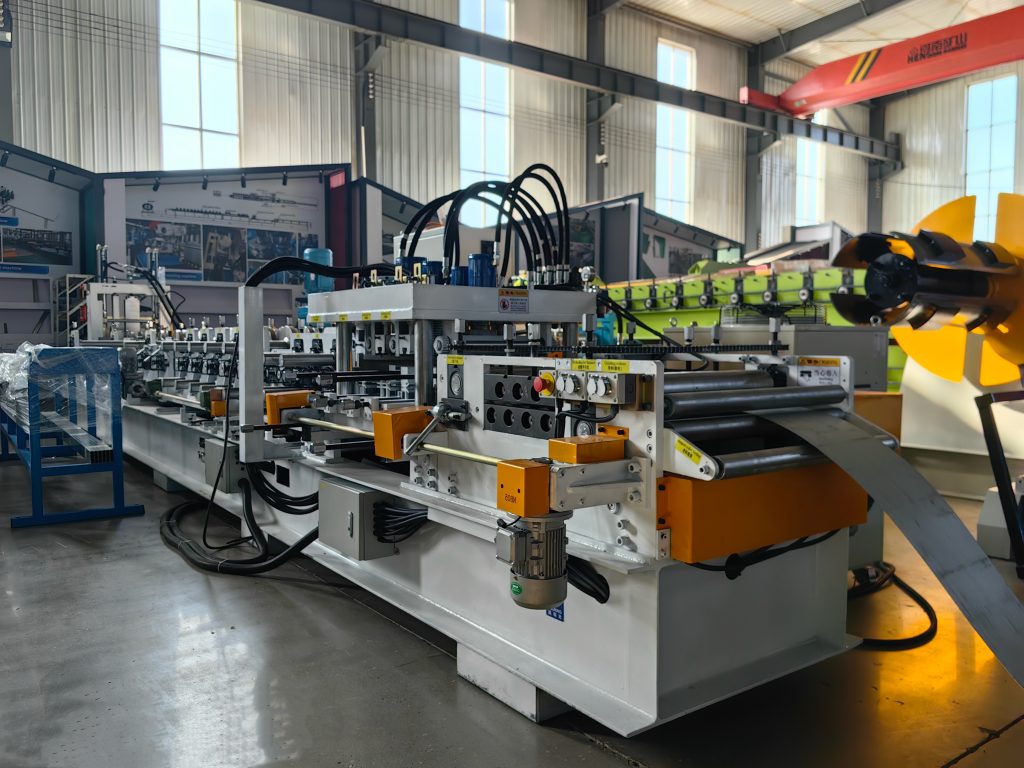

3.Main body
|

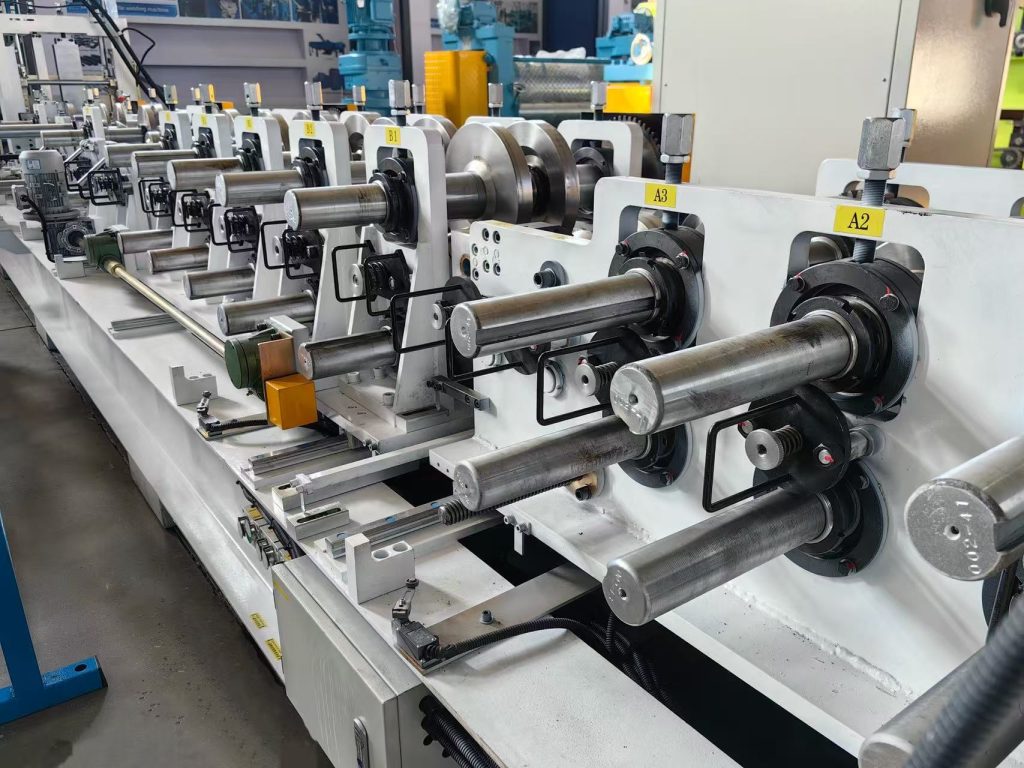

Roller station
|
12 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|

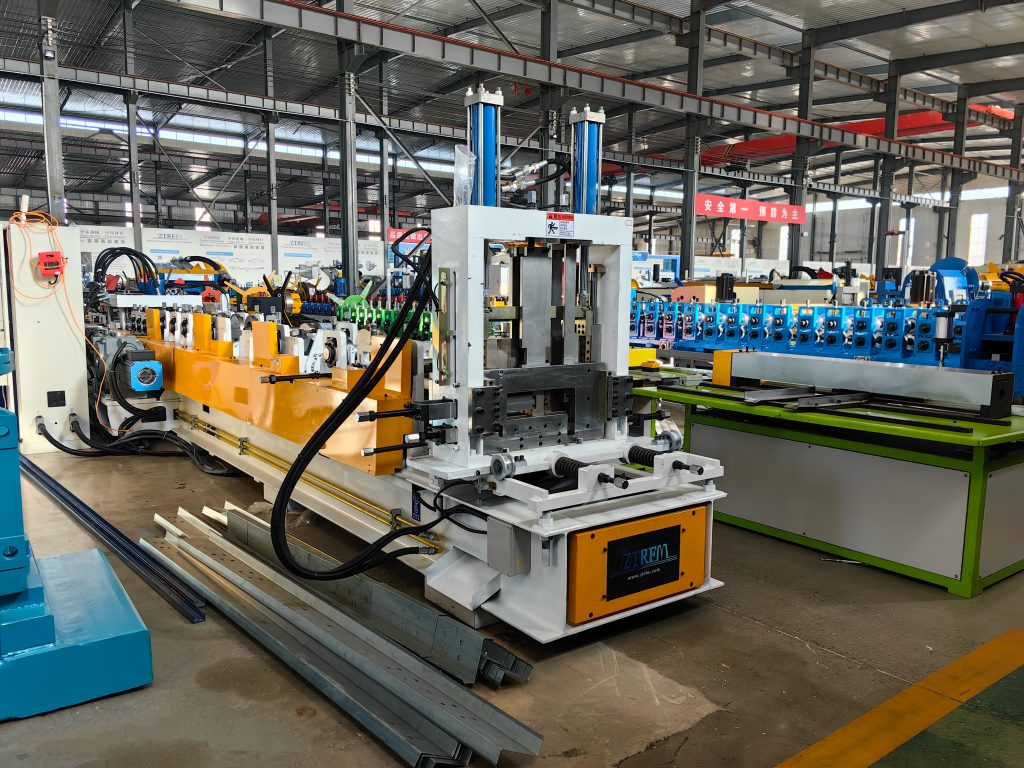

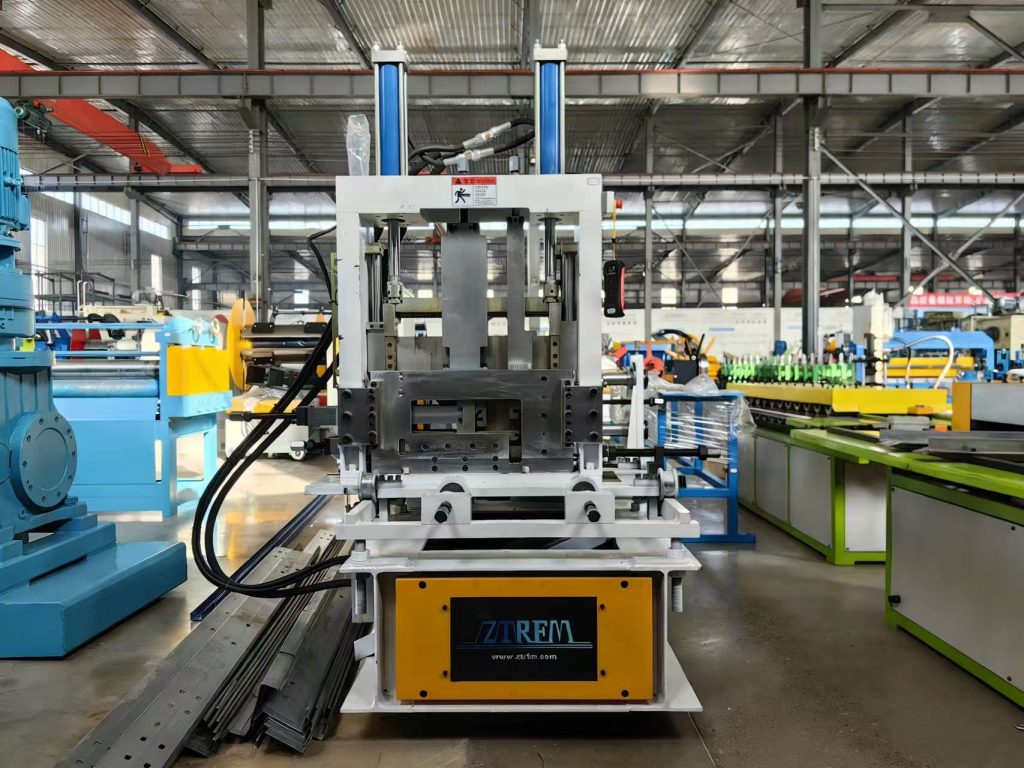

4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
15KW
|
||
|

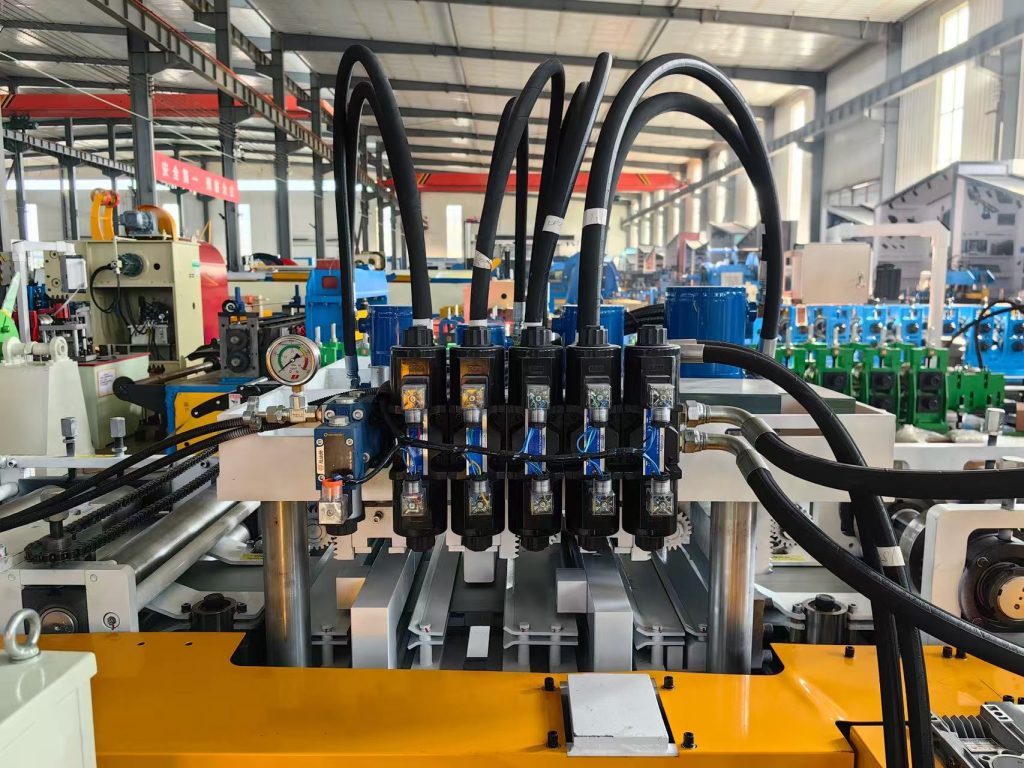

Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||

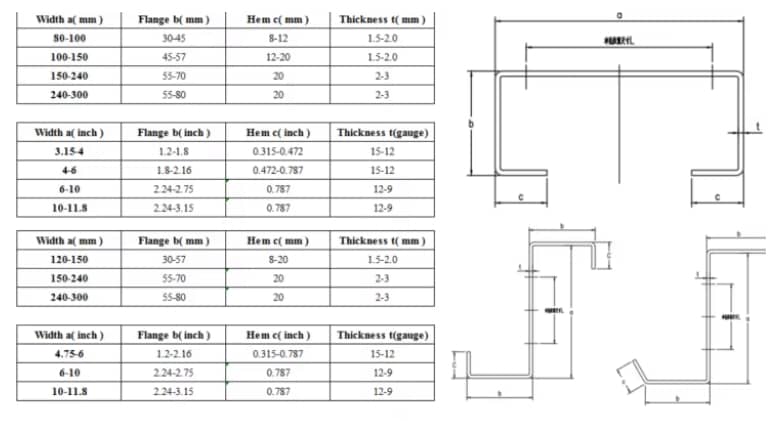

Pattern diagram:
Core strengths：
1. High precision molding
Using fully digital computer detection and precision rolling rolls to ensure small dimensional errors (such as within ± 0.5mm) and low angle errors in the steel section.
2. Customization capability
Support customization of customized shaped equipment according to user needs, with the ability to quickly switch between C/Z steel specifications, suitable for multiple scenarios such as photovoltaic brackets and car cabin panels.
3. High degree of automation
Integrate PLC intelligent control, automatic feeding, cutting to length, punching and other functions to achieve full process automation and reduce labor costs.
4. Efficient production
The daily production capacity can reach 30 tons, with a production speed of 9-30m/min and a low scrap rate (less than 0.3%), improving production efficiency.
5. Structural optimization design
Adopting a stepless transformation system, the size can be adjusted freely within the specification range, without the need for frequent tool changes and quick changeover.
