The Zhongtuo C-shape purlin roll forming machine is an automated production line that gradually cold bends strip steel into C-shaped section profiles through multiple precision rolling mills at room temperature. The core completes the entire process of leveling, forming, punching, and fixed length cutting. It is a core processing equipment in the fields of steel structures, photovoltaics, and warehousing.

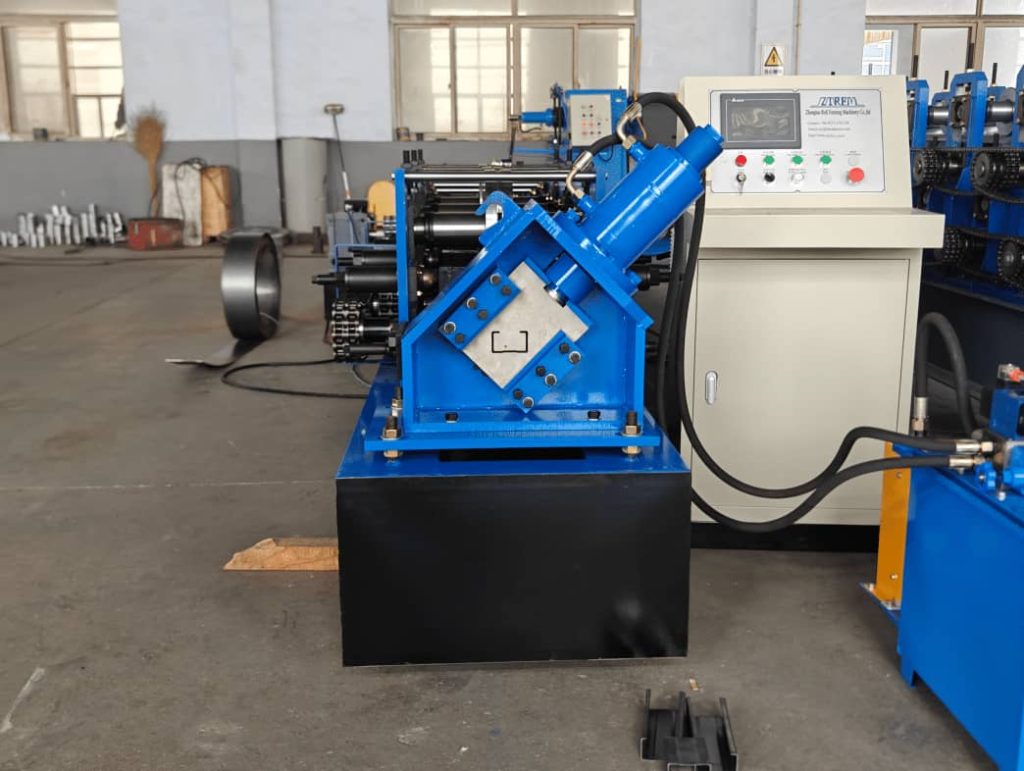

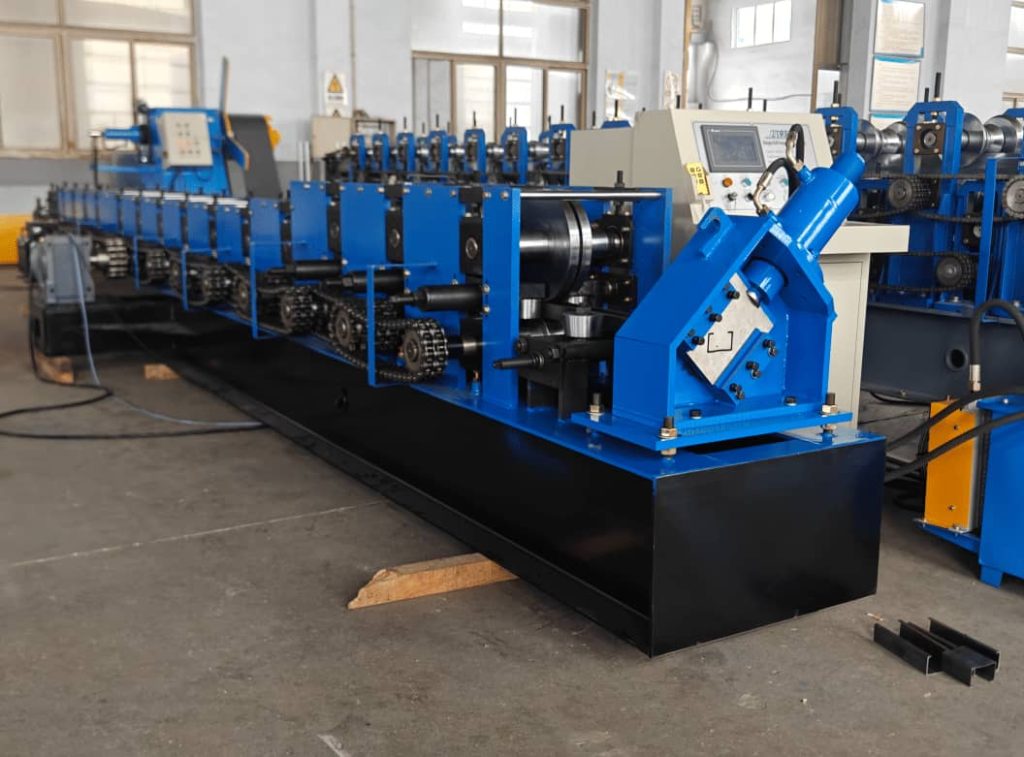

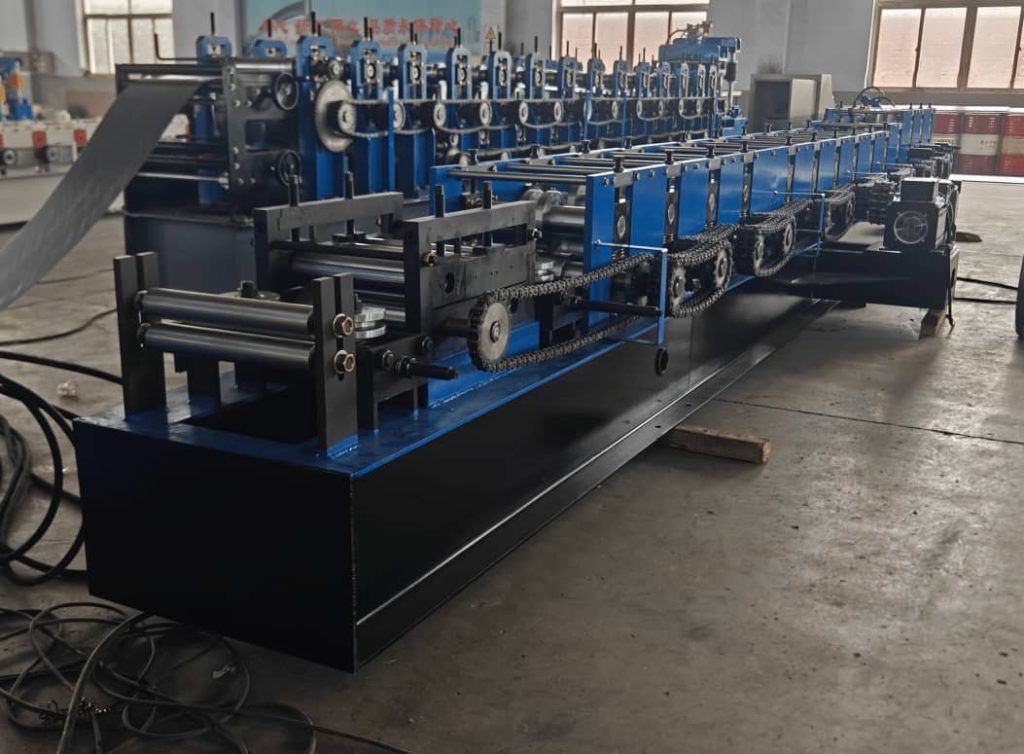

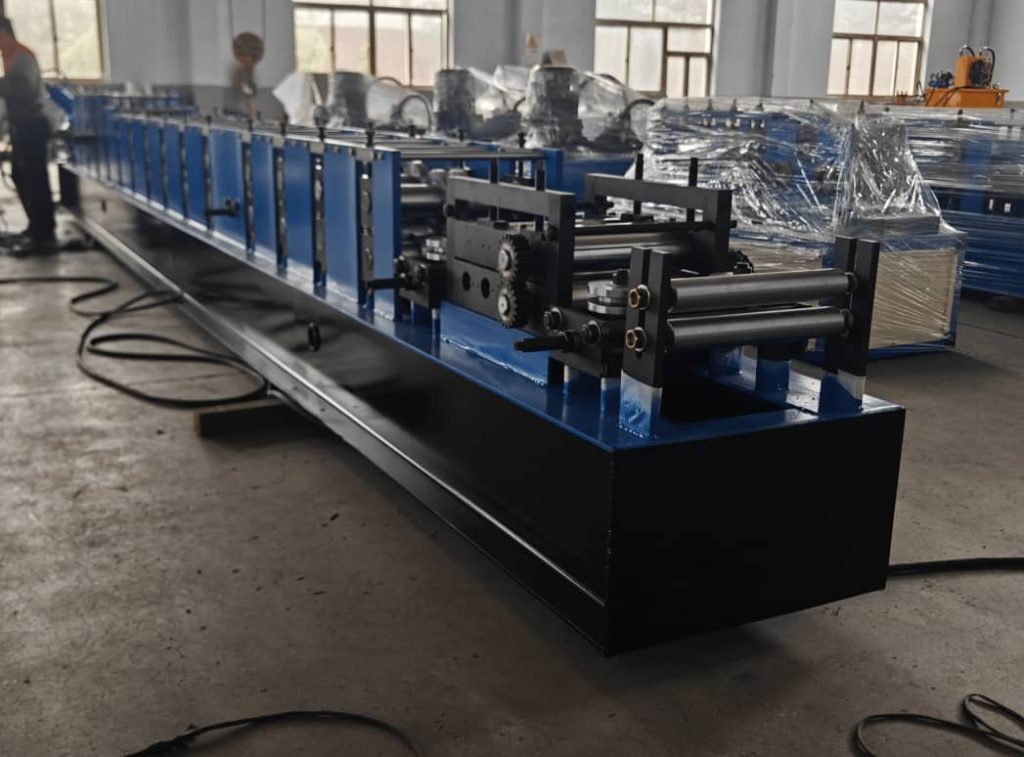

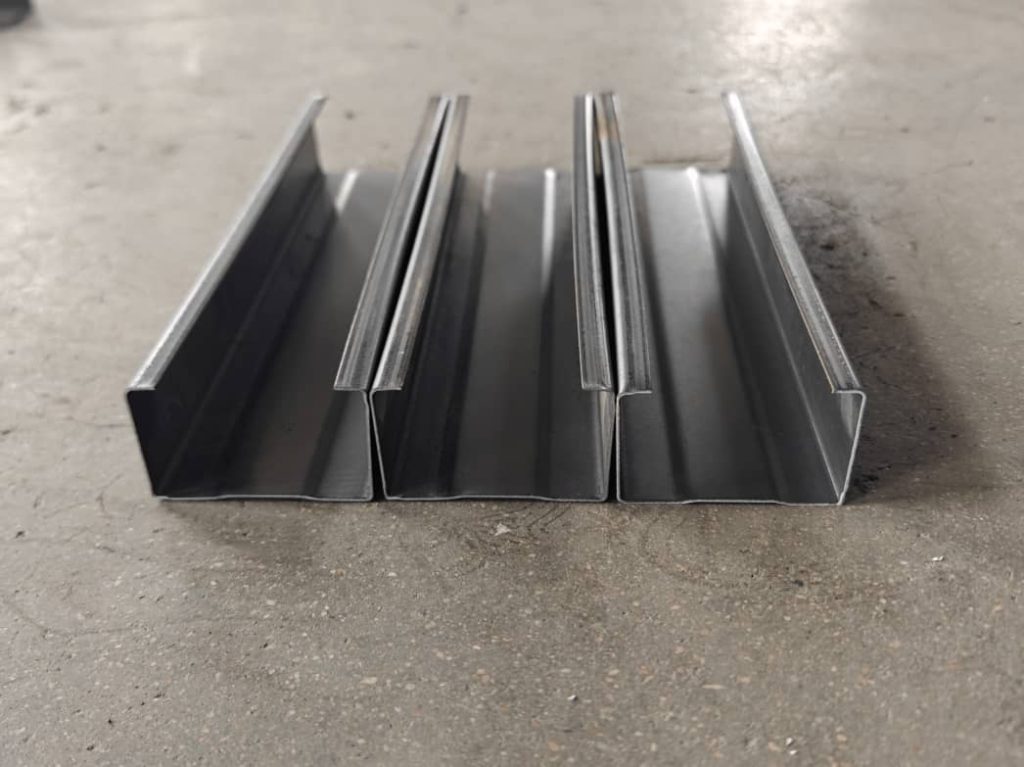

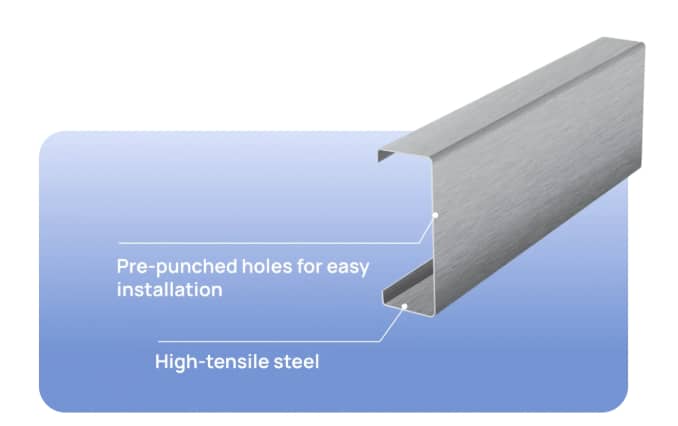

Finished product image:
Core parameters ：
1.Rolling range: strip thickness of 0.7-2mm, width of 470-520mm;
2.Forming speed: 10-30 meters/minute, some high-efficiency models can reach 20 meters/minute;
3.Control accuracy: straightness error ≤ 1mm/m, cutting length error ≤ ± 0.3mm;
4.Power configuration: Main motor power is 11kW.
Main application scenarios:
• Construction Engineering (Core Scene)

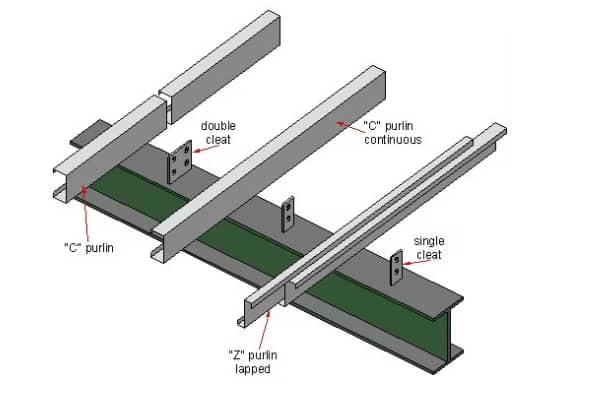

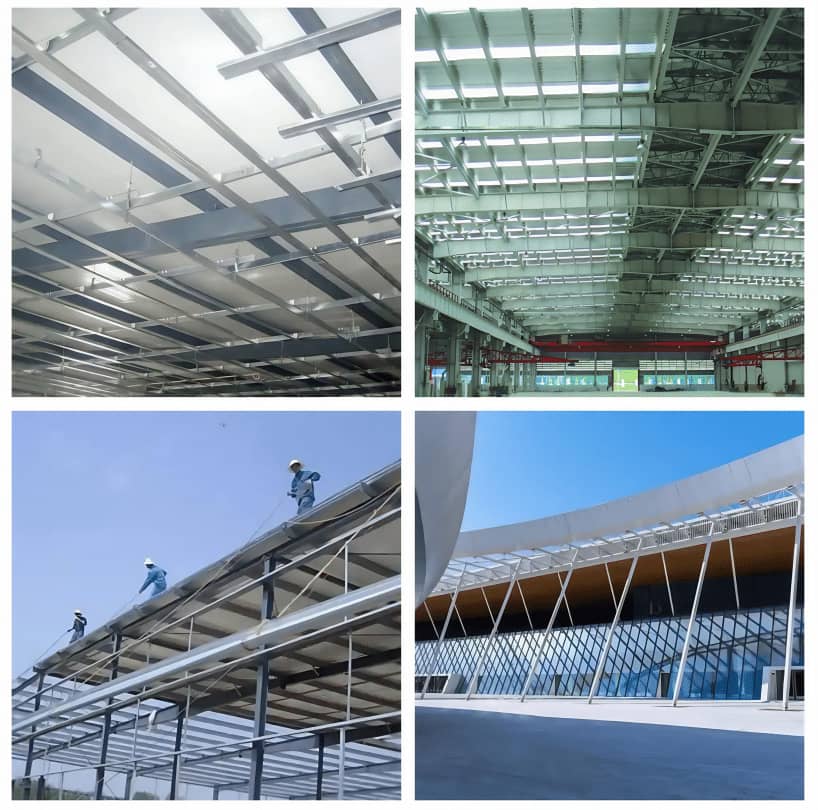

Industrial/civil buildings: roof purlins, wall beam supports for factories, warehouses, aircraft hangars, sports venues, and market flower shed skeletons;
Light steel buildings: lightweight roof trusses, bracket components, and cleanroom enclosure systems for exhibition halls, theaters, and other facilities.
• new energy sector
Photovoltaic power station: photovoltaic brackets, component support frames, suitable for outdoor high corrosion and high wind environments;
Electrical facilities: Distribution cabinets, cable tray support structures, and fixed frames for electrical equipment installation.
Product Attributes :
|
1.Formed Material
|
PPGI,GI,AI
|
Thickness:0.7-2mm
|
||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
14 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|
Material of rollers
|
Gcr 15 with quenched teeatment
|
|||
|
Machine body frame
|
Metal steel welded
|
|||
|
Drive
|
Chain transmission
|
|||
|
Dimension(L*W*H)
|
9500*800*1200(customize)
|
|||
|
Weight
|
About 7T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
11KW
|
||
|
Hydraulic system power
|
5.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
60-70m/min(customized)
|
The speed depends on the shape of the tile and the thickness of the material.
|
||
Core Features：
1.Efficient automation
The entire process automatically completes feeding, leveling, forming, punching, and cutting, requiring only 2 people to be on duty, supporting 24-hour continuous production, and increasing efficiency by more than 40% compared to traditional equipment.
2.Accurate and stable
The precision rolling mill and hydraulic straightening system ensure accurate cross-sectional dimensions, straightness, and squareness meet the national standard GB/T 6723-2017.
3.flexible adaptation
Supports quick switching of multiple specifications of C-shaped steel, and some models can complete 80-300mm full specification adjustment within 5 minutes. It is compatible with various materials such as galvanized sheet and cold-rolled sheet.
4.Economic energy conservation
The finished C-shaped steel has thin walls and light weight, saving about 30% of material compared to traditional channel steel under the same strength. The equipment operates with reasonable energy consumption and has lower overall costs.
