Hot Selling Wall Panel Metal Wall Cladding Sheet Panel Making Machine is a specialized set of mechanical equipment used for producing various types of building external wall cladding. It can automate the process of batching, forming, and curing, and is widely used in the industrial manufacturing of high-performance cladding such as UHPC, cement fiberboard, PVC, etc.
Equipment composition:
1.Uncoiler: carrying metal coils, automatic feeding.
2.Leveling machine: corrects the flatness of the coil material and eliminates internal stress.

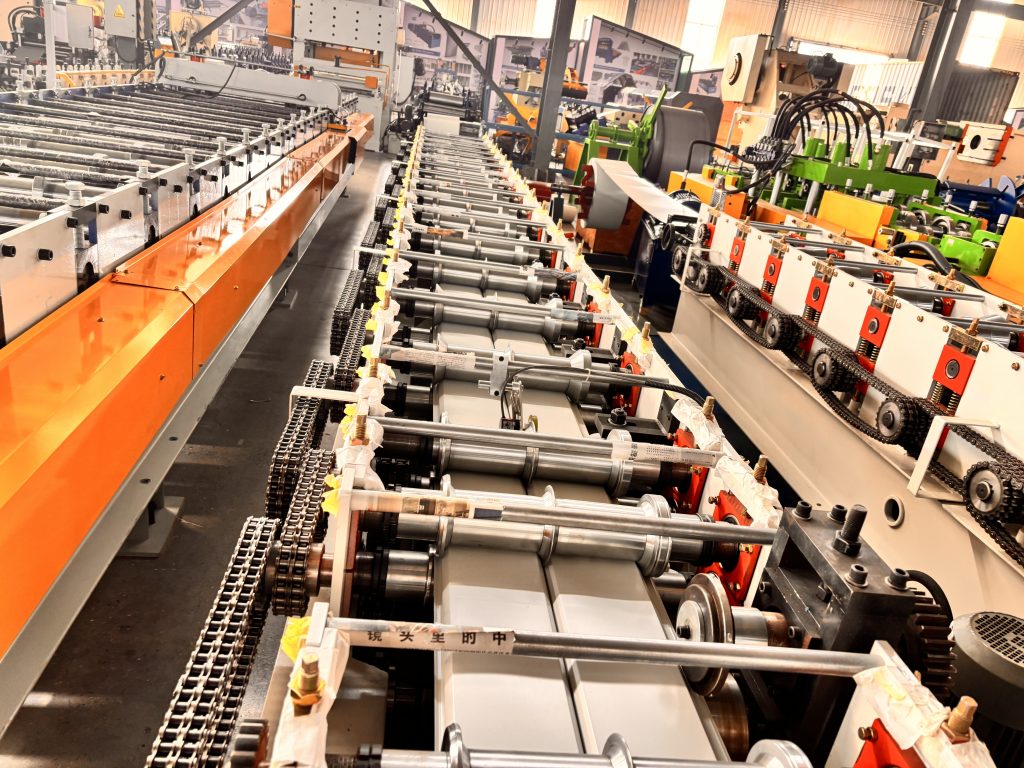

3.Roll forming host: 14-20 sets of precision rolling rolls (chrome plated 45 # steel), gradually cold bending to form trapezoidal waveforms and overlapping edges.
4.PLC control system: touch screen sets length and quantity, automatic counting, fixed length cutting.

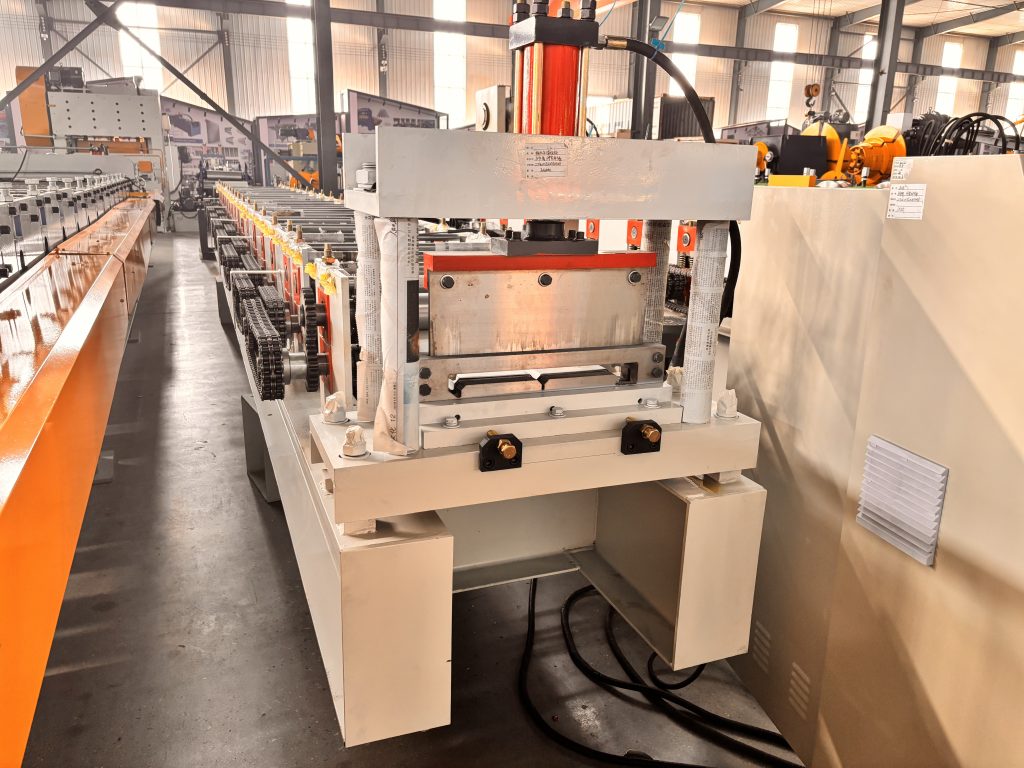

5.Hydraulic cutting device: Cr12 mold steel blade, precise cutting without burrs.
6.Finished product discharge rack: accepts formed sheets and automatically stacks them.
Application scenarios：
• High end commercial buildings:

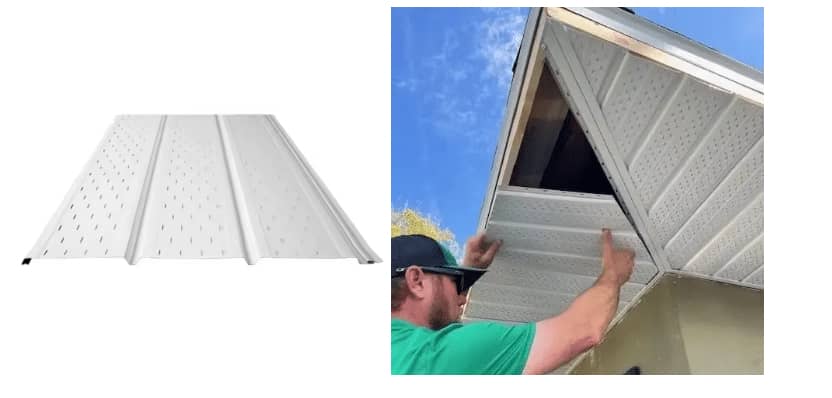

suitable for projects with high aesthetic requirements for building facades such as art museums, cultural centers, and commercial complexes, producing UHPC hanging boards with complex curved surfaces, hollow or relief effects.
• Urban renewal and renovation project:
Lightweight and high-strength prefabricated hanging panels facilitate the renovation of old building facades, with a short construction period and no impact on the safety of the original structure.
• Public infrastructure:
widely used in transportation hubs, sports venues, schools, hospitals and other public facilities to meet the long-term needs of fire prevention, weather resistance, and low maintenance.
• Residential industrialization project:
Provide standardized exterior wall components for prefabricated housing, improve construction efficiency, and shorten construction period.
Product Attributes :
|
1.Formed Material
|
PPGI,PPGL
|
Material Thickness:（0.3-0.6 mm)
|
||
|
2.Decoiler
|
Hydraulic decoiler(optional)
|
Manual decoiler(will give you as free）
|
||
|
3.Main body
|
Roller station
|
18 rows(As your requirement)
|
||
|
Diameter of shaft
|
80mm solid shaft
|
|||
|

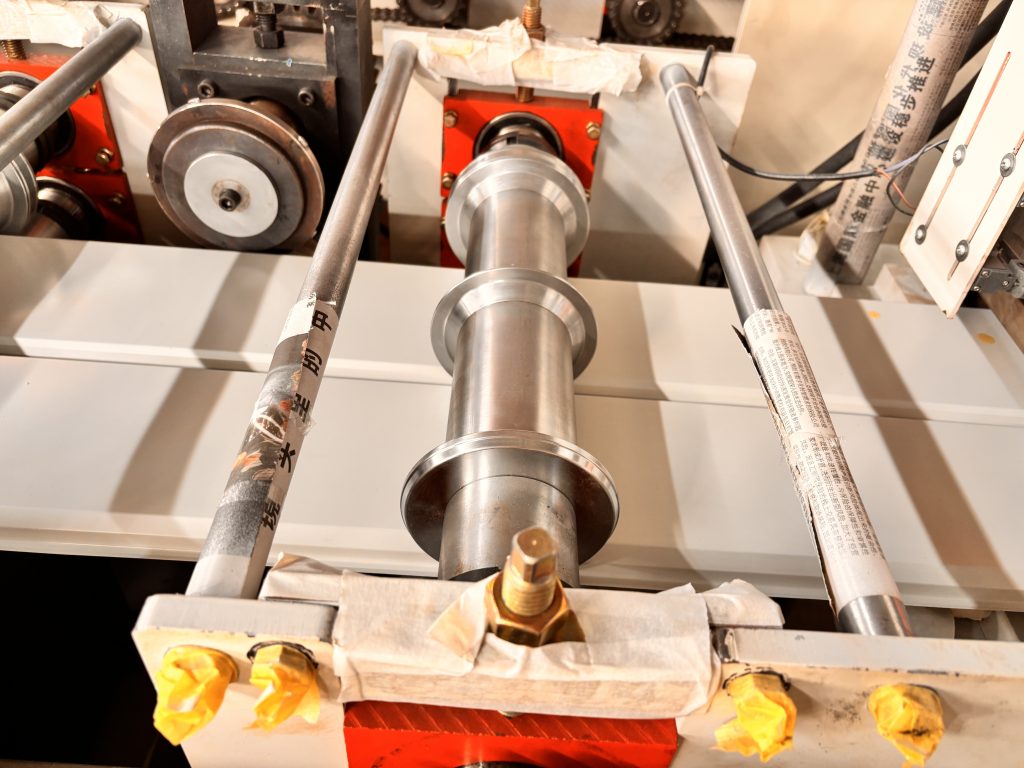

Material of rollers
|
High Grade 45# Forged Steel, hard chrome plated on the surface(Chrome Thickness:0.05 mm)
|
|||
|
Machine body frame
|
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
|
|||
|

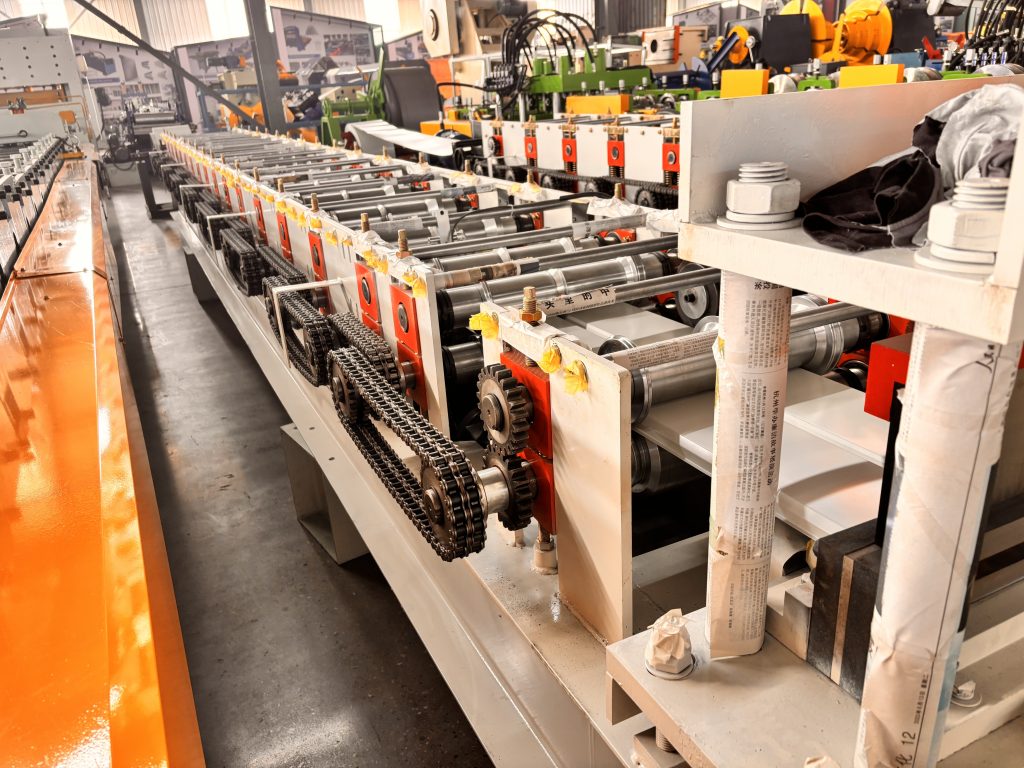

Drive
|
gear and Double Chain transmission
|
|||
|
Dimension(L*W*H)
|
9.5m*1.65m*1.5m
|
|||
|
Weight
|
7.5T
|
|||
|
4.Cutter
|
Automatic
|
cr12mov material, no scratches, no deformation
|
||
|
5.Power
|
Motor Power
|
7.5KW
|
||
|
Hydraulic system power
|
4.5KW
|
|||
|
6.Voltage
|
380V 50Hz 3Phase
|
As your requirement
|
||
|
7.Control system
|
Electric Box
|
Customized(famous brand)
|
||
|
Language
|
English(Support multiple languages)
|
|||
|
PLC
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|||
|
18.Forming Speed
|
15-20m/min
|
The speed is adjustable
|
||
Core strengths：
1.High degree of automation
Adopting PLC touch screen control system to achieve intelligent control of the entire process from raw material feeding to finished product output, reducing manual intervention and improving production stability.
2.Precision molding and efficient production capacity
The equipment is equipped with a high-precision mold system and a stable transmission structure, which can ensure the consistency of the hanging plate size. Some equipment has a molding cycle as low as 30 seconds, meeting the needs of large-scale orders.
3.Multi material adaptability
Compatible with producing various materials of hanging boards, such as colored concrete UHPC、 Cement fiber board, PVC exterior wall panel, etc., meet the performance and appearance requirements of different building projects.
4.Energy saving and environmentally friendly design
Adopting high-efficiency energy-saving motors and enclosed heating systems to reduce energy consumption; At the same time, reducing on-site wet operations is in line with the trend of green construction in prefabricated buildings.
