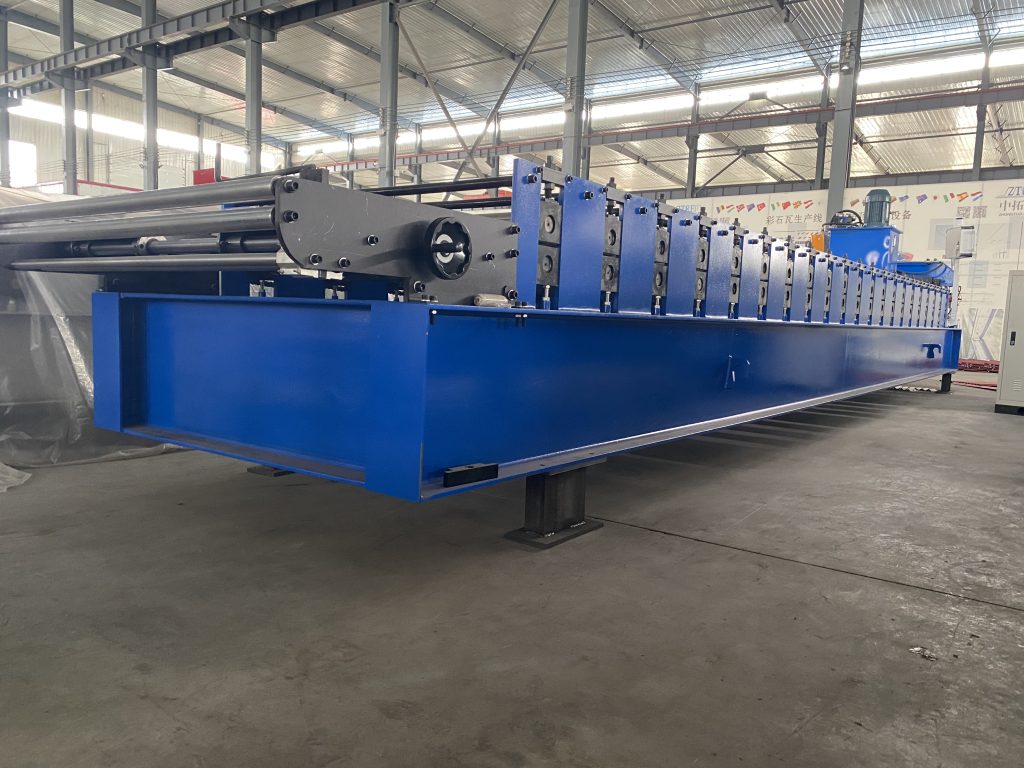

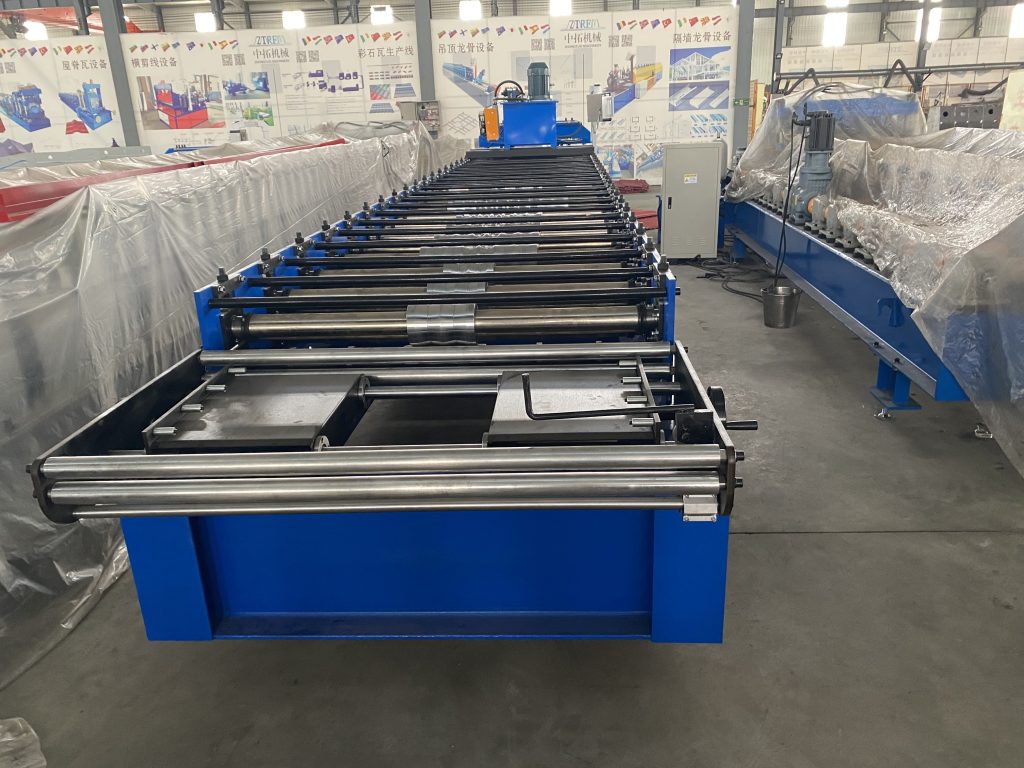

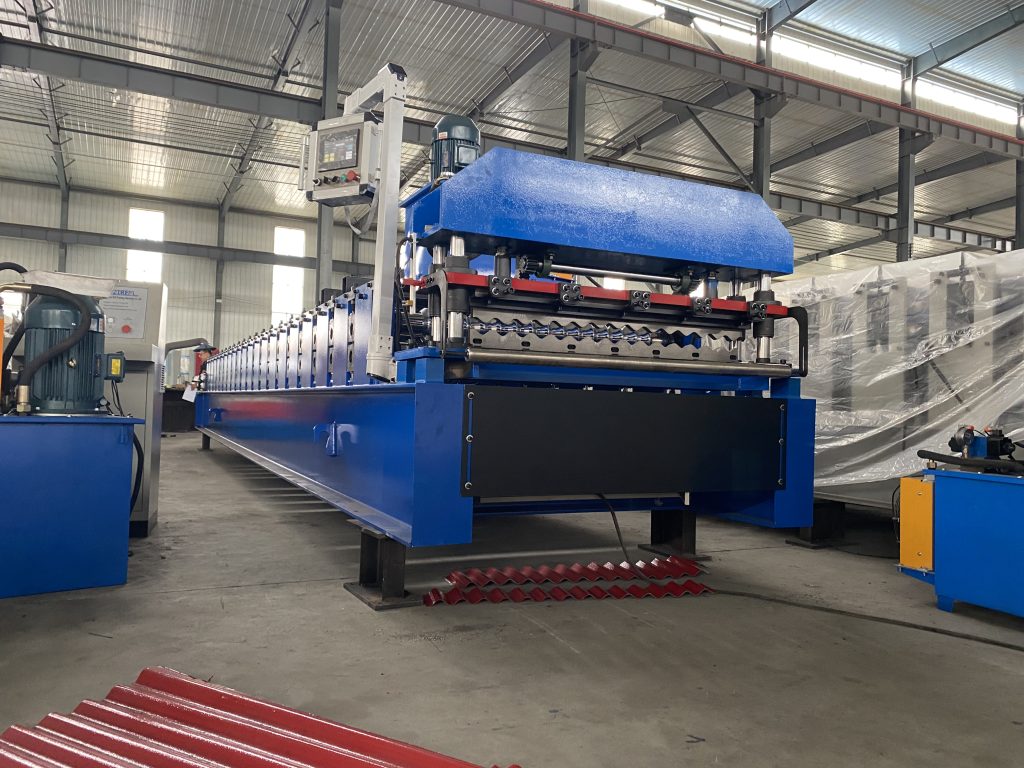

Metal Corrugated Sheet Zinc Wave Shape Metal Sheet Roll Forming Machine

Core functions and technical characteristics ：

The Metal Corrugated Sheet Zinc Wave Shape Metal Sheet Roll Forming Machine is an automated production line that integrates raw material processing, forming, cutting, and maintenance. Its core goal is to process metal plates (such as color steel plates and aluminum magnesium manganese plates) into arc-shaped roof tiles that meet design standards. Equipment made of different materials may have differences in process details, but overall they possess the following key technical characteristics:
1. Multi material adaptability to meet diverse needs
High quality Metal Corrugated Sheet Zinc Wave Shape Metal Sheet Roll Forming Machine is compatible with various raw materials. For metal materials, the equipment is equipped with a high-precision roll forming system. Through continuous rolling of multiple sets of molds, the flat metal plate is gradually pressed into a preset arc curvature. During the forming process, the rebound rate of the plate can be accurately controlled to ensure the stability of the arc curve. ​
2. High degree of automation, improving production efficiency
Modern Metal Corrugated Sheet Zinc Wave Shape Metal Sheet Roll Forming Machine generally adopts PLC control system, combined with touch screen operation interface, which can achieve full process automation control from raw material feeding to finished product output. Operators only need to set parameters such as arc radius, tile length, thickness, etc., and the equipment can automatically complete actions such as feeding, forming, cutting, and counting, greatly reducing manual intervention. Taking metal arc tile equipment as an example, a standard production line can produce 300-500 tiles per hour, which is 3-5 times more efficient than traditional manual or semi-automatic equipment, and can effectively avoid errors caused by manual operation. ​
3. Precision molding technology ensures product quality
The core competitiveness of Corrugated roof tiles lies in “precise curvature” and “stable performance”, which rely on the precise design of equipment:
Mold accuracy: High strength alloy molds are used, and CNC precision machining is carried out to ensure that the mold curvature error is ≤ 0.1mm, which can achieve standardized production of tile curvature and avoid installation gaps caused by inconsistent curvature; ​
Pressure control: Based on the characteristics of different materials, the equipment is equipped with an intelligent pressure adjustment system. For example, when forming metal tiles, the rolling pressure can be automatically adjusted according to the thickness of the sheet to prevent deformation or cracking of the sheet; When forming cement tiles, the molding pressure is controlled to ensure that the tile density is ≥ 1.8g/cm ³, thereby improving its impermeability and frost resistance; ​
Cutting accuracy: Equipped with a servo motor-driven cutting system, the cutting error is ≤ 0.5mm, ensuring consistent tile length and reducing cutting workload during installation. ​

 The core advantage : the full chain value from production to application

For roof tile manufacturers, choosing high-quality corrugated roof tile equipment can not only improve production efficiency, but also create value from multiple dimensions such as product quality, cost control, and market competitiveness
1. Reduce production costs and increase profit margins
On the one hand, automated production reduces labor costs, requiring only 2-3 operators per production line, which reduces labor input by more than 50% compared to traditional production lines; On the other hand, the precise control of the equipment reduces the rate of raw material loss. The utilization rate of raw materials for metal tile production can be increased to over 98%, and the waste rate for cement tile production can be controlled within 2%, significantly reducing raw material waste. Taking an enterprise that produces 1 million pieces of metal arc tiles annually as an example, reducing only the loss of raw materials can save costs of 200000 to 300000 yuan per year. ​
2. Flexible customization to respond to market demand
With the diversification of architectural design, the market’s demand for specifications, curvature, and color of curved roof tiles is becoming increasingly diverse. High quality curved roof tile equipment has highly flexible customization capabilities: by replacing molds of different specifications, tiles with curved radii ranging from 500mm to 3000mm can be produced; For metal tiles, the equipment can be matched with color coating technology to achieve customization of multiple colors; At the same time, the device supports small batch order production, with a minimum order quantity of up to 100 pieces, meeting personalized needs such as villas and small cultural and tourism projects, and helping enterprises quickly respond to market changes. ​
3. Ensure product consistency and enhance market competitiveness
In construction projects, the consistency of roof tiles directly affects the installation quality and appearance effect. The equipment for corrugated roof tiles ensures that the curvature, size, and thickness of each tile are completely consistent through standardized production processes. There is no need for repeated adjustments during installation, which not only improves construction efficiency but also ensures the overall aesthetics of the roof. In addition, stable product quality can help enterprises gain the trust of engineering parties. For example, in large cultural and tourism towns and high-end villa projects, high-quality corrugated roof tiles often become the key to winning the bid, while equipment is the core prerequisite for ensuring quality. ​

Product Attributes ：

Applicable scenarios and industry prospects：

1. Main application areas
The products of corrugated roof tile equipment are widely used in the following scenarios:
In the high-end residential field: villas, villas and other projects, curved roof tiles can create roofs in French, Mediterranean and other styles, enhancing the high-end texture of the building; ​
In the field of cultural and tourism real estate, projects such as ancient town renovation, cultural and tourism towns, and homestay clusters can integrate curved roof tiles with traditional architectural styles while meeting modern waterproof and durability requirements; ​
In the field of public buildings, museums, art galleries, churches, and other public buildings with distinctive shapes can use curved roof tiles as roof decoration materials to achieve the unity of architectural aesthetics and functionality. ​
2. Industry development trends and equipment upgrade directions
With the promotion of policies such as “green building” and “prefabricated building”, the equipment for corrugated roof tiles is also upgrading towards higher efficiency, environmental friendliness, and intelligence
Greening: In the future, more equipment will adopt energy-saving motors and waste heat recovery systems to reduce energy consumption; For cement tile equipment, the dust collection system will be optimized to reduce environmental pollution during the production process. ​
Intelligent: Industrial Internet technology is introduced to realize real-time monitoring and remote diagnosis of equipment operation data, such as monitoring mold wear through sensors, early warning maintenance, and reducing equipment downtime. ​
Integration: Develop an integrated production line of “forming+coating+installation assistance”, for example, metal arc tile equipment can integrate color coating and film coating processes, and the finished products directly have anti-corrosion and UV resistance properties; At the same time, the device can output tile installation positioning data, which can be used in conjunction with prefabricated construction to improve the efficiency of roof installation.
