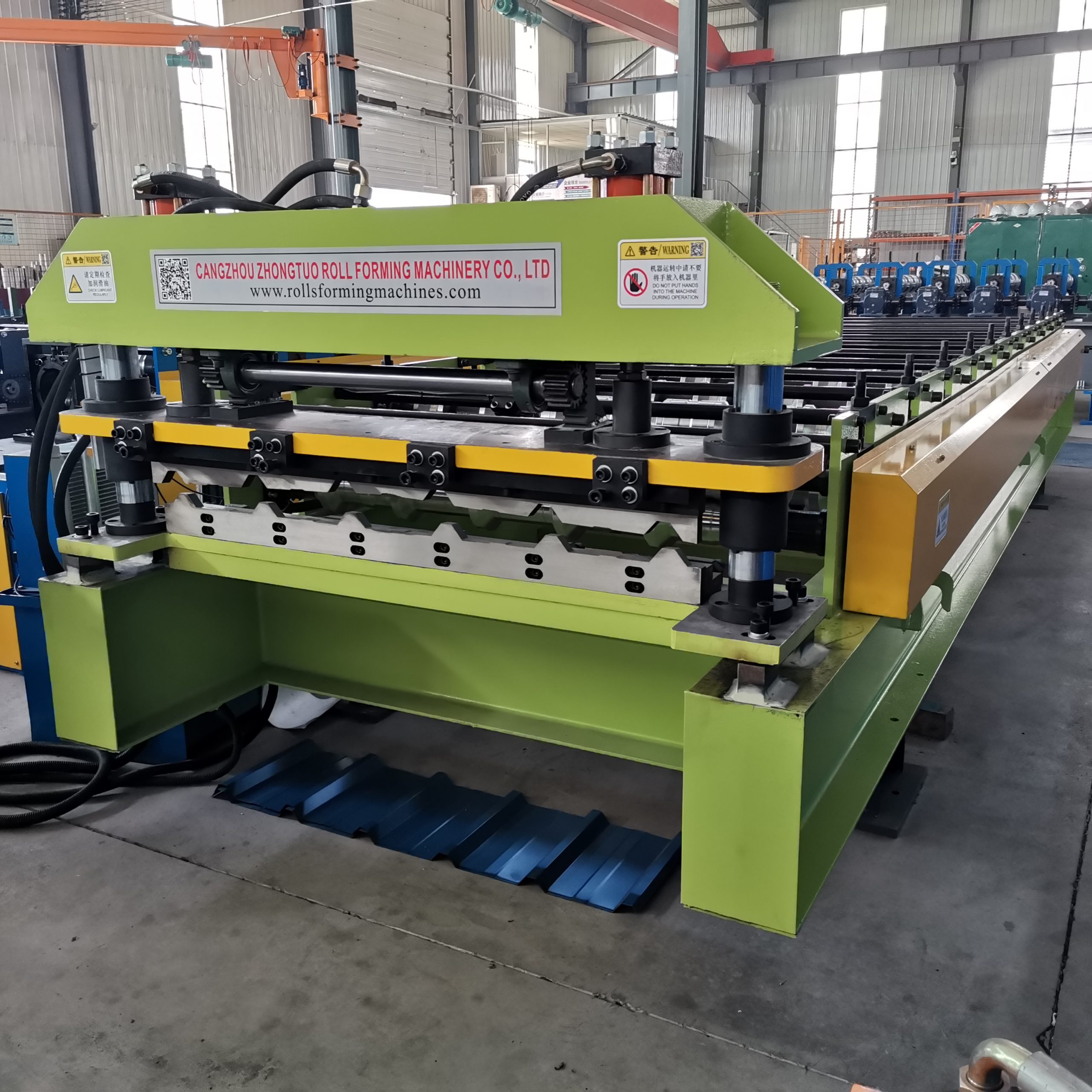

Roofing sheet machine

This IBR Metal Roofing Sheet Making Machine is produced for Colombian customer,the final product size can be customized as customer’s request.

The components of the whole machine:

No.

Name

Quantity

1

Manual/hydraulic Decoiler

1 set

2

Main roll former

1 set

3

Control system

1 set

4

Hydraulic system

1 set

5

Product table

2 sets

Technical Specifications of the machine:

Item

Name

Specifications

1

Material

1.Raw material:PPGI,Galvanized steel,Stainless steel

2.Raw material thickness:0.3-0.8mm

3.Yield strength:350Mpa,550Mpa

4.Coil width:as the profile drawing

2

Main roll former

1.Roller station:16 station(according to profile drawing)

2.Roller material:Cr 12 with quenched treatment

3.Shaft diameter:80mm

4.Shaft material:45# steel with tempered

5.Transmission:by chain

6.Motor power:5.5kw

7.Machine frame:350H steel welded

8.Cutting type:Hydraulic cutting

9.Cutting blade material:Cr12 with quenched treatment

10.Cutting tolerance:+/-1mm

3

Electric brand

1.Control system:PLC

2.PLC brand:Siemens

3.Touch screen brand:Siemens

4.Button brand:Schneider

5.Encoder brand:Omron

6.Low voltage apparatus:Schneider

More pictures of the machine:

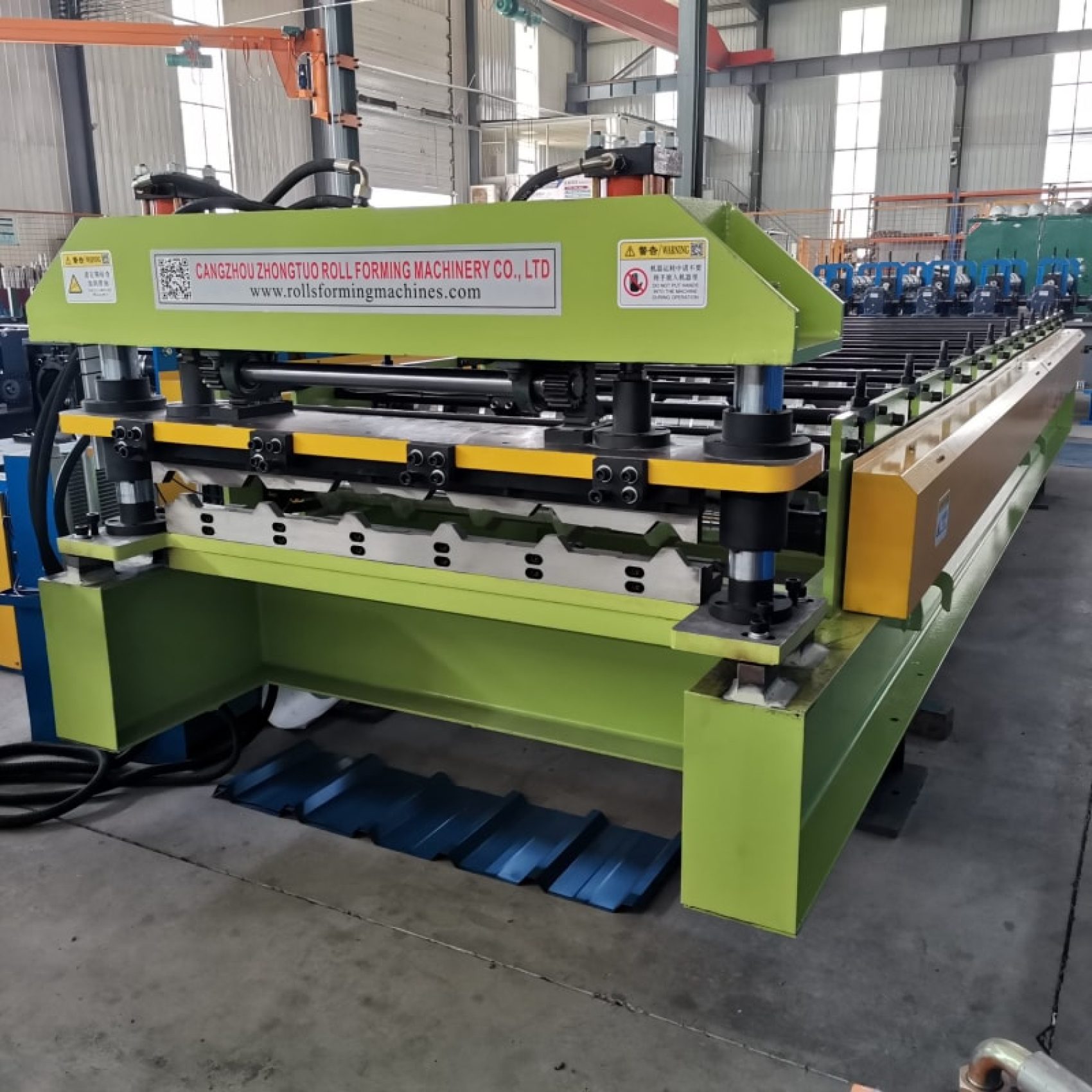

IBR SHEET MACHINE (3)
